Handheld Fiber CNC Laser Welding Machine For Aluminum Galvanized Plate Steel

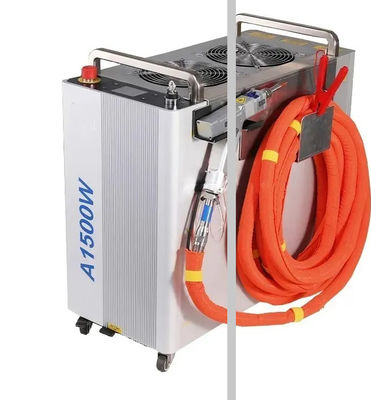

Large Image : Handheld Fiber CNC Laser Welding Machine For Aluminum Galvanized Plate Steel

Product Details:

Brand Name:	Sintec Optronics
Model Number:	STW003

Payment & Shipping Terms:

Delivery Time:	Stock
Payment Terms:	T/T via bank

Contact Now

Handheld Fiber CNC Laser Welding Machine For Aluminum Galvanized Plate Steel

Description

Control System:	CNC Control System	Cooling System:	Air Cooling
Laser Power:	1000W 1500W	Laser Wavelength:	10.6um
Positioning Accuracy:	±0.03mm	Power Supply:	220V/50Hz
Repeatability Accuracy:	±0.02mm	Welding Depth:	Max 5mm
Highlight:	Aluminum Laser Welding Machine , Fiber Laser Welding Machine , Laser Welder Machine

product-QUESTT-img

product-Air Cooling Mini Portable Handheld Fiber Laser Welding Machine for Welding Aluminum Galvaniz

Introduction

1. The output power is 1500W, and the welding penetration reaches 4mm;
2. Based on 976nm pump technology, high electro-optical conversion efficiency ≥42%;
3. Single pendulum welding head with adjustable welding width;
4. The weight of the whole machine is less than 60kg, compact design, small volume;
5. Unique air-cooled design, low power consumption, energy saving and environmental protection, power supply 220VAC-18A;
6. Triple protection design, built-in air pressure detection device.

PRODUCT PARAMETERS

Model	STW003-1000M	STW003-1500M
Average output power	1000W	1500w
Operation Mode	CW/Modulate
Max Modulation Frequency	5KHz
Polarization	Random
Delivery Cable Length	8M
Power Supply	1 PH 220V/50/60hZ
Power Consumption	4KW	5KW
Cooling	Air Cooled
Operation Temperature	10-40 degree
Max Depth of welding	3mm	4mm
Machine Weight	62Kg
