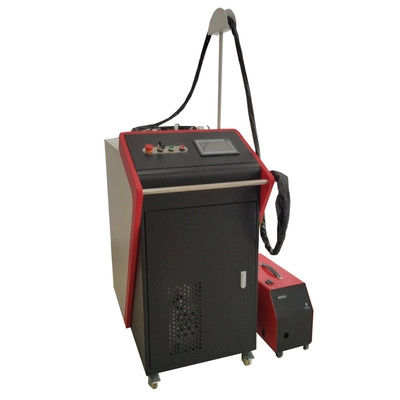

Handheld 3 In 1 Fiber Laser Welding Cleaning Cutting Machine 1500W 2000W 3000W

I'm Online Chat Now

Handheld 3 In 1 Fiber Laser Welding Cleaning Cutting Machine 1500W 2000W 3000W

Handheld 3 In 1 Fiber Laser Welding Cleaning Cutting Machine 1500W 2000W 3000W
Handheld 3 In 1 Fiber Laser Welding Cleaning Cutting Machine 1500W 2000W 3000W

Large Image :  Handheld 3 In 1 Fiber Laser Welding Cleaning Cutting Machine 1500W 2000W 3000W

Product Details:
Brand Name: Sintec Optronics
Model Number: STW013
Payment & Shipping Terms:
Delivery Time: Stock
Payment Terms: T/T via bank

Handheld 3 In 1 Fiber Laser Welding Cleaning Cutting Machine 1500W 2000W 3000W

Description
Laser Power: 1000W-3000W Operation Mode: CW/Modulate
Cooling System: Water Cooling Operation Temperature: 10-40 Degree
Maintenance: Easy Power Supply: 1 PH 220V Five Wire Connect
Max Depth Of Welding: 3-5mm
Highlight:

Handheld Laser Welding Machine

,

Laser Welder

,

Handheld 3 in 1 Laser Welding Cleaning Cutting Machine

3 In 1 Handheld Fiber Laser Welding Cleaning Cutting Machine 1500W 2000W 3000W Metal Laser Welding Machine



Features

1. One machine, three functions: welding, cleaning and cutting, the conversion of each function is convenient and simple.

2. The hand-held cleaning head has a simple hand-held structure and is easy to carry. Equipped with a touch screen, it is convenient to switch parameters during work and simplify the operation. Weight 0.75kg, light to use without fatigue.

3. This laser equipment can be used for metal cleaning, rust removal, welding and cutting.

4. Redlight positioning, makes the work position is more accurate and beautiful.

5. The hand-held laser welding machine can work manually or be installed on a robot, so that the machine can work fully automatically and improve work efficiency.

6. Built-in high-efficiency chiller, the whole machine has a compact structure and weighs only 160KG after packing with auto wire feeder.

3 In 1 Handheld Fiber Laser Welding Cleaning Cutting Machine 1500W 2000W 3000W 0

3 In 1 Handheld Fiber Laser Welding Cleaning Cutting Machine 1500W 2000W 3000W 1

3 In 1 Handheld Fiber Laser Welding Cleaning Cutting Machine 1500W 2000W 3000W 2



Three type heads

Three types gun



3 In 1 Handheld Fiber Laser Welding Cleaning Cutting Machine 1500W 2000W 3000W 3







Laser welding head

3 In 1 Handheld Fiber Laser Welding Cleaning Cutting Machine 1500W 2000W 3000W 4







Laser cutting head

3 In 1 Handheld Fiber Laser Welding Cleaning Cutting Machine 1500W 2000W 3000W 5









Laser cleaning head



Parameters



Model STW013-1000W STW013-1500W STW013-2000W
Average output power 1000W 1500W 2000W
Operation Mode CW/Modulate
Max Modulation Frequency 5KHz
Output Power Stability ±3%
Red Laser Yes
Terminal Type QBH
Beam Quality 1.3M2 1.5M2 1.8M2
Polarization Random
Delivery Cable Length 20M
Power Supply 1 PH 220V five wire connect
Control Mode RS232/AD
Power Consumption 4KW 5KW 6KW
Cooling Water Cooled
Operation Temperature 10-40 degree
Max Depth of welding 3mm 4mm 5mm
Machine Weight 250Kg 250Kg 260kg
Package size 1230*730*1440mm



Samples

3 In 1 Handheld Fiber Laser Welding Cleaning Cutting Machine 1500W 2000W 3000W 6

3 In 1 Handheld Fiber Laser Welding Cleaning Cutting Machine 1500W 2000W 3000W 7
