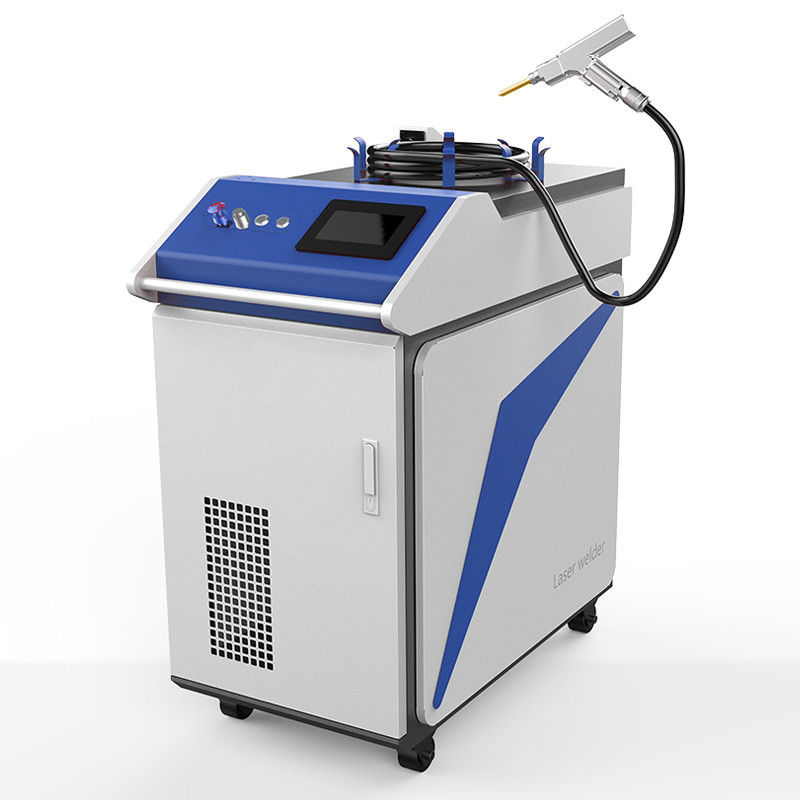

3 in 1 Fiber Laser Cutting / Welding Machine Handheld for Metal

I'm Online Chat Now

3 in 1 Fiber Laser Cutting / Welding Machine Handheld for Metal

3 in 1 Fiber Laser Cutting /  Welding Machine Handheld for Metal
3 in 1 Fiber Laser Cutting /  Welding Machine Handheld for Metal

Large Image :  3 in 1 Fiber Laser Cutting / Welding Machine Handheld for Metal

Product Details:
Brand Name: Sintec Optronics
Model Number: STW007
Payment & Shipping Terms:
Delivery Time: Stock
Payment Terms: T/T via bank

3 in 1 Fiber Laser Cutting / Welding Machine Handheld for Metal

Description
Power: 1000W, 1500W, 2000W Operation Mode: CW/Modulate
Max Modulation Frequency: 5KHz Output Power Stablility: <3%
Cooling: Water Cooling Power Supply: 3 PH 380V Five Wire Connect
Max Depth Of Welding: 3-5mm
Highlight:

Fiber Laser Welding Machine

,

3 In 1 Laser Welding Machine

,

Handheld Laser Cutting Welding Machine

3 In 1 Handheld Fiber Cutting Laser Welding Machine For Metal

Introduction
1. One machine, three functions: welding, cleaning and cutting, the conversion of each function is convenient and simple.
2. The hand-held cleaning head has a simple hand-held structure and is easy to carry. Equipped with a touch screen, it is convenient to switch parameters during work and simplify the operation. Weight 0.75kg, light to use without fatigue.
3.This laser equipment can be used for metal cleaning, rust removal, welding and cutting.
4. Redlight positioning, makes the work position is more accurate and beautiful.
5. The hand-held laser welding machine can work manually or be installed on a robot, so that the machine can work fully automatically and improve work efficiency.
6. Built-in high-efficiency chiller, the whole machine has a compact structure and weighs only 160KG after packing with auto wire feeder.


ModelSSTW007-1000MSTW007-1500MQA-FL2000M
Average output power1000W1500w2000W
Operation ModeCW/Modulate
Max Modulation Frequency5KHz
Output Power Stablility<3%
Red LaserYes
Terminal TypeQBH
Beam Quality1.3M21.5M22M2
PolarizationRandom
Delivery Cable Length20M
Power Supply3 PH 380V five wire connect
Control ModeRS232/AD
Power Consumption4KW5KW7KW
CoolingWater Cooled
Operation Temperature10-40 degree
Max Depth of welding3mm4mm5mm
Machine Weight200Kg
