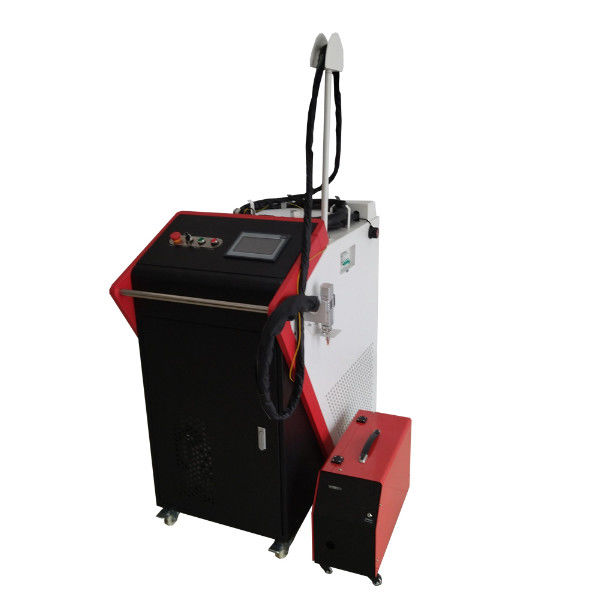

3 In 1 Automatic Laser Welder 2KW Portable Handheld Laser Welder

3 In 1 Automatic Laser Welder 2KW Portable Handheld Laser Welder
3 In 1 Automatic Laser Welder 2KW Portable Handheld Laser Welder

Large Image :  3 In 1 Automatic Laser Welder 2KW Portable Handheld Laser Welder

Product Details:
Brand Name: Sintec Optronics
Model Number: STW011
Payment & Shipping Terms:
Delivery Time: Stock
Payment Terms: T/T via bank

3 In 1 Automatic Laser Welder 2KW Portable Handheld Laser Welder

Description
Control System: CNC Control Cooling System: Water Cooling
Laser Power: 1000W/1500W/2000W Laser Type: Fiber Laser
Minimum Character Size: 0.4mm Minimum Line Width: 0.1mm
Operating Temperature: 0-45℃ Power Supply: 380V/50Hz
Operation Mode: CW/Modulate Wavelength: 10.6um
Highlight:

3 In 1 Laser Welder

,

Laser Welder

,

Portable Handheld Laser Welder

2KW 3 In 1 Automatic Laser Welding Machine Portable Fiber Laser



Introduction
1. One machine, three functions: welding, cleaning and cutting, the conversion of each function is  convenient and simple.
2. The hand-held cleaning head has a simple hand-held structure and is easy to carry. Equipped with a touch screen, it is convenient to switch parameters during work and simplify the operation. Weight 0.75kg, light to use without fatigue.
3. This laser equipment can be used for metal cleaning, rust removal, welding and cutting.
4. Redlight positioning, makes the work position is more accurate and beautiful.
5. The hand-held laser welding machine can work manually or be installed on a robot, so that the machine can work fully automatically and improve work efficiency.
6. Built-in high-efficiency chiller, the whole machine has a compact structure and weighs only 160KG after packing with auto wire feeder.



Model STW011-000M STW011-1500M STW011-2000M
Average output power 1000W 1500w 2000W
Operation Mode CW/Modulate
Max Modulation Frequency 5KHz
Output Power Stablility <3%
Red Laser Yes
Terminal Type QBH
Beam Quality 1.3M2 1.5M2 2M2
Polarization Random
Delivery Cable Length 20M
Power Supply 3 PH 380V five wire connect
Control Mode RS232/AD
Power Consumption 4KW 5KW 7KW
Cooling Water Cooled
Operation Temperature 10-40 degree
Max Depth of welding 3mm 4mm 5mm
Machine Weight 200Kg
