Product Details:
|
Cooling System: | Water Cooling | Cutting Area: | 6000x2000mm |
---|---|---|---|
Laser Power: | 1000W-10KW | Laser Type: | Fiber Laser |
Machine Dimension: | 3000*2000*1500mm | Machine Weight: | 3500Kg/4200KG |
Working Environment: | Indoor | Working Voltage: | 380V/50HZ |
Application: | Cutting For Metal Sheet, Stainless Steel | ||
Highlight: | Laser Cutting Machine For Metal,8000W Fiber Laser Cutting Machine,Laser Cutting Machine |

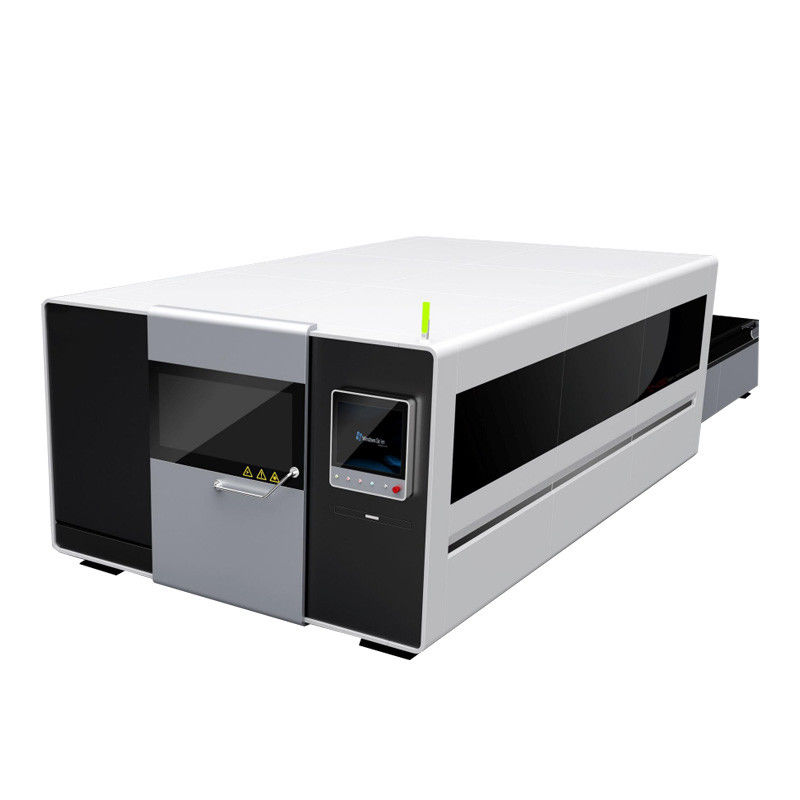

Super Quality Sheet Metal Laser Cutting Machine has equipped with a double exchange working table, size 2000x6000mm, which can protect the workers during cutting the very big metal sheets to get big size workpieces. The laser power is very high, reaching 10KW, so it can cut very thick metal sheets up to 30mm. Because of the big working area, the laser cutter can work for the military and aerospace industry, cutting very big size metal sheets to make special unit parts for machinery. The key advantage of a fiber laser is its short beam wavelength (1,064nm). The wavelength, which is ten times lower than that of the C02 laser, generates high absorption into metals. This makes the fiber laser become a perfect tool for cutting metal sheets of stainless steel, carbon steel, mild steel, aluminum, brass, etc. The fiber laser source is the most advanced laser source for metal cutting, there are a lot of unique advantages, such as free maintenance, lowest power consumption, and longest working lifespan, and the most important is the highest accuracy and efficiency during processing the metal materials.
10KW Fiber laser cutting machines | |
Model | STC005 |
Laser source | Fiber laser |
Laser Power | 1KW-8KW |
Laser Wavelength | 1070nm |
Max working area | 6000x2000mm |
Working table | Single (double exchange tables optional) |
Z axis movement | 100mm |
Positioning accuracy | ±0.01mm |
Repeating accuracy | ±0.02mm |
Max cutting speed | 18m/min |
Max cutting thickness | 1-20mm according to materials |
Cooling | Water cooling |
Laser Cutting Head | Autofocus Raytools from Switzerland |
Servo Motor & Driver | YASKAWA From Japan |
Reducer with Gear | Shimpo from Japan |
Rack Pinion | Hiwin from Tanwan(World Brand) |
Linear Guiderail | Hiwin From Tanwan(world Brand) |
Control System | CyperCut8000 from Bochu China |
Oil Lubricated | Automatic lubricated |
Gantry System | Steel gantry |
Pneumatic Control | SMC from Japan |
Gas controller | Double |
Machine Dimension | 5620*2970*1850 mm/14400*3350*1890 mm |
Weight | 3500Kg/4200KG |
Power Protection Level | IP54 |
Voltage | Three Phases 380V, 50HZ |
