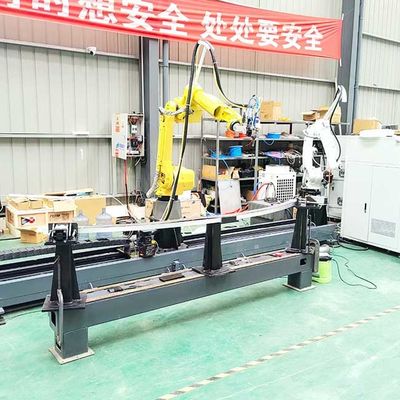

3D 6-Axis Robot Laser Cutting Machines

The 3D laser cutting machine is a perfect combination of six axis industrial robots and high-precision laser systems, paired with a specially designed lightweight 3D anti-collision cutting head. It can cut the spatial curve trajectory of various irregular 3D work-pieces and add multiple additional axes to achieve seven axis and eight axis linkage. The overall structure is designed according to ergonomics, meeting the needs of small and medium-sized batches and diversified flexible processing in industries such as locomotive manufacturing and helmets, and strongly promoting the upgrading of industrial intelligent manufacturing.

Features:

• Strong adaptability to materials, able to adapt to cutting and processing of various irregular work-pieces;
• High production efficiency, which can replace traditional manufacturing processes such as trimming and punching moulds;
• High economic efficiency, significantly reducing the research and development cycle of new products, and seizing market opportunities;
• High cutting accuracy, smooth and burr free cutting surface, meeting the manufacturing accuracy requirements of the locomotive industry;
• The operation is simple and fast, with a rich process database embedded, which can be called or modified with one click;
• Stable and reliable performance, efficient and energy-saving, low maintenance costs, and long service life;
• Strong scalability, can increase external axes for linkage or collaborative processing, and shorten cutting time;
• Green and environmentally friendly processing, no production of cattle pollutants, no consumables, and high yield rate.

Technical Specifications:

Ordering Guide: Model STC-XXXX-YY-Z-AA

Optional:

1. High precision six axis industrial robot: Robots can be selected based on process requirements such as workpiece size and cutting accuracy requirements. The following robots can be perfectly matched with PLC systems, offline mapping software, displacement machines, and protective rooms.

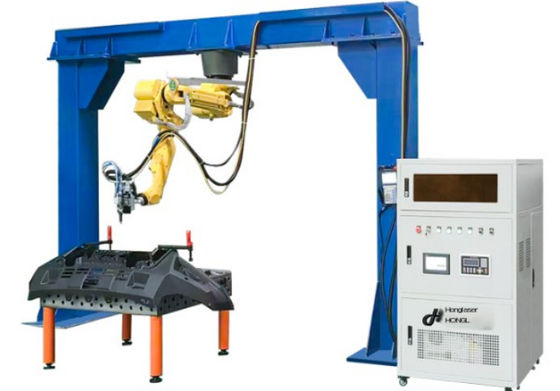

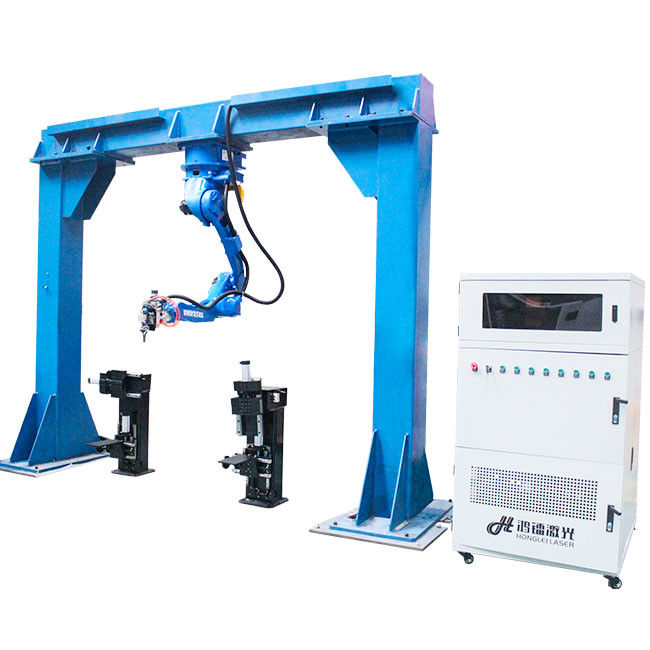

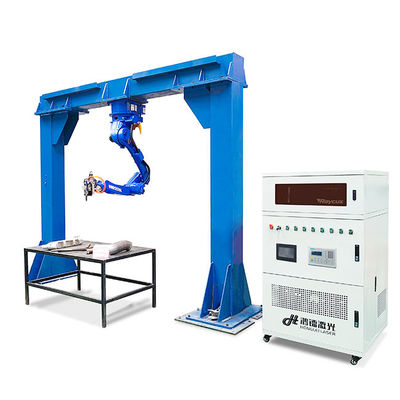

2. Robot installation method: A. Robot inversion: paired with a gantry frame to expand processing space, very suitable for flexible processing of large and ultra long workpieces; B. Robot formal attire: can be paired with a multi-station workbench, with a small footprint and flexible posture, suitable for cutting small workpieces.

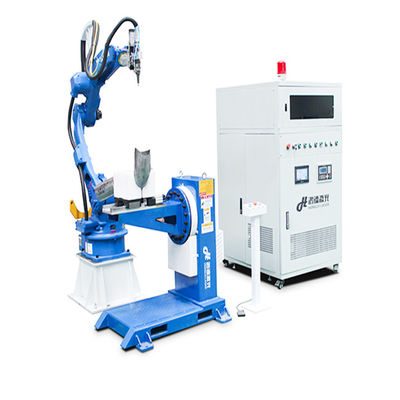

3. Customized fixture: Different types of linkage or collaborative displacement machines, sky rails or ground rails, and supporting fixtures can be developed based on the processed workpiece to achieve precise and efficient cutting of irregular workpieces of different materials, shapes, and sizes.

4. Offline programming map: Equipped with a manual teaching device as standard, it can directly generate, edit, and transfer processing programs without programming; Alternatively, a 3D offline simulation system can be installed for direct digital and analog import, generating cutting paths with one click, shortening the preparation time before processing, and easily adjusting to the optimal cutting state.

Application field:

Widely used for cutting edges and holes in various sheet metal stretching parts and covering parts; 3D arc cutting and hole position cutting of various hardware shaped pipe fittings. It is an aluminum alloy frame, baby bike frame, new energy electric vehicle, electric tricycle, beach bike, motorcycle industry, fitness equipment flat tube and other irregular three-dimensional metal parts, composite materials such as glass fiber, carbon fiber, Kevlar, and some plastic cutting holes, edges, and arc cutting tools.

FAQ:

Q: How can I install and debug the machine?

A:We will provide instructions and installation videos with the machine, and provide online guidance from English engineers to ensure that the machine can operate normally, and at the same time, let customers learn how to operate and maintain the machine.

Q:Can I customize the machine according to my requirement? Or OEM?
A:We will provide suitable machines according to the specific needs of customers, and provide OEM services.

Q:Can you arrange transportation for me?
A:Of course, for foreign trade business, we provide EXW, FOB and CIF services. Customers with urgent needs can also choose air freight.

Q:What is the warranty period of the machine?
A:According to different types of machines, we provide a two-year or three-year warranty period. During the warranty period, free repairs or replacement of broken parts are provided. Free maintenance services and machine upgrade services are provided for life outside the warranty period.

Q:What's the consumables of the machine? How much?
A:The machine is very easy to maintenance, only lens and laser tube, power supply are consumables. And laser tube lifetime about 10000 hours, as to lens and power supply, they will not damage if no accident.
