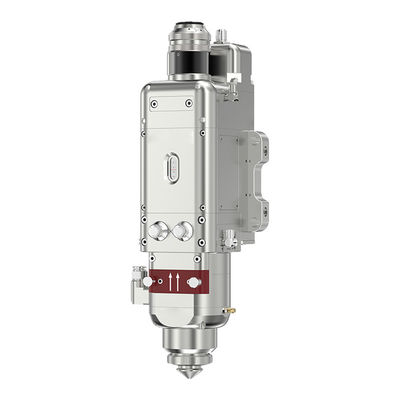

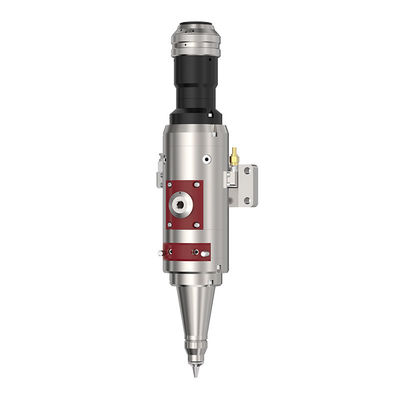

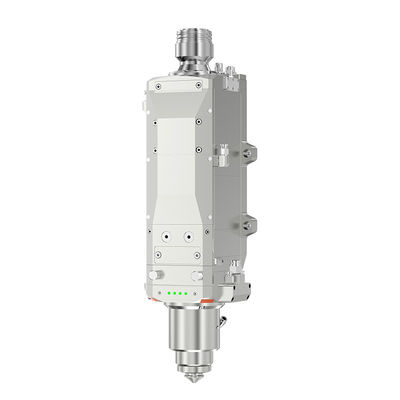

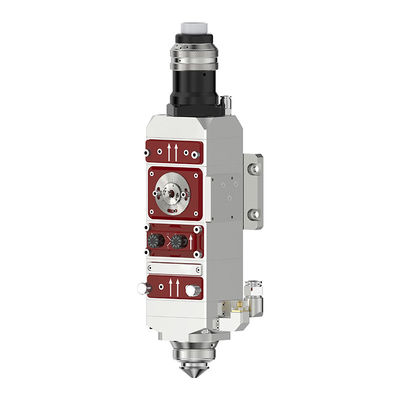

Fiber Laser Cutter Head / 3D Laser Cutting Heads 1500W - 6000W

Fiber Laser Cutter Head / 3D Laser Cutting Heads 1500W - 6000W
Fiber Laser Cutter Head / 3D Laser Cutting Heads 1500W - 6000W Fiber Laser Cutter Head / 3D Laser Cutting Heads 1500W - 6000W Fiber Laser Cutter Head / 3D Laser Cutting Heads 1500W - 6000W Fiber Laser Cutter Head / 3D Laser Cutting Heads 1500W - 6000W Fiber Laser Cutter Head / 3D Laser Cutting Heads 1500W - 6000W

Large Image :  Fiber Laser Cutter Head / 3D Laser Cutting Heads 1500W - 6000W

Product Details:
Brand Name: Sintec Optronics
Model Number: STOS Series
Payment & Shipping Terms:
Delivery Time: Stock
Payment Terms: T/T
Contact Now

Fiber Laser Cutter Head / 3D Laser Cutting Heads 1500W - 6000W

Description
Highlight:

Fiber Laser Cutter Head

,

Fiber Laser Cutting Head

,

Laser Cutting Head

1500W-6000W Fiber Laser Cutting Head/3D Laser Cutting Heads



1. STOS-CU102

  • Installation with collimating mirror.

  • Water cooling module.

  • Drawer installation method.

laser cutting head

Interface type QBH
Laser power ≤1500W/3000W
Collimating focallength F100mm/150mm
Horizontal Adjustment ±1.5mm
Collimatingcontrol range ±5mm
The maximum optical aperture 26mm
Weight 1.0KG

2. STOS- LC205

  • Integrated shaft

  • Small and long cutting head, suitable for working in limited space

  • The cutting machine is suitable for integration in multi axis.

  • Built-in water cooling

  • Drawer installation method, convenient for maintenanceand replacement

  • The plane screw adjust focus by transmission, accuracy is 0.1mm, with a good self-locking performance.

Laser power ≤3000W
Focal length 150mm
Vertical Adjustment ±5mm
Horizontal Adjustment ±1.5mm
Nozzle all types
Shaft travel 20mm
Follow rated speed 50mm/s
Weight 7.0KG

3. STOS- LC204

  • Suitable for small and medium size cutting machine

  • Built-in water cooling

  • Drawer installation method, convenient for maintenance and replacement

  • Installed collimating protective lens

  • The plane screw adjust focus by transmission ,accuracy is 0.1mm,with a good self-locking performance

Interface type QBH
Laser power ≤1500W
Focal length 125mm/150mm
Collimating Focal length 80mm/100mm
Nozzle all types
Vertical Adjustment ±8.5mm
Collimator Adjustment ±5mm
Horizontal Adjustment ±1.5mm
Auxiliary pressure ≤3.0MPa
Weight 3.0KG

4. STOS- LC101

  • Small volume, light weight

  • Suitable for small and medium size cutting machine

  • Drawer installation method, convenient for maintenance and replacement

  • The plane screw adjust focus by transmission ,accuracy is 0.1mm,with a good self-locking performance

Interface type QBH
Laser power (LC305L≤1500W), (LC305M≤3000W)
Focal length 125mm/150mm/200mm
Collimating Focal length 100mm
Nozzle all types
Vertical Adjustment +10mm~-12mm
Collimator Adjustment ±5mm
Horizontal Adjustment ±1.5mm
Focus adjustment speed 40mm/s
Auxiliary pressure ≤3.0MPa
Weight 6.0KG

laser cutting heads

5. STOS- LC305L/M

  • Automatic focusing mode, fast speed, high accuracy. Installed collimating protective lens

  • Suitable for integration in large plane cutting machine.

  • Drawer installation method, convenient for maintenance and replacement

  • Built-in water cooling

Interface type QBH
Laser power (LC305L≤1500W), (LC305M≤3000W)
Focal length 125mm/150mm/200mm
Collimating Focal length 100mm
Nozzle all types
Vertical Adjustment +10mm~-12mm
Collimator Adjustment ±5mm
Horizontal Adjustment ±1.5mm
Focus adjustment speed 40mm/s
Auxiliary pressure ≤3.0MPa
Weight 6.0KG

6. STOS- LC304

  • Installed collimating protective lens

  • Suitable for integration in large plane cutting machine.

  • Built-in water cooling

  • Drawer installation method, convenient for maintenance and replacement

  • The plane screw adjust focus by transmission ,accuracy is 0.1mm,with a good self-locking performance

laser cutting heads

Interface type QBH
Laser power ≤3000W
Focal length 125mm/150mm/200mm
Collimating Focal length 100mm
Nozzle all types
Vertical Adjustment ±8.5mm
Horizontal Adjustment ±1.5mm
Auxiliary pressure ≤3.0MPa
Weight 5.0KG

7. STOS- LC308

  • Automatic focusing mode, fast, high accuracy.

  • Installation with collimatingprotectivemirror.

  • Suitable for medium and large plane cutting machine.

  • Drawer installation method, convenient for change and maintain.


Laser power		 ≤6000W
Collimating Focal length 100mm
Nozzle type all types
Vertical Adjustment +10mm~-12mm
Focus adjustment speed 40mm/s
Auxiliary pressure ≤3.0MPa

8.3D Laser Cutting Heads, STOS- LC201, <2000W

3D laser cutting heads

  • Small volume, light weight suitable robot 3D laser cutting

  • Small and long cutting head, suitable for working in limited space

  • suitable for integration in three-dimensional cutting machine(Industrial manipulator)

  • Built-in water cooling

  • Drawer installation method, convenient for maintenance and replacement

  • Manual adjusting focus by moving lens

  • Optional servo module and collision protection device.

Model STOS-LC201
Interface type QBH
Laser power ≤2000W
Focal length 50mm
Collimating focal length 75mm
Nozzle all types
Adjustable focusing range ±5mm
Adjustable centering range ±1.5mm
Auxiliary pressure ≤2.5MPa
Weight 1.3kg
