Laser Power 50W 75W Diode Pumped Laser Gain Modules 1064nm Wavelength

Large Image : Laser Power 50W 75W Diode Pumped Laser Gain Modules 1064nm Wavelength

Product Details:

Brand Name:	Sintec Optronics
Model Number:	DPM Series

Payment & Shipping Terms:

Delivery Time:	Stock
Payment Terms:	T/T via bank

Contact Now

Laser Power 50W 75W Diode Pumped Laser Gain Modules 1064nm Wavelength

Description

Highlight:

Diode Pumped Laser Modules

Diode Pumped Laser

Laser Gain Modules

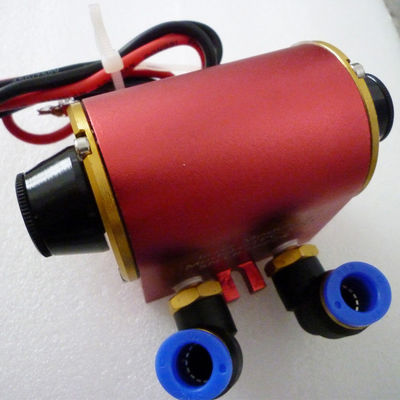

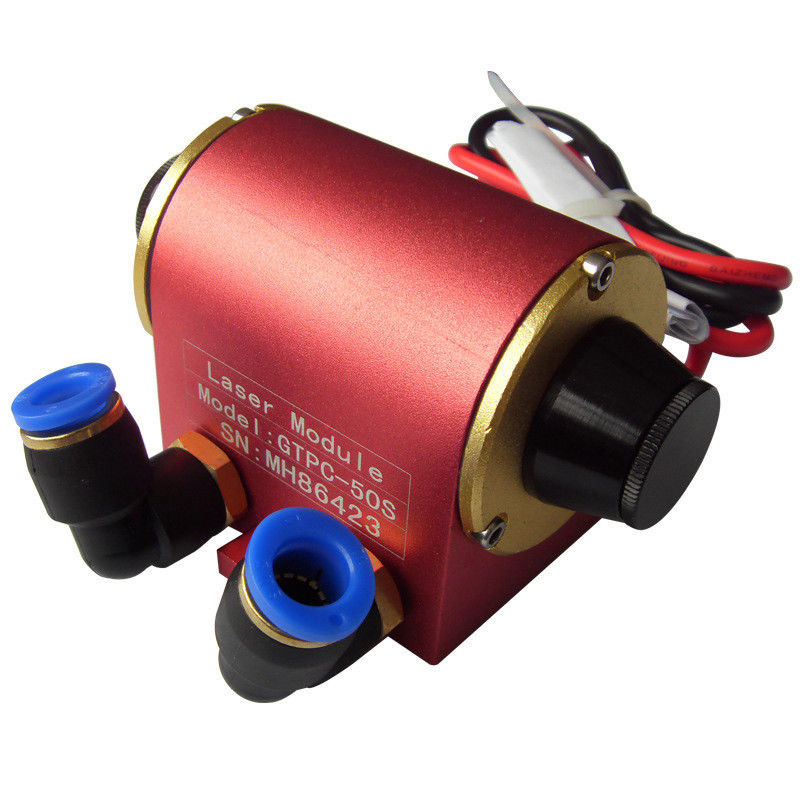

DPM Series Diode-pumped Laser Gain Modules

Laser Power 50W 75W Diode Pumped Laser Gain Modules 1064nm Wavelength 0

Laser Power 50W 75W Diode Pumped Laser Gain Modules 1064nm Wavelength 1

Part number	DPM-50S	DPM-75S
Wavelength	1064nm	1064nm
Laser power	50W	75W
Operation	CW	CW
Operation current	18A	25A
Operation voltage	≤18V	≤24V
Nd:YAG dimension	3x65mm	3x65mm
Cooling	Water	Water
Power input	Suggested LDD2020 (20A, 20V)	Suggested LDD2524 (25A, 24V)
Chiller	Cooling capacity ≥1000W Temp. accuracy ±0.5℃	Cooling capacity ≥1000W Temp. accuracy ±0.5℃
Water temp.	22℃	22℃
Warranty	12 months	12 months
Dimension	70x65x65mm	70x65x65mm

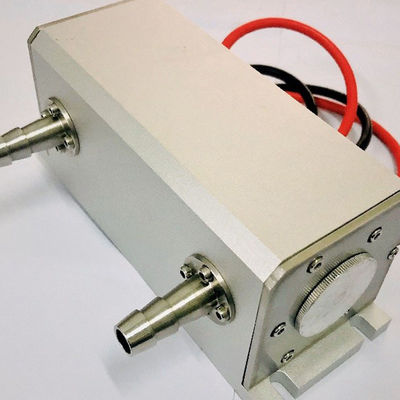

More diode modules are listed as follows:

Part No.	DPM-25	DPM-50D	DPM-50S	DPM-75	DPM-100	DPM-200	DPM-500	DPM-1000	DPM-1500
YAG Diameter (mm)	3	3	3	3	4	5	6/7	7	8
Output Power (W)	25	50	50	75	100	200	500	1000	1500
Operating Current (A)	29	15	18	29	29	29	29	29	29
Operating Voltage (V)	<6	<24	<18	<18	<24	<42	<100	<180	<250

For other power diode laser modules, please send us an email.
