Ceramic Reflectors, hair removal, IPL, lamp

Main features:

• Surface full glaze for maximum reflectivity and easy cleaning

• The reflectivity reaches 97% at the wavelength of 600-1000nm

• Reflectivity over 95% in the 400-1200nm spectrum

• The green body has proper porous and high strength properties

Main physical properties:

• Color: white

• Density: 3.1g/cm3 A kind of

• Porosity: 22%

• Bending strength: 170Mpa

• Coefficient of thermal expansion: 7.9×10-6­­/С (200～500℃), 9×10-6/С (200～1000℃)

Spectrum testing chart

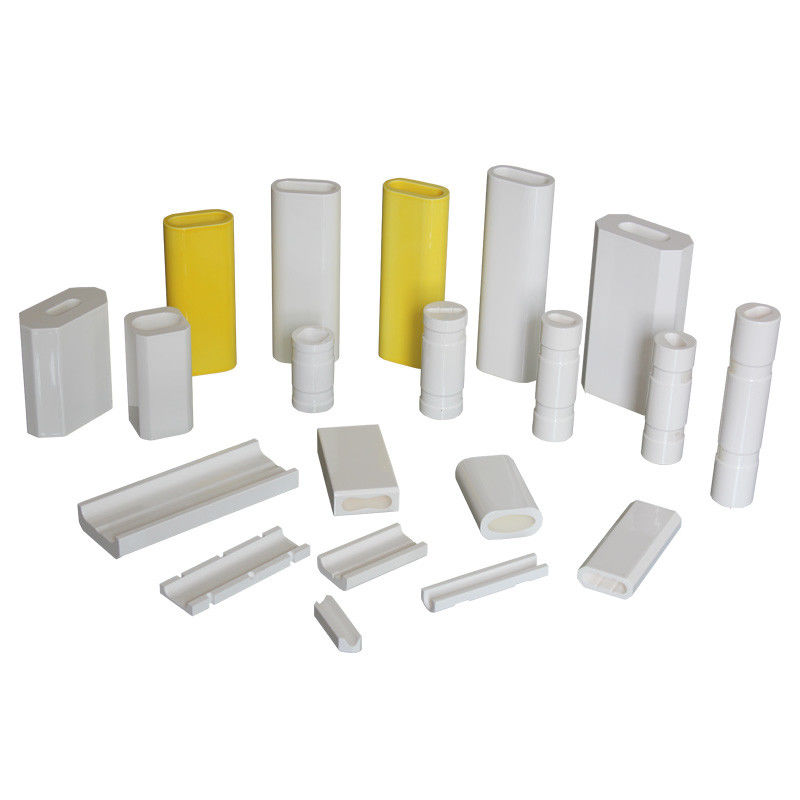

Following is our existing models which are already used.

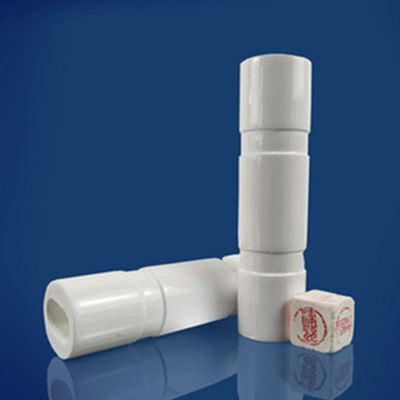

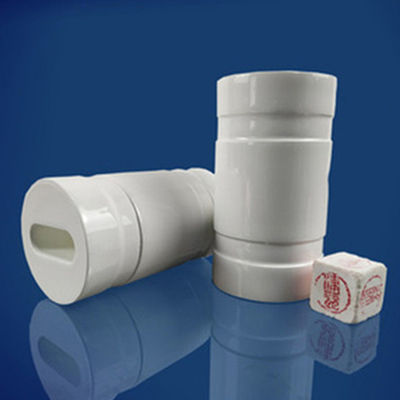

• STG-BAB – the external shape is round;

• STG-ZAB – the external shape is irregular

• STG-LAK – the external shape is rectangular but one side is concave;

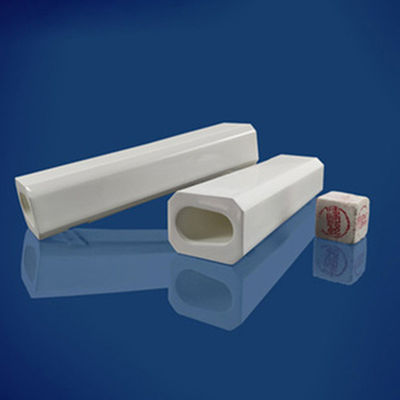

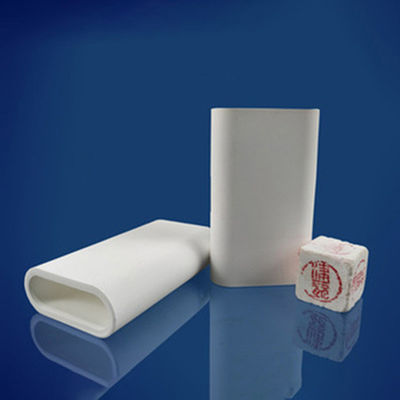

• STG-EAB - the external shape is rectangular

• STG-GAZ - the external shape is triangular

We can customize the reflectors according to the drawings which are supplied by the customers. Please feel free to contact us if you have any specific requirements or applications.
