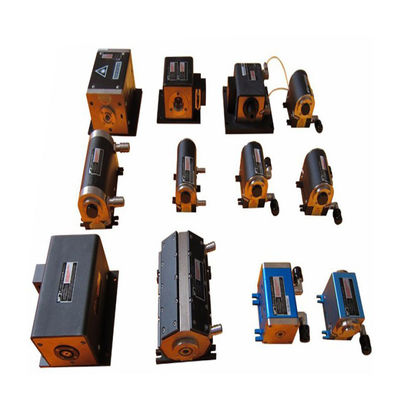

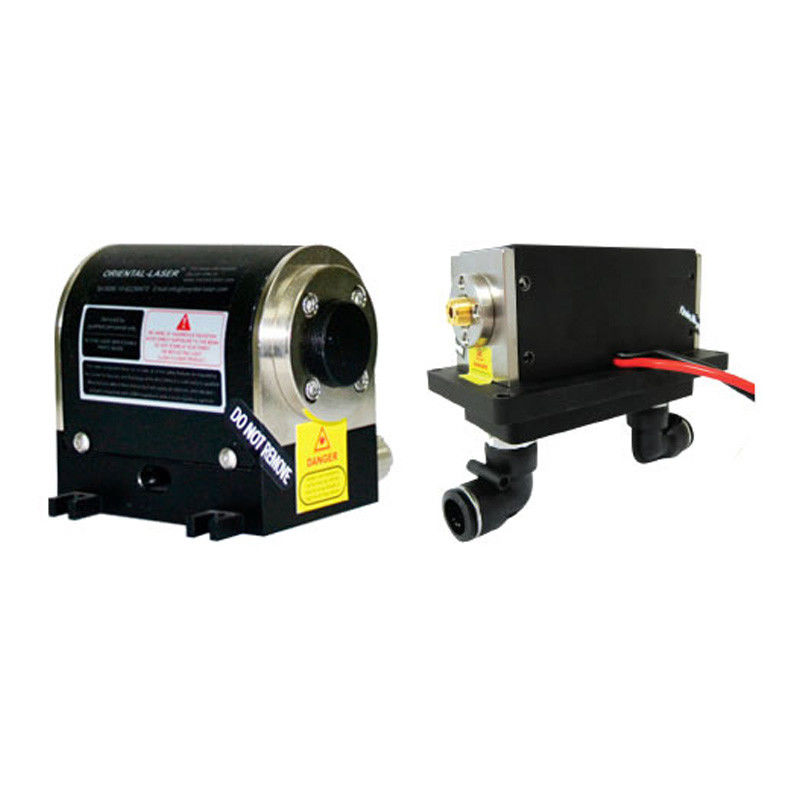

CW 1064nm DPSS Laser Diode Pump Module And Diode Laser Bars / Stacks

CW 1064nm DPSS Laser Diode Pump Module And Diode Laser Bars / Stacks
CW 1064nm DPSS Laser Diode Pump Module And Diode Laser Bars / Stacks CW 1064nm DPSS Laser Diode Pump Module And Diode Laser Bars / Stacks CW 1064nm DPSS Laser Diode Pump Module And Diode Laser Bars / Stacks CW 1064nm DPSS Laser Diode Pump Module And Diode Laser Bars / Stacks CW 1064nm DPSS Laser Diode Pump Module And Diode Laser Bars / Stacks

Large Image :  CW 1064nm DPSS Laser Diode Pump Module And Diode Laser Bars / Stacks

Product Details:
Place of Origin: China
Brand Name: Sintec Optronics
Model Number: STO Series
Payment & Shipping Terms:
Delivery Time: 5-7days
Payment Terms: T/T via bank
Contact Now

CW 1064nm DPSS Laser Diode Pump Module And Diode Laser Bars / Stacks

Description
Highlight:

DPSS Laser Diode Pump Module

,

Diode Laser Bars

,

DPSS Laser Diode Stacks

STO Series DPSS Diode Laser Modules & Diode Bars/Stacks

1. CW 1064nm Diode Laser Pump Modules & Drivers



The work mode of gain modules is CW or QCW. The QCW module also includes conduction cooling module and water cooling module. STO series CW module maximum power is 450W. Much powerful module also can be customized upon request. Typical applications are laser amplifiers for nanosecond and picosecond MOPA lasers, gain modules for unstable oscillator resonators, CW pumped, 532nm, ns q-switched lasers, and LIDAR lasers.

CW 1064nm DPSS Laser Diode Pump Module And Diode Laser Bars / Stacks 0

Applications:

  • Metal plate laser cutting, up to 12mm

  • Metal & non-metal marking & engraving

  • Metal & plastic welding, laser cleaning

  • PCB, ceramic and solar cell engraving % cutting

  • Lab & medical applications

Definition of Part Numbers: STO-XX-C-AxBB-SS-HH

  • XX: output average laser power

  • C: the part models of bars such as H or E

  • AxBB: dimension of the Nd:YAG rod. A is the diameter and BB is the length.

  • SS: the structure of the water cooling block such as CX (side), XX (bottom), XB (bottom with plate) and XG (bottom with nozzle)

  • HH: the height of the optical axis.

Part number Output laser power W Diode current A Diode voltage V YAG size mm Optical height mm
STO-35-H-2*67-CX-40 35 22 <18 2*67 40
STO-50-H-3*67-CX-40 50 22 <18 3*67 40
STO-50-H-4*67-CX-40 50 22 <18 4*67 40
STO-75-H-3*78-CX-40 75 22 <24 3*78 40
STO-75-H-3*78-CX-45 75 22 <24 3*78 45
STO-75-E-3*78-CX-45 75 25 <24 3*78 45
STO-100-E-4*100-XX-50 100 25 <30 4*100 50
STO-100-E-5*76-XX-50 100 25 <30 5*76 50
STO-150-H-3*110-CX-50 150 22 <48 3*110 50
STO-200-E-5*100-XX-50 200 25 <50 5*100 50
STO-200-E-4*100-CX-50 200 25 <50 4*100 50
STO-300-E-5*124-XB-40 300 25 <70 5*124 40
STO-300-E-5*124-XG-50 300 25 <70 5*124 50
STO-400-E-5*148-XG-50 400 25 <90 5*148 50
STO-450-E-5*160-XG-50 450 25 <100 5*160 50

Note: The typical Nd:YAG doping for STO series CW DPSS laser module is 0.6% and other doping levels (0.6%-1.1%) can be customized. The output power is measured with regular 300mm cavity length with flat-flat or concaved-flat resonator. The expected life time is 10,000 hours and the warranty is 12 months from the date of delivery.

STO Series, CW Laser Diode Power Supply (Diode Driver)

Model No. Max Voltage Max Current For Laser Modules
STO-520 24V 22A STO-35, STO-50-H, STO-75-H
STO-720 24V 30A STO-50-E, STO-75-E
STO-920 36V 30A STO-100, STO-120
STO-600S 12V 50A STO-VSCW-MI-X-XX
STO-LDD-40-30 40V 30A STO-150
STO-LDD-50-30 50V 30A STO-200
STO-LDD-70-25 70V 30A STO-300
STO-LDD-100-30 100V 30A STO-400, STO-500
STO-LDD-140-28 140V 28A For laser cutting head

2. QCW/Pulsed Diode Laser Pump Modules

diode pump modules

Applications:

  • Direct industry applications

  • As laser oscillator or laser seed

  • As laser amplifiers

  • To get high peak power with Q-switch

  • Other lab & medical applications

  • High repetition rate laser rangefinder

  • High pulse energy military applications

(1) mJ Level Diode Laser Pump Modules

Model No. Nd:YAG(mm) Pumping Power(808nm) Pulse Energy (200us) Current(A) Voltage(V)
STO-GQ9 Φ2-4 900W >30-40mJ 110 18
STO-GQ12 Φ2-4 1200W >40-50mJ 110 24
STO-GQ15 Φ2-4 1500W >60-70mJ 110 30
STO-GQ30 Φ3-5 3KW >120-140mJ 110 60
STO-GQ50 Φ3-5 5KW >200-250mJ 110 100
STO-GQ50B Φ3-5 5KW >200-250mJ 200 50
STO-GQ100B Φ4-8 10KW >400-500mJ 200 100
STO-GQ200B Φ4-8 20KW >800-1000mJ 200 200

Remark: (1) Customized stack/planar array side/end-pumping QCW modules in various shapes such as arc and annular available upon request. (2) The doping level of Nd:YAG can be customized from 0.6% to 1.1%. Pulse energy listed above is measured at 200μs/100Hz at 1064nm. Typical QCW modules are designed with duty circle £5% and higher duty circle modules must be customized. Small signal gain may be various according to different designs.

(2) Joule Level QCW/Pulsed DPSS Laser Modules

Model No. Nd:YAG Dia. Pulse Energy Operation Voltage Peak Current
STO-MQ1 5-10mm ＞1J 250V 200A
STO-MQ2 5-10mm ＞2J 500V 200A
STO-MQ3 5-10mm ＞3J 750V 200A
STO-MQ5 5-10mm ＞5J 1250V 200A
STO-MQ10 5-10mm ＞10J 2500V 200A

Remark: the above QCW modules are usually driven by a group of QCW Laser Diode Drivers synchronously and the operation voltage is the sum of these voltages. Pulse energy listed above is measured at 200μs/20Hz at 1064nm. Typical QCW modules are designed with duty circle ≤2%. Customized modules available upon request.

(3) Definition of Part Number: STO-TT-PW-CC-NN-PB-SS-AxBB

  • TT: energy level such as GQ (mJ-level modules at 250us) and JQ (J-level modules at 250us)

  • PW: total pumping peak power in W

  • CC: cooling method such as W (water cooled) and C (conductive cooled)

  • NN: number of bars

  • PB: peak power per bar such as 100W or 200W

  • SS: Structure of the modules such as H (linear array), A (arc) , C (circular). For example, H34 is linear array 3x4, 1P is one bar on each cell, 4A6 means there are 4arcs and there are 6 bars on each arc,

  • AxBB: rod size. A is the diameter and BB is length in mm.

Part Number Peak Pump Power (W) Stored Energy (J) Rod Size(MM) Current(A) Voltage(V) Typical Duty circle
STO-GQ-1000-C-10-100E-2A5-6*43 1000 0.08 6*43 100 <20 2.00%
STO-GQ-2000-C-10-200E-2A5-6*43 2000   6*43 200 <20 2.00%
STO-GQ-1000-C-10-100E-2C5-3*45 1000   3*45 100 <20 2.00%
STO-GQ-1200-C-12-100E-H34-4*39 1200 0.096 4*39 100 <20 2.00%
STO-GQ-2000-C-10-200E-2C5-3*45 1000   3*45 200 <20 1.00%
STO-GQ-2400-C-24-100E-4A6-2*4*25 2400   2Pcs 4*25 100 <48 2.00%
STO-GQ-4800-C-24-200E-4A6-2*4*25 4800   2pcs 4*25 200 <48 1.00%
STO-GQ-5600-C-56-100E-ACM-4*76 5600   4*76 100 <112 1.00%
STO-GQ-11200-C-56-200E-ACM-4*76 11200 0.9 4*76 200 <112 0.50%

STO-GQ-900-W-9-100-H33*1P-3×67 900 0.072 3*67 100 <18 12.50%
STO-GQ-1200-W-12-100-H34*1P-3×78 1200 0.096 3*78 100 <24 12.50%
STO-GQ-1200-W-12-100-H34*1P-4×78 1200 0.096 4*78 100 <24 12.50%
STO-GQ-1800-W-9-200-H33*1P-2*67 1800 0.14 2*67 200 <18 2.00%
STO-GQ-1800-W-9-200-H33*1P-2.54*67 1800 0.14 2.54*67 200 <18 2.00%
STO-GQ-1800-W-9-200-H33*1P-3*67 1800 0.14 3*67 200 <18 2.00%
STO-GQ-2000-W-20-100-H54*1P-4*88 2000 0.16 4*88 100 <40 12.50%
STO-GQ-2000-W-20-100-H54*1P-5*88 2000 0.16 5*88 100 <40 12.50%
STO-GQ-2400-W-12-200-H34*1P-2*78 2400 0.2 2*78 200 <24 2.00%
STO-GQ-2400-W-12-200-H34*1P-2.5*78 2400 0.2 2*78 200 <24 2.00%
STO-GQ-2400-W-12-200-H34*1P-3*78 2400 0.2 2*78 200 <24 2.00%
STO-GQ-2500-W-25-100-H55*1P-4*100 2500 0.21 4*100 100 <50 12.50%
STO-GQ-3000-W-30-100-H56*1P-5*112 3000 0.21 5*112 100 <60 12.50%
STO-GQ-3000-W-15-200-H35*1P-3*88 3000 0.25 3*88 200 <30 2.00%
STO-GQ-3000-W-15-200-H35*1P-4*88 3000 0.25 4*88 200 <30 2.00%

STO-GQ-3600-W-18-200-H33*2P-2.54*67 3600 0.28 2.54*67 200 <36 1.00%
STO-GQ-3600-W-18-200-H33*2P-3*67 3600 0.28 3*67 200 <36 1.00%
STO-GQ-4000-W-20-200-H54*1P-4*88 4000 0.32 4*88 200 <40 2.00%
STO-GQ-4800-W-24-200-18-200-H34*2P-2.54*78 4800 0.32 2.54*78 200 <48 1.00%
STO-GQ-4800-W-24-200-18-200-H34*2P-3*78 4800 0.32 3*78 200 <48 1.00%
STO-GQ-5000-W-25-200-H55*1P-4*100 5000 0.5 4*100 200 <50 2.00%
STO-GQ-5000-W-50-100-H510*1P-5*160 5000W 0.5 5*160 100 <100 12.50%
STO-GQ-6000-W-30-200-H35*2P-3*88 6000 0.4 3*88 200 <60 1.00%
STO-GQ-6000-W-30-200-H35*2P-4*88 6000 0.5 4*88 200 <60 1.00%

STO-GQ-6000-W-30-200-H56*1P-4*112 6,000 0.5 4*112 200 <60 2.00%
STO-GQ-6000-W-30-200-H56*1P-5*112 6,000 0.5 5*112 200 <60 2.00%
STO-GQ-6000-W-30-200-H56*1P-6.35*112 6,000 0.5 6.35*112 200 <60 2.00%
STO-GQ-6000-W-30-200-H56*1P-7*112 6,000 0.5 7*112 200 <60 2.00%
STO-GQ-6000-W-30-200-H56*1P-8*112 6,000 0.5 8*112 200 <60 2.00%
STO-GQ-6000-W-63-100-H79*1P-7*148 6300W   7*148 100 <126 12.50%

STO-GQ-8000-W-40-200-H58*1P-5*136 8,000 0.7 5*136 200 <80 2.00%
STO-GQ-8000-W-40-200-H58*1P-6.35*136 8,000 0.7 6.35*136 200 <80 2.00%
STO-GQ-8000-W-40-200-H58*1P-7*136 8,000 0.7 7*136 200 <80 2.00%
STO-GQ-8000-W-40-200-H58*1P-8*136 8,000 0.7 8*136 200 <80 2.00%
STO-GQ-8000-W-40-200-H58*1P-9*136 8,000 0.7 9*136 200 <80 2.00%
STO-GQ-8000-W-40-200-H58*1P-10*136 8,000 0.7 10*136 200 <80 2.00%

STO-GQ-10000-W-50-200-H510*1P-5*160 10,000 0.8 5*160 200 <100 2.00%
STO-GQ-10000-W-50-200-H510*1P-6*160 10,000 0.8 6*160 200 <100 2.00%
STO-GQ-10000-W-50-200-H510*1P-7*160 10,000 0.8 7*160 200 <100 2.00%
STO-GQ-10000-W-50-200-H510*1P-8*160 10,000 0.8 8*160 200 <100 2.00%
STO-GQ-10000-W-50-200-H510*1P-9*160 10,000 0.8 9*160 200 <100 2.00%
STO-GQ-10000-W-50-200-H510*1P-10*160 10,000 0.8 10*160 200 <100 2.00%
STO-GQ-10000-W-50-200-H510*1P-12*160 10,000 0.8 12*160 200 <100 2.00%

STO-JQ-12000-W-60-200-H56*2P-4*112 12,000 1 4*112 200 <120 1.00%

STO-JQ-12000-W-60-200-H56*2P-5*112 12,000 1 5*112 200 <120 1.00%
STO-JQ-12000-W-60-200-H512*1P-5*184 12,000 1 5*184 200 <120 2.00%
STO-JQ-12000-W-60-200-H56*2P-6*112 12,000 1 6*112 200 <120 1.00%
STO-JQ-12000-W-60-200-H512*1P-6*184 12,000 1 6*184 200 <120 2.00%
STO-JQ-12000-W-60-200-H56*2P-7*112 12,000 1 7*112 200 <120 1.00%
STO-JQ-12000-W-60-200-H512*1P-7*184 12,000 1 7*184 200 <120 2.00%
STO-JQ-12000-W-60-200-H56*2P-8*112 12,000 1 8*112 200 <120 1.00%
STO-JQ-12000-W-60-200-H512*1P-8*184 12,000 1 8*184 200 <120 2.00%
STO-JQ-12000-W-60-200-H56*2P-9*112 12,000 1 9*112 200 <120 1.00%
STO-JQ-12000-W-60-200-H512*1P-9*184 12,000 1 9*184 200 <120 2.00%
STO-JQ-12000-W-60-200-H56*2P-10*112 12,000 1 10*112 200 <120 1.00%
STO-JQ-12000-W-60-200-H512*1P-10*184 12,000 1 10*184 200 <120 2.00%
STO-JQ-12000-W-60-200-H56*2P-12*112 12,000 1 12*112 200 <120 1.00%
STO-JQ-12000-W-60-200-H512*1P-12*184 12,000 1 12*184 200 <120 2.00%
STO-JQ-15000-W-150-100-C1510-8*154 15000   8*154 100 <300 5.00%
STO-JQ-16000-W-80-200-H58*2P-5*136 16,000 1.3 5*136 200 <160 1.00%
STO-JQ-16000-W-80-200-H58*2P-6*136 16,000 1.3 6*136 200 <160 1.00%
STO-JQ-16000-W-80-200-H58*2P-7*136 16,000 1.3 7*136 200 <160 1.00%
STO-JQ-16000-W-80-200-H58*2P-8*136 16,000 1.3 8*136 200 <160 1.00%
STO-JQ-16000-W-80-200-H58*2P-9*136 16,000 1.3 9*136 200 <160 1.00%
STO-JQ-16000-W-80-200-H58*2P-10*136 16,000 1.3 10*136 200 <160 1.00%
STO-JQ-16000-W-80-200-H58*2P-12*136 16,000 1.3 12*136 200 <160 1.00%

STO-JQ-16800-W-84-200-80-200-H76*2P-15*112 16,800 1.4 15*112 200 <168 1.00%

STO-JQ-18000-W-90-200-H56*3P-5*112 18,000 1.5 5*112 200 <180 0.50%
STO-JQ-18000-W-90-200-H56*3P-6*112 18,000 1.5 6*112 200 <180 0.50%
STO-JQ-18000-W-90-200-H56*3P-7*112 18,000 1.5 7*112 200 <180 0.50%
STO-JQ-18000-W-90-200-H56*3P-8*112 18,000 1.5 8*112 200 <180 0.50%
STO-JQ-18000-W-90-200-H56*3P-9*112 18,000 1.5 9*112 200 <180 0.50%
STO-JQ-18000-W-90-200-H56*3P-10*112 18,000 1.5 10*112 200 <180 0.50%
STO-JQ-18000-W-90-200-H56*3P-12*112 18,000 1.5 12*112 200 <180 0.50%
STO-JQ-20000-W-200-100-C2010-10*154 20000W   10*154 100 <400 4.00%
STO-JQ-20000-W-100-200-H510*2P-5*160 20,000 1.7 5*160 200 <200 1.00%
STO-JQ-20000-W-100-200-H510*2P-6*160 20,000 1.7 6*160 200 <200 1.00%
STO-JQ-20000-W-100-200-H510*2P-7*160 20,000 1.7 5*160 200 <200 1.00%
STO-JQ-20000-W-100-200-H510*2P-8*160 20,000 1.7 5*160 200 <200 1.00%
STO-JQ-20000-W-100-200-H510*2P-9*160 20,000 1.7 5*160 200 <200 1.00%
STO-JQ-20000-W-100-200-H510*2P-10*160 20,000 1.7 5*160 200 <200 1.00%
STO-JQ-20000-W-100-200-H510*2P-12*160 20,000 1.7 5*160 200 <200 1.00%

STO-JQ-22400-W-112-200-H78*2P-12*136 22,400 1.8 15*136 200 <224 1.00%

STO-JQ-24000-W-120-200-H512*2P-5*184 24,000 2 5*184 200 <240 1.00%

STO-JQ-24000-W-120-200-H58*3P-6*136 24,000 2 6*136 200 <240 0.50%
STO-JQ-24000-W-120-200-H512*2P-6*184 24,000 2 6*184 200 <240 1.00%
STO-JQ-24000-W-120-200-H58*3P-7*136 24,000 2 7*136 200 <240 0.50%
STO-JQ-24000-W-120-200-H512*2P-7*184 24,000 2 7*184 200 <240 1.00%

STO-JQ-24000-W-120-200-H56*4P-8*112 24,000 2 8*112 200 <240 0.50%
STO-JQ-24000-W-120-200-H58*3P-8*136 24,000 2 8*136 200 <240 0.50%
STO-JQ-24000-W-120-200-H512*2P-8*184 24,000 2 8*184 200 <240 1.00%

STO-JQ-24000-W-120-200-H56*4P-9*112 24,000 2 9*112 200 <240 0.50%
STO-JQ-24000-W-120-200-H58*3P-9*136 24,000 2 9*136 200 <240 0.50%
STO-JQ-24000-W-120-200-H512*2P-9*184 24,000 2 9*184 200 <240 1.00%

STO-JQ-24000-W-120-200-H56*4P-10*112 24,000 2 10*112 200 <240 0.50%
STO-JQ-24000-W-120-200-H58*3P-10*136 24,000 2 10*136 200 <240 0.50%
STO-JQ-24000-W-120-200-H512*2P-10*184 24,000 2 10*184 200 <240 1.00%

STO-JQ-24000-W-120-200-H56*4P-12*112 24,000 2 12*112 200 <240 0.50%
STO-JQ-24000-W-120-200-H58*3P-12*136 24,000 2 12*136 200 <240 0.50%
STO-JQ-24000-W-120-200-H512*2P-12*184 24,000 2 12*184 200 <240 1.00%

STO-JQ-25200-W-126-200-H76*3P-15*112 25,200 2.1 15*112 200 <252 0.50%
STO-JQ-25200-W-126-200-H76*3P-18*112 25,200 2.1 18*112 200 <252 0.50%

STO-JQ-28000-W-140-200-126-200-H78*2P-15*136 28,000 2.3 15*136 200 <280 1.00%
STO-JQ-28000-W-140-200-H78*2P-18*136 28,000 2.3 18*136 200 <280 1.00%

STO-JQ-30000-W-150-200-H510*3P-7*136 30,000 2.5 7*160 200 <300 0.50%
STO-JQ-30000-W-150-200-H510*3P-8*136 30,000 2.5 8*160 200 <300 0.50%
STO-JQ-30000-W-150-200-H510*3P-9*136 30,000 2.5 9*160 200 <300 0.50%
STO-JQ-30000-W-150-200-H510*3P-10*136 30,000 2.5 10*160 200 <300 0.50%
STO-JQ-30000-W-150-200-H510*3P-12*136 30,000 2.5 12*160 200 <300 0.50%

STO-JQ-32000-W-160-200-H58*4P-8*136 32,000 2.6 8*136 200 <320 0.50%
STO-JQ-32000-W-160-200-H58*4P-9*136 32,000 2.6 9*136 200 <320 0.50%
STO-JQ-32000-W-160-200-H58*4P-10*136 32,000 2.6 10*136 200 <320 0.50%
STO-JQ-32000-W-160-200-H58*4P-12*136 32,000 2.6 12*136 200 <320 0.50%

STO-JQ-33600-W-168-200-H76*4P-15*112 33,600 2.8 15*112 200 <336
STO-JQ-33600-W-168-200-H78*3P-15*112 33,600 2.8 15*136 200 <336
STO-JQ-33600-W-168-200-H712*2P-15*112 33,600 2.8 15*184 200 <336
STO-JQ-33600-W-168-200-H76*4P-18*112 33,600 2.8 18*112 200 <336
STO-JQ-33600-W-168-200-H78*3P-18*112 33,600 2.8 18*136 200 <336
STO-JQ-33600-W-168-200-H712*2P-18*112 33,600 2.8 18*184 200 <336

STO-JQ-36000-W-180-200-H512*3P-8*188 36,000 3 8*184 200 <360
STO-JQ-36000-W-180-200-H512*3P-9*188 36,000 3 9*184 200 <360
STO-JQ-36000-W-180-200-H512*3P-10*188 36,000 3 10*184 200 <360
STO-JQ-36000-W-180-200-H512*3P-12*188 36,000 3 12*184 200 <360

STO-JQ-10000-W-200-200-H510*4P-9*160 40,000 3.3 9*160 200 <400
STO-JQ-10000-W-200-200-H510*4P-10*160 40,000 3.3 10*160 200 <400
STO-JQ-10000-W-200-200-H510*4P-12*160 40,000 3.3 12*160 200 <400

STO-JQ-42000-W-210-200-H710*3P-15*160 42,000 3.5 15*160 200 <420
STO-JQ-42000-W-210-200-H710*3P-18*160 42,000 3.5 18*160 200 <420

STO-JQ-44800-W-224-200-H710*4P-15*148 44,800 3.7 15*136 200 <448
STO-JQ-44800-W-224-200-H710*4P-18*148 44,800 3.7 18*136 200 <448

STO-JQ-48000-W-240-200-H512*4P-10*184 48,000 4 10*184 200 <480
STO-JQ-48000-W-240-200-H512*4P-12*184 48,000 4 12*184 200 <480

STO-JQ-50400-W-252-200-H712*3P-15*184 50,400 4.2 15*184 200 <504
STO-JQ-50400-W-252-200-H712*3P-18*184 50,400 4.2 18*184 200 <504

STO-JQ-56000W-280-200-H710*4P-15*160 56,000 4.6 15*160 200 <560
STO-JQ-56000W-280-200-H710*4P-18*160 56,000 4.6 18*160 200 <560

STO-JQ-67200-W-336-200-H712*4P-18*184 67,200 5.5 18*184 200 <672

STO-JQ-97200-W-540-200-H912*5P-25*184 97,200 8 25*184 200 <1080

3. Services and Maintenance of Other Brands’ Diode Modules

We are also able to provide lasers diodes repair and refurbishment services for various laser pump modules from various manufacturers all over the world. Our experienced engineers are able to repair them and provide after-sale services, including:

  • Rofin’s Diode Pumped Laser Heads

  • LEE Laser’s Diode Pumped Laser Heads

  • FOBA’s Diode Pumped Laser Heads

  • Northrop Grumman (Cutting Edge Optronics, CEO Laser)’s laser heads, including RB, RE and other series.

  • Almalaser Soprano &ICE diode laser hair removal handle piece

  • Syneron Elaser& Elase diode laser hair removal handle piece

  • Jenoptik's laser diode stack

  • Dilas's laser diode stack

  • Other DPSS laser heads from NEC etc

Please contact us for more information. Please note: Northrop Grumman, Cutting Edge Optronics, CEO Laser, Rofin, FOBA, Han’s Laser, Jenoptik, Dilas, NEC, Almalasers, Soprano, Soprano ICE, Elaser, Elase are their trade marks which belong to the companies above.

Tag:

Laser Cutting Welding Cleaning Head,

Diode Driver,

Laser Hair Removal

Contact Details
Wuhan Sintec Optronics Co., Ltd,

Contact Person: Steven

Tel: +86 15671598018

Fax: 86-027-51858989

Send your inquiry directly to us (0 / 3000)

About

Laser Cutting Machine

3D Robotic Cutting Machine for Aluminum Alloy Frames, Baby Carriage Frames, Electric Vehicle Frames

Engineering Plastic Cutting, Automotive Interior Plastic Parts and Other Composite Material Cutting, 3D Cutting Machine

OEM ODM Raycus MAX CW Fiber Laser Cutter Machine 1000W 2000W

Laser Welding Machine

Handheld 3 In 1 Fiber Laser Welding Cleaning Cutting Machine 1500W 2000W 3000W

3 IN 1 Multifunction Fiber Laser Welding Cutting Cleaning Machine Handheld 2KW

1500W 3 in 1 Laser Welder Cleaner Cutter Handheld for Metal

LEAVE MESSAGE

Privacy Policy | China Good Quality Laser Cutting Machine Supplier. © 2023 - 2024 chinalasermart.com. All Rights Reserved.
