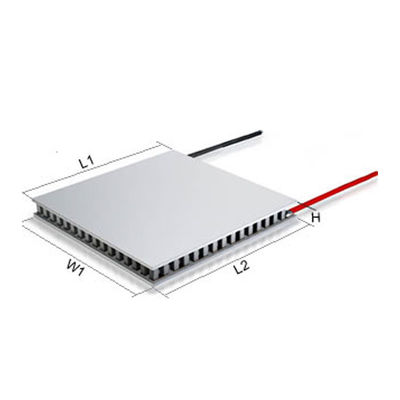

TEC Drivers,TE Coolers,PT1000 Temperature Sensors

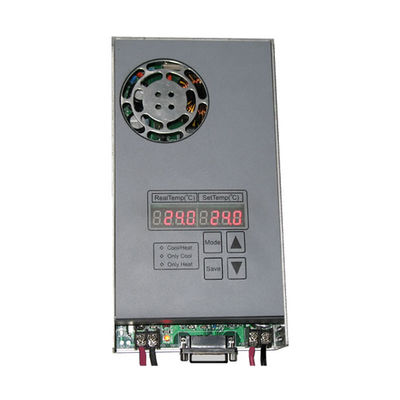

The TEC driver is a high-performance temperature control system (air cooling) specially designed for driving laser diode (thermoelectric refrigeration chip, TEC), with high precision and high stability.It is based on the principle of Peltier effect. It has the advantages of high precision, long service life, small volume, no noise, no wear, no vibration, no pollution. The TEC driver has perfect PID control software and intelligent stepless temperature control, which can both cooled and heated. It can control by RS232 / 485 serial communication interface and communication protocol.

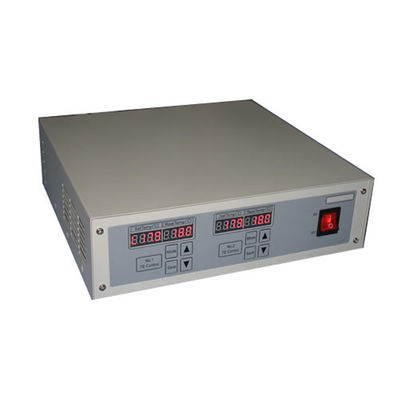

It can also supplies 1-2 channels of TEC control output, which can be used to control laser, medical devices, diode, infrared detectors, photomultiplier tubes, or any other devices which need the temperature control.

The TEC driver adopts the latest modern power electronic devices, high-speed microprocessor (MPU) program control technology, as well as PWM modulation, bidirectional power supply and PID regulation technology. It has excellent voltage and current output characteristics. No overshoot, no kickback, no surge and low noise when operation.

It also has over-current, over temperature and under temperature protection circuits, as well as a set of normally open / normally closed temperature alarm signal output.

The driver adopts 16 bit "8" LED, simple menu mode display, membrane button, and has friendly user interface and fault diagnosis function.

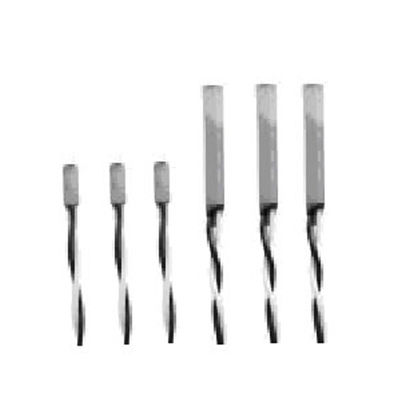

It is an excellent choice for laser equipment manufactures, research institute and personal. We used the standard PT1000 temperature sensor (platinum resistance) to have the best precision, linearity and stability.

Features:

• Intelligent step-less temperature regulation, two-way temperature control (both cooling and heating)
• Temperature accuracy±0.1°C
• Normally operating temperature range (0°C - 80°C adjustable) ( other ranges can be customized)
• Temperature alarm when exceeds the upper / lower limit
• The user can modify the temperature PID feedback parameters (but usually use the System Default PID parameters or the self- calibrated PID parameters)
• Three constant temperature mode selection: (1) standard cold and hot constant temperature (default), (2) cooling constant temperature, (3) heating constant temperature
• Automatic calibration of PID parameters of the temperature
• RS232/485 communication protocol (optional)
• With a set of normally open / close temperature alarm signal output
• With temperature ready signal output
• Over heat, over current protections; over/under temperature protection circuit
• High stability, high anti-interference ,entirely eliminate 50 / 60Hz frequency interference
• 8/16 bit "8" LED, simple menu / mode display, membrane button
• User friendly interface, fault diagnosis function
• We can customize the driver according to customer’s requirements

Remarks:

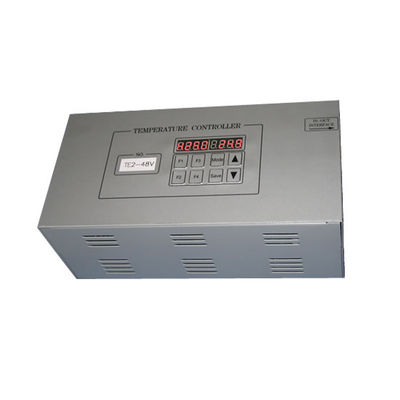

• If needs 48VDC or 110VAC power supply, please inform us when ordering

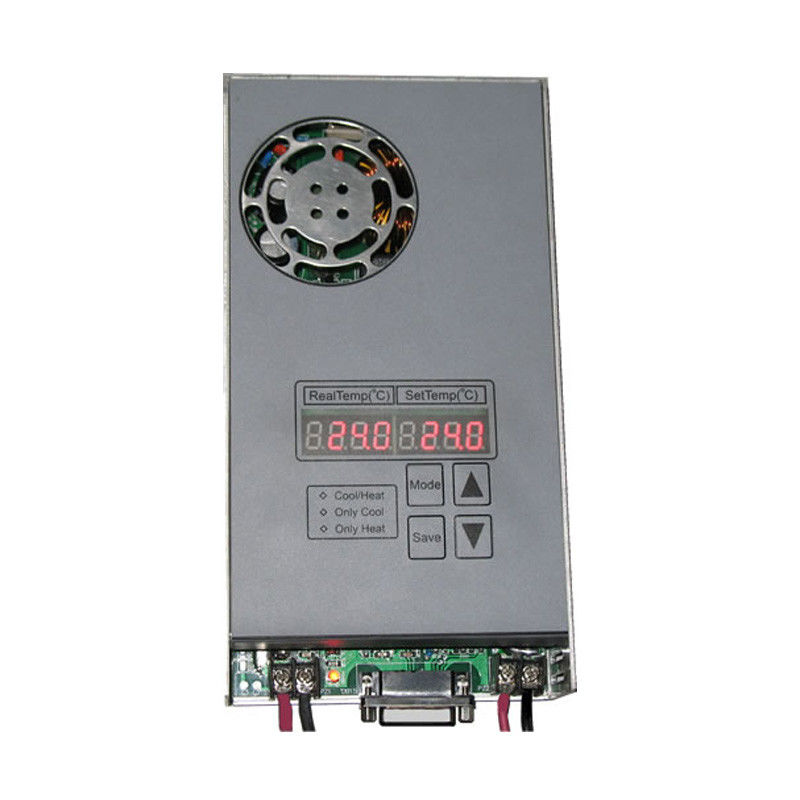

• the driver size W×L×H＝215×115×50 mm (Modular, 12～36VDC)
• Above drivers are our standard models. We can also customize according to customer’s parameters.
