Power 512~1400W DC/DC Diode Laser Modular Drivers

SYL series diode drivers are designed as individual modules and they are very easily integrated into the user’s power supply or control systems. These modules are DC/DC current-constant output or AC/DC voltage-constant plus DC/DC current-constant output. The user can design his own display to show the driving current, voltage, temperature etc. Our drive modules are widely used in laser diodes, diode chips, LEDs and fiber lasers.

We have the following 5 special technologies:

1) Three-phase Active Power Factor Correction Technology

• Improve electro-magnetic compatibility and solve the problem of “CE101”
• High power factor as 0.9998
• Small harmonic distortion, THD≤3%

2) Digital Power Technology

• Parameters changeable online
• Easily modular design
• Remote monitor on communication ports

3) Magnetic Integration Technology

• Reduce the size of transformer & inducer and inductance leakage
• Increase power density and conversion efficiency
• Improve parts characteristics and consistency

3) Resonant Half-bridge/full-bridge Soft-switching Conversion Technology

• Small switching loss
• High conversion efficiency
• Small magnetic interference

4) High Power Current-constant & Parallel Current Sharing Technology

• Current adjustable
• Small current tolerance as low as 1% or smaller

5) Anti-interference Technology in RF Environment

• Effective anti-interference control via individual stages and frequencies
• Strong environment adaptability

List of Often-used Laser Diode Modules

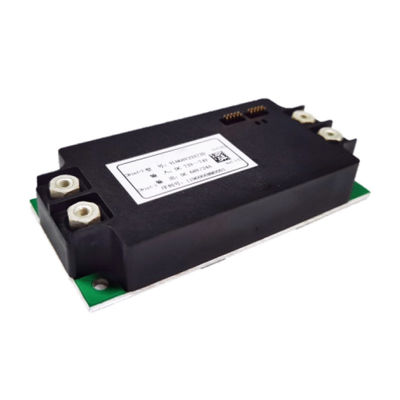

1. DC/DC diode drive module, switching current-constant output, power 512~1400W

• Part model: SYL-YDF*V*A130D
• Outlook dimension: 119.5*63.5*13.0mm (L*W*H)
• Input voltage 80~130VDC
• Output voltage/current: 34V/20A; 34V/25A; 68V/20A; 68V25A
• Insulation voltage: 700VDC
• Conversion eff.: 90~92% (full loading)
• Protection of input over or under voltage
• Protection of output over voltage
• Protection of over current and short-circuit
• Protection of over temperature
• High efficiency and no reducing-temperature needed

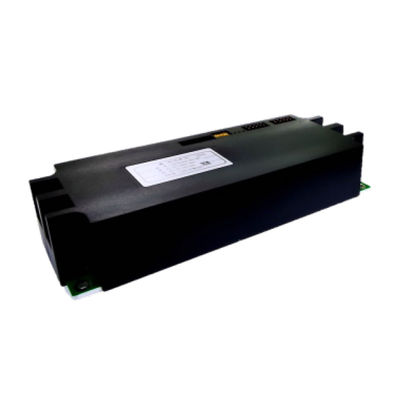

2. DC/DC diode drive module, switching current-constant output, power 1500~3200W

• Part model: SYL-YBN*V*A130D
• Outlook dimension: 160*63*30mm (L*W*H)
• Input voltage110~140VDC, 185~215VDC
• Output voltage/current, 72V/25A series; 130V/25Aseries; 130V30A series
• Insulation voltage: 700VDC
• Conversion eff.: 95% (full loading)
• Current rise/down time: 30uS
• Protection of input over or under voltage
• Protection of over output voltage
• Protection of over current and short-circuit
• Protection of over temperature
• CAN bus communication

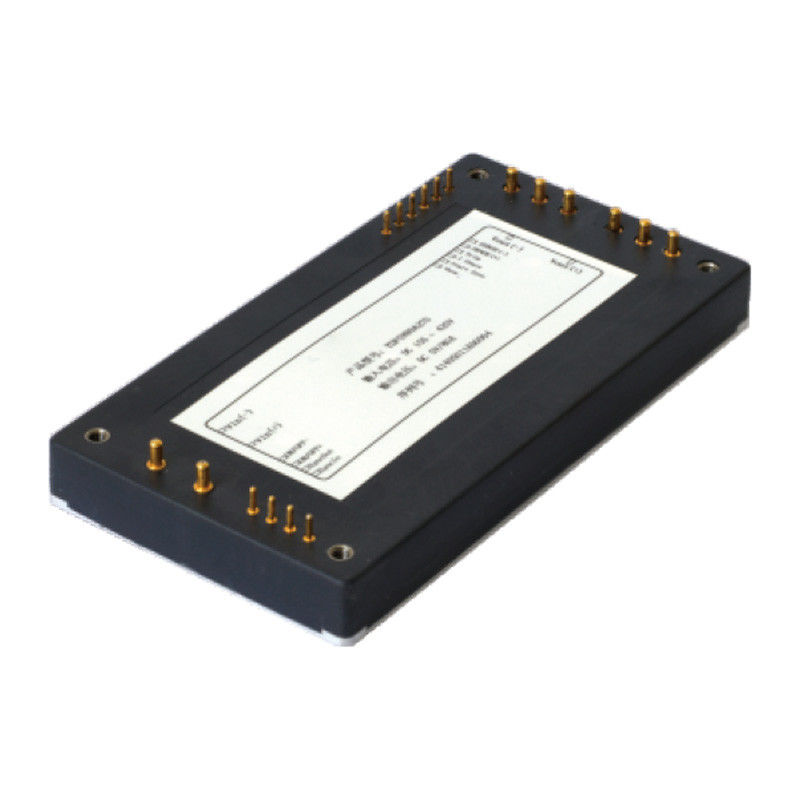

3. DC/DC diode drive module, switching current-constant output, power 600W

• Part model: SYL-YBN30V20A34D
• Outlook dimension: 70.7*36.2*12.5mm (L*W*H)
• Input voltage 22~38VDC
• Output voltage/current: 12~30V/20A
• Insulation voltage: 700VDC
• Conversion eff.: 97% (full loading)
• Protection of input over or under voltage
• Protection of over output voltage
• Protection of over current and short-circuit
• Protection of over temperature
• High efficiency and no reducing-temperature needed

4. DC/DC diode drive module, linear current-constant output, power 672~1200W

• Part model: SYL-YLN68V22A72D
• Outlook dimension: 91*43*16mm (L*W*H)
• Input voltage 20~74VDC
• Output voltage/current: 16~70V/0~26A; Load voltage is 3V less than input voltage
• Protection of output over current and short circuit
• Protection of over temperature
• Current rise/down time: 15uS
• Output ripple current: 1A
• High power density and high reliability

5. DC/DC diode drive module, 2-channel linear current-constant output, power 3900W

• Part model: SYL-YLN78V3900W80D
• Outlook dimension: 144*88*16.8mm (L*W*H)
• Input voltage 79~85VDC
• Output voltage/current: 78-83V/0~25A*2
• Protection of output over current and short circuit
• Protection of over temperature
• Current rise/down time: 15uS
• Output ripple current: 500mA
• High power density and high reliability

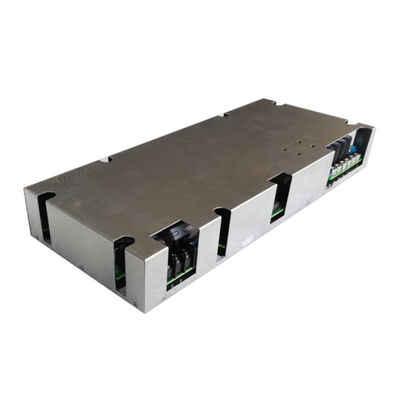

6. DC/DC diode drive module, 4-channel current-constant output, power 6kW~8.8kW

• Part model: SYL-YLN78V8KW80D
• Outlook dimension: 280*120*30mm (L*W*H)
• Input voltage 60~90VDC
• Output voltage/current: 58~88V/0~25A*4
• Protection of output over current and short circuit
• Protection of over temperature
• Current rise/down time: 10uS
• Output ripple current: 500mA
• High power density and high reliability

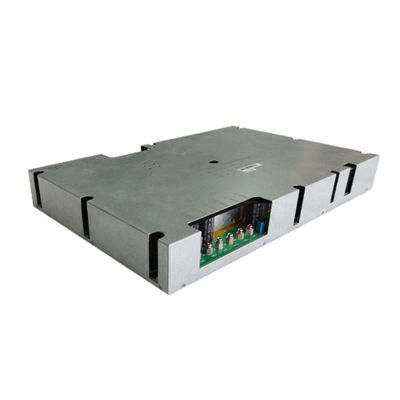

7. DC/DC diode drive module, 6-channel current-constant output, power 9kW~13kW

• Part model: SYL-YLN83V12KW85D
• Outlook dimension: 396*120*41mm (L*W*H)
• Input voltage60~90VDC
• Output voltage/current: 58~88V/0~25A*6
• Protection of output over current and short circuit
• Protection of over temperature
• Current rise/down time: 10uS
• Output ripple current: 500mA
• High power density and high reliability

8. All-in-one diode driver module, linear current-constant output, power 3600-5000W

• Part model: SYL-YAN78V5000W220A
• Outlook dimension: 386*355*51.5mm (L*W*H)
• Input voltage176~264VAC
• Output voltage/current: 45V/0~30A*3; 56V/0~30A*3; 80V/0~30A*2; 56~85V/0~30A*3
• Protection of input under voltage and over voltage
• Protection of output over current, over voltage and short circuit
• Protection of over temperature
• Current rise/down time: 20uS
• High power density and high reliability

9. All-in-one diode driver module, switching current-constant output, power 10kW

• Part model: YS83V10KW380Y-JG
• Outlook dimension: 580*422*120mm (L*W*H)
• Input voltage 323~437VAC
• Output voltage/current: 72-78V/0~25A*4
• Protection of over current and short circuit
• Protection of over temperature
• Current rise/down time: 15uS
• Output ripple current: 800mA
• High power density and high reliability
