High Power Collimator / High Power MM Large Beam Collimator

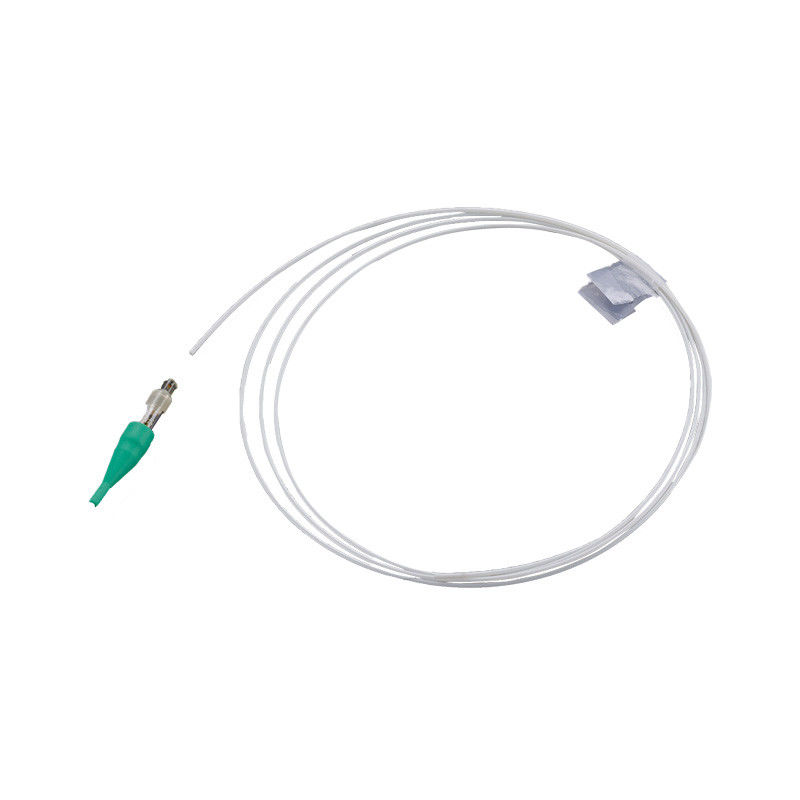

Large Image : High Power Collimator / High Power MM Large Beam Collimator

Product Details:

Place of Origin:	China
Brand Name:	Sintec Optronics
Model Number:	HC & HPMC Series

Payment & Shipping Terms:

Delivery Time:	Stock
Payment Terms:	T/T via bank

Contact Now

High Power Collimator / High Power MM Large Beam Collimator

Description

Highlight:

Collimator

Beam Collimator

High Power Collimator

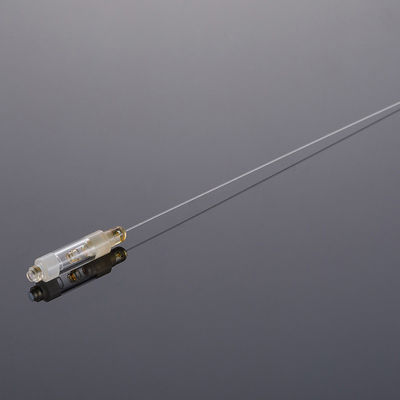

High Power Collimators and High Power MM Large Beam Collimators

Collimators are devices that collimate / focus light exiting an optical fiber to a desired beam diameter or spot size. The lenses are diffraction limited, so they can achieve spot sizes down to a few microns. Lenses also feature an antireflection coating for low back reflection. Optimum performance for long-term use is ensured by the factory set and tested lens alignment. Typical applications can include use with fiber coupled lasers, pigtailed receptacles, etc.

Features

High handling Power
High extinction ratio
Low Insertion Loss
High Return Loss
High environmental stability

Applications

Research
Free Space Communications
Fiber Lasers
Fiber Optic Components
PM components
Free space communications

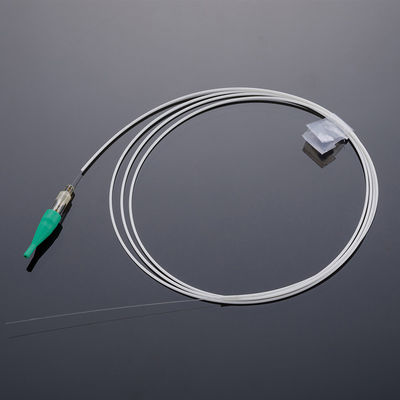

1. HC & HPMC Series High Power Collimators

	Unit	STOZ-HC-06	STOZ-HC-31	STOZ-HC-48	STOZ-HC-55	STOZ-HPMC-06	STOZ-MMC*
Collimator Type		High power Collimator (HC)	High power Collimator (HC)	High power Collimator (HC)	High power Collimator (HC)	High power Polarisation Maintaining Collimator (HPMC)	Multi mode collimator (MMC)
Center Wavelength	nm	1064	1310	1480	1550	1064	850, 980, 1064, 1310, 1480, 1550
Operating Wavelength Range	nm	±20	±20	±20	±20	±20	±30
Nominal Beam Diameter	mm	0.4 ,0.5 , 0.9 or Specify	0.4 ,0.5 or Specify	0.4 ,0.5 or Specify	0.4 ,0.5 or Specify	0.4 ,0.5 , 0.9 or Specify
Working Distance	mm	50 or Specify	5 or Specify	5 or Specify	5 or Specify	50 or Specify	5 or Specify
Typ. Insertion Loss	dB	0.2~0.4 (at 50mm WD)	0.2 (at 5mm WD)	0.2 (at 5mm WD)	0.2 (at 5mm WD)	0.2~0.4 (at 50mm WD)	0.2 (at 5mm WD)
Max. Insertion Loss	dB	0.5 (at 50mm WD)	0.3 (at 5mm WD)	0.3 (at 5mm WD)	0.3 (at 5mm WD)	0.5 (at 50mm WD)	0.25 (at 5mm WD)
Min. Return Loss	dB	50	50	50	50	50	35
Typ. Extinction Ratio	dB	-	-	-	-	25	-
Min. Extinction Ratio	dB	-	-	-	-	22	-
Max. PDL	dB	0.02	0.02	0.02	0.02	0.02	-
Max. Optical Power (CW)	W	3, 5, 10, 20,30 or Specify	3 ,5, 10, 20 or Specify	3 , 5, 10, 20 or Specify	3 , 5, 10, 20 or Specify	3, 5, 10, 20,30 or Specify	0.5
Fiber Type		1 - HI 1060	1 - SMF-28e	1 - SMF-28e	1 - SMF-28e	1 – PM 980 Panda 2 – PM 10/125 NA 0.08 3 – PM 15/130 NA 0.08	Multimode Fiber 62.5/125 or 50/125
Max. Tensile Load	N	5	5	5	5	5	5
Operating Temperature	℃	-5 to +70	-5 to +70	-5 to +70	-5 to +70	-5 to +70	-5 to +70
Storage Temperature	℃	-40 to +85	-40 to +85	-40 to +85	-40 to +85	-40 to +85	-40 to +85

For MMC: Above specifications are for device without connector. For devices with connectors, IL will be 0.2dB higher and RL will be 20dB lower.

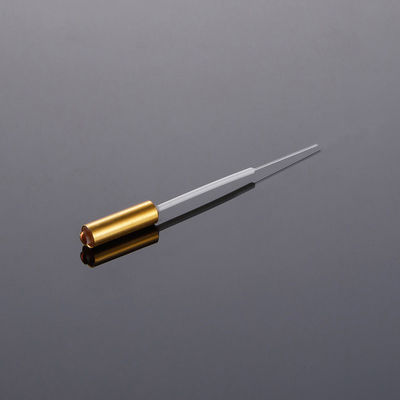

2. STOZ-MMLBC Series High Power MM Large Beam Collimators

Part Number	Unit	STOZ-MMLBC-06-20-B-10-4-2-3
Center Wavelength (λc)	nm	1064 or Specify
Operating Wavelength Range	nm	±20
Nominal Output Beam Dia.	mm	2.0+/-0.8@ over 5~10mm from Output Surface
Typ. Transmission	-	98%
Min. Transmission	-	95%
Typ. Peak Isolation	dB	30~35
Min. Return Loss	dB	25
Max. Optical Power (CW)	W	20, 50 or Specify
Max. Beam Divergence Angle (Full Angle)	mrad	45
Min. Elipticity	-	0.92
Max. Tensile Load	N	5
Outer Package Materials		Stainless Steel/Aluminum
Operating Temperature	℃	-5 to +70
Storage Temperature	℃	-20 to +85

For special pulse applications, please discuss with us.
The material must be RoHS compliant.
The actual dimensions may be different from above drawing due to different requirements, please see shipment data sheet

Ordering Information
