Digital Silicon/Analog Silicon Liquid Crystal Spatial Light Modulators
SBN Series Liquid Crystal Spatial Light Modulators(SLM)

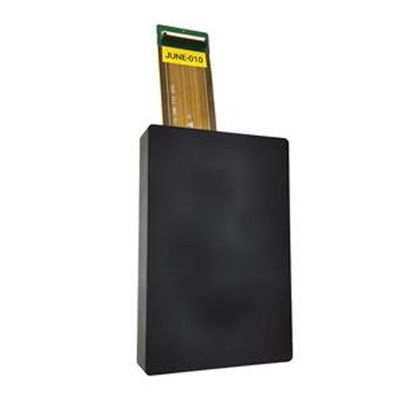

Our spatial light modulator (SLM) is based on reflective liquid crystal on silicon (LCOS) micro-display technology. The SLMs enable optical phase modulation freely and generate arbitrary 2D phase patterns on a LCOS pixel-by-pixel basis. SBN-RD series are our latest Full-HD LCOS model. The SLMs are suitable for various scientific and industrial applications, including beam shaping, wavefront correction and optical manipulations.
Applications:
-
HUD
-
Micro-projection
-
Holographic imaging
-
Optical communication
-
Optical forceps
-
Light field regulation
-
Adaptive optics
-
Beam shaping
-
Laser processing
Product model naming rules:
Serial Number - Modulation Type - modulation Mode - Resolution - Pixel Size - Window - Optional wavelength - Others
For example: SBNA-PP2K-6355-NIR-H, SBNA series, Phase modulation, analog control, resolution 1920*1080, pixel 6.3m, window 0.55, wavelength NIR-H 1064nm (high power version)
| Serial number |
Modulation type |
Modulation mode |
Resolution |
Pixel size |
Window size |
Optional wavelength |
|
SBNA
SBNB
SBNC
SBNE
|
A=Amplitude
P=Phase
|
P=Analog
D=Digital
|
4K=4090*2160
4K2=3840*2160
2K=1920*1080
1K=1280*720
|
36=3.6um
38=3.8um
45=4.5um
60=6.0um
63=6.3um
80=8,0um
|
26=0.26”
39=0.39”
52=0.52”
55=0.55”
62=0.62”
69=0.69”
70=0.70”
72=0.72”
78=0.78”
|
VIS=430nm-750nm
NIR=1000nm-1100nm
TEC=1530nm-1565nm
Specific wavelength, such as 1064nm
|
1. SBN series digital silicon - based liquid crystal (LCoS) high - resolution spatial light modulator
This series of spatial light modulators (SLMS) are a high-resolution version of digital silicon based liquid crystals (LCoS). It provides up to 4160×2460 resolution and allows dynamic adjustment of modulation region, so it is suitable for multi - mode or single - mode high - resolution optical system applications.
Features/Advantages:
-
Easily calibrated
-
Digital drive, flexible modulation
-
Easy to use, plug and play
-
Good linearity of amplitude/phase gray curve
-
High resolution, high phase accuracy and good phase stability
| Serial number |
Modulation type |
Modulation mode |
Resolution |
Pixel size |
Window size |
Operating wavelength |
| SBNA |
A=Amplitude
P=Phase
|
D=Digital |
4K=4096*2160 |
38=3.8um |
70=0.7” |
VIS=430nm-750nm
NIR=1000nm-1100nm
TEC=1530nm-1565nm
|
| SBNB |
A=Amplitude
P=Phase
|
D=Digital |
4K2=3840*2160 |
36=3.6um |
62=0.62” |
VIS=430nm-750nm
NIR=1000nm-1100nm
TEC=1530nm-1565nm
|
| SBNC |
A=Amplitude
P=Phase
|
D=Digital |
4K=3840*2160 |
45=4.5um |
78=0.78” |
VIS=430nm-750nm
NIR=1000nm-1100nm
TEC=1530nm-1565nm
|
2. SBN series analog silicon - based liquid crystal LCoS spatial light modulator
This series of spatial light modulators (SLMS) are a high refresh rate version of analog silicon based liquid crystals (LCoS). It allows dynamic adjustment of the modulation region and is suitable for multimode or single-mode high resolution optical system applications. Its ability to accurately control wavefront phase is applicable to various applications of optical field modulation.
Features/Advantages:
-
Analog drive
-
Low power consumption
-
High contrast
-
High refresh rate
| Serial number |
Modulation type |
Modulation mode |
Resolution |
Pixel size |
Window size |
Operating wavelength |
|
SBNB
SBNC
|
A=Amplitude |
P=Analog |
2K=1920*1080 |
45=4.5um |
39=0.39” |
VIS=430nm-750nm
NIR=1000nm-1100nm
|
| SBNC |
A=Amplitude |
P=Analog |
1K=1280*720 |
45=4.5um |
26=0.26” |
VIS=430nm-750nm
NIR=1000nm-1100nm
|
| SBNC |
A=Amplitude P=Phase |
P=Analog |
2K=1920*1080 |
60=6um |
52=0.52” |
VIS=430nm-750nm
NIR=1000nm-1100nm
TEC=1530nm-1565nm
|
3. SBN series analog silicon - based liquid crystal LCoS spatial light modulator
This series of spatial light modulators (SLMS) simulate regular versions of silicon-based liquid crystals (LCoS). It has the advantages of high phase stability, good phase gray linearity and high reliability, so it is suitable for various application fields of optical field modulation.
Features/Advantages:
-
Analog drive
-
Phase stability
-
Good phase linearity
-
Low power consumption
| Serial number |
Modulation type |
Modulation mode |
Resolution |
Pixel size |
Window size |
Optional wavelength |
| SBNB |
A=Amplitude
P=Phase
|
P=Analog |
2K=1920*1080 |
63=6.3um |
55=0.55” |
VIS=430nm-750nm
TEC=1525nm-1572nm
|
| SBNA |
A=Amplitude
P=Phase
|
P=Analog |
2K=1920*1080 |
80=8um |
72=0.72” |
VIS=430nm-750nm
NIR=450nm-10640nm
NIR-H=1064nm(High power version)
TEC=1525nm-1572nm
|
| SBNC |
A=Amplitude
P=Phase
|
P=Analog |
2K=1920*1080 |
80=8um |
69=0.69” |
VIS=420nm-760nm
TEC=1530nm-1570nm
|
4. SBNE series digital silicon - based liquid crystal LCoS spatial light modulator
SBNE series spatial light modulator (SLM) is a product mainly developed for teaching and research in universities. It is the regular version of digital silicon based liquid crystal (LCoS). The control signal from processor to each pixel is in digital form, without digital to analog conversion. Its driving system is simple and compact, and the anti-noise performance is outstanding.
Features/Advantages:
-
Easily calibrated
-
Digital drive, flexible modulation
-
Easy to use, plug and play
-
Good linearity of amplitude/phase gray curve
-
High resolution, high phase accuracy and good phase stability
| Serial number |
Modulation type |
Modulation mode |
Resolution |
Pixel size |
Window size |
Optional wavelength |
| SBNE |
A=Amplitude
P=Phase
|
D=Digital |
2K=1920*1080 |
63=6.3um |
55=0.55” |
VIS=430nm-750nm
NIR=450nm-10640nm
TEC=1525nm-1572nm
|
5. SBN-RD3 Series Spatial Light Modulators
Features:
Applications:
Technical Specifications:
| Item |
min |
max |
Units |
Notes |
| Operating wavelength range |
450 |
1064 |
nm |
(Refer to AR coating option) |
| Panel size |
(H)15.36 x (V)9.60 |
mm |
Active area |
| Pixel resolution |
(H)1920 x (V)1200 |
pixel |
|
| Pixel size/pitch |
8.0 |
µm |
|
| Panel reflectivity |
Typ.>80 |
% |
Depending on specified wavelength range |
| Aperture ratio |
95 |
% |
|
| Gray level |
10(1024) |
bit |
|
| Frame rate |
60 or 120 |
Hz |
Factory default setting |
| Phase depth |
2π |
rad. |
|
| Phase stability |
Typ. <0.001π |
rad. |
|
| Response time |
Typ. 300 |
ms |
|
| Interface |
HDMI |
- |
10-bit using RGB 8-bit, 3 colors |
| Operating temperature range |
15 |
35 |
degC |
No condensation |
| Storage temperature |
0 |
40 |
degC |
No condensation |
| Optical power handling |
Typ.10 |
W/cm2 |
＠1064nm, CW, 2.0mm beam diameter |
| Dimensions |
122.6x92.4x25.6 |
mm |
|
| Control software |
GUI software and SDK for Windows |
- |
|
AR-coating Options:
| Item |
Parameter |
Units |
| Ordering code number |
-01 |
-02 |
-03 |
-12 |
-14 |
- |
| AR coating range |
450-550 |
750-850 |
1000-1100 |
400-700 |
450-550/1500-1600 |
nm |
| AR coating reflectance |
<0.5 |
<1.5 |
<0.6 |
% |
-
Angle of incidence = 0 degree
-
Typical laser wavelength 532nm, 630nm, 850nm, 1064nm and wide spectrum 405-1100nm available.
