Product Details:
|
Highlight: | Zoom Beam Expander,Laser Zoom Beam Expander,Beam Expander |
---|
We offer 3 types of beam expanders: fixed beam expanders, zoom beam expanders and motorised beam expanders at various wavelengths of 213nm, 266nm, 343-355nm, 405nm, 633nm, 515-545nm, 808-980nm, 1030-1090nm, 155nm, 1850-1980nm, 10.6um. Other wavelengths and custom-designed beam expanders are available upon request. For more information, please feel free to contact us.
We may use the following abbreviations in the tables: WL=wavelength, MAG=magnification, CA=clear aperture, CA1=input clear aperture, CA2=output clear aperture, D1=input diameter, D2=output diameter, L1=total length of beam expander, M1=connection or mounting thread, D=diameter.

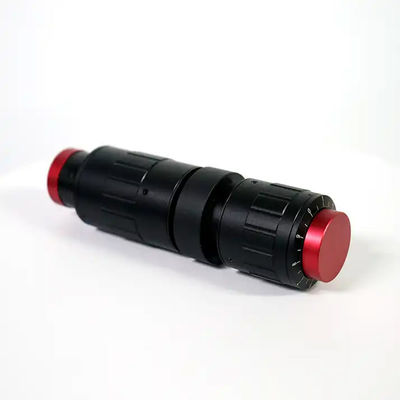

BEAL is a zoom beam expander designed for automated applications. It combines multiple lenses to provide variable magnification and automated pergence adjustment from 1x to 6x. Driver and all the motors are integrated in the casing of the beam expander which makes it compact and convenient for usage. High pointing stability (<0.1 mrad) and fast magnification speed (1 sec from 1x to 6x) offers suitable performance for precision and high speed industrial applications.
Features
Aberration minimized design
Plug & play solution (controller included)
Suitable for ultrafast picosecond and femtosecond lasers
Direct control from microcontrollers and embedded systems
Laser damage threshold up to 100mJ/cm² @ 1064nm, 10ps, 400kHz
Custom wavelengths are available in the range of 250-3000nm
Standard specifications:
Wavelength | 343-355nm, 515-532nm or 1020-1070nm |
Magnification factor | 1 - 6 continuous |
Pointing stability | <0.1mrad |
Magnification speed (1x to 6x) | <1 sec |
Diffraction limited maximum input beam diameter | 6mm |
Total transmission | >98% |
Lens material | UVFS |
LIDT (coating) | >10J/cm2 @ 1064nm, 10ns, 10Hz |
Dimensions (H x W x L) | 62 x 62 x 161 mm |
Control interface | RS232 |
Housing material | Black anodized aluminum |
Collimator hole | Yes |

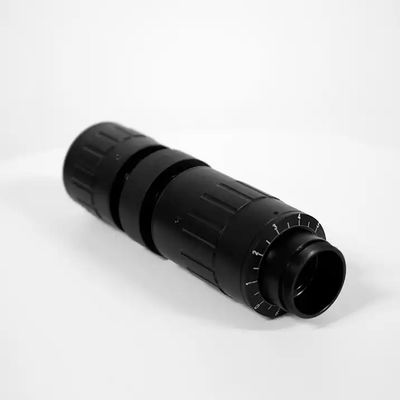

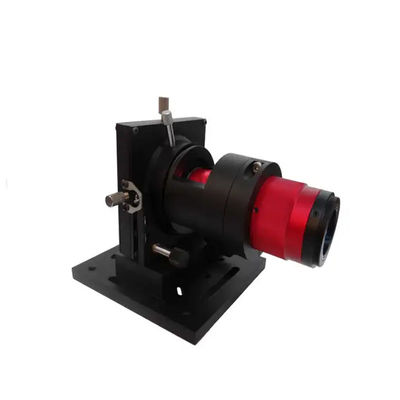

Zoom beam expanders are ideal for systems in which different magnifications and precise control of laser beam pergence are required. We offer Galilean type zoom beam expanders with high LIDT AR coatings that minimize ghost reflections. Our zoom beam expanders allows to separately adjust magnification and pergence. Two main standard products change magnification in the range of 1x-4x and 2x-8x.
High pointing stability (<1 mrad)
Inpidual reports of beam ellipticity, M2 and pointing stability parameters
Mounting adapters at the input, output and middle are available on request
Extended lifetime and LIDT for UV applicationsAvailable wavelength range: 266 – 1064 nm
Available expansions: 1x-4x or 2x-8x
Lens material: UVFS
Transmitted wavefront distortion, P-V: <λ/4 @ 632.8 nm
Overall transmission: >97%
Mounting thread: SM1
LIDT: >10 J/cm2 @ 1064 nm, 10 ns, 10 Hz
Wavelength, nm | Expansion range | Max input beam diameter*, mm | Housing dimensions, mm | Product ID | |
343-355 | 1x-4x | 1X 2X 3X 4X |
4.0 5.5 3.0 3.0 |
Ø41 x 120 | BEAL-1X-4X-0343-0355-B |
2x-8x | 2X 3X 4X 5X 6X 7X 8X |
5.0 5.0 4.0 3.0 2.5 2.25 2.0 |
Ø41 x 145 | BEAL-2X-8X-0343-0355-B | |
450 | 1x-4x | 1X 2X 3X 4X |
4.0 5.5 3.0 3.0 |
Ø41 x 120 | BEAL-1X-4X-0450-B |
515-532 | 1x-4x | 1X 2X 3X 4X |
4.5 6.5 4.0 3.5 |
Ø41 x 120 | BEAL-1X-4X-0515-0532-B |
2x-8x | 2X 3X 4X 5X 6X 7X 8X |
5.0 5.0 4.0 3.0 2.5 2.25 2.0 |
Ø41 x 147.5 | BEAL-2X-8X-0515-0532-B | |
1030-1064 | 1x-4x | 1X 2X 3X 4X |
4.5 7.0 5.0 4.0 |
Ø41 x 120 | BEAL-1X-4X-1030-1064-B |
2x-8x | 2X 3X 4X 5X 6X 7X 8X |
5.0 5.0 5.0 4.0 3.0 2.5 2.5 |
Ø41 x 147.5 | BEAL-2X-8X-1030-1064-B |
* Max input beam diameter ensuring diffraction limited performance.

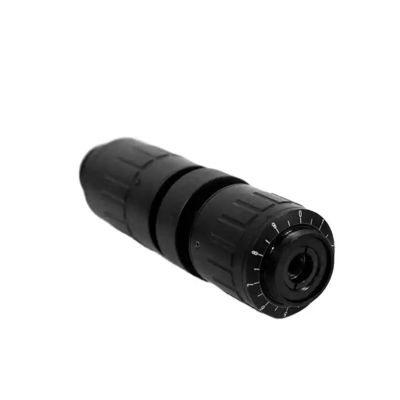

for collimation of high power lasers
variable magnification from 1x up to 8x
additional 8 "click into place points" guarantee best
reprodution of magnification
high pointing stability < 1 mrad
Galilei-design
available with and without adjustable pergence
UV beam expander made completely from quartz material
max. exit pupil depending on the model f30mm or f50mm

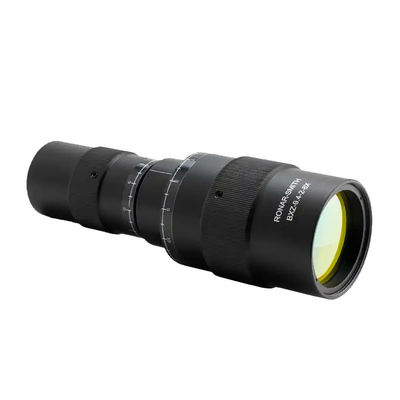

Our zoom beam expanders (or called as variable beam expander) are highly corrected 4-lens element systems. The version with pergence adjustment is very user friendly, as the magnification setting and the pergence setting are independent from each other, i.e. the pergence remains unchanged while changing the expansion factor. In addition, the total length of the beam expanders remain constant during zooming and/or pergence setting. For remote controlled setting, we developed motorized versions of our zoom beam expanders. A motor adapter can be incorporated to drive the mechanics used for magnification setting.
Part umber | Λ [nm] | magnification | material | clear-Ø [mm] | max. exit-Ø [mm] | max.outside Ø [mm] |
Length [mm] |
thread | motor |
STS-EZM5075/199 | 266 | 1.0 - 8.0 | fs | 10 | 30 | 58 | 162 | C-mount | zoom motorised |
STS-EXZ5075/199 | 266 | 1.0 - 8.0 | fs | 10.5 | 31 | 58 | 162 | C-mount | not motorised |
STS-EXZ3976/199 | 266 | 1.0 - 8.0 | fs | 9 | 30 | 160.0 x 70.5 | 200.4 | --- | zoom motorised |
STS-EXZ5311/574 | 343 - 355 | 1.0 - 3.0 | fs | 10.5 | 20 | 47 | 85.2 | M30x1 | not motorised |
STS-EZM5311/574 | 343 - 355 | 1.0 - 3.0 | fs | 10.5 | 20 | 47 | 85.2 | M30x1 | zoom motorised |
STS-EZM5310/574 | 343 - 355 | 1.0 - 3.0 | fs | 10.5 | 20 | 47 | 105.8 | C-mount | zoom motorised |
STS-EXZ5310/574 | 343 - 355 | 1.0 - 3.0 | fs | 10.5 | 20 | 47 | 85.2 | C-mount | not motorised |
STS-EXZ5075/574 | 343 - 355 | 1.0 - 8.0 | fs | 10.5 | 31 | 58 | 162 | C-mount | not motorised |
STS-EZM5075/574 | 343 - 355 | 1.0 - 8.0 | fs | 10 | 30 | 58 | 162 | C-mount | zoom motorised |
STS-EXZ3976/574 | 343 - 355 | 1.0 - 8.0 | fs | 9 | 30 | 160.0 x 70.5 | 200.4 | --- | zoom motorised |
STS-EXZ5310/075 | 355 | 1.0 - 3.0 | fs | 10.5 | 20 | 47 | 85.2 | C-mount | not motorised |
STS-EZM5311/075 | 355 | 1.0 - 3.0 | fs | 10.5 | 20 | 47 | 85.2 | M30x1 | zoom motorised |
STS-EZM5310/075 | 355 | 1.0 - 3.0 | fs | 10.5 | 20 | 47 | 105.8 | C-mount | zoom motorised |
STS-EXZ5311/075 | 355 | 1.0 - 3.0 | fs | 10.5 | 20 | 47 | 85.2 | M30x1 | not motorised |
STS-EZM5075/075 | 355 | 1.0 - 8.0 | fs | 10 | 30 | 58 | 162 | C-mount | zoom motorised |
STS-EXZ5075/075 | 355 | 1.0 - 8.0 | fs | 10.5 | 31 | 58 | 162 | C-mount | not motorised |
STS-EXZ3976/075 | 355 | 1.0 - 8.0 | fs | 9 | 30 | 160.0 x 70.5 | 200.4 | --- | zoom motorised |
STS-EZM5311/292 | 515 - 545 | 1.0 - 3.0 | fs | 10.5 | 20 | 47 | 85.2 | M30x1 | zoom motorised |
STS-EZM5310/292 | 515 - 545 | 1.0 - 3.0 | fs | 10.5 | 20 | 47 | 85.2 | C-mount | zoom motorised |
STS-EXZ5310/292 | 515 - 545 | 1.0 - 3.0 | fs | 10.5 | 20 | 47 | 105.8 | C-mount | not motorised |
STS-EXZ5311/292 | 515 - 545 | 1.0 - 3.0 | fs | 10.5 | 20 | 47 | 85.2 | M30x1 | not motorised |
STS-EZM5076/292 | 515 - 545 | 1.0 - 8.0 | fs | 10 | 30 | 58 | 162 | C-mount | zoom motorised |
STS-EXZ5076/292 | 515 - 545 | 1.0 - 8.0 | fs | 10 | 30 | 58 | 162 | C-mount | not motorised |
STS-EXZ3976/292 | 515 - 545 | 1.0 - 8.0 | fs | 9 | 30 | 160.0 x 70.5 | 200.4 | --- | zoom motorised |
STS-EXZ5312/292 | 515 - 545 | 1.2 - 3.0 | fs | 18.5 | 43 | 80 | 230.2 | M30x1 | not motorised |
STS-EZM5310/328 | 1030 - 1090 | 1.0 - 3.0 | fs | 10.5 | 20 | 47 | 105.8 | C-mount | zoom motorised |
STS-EXZ5310/328 | 1030 - 1090 | 1.0 - 3.0 | fs | 10.5 | 20 | 47 | 85.2 | C-mount | not motorised |
STS-EZM5311/328 | 1030 - 1090 | 1.0 - 3.0 | fs | 10.5 | 20 | 47 | 85.2 | M30x1 | zoom motorised |
STS-EXZ5311/328 | 1030 - 1090 | 1.0 - 3.0 | fs | 10.5 | 20 | 47 | 85.2 | M30x1 | not motorised |
STS-EZM5076/328 | 1030 - 1090 | 1.0 - 8.0 | fs | 10 | 30 | 58 | 162 | C-mount | zoom motorised |
STS-EXZ5076/328 | 1030 - 1090 | 1.0 - 8.0 | fs | 10 | 30 | 58 | 162.6 | C-mount | not motorised |
STS-EXZ3976/328 | 1030 - 1090 | 1.0 - 8.0 | fs | 9 | 30 | 160.0 x 70.5 | 200.4 | --- | zoom motorised |
STS-EXZ5312/328 | 1030 - 1090 | 1.2 - 3.0 | fs | 18.5 | 43 | 80 | 230.2 | M30x1 | not motorised |
STS-EXZ5310/008 | 1550 | 1.0 - 3.0 | fs | 10.5 | 20 | 47 | 85.2 | C-mount | not motorised |
STS-EXZ5311/008 | 1550 | 1.0 - 3.0 | fs | 10.5 | 20 | 47 | 85.2 | M30x1 | not motorised |
STS-EXZ5310/159 | 1850 - 1980 | 1.0 - 3.0 | fs | 10.5 | 20 | 47 | 85.2 | C-mount | not motorised |
We are proud to present our new product. It is specially designed to cater for the various variable magnification of 2x up to 8x. It consists of adjustable pergence. These beam expanders are primarily intended for Nd:YAG, Green & UV lasers. They offer diffraction-limited performance at 1064nm wavelength.
For collimation of laser power<500kw/cm2
Variable magnifications 2x-8x
Galilei Design
Adjustable pergence
Part No. | Magnification | Input CA (mm) | Output CA (mm) | Length (mm) | Remark |
BEST-1064-1-3X-W | 1x-3x | 10 | 20 | 85.0 | |
BEST-1064-1-3X-AW | 1x-3x | 20 | 38 | 118.0 | |
BEST-1064-2-8X-W | 2x-8x | 10 | 30 | 142-149 | |
BEST-1064-2-8X-QW | 2x-8x | 12 | 32 | 195 | |
BEST-1064-2-8X-AW | 2x-8x | 13 | 60.67 | 162-169 | |
BEST-800-2-8X-W | 2x-8x | 10 | 30 | 142-149 | |
BEST-532-1-3X-W | 1x-3x | 10 | 20 | 85.0 | |
BEST-532-2-8X-W | 2x-8x | 10 | 30 | 131.1 | |
BEST-532-2-8X-A-W | 2x-8x | 11 | 60 | 190 | |
BEST-355-1-8X-W | 1x-8x | 10 | 30 | 85-200 | |
BEST-355-2-8X-W | 2x-8x | 10 | 30 | 142-149 | |
BEST-355-1-8X-MOT-W | 1X-8X | 12 | 32 | 188 | motorised |
BEST-355-2-8X-A-W | 2x-8x | 11 | 60 | 183-192 | |
BEST-266-1-8X-W | 1x-8x | 10 | 30 | 162-200 |
The material is fused silica.
Model | MAG | CA1(mm) | CA2 (mm) | D2(mm) | L1(mm) | Thread | Motorised |
STS-EXZ5310/008 | 1.0 - 3.0 | 10.5 | 20 | 47 | 85.2 | C-mount | not motorised |
STS-EXZ5311/008 | 1.0 - 3.0 | 10.5 | 20 | 47 | 85.2 | M30x1 | not motorised |
The material is fused silica
Model | WL(nm) | MAG | CA1(mm) | CA2(mm) | D2(mm) | L1(mm) | Thread | Motorised |
STS-EXZ5310/159 | 1850 - 1980 | 1.0 - 3.0 | 10.5 | 20 | 47 | 85.2 | C-mount | not motorised |
STS-EXZ5311/159 | 1850 - 1980 | 1.0 - 3.0 | 10.5 | 20 | 47 | 82.5 | M30x1 | not motorised |
For collimation of Co2 laser power<1.5KW/cm2
Variable magnifications 2X-8X
Galilei Design
Adjustable pergence
Part No. | Magnification | Input CA (mm) | Output CA (mm) | Length (mm) |
BEST-10.6-1-4X-W | 1X-4X | 18 | 48 | 135 |
BEST-10.6-2-6X-W | 2X-6X | 16 | 96 | 205.78-212.37 |
BEST-9.4-2-8X-W | 2X-8X | 10 | 36 | 168-172 |
BEST-10.6-2-8X-W | 2X-8X | 10 | 36 | 168-172 |
