High Precision Laser Power Meters 2mW-15W 10mW-50W 0.5W-100W 100uW-5W

Large Image : High Precision Laser Power Meters 2mW-15W 10mW-50W 0.5W-100W 100uW-5W

Product Details:

Place of Origin:	China
Brand Name:	Sintec Optronics
Model Number:	STC Series

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	Stock
Payment Terms:	T/T via bank

Contact Now

High Precision Laser Power Meters 2mW-15W 10mW-50W 0.5W-100W 100uW-5W

Description

Highlight:

Laser Power Meter

Laser Power Meters

Power Meters

2mW-15W, 10mW-50W, 0.5W-100W, 100uW-5W Laser Power Meters

Laser power meter is used to measure laser power and power stability. We have designed several laser power measurement instruments with the features of accuracy testing, easy operation, etc., which could fully meet customer’s practical needs of laser power and power stability measurement. They are widely used in the research, teaching, medical science, industry and other fields.

powermeter

	Product	Part number	Power range	Main features
Thermopile Laser Power Meter	STC-TS series (Wide Range)	STC-TS2+TP100	2mW-2W	1.Wavelength range: 0.19 -20µm 2. Damage threshold: 15kW/cm2 3. Power measurement range:2mW-15W 4. Sensitivity diameter: 14mm 5. Minimum measuring precision:0.1mW
		STC-TS5+TP100	5mW-5W
		STC-TS15+TP100	10mW-15W
		STC-TS35+TP100	10mW-35W	1. Wavelength range: 0.19 -25µm 2. Damage threshold: 40kW/cm2 3. Power measurement range: 10mW-50W 4. Sensitivity diameter: 22mm 5. Minimum measuring precision: 0.001W
		STC-TS50+TP100	10mW-50W
		STC-TS100+TP100	0.5W-100W	1. Wavelength range: 0.19 -20µm 2. Damage threshold: 45kW/cm2 3. Power measurement range: 0.5W-100W 4. Sensitivity diameter: 25mm 5. Minimum measuring precision: 0.001W
	STC-HS series (High Precision)	STC-HS1+TP100	100µW-1W	1. Wavelength range: 0.19 -15µm 2. Damage threshold: 1.5kW/cm2 3. Power measurement range: 100µW-5W 4. Sensitivity diameter: 8.5mm 5. Minimum measuring precision: 0.01mW
	STC-HS series (High Precision)	STC-HS5+TP100	500µW-5W
	Hand-held series	STC-HP2	10mW-20W	1.Wavelength range: 0.19-25µm 2.Damage threshold: 40kW/cm2 3.Powe measurement range: 10mW-50W 4.Sensitivity dia.: 22mm
	Hand-held series	STC-HP5	0.5W-50W
	USB series (multi-channel)	STC-PD100-350-USB STC-PD1000-350-USB STC-PD100-350T-USB STC-PD1000-350T-USB STC-PD20-200-USB STC-PD1000-200-USB STC-PD20-200T-USB STC-PD1000-200T-USB PD3000-350-USB	1nW-100mW 1nw-1W 1nW-100mW 1nw-1W 1nw-20mW 1nw-1W 1nw-20mW 1nw-1W 1uW-3W	1. Wavelength range:0.19 -25µm 2. Power range: 1µW-200W 3. Single channel/ multiple channel power measurement 4. PC upper computer software display measurement 5. RS232, RS422 or other communication interface can be customized
	USB series (multi-channel)	STC-TS2/ TS5/ TS15-USB STC-TS35/ TS50-USB STC-TS100-USB STC-HS1/ HS5-USB	100µW-100W
Photoelectric Laser Power Meter	STC-PS100 series (High Precision)	STC-PS100	2nW-100mW	1. Wavelength range: 320-1100nm 2. High precision: ±2% 3. Resolution: 2nW 4. Minimum measuring precision: 0.001nW

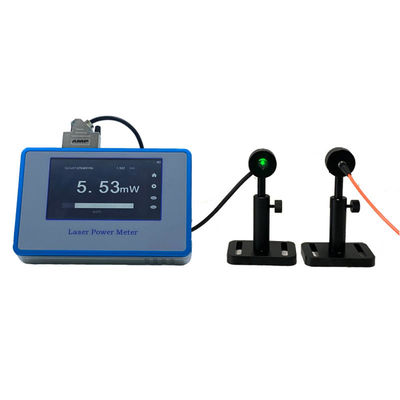

1. STC-TS+TP100 Series Laser Power Meter (2mW-15W)

High Precision Laser Power Meters 2mW-15W 10mW-50W 0.5W-100W 100uW-5W 1

Wavelength range: 0.19 -20µm
Damage threshold: 15kW/cm2
Power measurement range: 2mW-15W
Sensitivity diameter: 14mm
Minimum measuring precision: 0.1mW
SMA905/FC fiber switch connector (Optional)

Part number	STC-TS2+TP100	STC-TS5+TP100	STC-TS15+TP100
Header Model	STC-TP100	STC-TP100	STC-TP100
Probe Model	STC-TS2	STC-TS5	STC-TS15
Power Range	2 mW - 2 W	5 mW - 5 W	10 mW - 15 W
Sensitive Diameter	14 mm	14 mm	14 mm
Continuous Measurement Time (<5W)	Unlimited (<2W)	Unlimited	Unlimited
Continuous Measurement Time (5-15W)	/	/	≤8 min
Probe Coating Film	Broadband coating
Probe Material	Thermopile
Wavelength Range	0.19-20 μm
Max. Average Power Density	15 kW/cm2
Sensitivity	2 mW	5 mW	10 mW
Calibration Uncertainty (k=2)	±2%
Response Time (0-90%)	<1 sec.
Linearity	±1%
Power Supply	18650 (2 batteries)
Overall Weight	1.454 kg
Cooling Method	Air cooling
Computer Interface	USB 1.1 and USB 2.0
Instrument Power	100-240 VAC, 50/60 Hz, DC 12V-3.34A
Temperature (Operating)	5°C - 45°C (41°F - 113°F)
Temperature (Storage)	-20°C - 70°C (-4°F - 158°F)

2. STC-TS+TP100 Series Laser Power Meter (10mW-50W)

High Precision Laser Power Meters 2mW-15W 10mW-50W 0.5W-100W 100uW-5W 2

Wavelength range: 0.19 -25µm
Damage threshold: 40kW/cm2
Power measurement range: 10mW-50W
Sensitivity diameter: 22mm
Minimum measuring precision: 0.001W
SMA905/FC fiber switch connector (Optional)

Part Number	STC-TS35+TP100	STC-TS50+TP100
Header Model	STC-TP100	STC-TP100
Probe Model	STC-TS35	STC-TS50
Power Range	10 mW - 35 W	10 mW - 50 W
Sensitive Diameter	22 mm	22 mm
Continuous Measurement Time (<10 W)	Unlimited	Unlimited
Continuous Measurement Time (10-50W)	≤5 min (10-35W)	≤5 min (10-50W)
Probe Coating Film	Broadband coating
Probe Material	Thermopile
Wavelength Range	0.19-25 μm
Max. Average Power Density	40 kW/cm2
Sensitivity	10 mW
Calibration Uncertainty (k=2)	±2%
Response Time (0-90%)	<1 sec.
Linearity	±1%
Power Supply	18650 (2 batteries)
Overall Weight	1.926 kg
Cooling Method	Air cooling
Computer Interface	USB 1.1 and USB 2.0
Instrument Power	100-240 VAC, 50/60 Hz, DC 12V-3.34A
Temperature (Operating)	5°C - 45°C (41°F - 113°F)
Temperature (Storage)	-20°C - 70°C (-4°F - 158°F)

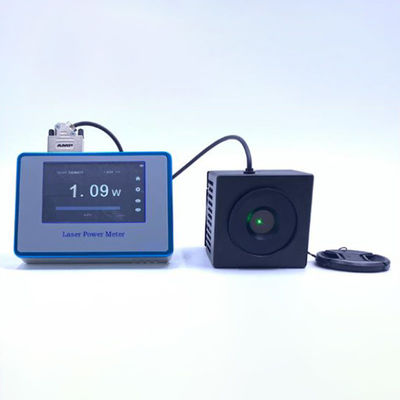

3. STC-TS+TP100 Series Laser Power Meter (0.5W-100W)

High Precision Laser Power Meters 2mW-15W 10mW-50W 0.5W-100W 100uW-5W 3

Wavelength range: 0.19 -20µm
Damage threshold: 45kW/cm2
Power measurement range: 0.5W-100W
Sensitivity diameter: 25mm
Minimum measuring precision: 0.001W

Part Number	STC-TS100+TP100
Header Model	STC-TP100
Probe Model	STC-TS100
Power Range	0.5 W - 100 W
Sensitive Diameter	25 mm
Continuous Measurement Time (<80 W)	2 h
Continuous Measurement Time (80-100 W)	≤8 min
Probe Coating Film	Broadband coating
Probe Material	Thermopile
Wavelength Range	0.19-20 μm
Max. Average Power Density	45 kW/cm2
Sensitivity	0.1 W
Calibration Uncertainty (k=2)	±2%
Response Time (0-90%)	<7 sec.
Linearity	±1%
Power Supply	18650 (2 batteries)
Cooling Method	Fan cooling
Computer Interface	USB 1.1 and USB 2.0
Instrument Power	100-240 VAC, 50/60 Hz, DC 12V-3.34A
Temperature (Operating)	5°C - 45°C (41°F - 113°F)
Temperature (Storage)	-20°C - 70°C (-4°F - 158°F)

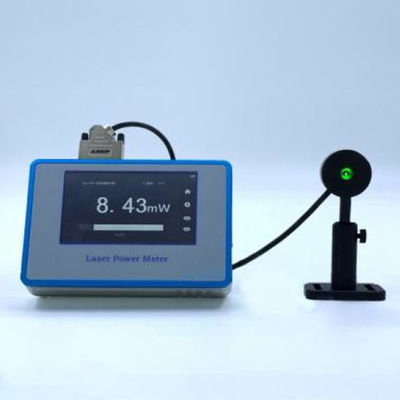

4. STC-HS+TP100 Series Laser Power Meter (100uW-5W)

High Precision Laser Power Meters 2mW-15W 10mW-50W 0.5W-100W 100uW-5W 4

Wavelength range: 0.19 -15µm
Damage threshold: 1.5kW/cm2
Power measurement range: 100µW-5W
Sensitivity diameter: 8.5mm
Minimum measuring precision: 0.01mW
SMA905 fiber switch connector (Optional)

Part Number	STC-HS1+TP100	STC-HS5+TP100
Header Model	STC-TP100	STC-TP100
Probe Model	STC-HS1	STC-HS5
Power Range	100µW - 1 W	500µW - 5 W
Sensitive Diameter	8.5 mm	8.5 mm
Probe Coating Film	Broadband coating
Probe Material	Thermopile
Wavelength Range	0.19-15 μm
Max. Average Power Density	1.5 kW/cm2
Sensitivity	100µW	500µW
Calibration Uncertainty (k=2)	±2%
Response Time (0-90%)	<1 sec.
Linearity	±0.5%
Power Supply	18650 (2 batteries)
Overall Weight	1.434 kg
Cooling Method	Air cooling
Computer Interface	USB 1.1 and USB 2.0
Instrument Power	100-240 VAC, 50/60 Hz, DC 12V-3.34A
Temperature (Operating)	5°C - 45°C (41°F - 113°F)
Temperature (Storage)	-20°C - 70°C (-4°F - 158°F)

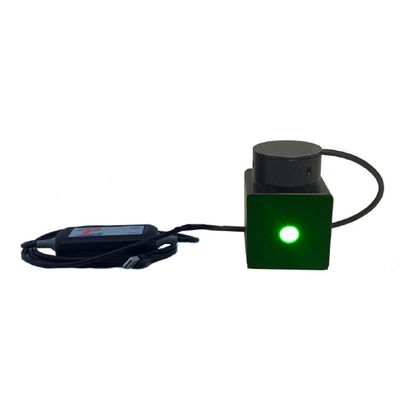

5. STC-TS-USB Series Laser Power Meter (2mW-15W)

High Precision Laser Power Meters 2mW-15W 10mW-50W 0.5W-100W 100uW-5W 5

Wavelength range: 0.19 -20µm
Power measurement range: 2mW-15W
Single channel/ multi-channel power measurement
PC upper computer software display measurement

Model	STC-TS2-USB	STC-TS5-USB	STC-TS15-USB
Power Range	2 mW - 2 W	5 mW - 5 W	10 mW - 15 W
Sensitive Diameter	14 mm	14 mm	14 mm
Continuous Measurement Time (<5W)	Unlimited (<2W)	Unlimited	Unlimited
Continuous Measurement Time (5-15W)	/	/	≤8 min
Probe Coating Film	Broadband coating
Probe Material	Thermopile
Wavelength Range	0.19-20 μm
Max. Average Power Density	15 kW/cm2
Sensitivity	2 mW	5 mW	10 mW
Calibration Uncertainty (k=2)	±2%
Response Time (0-90%)	<1 sec.
Linearity	±1%
Cooling Method	Air cooling
Computer Interface	USB 1.1 and USB 2.0
Temperature (Operating)	5°C - 45°C (41°F - 113°F)
Temperature (Storage)	-20°C - 70°C (-4°F - 158°F)

6. STC-TS-USB Series Laser Power Meter (10mW-50W)

High Precision Laser Power Meters 2mW-15W 10mW-50W 0.5W-100W 100uW-5W 6

Wavelength range: 0.19 -25µm
Power measurement range: 10mW-50W
Single channel/ multi-channel power measurement
PC upper computer software display measurement

Model	STC-TS35-USB	STC-TS50-USB
Power Range	10 mW - 35 W	10 mW - 50 W
Sensitive Diameter	22 mm	22 mm
Continuous Measurement Time (<10 W)	Unlimited	Unlimited
Continuous Measurement Time (10-50W)	≤5 min (10-35W)	≤5 min (10-50W)
Probe Coating Film	Broadband coating
Probe Material	Thermopile
Wavelength Range	0.19-25 μm
Max. Average Power Density	40 kW/cm2
Sensitivity	10 mW
Calibration Uncertainty (k=2)	±2%
Response Time (0-90%)	<1 sec.
Linearity	±1%
Cooling Method	Air cooling
Computer Interface	USB 1.1 and USB 2.0
Temperature (Operating)	5°C - 45°C (41°F - 113°F)
Temperature (Storage)	-20°C - 70°C (-4°F - 158°F)

7. STC-TS-USB Series Laser Power Meter (0.5W-100W)

High Precision Laser Power Meters 2mW-15W 10mW-50W 0.5W-100W 100uW-5W 7

Wavelength range: 0.19 -20µm
Power measurement range: 0.5W-100W
Single channel/ multi-channel power measurement
PC upper computer software display measurement

Part Number	STC-TS100-USB
Power Range	0.5 W - 100 W
Sensitive Diameter	25 mm
Continuous Measurement Time (<80 W)	2 h
Continuous Measurement Time (80-100 W)	≤8 min
Probe Coating Film	Broadband coating
Probe Material	Thermopile
Wavelength Range	0.19-20 μm
Max. Average Power Density	45 kW/cm2
Sensitivity	0.1 W
Calibration Uncertainty (k=2)	±2%
Response Time (0-90%)	<7 sec.
Linearity	±1%
Cooling Method	Fan cooling
Computer Interface	USB 1.1 and USB 2.0
Temperature (Operating)	5°C - 45°C (41°F - 113°F)
Temperature (Storage)	-20°C - 70°C (-4°F - 158°F)

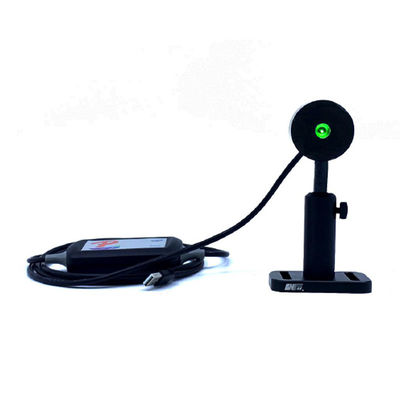

8. STC-HS-USB Series Laser Power Meter (100uW-5W)

High Precision Laser Power Meters 2mW-15W 10mW-50W 0.5W-100W 100uW-5W 8

Wavelength range: 0.19 -15µm
Power measurement range: 100µW-5W
Single channel/ multi-channel power measurement
PC upper computer software display measurement

Part Number	STC-HS1-USB	STC-HS5-USB
Probe Model	STC-HS1-USB	STC-HS5-USB
Power Range	100µW - 1 W	500µW - 5 W
Sensitive Diameter	8.5 mm	8.5 mm
Probe Coating Film	Broadband coating
Probe Material	Thermopile
Wavelength Range	0.19-15 μm
Max. Average Power Density	1.5 kW/cm2
Sensitivity	100µW	500µW
Calibration Uncertainty (k=2)	±2%
Response Time (0-90%)	<1 sec.
Linearity	±0.5%
Cooling Method	Air cooling
Computer Interface	USB 1.1 and USB 2.0
Temperature (Operating)	5°C - 45°C (41°F - 113°F)
Temperature (Storage)	-20°C - 70°C (-4°F - 158°F)

9. STC-PS100 High Precision Photoelectric Laser Power Meter

High Precision Laser Power Meters 2mW-15W 10mW-50W 0.5W-100W 100uW-5W 9

Wavelength range: 320-1100 nm
High precision: ±2%
Resolution: 2nW
Minimum measuring precision: 0.001nW

Part Number	STC-PS100
Detector Model	STC-PD-MN-100
Power Range	2nW -100mW
Active Area Diameter	8mm
Receiving Element	Si Photo diode
Wavelength Range	320-1100 nm
Measurement Display	nW/ µW/ mW/ dBm/ dB
Calibration Uncertainty (k=2)	±2%
Response Time (0-90%)	0.2sec.
Total Weight	0.8kg
Instrument Power	100-240 VAC, 50/60 Hz, DC 9V-1.4A
Temperature (Operating)	5℃-45℃ (41℉-113℉)
Temperature (Storage)	-20℃-70℃ (-4℉-158℉)

10. Hand-held Laser Power Meter

High Precision Laser Power Meters 2mW-15W 10mW-50W 0.5W-100W 100uW-5W 10

Features:

Wavelength range: 0.19 -25µm
Power range: 10mW-2W, 0.5-50W
Active area diameter: 22mm

Model	STC-HP2	STC-HP50
Power Range	10mW - 2 W	0.5W - 50 W
Active Area Diameter	22 mm	22 mm
Wavelength Range	0.19-25 μm	0.19-25 μm
Max. Average Power Density	15 kW/cm2	40 kW/cm2
Uncertainty (k=2)	±2%	±2%
Linearity	±1%	±1%
Cooling Method	Air cooling	Air cooling
Temperature (Operating)	5°C - 45°C (41°F - 113°F)	5°C - 45°C (41°F - 113°F)
Temperature (Storage)	-20°C - 70°C (-4°F - 158°F)	-20°C - 70°C (-4°F - 158°F)

Tag:

Contact Person: Steven

Tel: +86 15671598018

Fax: 86-027-51858989

Other Products

High Precision Laser Power Meters 2mW-15W 10mW-50W 0.5W-100W 100uW-5W

High Precision Laser Power Meters 2mW-15W 10mW-50W 0.5W-100W 100uW-5W

High Precision Laser Power Meters 2mW-15W 10mW-50W 0.5W-100W 100uW-5W

Laser Power Meter

Laser Power Meters

Power Meters

2mW-15W, 10mW-50W, 0.5W-100W, 100uW-5W Laser Power Meters

1. STC-TS+TP100 Series Laser Power Meter (2mW-15W)

2. STC-TS+TP100 Series Laser Power Meter (10mW-50W)

3. STC-TS+TP100 Series Laser Power Meter (0.5W-100W)

4. STC-HS+TP100 Series Laser Power Meter (100uW-5W)

5. STC-TS-USB Series Laser Power Meter (2mW-15W)

6. STC-TS-USB Series Laser Power Meter (10mW-50W)

7. STC-TS-USB Series Laser Power Meter (0.5W-100W)

8. STC-HS-USB Series Laser Power Meter (100uW-5W)

9. STC-PS100 High Precision Photoelectric Laser Power Meter

10. Hand-held Laser Power Meter

Thermal Cameras,

Laser Rangefinder,
