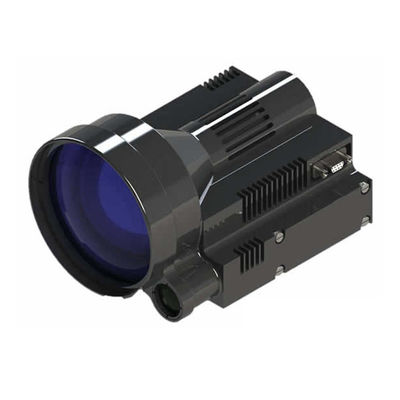

Long Lifetime Compact Laser Instrument Diode / Solid State Laser Range Finder

A Long Lifetime With Low Power Consumption Laser Rangefinders

Laser rangefinder has a long lifetime with low power consumption, easy to assemble and use. They are widely used in aircraft, railway, power sector, water conservancy industry, communication, environment, geology, architecture, agriculture, forestry, real estate, outdoor sports, etc. We use solid-state lasers or diode lasers with 905nm/ 1550nm laser wavelength. The ranging distance is 5m-1800m, 180m-8000m, 50m-15000m, etc.

1. STC-DYA-00 series Laser Range Finder

STC-DYA-00 is highly compact, easy to assemble and use. STC-DYA-00A uses the 905nm diode laser and STC-DYA-00B uses the 1550nm diode laser. They have a long lifetime with low power consumption.

2. STC-DYA-01(C) series Laser Range Finder

STC-DYA-01(C) is highly compact, eye safe, easy to assemble and use. It uses the 1550nm diode laser and has a long lifetime with low power consumption.

• Operating wavelength: 1550nm

• Range: 30m~4000m

• Precision: ±2m (depending on range)

• Frequency: 1~5Hz

• Accuracy rate: ≥98%

• Divergence angle: 1.2mrad

• Aperture diameter: 27mm

• Communication interface: RS232 (optional: RS422)

• Input voltage: 12V

• Power consumption:<3.5W

• Standby power:<0.35W

• Size: 92mmx50mmx34mm

• Weight: ≤120g

• Heat dissipation method: natural heat dissipation

3. STC-DYA-02(C) series Laser Range Finder

STC-DYA-02(C) is highly compact, eye safe, easy to assemble and use. It uses the 1550nm diode laser and has a long lifetime with low power consumption.

• Operating wavelength: 1550nm

• Range: 30m~5000m

• Precision: ±2m (depending on range)

• Frequency: 1~5Hz

• Accuracy rate: ≥98%

• Divergence angle: 1.0mrad

• Aperture diameter: 32mm

• Communication interface: RS232 (optional: RS422)

• Input voltage: 12V

• Power consumption:<3.5W

• Standby power:<0.35W

• Size: 99mm×62mm×45mm

• Weigh: ≤170g

• Heat dissipation method: natural heat dissipation

4. STC-DYC-01A series Laser Range Finder

STC-DYC-01A is highly compact, eye safe, easy to assemble and use. It uses the solid-state laser and has a long lifetime with low power consumption.

• Operating wavelength: 1535nm

• Range: 50m~8000m

• Precision: ±0.5m (depending on range)

• Frequency: 1~5Hz

• Accuracy rate: ≥99%

• Divergence angle: 0.6mrad

• Aperture diameter: 33mm

• Communication interface: RS422

• Input voltage: 28V (optional: 12V)

• Power consumption: ≤4W

• Standby power: ≤4W

• Size: 86mmx51mmx40mm or customizable

• Weight: ≤200g or customizable

• Heat dissipation method: natural heat dissipation

5. STC-DYC-01B(1/2/3) series Laser Range Finder

STC-DYC-01B is highly compact, eye safe, easy to assemble and use. It uses the solid-state laser and has a long lifetime with low power consumption.

6. STC-DYC-01C(1/2/3) series Laser Range Finder

STC-DYC-01C is highly compact, eye safe, easy to assemble and use. It uses the solid-state laser and has a long lifetime with low power consumption.
