<50W High Power Fiber Coupled Diode Laser System with Integrated Electronics
The STC-FC series (Fiber Coupled Laser System) integrates laser diode, laser cavity, fiber coupled optics, laser power supply, LD current and crystal temperature control into ONE box. The power is available for 1mW-100W with different dimensions. The characteristics of compact design and convenient functions make it very suitable for pumping, scientific research, industrial and medical applications.

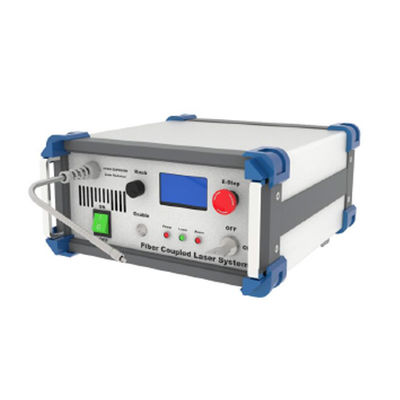

(1) <50W High Power Fiber Coupled Diode Laser System at 444-980nm (STC-FC-W-xxxA)
The STC-FC-W-xxxA series (Fiber Coupling Laser System) have integrated laser diode, fiber coupling optics, laser power supply, LD current and temperature control in ONE box. Its compact dimension and convenient functions, such as power adjustment, temperature control, LED display etc, make it very suitable for pumping, scientific research, industrial and medical applications.
| Model |
STC-FC-W-xxxA |
| Available Wavelengths (nm) |
444 |
793 |
808 |
810 |
878.6 |
880/885 |
915 |
938 |
940 |
976 |
980 |
| Wavelengths Tolerance (nm) |
±3 |
±3 |
±3 |
±10 |
±0.5 |
±3 |
±5 |
±3 |
±10 |
±3 |
±3/±10 |
| Available Power (W) |
10, 25 |
40 |
10, 20 |
30, 40 |
10, 20, 30, 40 |
20, 40 |
30 |
25, 30 |
| Red Pilot Light |
Available on request |
| Fiber Core Diameter (µm) |
100, 200, 400 |
| Fiber NA |
0.15/ 0.22 |
| Fiber Connector |
SMA905 |
| Fiber Length (m) |
2 |
| Output Power |
0-100%, adjustable by knob |
| Operating Mode |
CW, TTL or Analog on request |
| LED Display |
Diode current |
| Expected Lifetime (hours) |
10000 |
| Input Power |
90-264VAC, 50 to 60 Hz |
| Operating Temperature ( ℃) |
10~40 |
| Cooling Way |
By air |
| TTL/ Analog Modulation |
Up to 30KHz optional |
| Dimension (mm) |
292x326x156 (200x100x160 small size) |

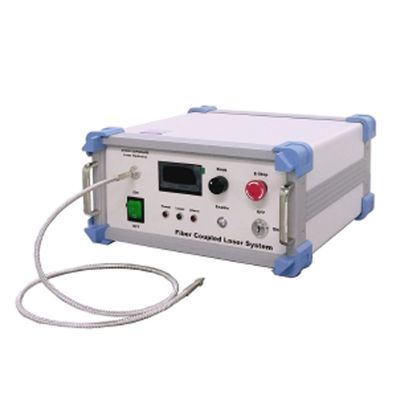

(2) <50W High Power Fiber Coupled Diode Laser System at 1064-1908nm (STC-FC-W-xxxB)
The STC-FC-W-xxxB series (Fiber Coupling Laser System) have integrated laser diode, fiber coupling optics, laser power supply, LD current and temperature control in ONE box. Its compact dimension and convenient functions, such as power adjustment, temperature control, LED display etc, make it very suitable for pumping, scientific research, industrial and medical applications.
| Model |
STC-FC-W-xxxB |
| Available Wavelengths (nm) |
1060 |
1208 |
1275 |
1320 |
1380 |
1470 |
1532 |
1550 |
1600 |
1710 |
1870 |
1908 |
| Central Wavelengths Tolerance (nm) |
±20 |
±20 |
±20 |
±20 |
±20 |
±20 |
±3/±20 |
±20 |
±20 |
±20 |
±20 |
±3/±10 |
| Available Power (W) |
30 |
12 |
15 |
15 |
15 |
10, 15 |
10, 15 |
10, 15 |
10, 15 |
6 |
6 |
6 |
| Red Pilot Light (P) |
Available on request |
| Fiber Core Diameter (µm) |
400 |
| Fiber NA |
0.22 |
| Fiber Connector |
SMA905 |
| Fiber Length (m) |
2 |
| Output Power |
0-100%, adjustable by knob |
| Operating Mode |
CW |
| TTL/ Analog Modulation |
Up to 30KHz optional |
Up to 1KHz for both CW & modulated mode
Up to 30KHz for modulated mode only |
| LED Display |
Diode current |
| LD Temperature Control Range ( ℃) |
15~30, adjustable by knob |
| Expected Lifetime (hours) |
10000 |
| Input Power |
90-264VAC, 50 to 60 Hz |
| Power Consumption (KVA) |
<0.5 |
Operating Temperature
( ℃) |
10~40 |
| Dimension (mm) |
406x370x186 |
| Weight (kg) |
<15 |
| Cooling Way |
by air |

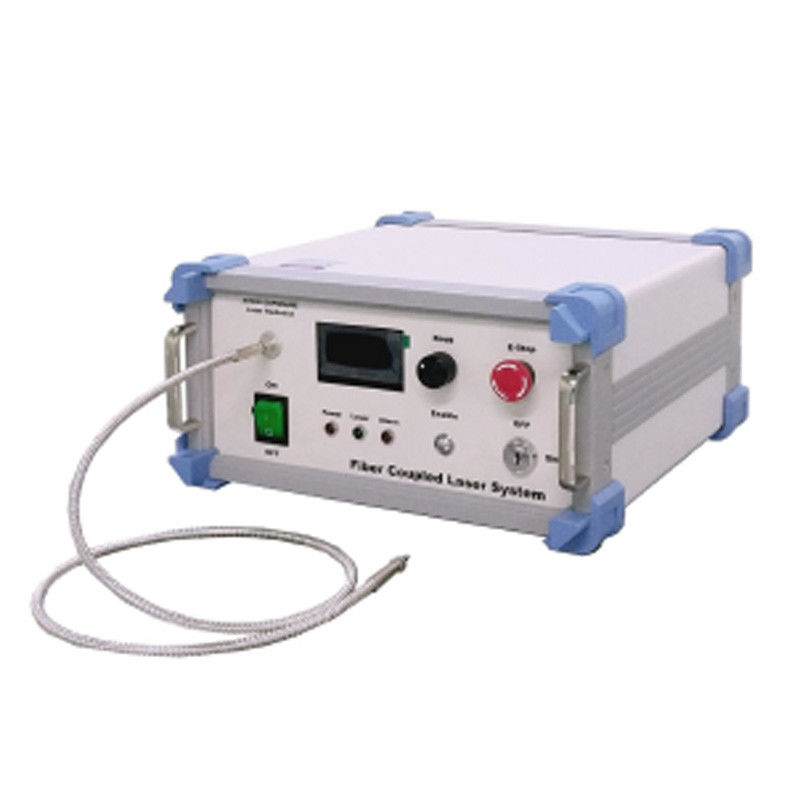

(3) 50-300W Super High Power Fiber Coupled Diode Laser System (STC-FC-W-xxxH)
The STC-FC-W-H series (Fiber Coupling Laser System) have integrated laser diode, fiber coupling optics, laser power supply, LD current and temperature control in ONE box. Its compact dimension and convenient functions, such as power adjustment, temperature control, LED display etc, make it very suitable for pumping, scientific research, industrial and medical applications. Diode current display, temperature display, adjustable knob, temperature controllable, temperature and current protection.
| Parameter |
STC-FC-W-792H |
STC-FC-W-808H |
STC-FC-W-880H |
STC-FC-W-915H |
STC-FC-W-940H |
STC-FC-W-980H |
| Available Wavelengths (nm) |
792 |
808 |
880 |
915 |
940 |
980/976 |
| Central Wavelengths Tolerance (nm) |
±3 |
±3/±10 |
±3 |
±5 |
±3 |
±3/±10 |
| Available Power (W) |
50-100 |
50-100
110-300 |
50-100 |
50-100
110-300 |
50-100 |
50-100
110-300 |
| Red Pilot Light |
Available on request |
| Fiber Core Diameter (µm) |
400 |
400/200 |
| Fiber NA |
0.22 |
| Fiber Connector (undetachable) |
SMA905 |
| Fiber Length (m) |
2 |
| Output Power |
0-100%, adjustable by knob |
| Operating Mode |
CW/ Pulse |
| LED Display |
Diode current |
| Temperature Stability ( ℃) |
±0.1 |
| Expected Lifetime (hours) |
10000 |
| Input Power |
200-240VAC |
| Power Consumption (KVA) |
<0.5 |
| Operating Temperature ( ℃) |
10~40 |
| Dimension (mm) |
406×370×186 |
| Weight (kg) |
<15 |
| Cooling Way |
By air |
| TTL/ Analog Modulation |
Up to 30KHz optional |
| Warranty time |
1 year |
