375nm with maximum laser power 200mW UV Laser Diode Modules

375nm with maximum laser power 200mW UV Laser Diode Modules
375nm with maximum laser power 200mW UV Laser Diode Modules 375nm with maximum laser power 200mW UV Laser Diode Modules 375nm with maximum laser power 200mW UV Laser Diode Modules

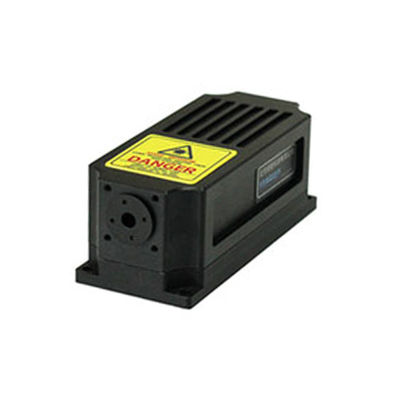

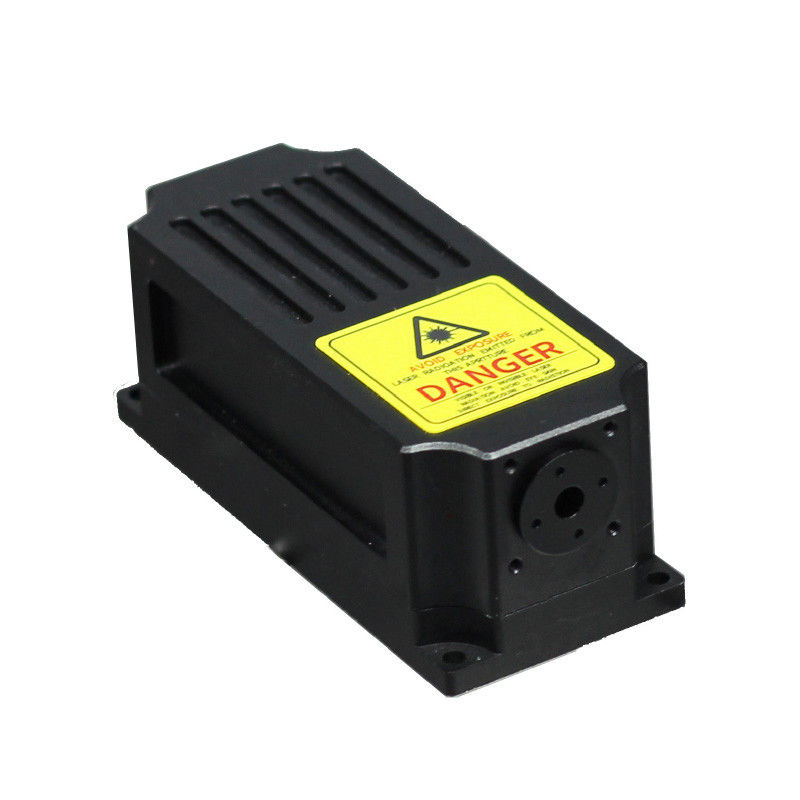

Large Image :  375nm with maximum laser power 200mW UV Laser Diode Modules

Product Details:
Place of Origin: China
Brand Name: Sintec Optronics
Model Number: ST-I Series
Payment & Shipping Terms:
Delivery Time: Stock
Payment Terms: T/T via bank

375nm with maximum laser power 200mW UV Laser Diode Modules

Description
Highlight:

UV Laser Diode Modules

,

Laser Diode Modules

,

Laser Diodes

375nm with maximum laser power 200mW UV Laser Diode Modules



We offer UV diode lasers at the laser wavelength of 375nm with maximum laser power 200mW. These lasers are widely used in scientific, medical, industrial and entertainment applications.

  • Laser power is stable and adjustable

  • Protected with overheating and over current

  • Can be externally controled with high speed modulation

  • Suitable for scientific research, medical treatment, biological engineering, stage laser show, etc

List of UV Diode Lasers

Part Number Wavelength Laser Power
ST-I-DC-375-20 375nm 20mW
ST-I-DC-375-50 375nm 50mW
ST-I-DC-375-100 375nm 100mW
ST-I-DC-375-150 375nm 150mW
ST-I-DC-375-200 375nm 200mW

Detailed Specifications

Part Number ST-I-DC-375-xxx
Wavelength (nm) 375
Operation Mode CW
Beam Mode TEM00
Output Power (mW) 20/50/100/150/200
Average Power Stability (Over 4hrs) <1%/<3%/<5%
Beam Divergence (full angle, mrad) 1.2
Beam Diameter at Aperture (mm) <1.5
Beam Height from Base Plate 27
Warm-up Time (min) <10
Cooling Air
Operation Tem. (oC) 15-35
Power Supply ST-IIA(GT1)/ST-OEM-B(GT1)
Expected Lifetime (hrs) 10,000
Laser Head Dimension (mm) 136x50x47
Laser Head Weight (kg) 0.5
Power Supply Dimension (mm) 168x164x80/149x80.5x49
Power Supply Weight (kg) 1.5/0.5

Remarks: 1) In the part number, xxx means laser power in mW or W; 2) Other power levels available upon request; 3) There are 3 average power stabilities for all lasers and default is 5%; 4) There are 2 types of power supplies: integrated and OEM. The power input of integrated is 110V-220VAC and the power input of OEM is 12VDC.
