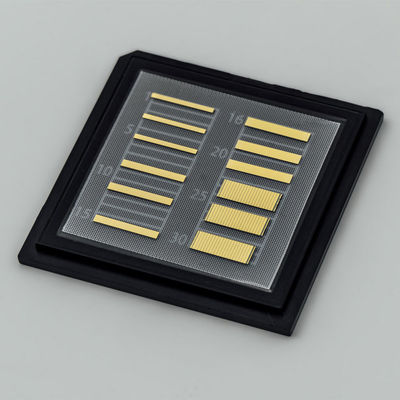

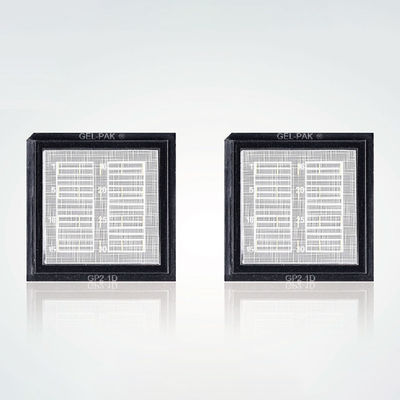

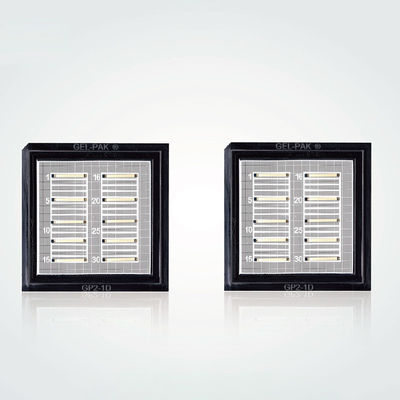

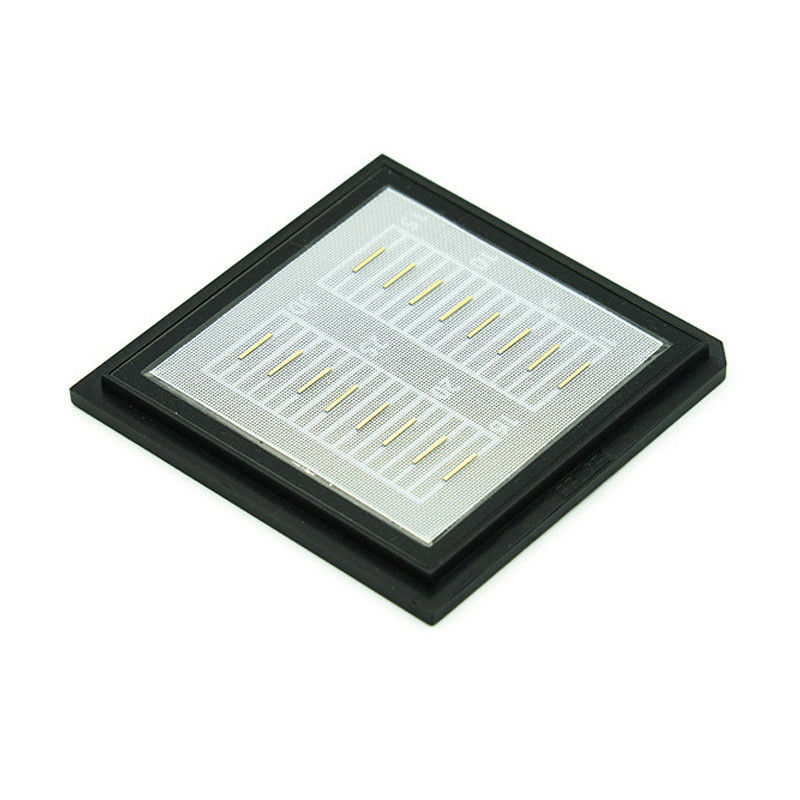

808nm Laser Diode Chips

Large Image : 808nm Laser Diode Chips

Product Details:

Place of Origin:	China
Brand Name:	Sintec Optronics
Certification:	CE ISO
Model Number:	STD Series

Payment & Shipping Terms:

Delivery Time:	Stock
Payment Terms:	T/T via bank

Contact Now

808nm Laser Diode Chips

Description

Service:	Online Service	Application:	Medical, Industrial, Etc.
Beam Diameter:	1-10mm	Beam Divergence:	0.2-2mrad
Beam Quality:	M2<1.2	Lifetime:	>10000h
Operating Current:	0.5-10A	Operating Temperature:	-10℃-50℃
Operating Voltage:	3-5V	Output Power:	1mW-100W
Package:	TO-Can, Butterfly, Etc.	Polarization:	Vertical Or Horizontal
Power Stability:	<1%	Storage Temperature:	-40℃-85℃
Type:	Diode Lasers	Wavelength:	405nm-1550nm
Highlight:	Laser Diode Chips , Diode Chips , Diode Laser Bars

808nm to 976nm Diode Laser Chips, Bars and Stacks

1. STD Series Diode Laser Chips & Bars

Features:

High output power
High electrical-optical conversion efficiency
High brightness
High reliability

Technical Advantages:

High efficient epitaxial structure design
High-quality epitaxial material growth
Special passivation method for cavity surface

Part number	Wavelength	Power	Operation current/voltage	Remark
STD-UMC-100-808-TE-6-4.0	808nm	6W	5.7A/1.75V	CW single chip
STD-UMC-190-808-TE-10-4.0	808nm	10W	9.5A/1,75	CW single chip
STD-UMC-190-808-TE-12-4.0	808nm	12W	10.5A/1.75V	CW single chip
STD-UMC-100-915-TE-12-4.5	915nm	12W	10.5A/1.62V	CW single chip
STD-UMC-160-915-TE-18-5.0	915nm	18W	17.5A/1.65V	CW single chip
STD-UMC-190-915-TE-22-5.0	915nm	22W	20.0A/1.68V	CW single chip
STD-UMC-230-915-TE-25-5.0	915nm	25W	24.5A/1.70V	CW single chip
STD-UMC-100-945-TE-12-4.5	945nm	12W	11.5A/1.70V	CW single chip
STD-UMC-160-945-TE-18-5.0	945nm	18W	17.5A/1.70V	CW single chip
STD-UMC-190-945-TE-22-5.0	945nm	22W	21.5A/1.70V	CW single chip
STD-UMC-230-945-TE-25-5.0	945nm	25W	25.0A/1.70V	CW single chip
STD-UMC-100-975-TE-12-4.5	975nm	12W	12.5A/1.52V	CW single chip
STD-UMC-100-975-TE-15-4.5	975nm	15W	16.0A/1.55V	CW single chip
STD-UMC-190-975-TE-22-5.0	975nm	22W	23.5A/1.55V	CW single chip
STD-UMC-230-975-TE-25-5.0	975nm	25W	27.0A/1.55V	CW single chip
STD-UMC-230-975-TE-30-5.5	975nm	30W	33.0A/1.55V	CW single chip
STD-UMB-30-19-808-TE-50-1.5	808nm	50W	42.0A/1.80V	CW bar
STD-UMB-50-47-808-TE-100-1.5	808nm	100W	92.0A/1.80V	CW bar
STD-UMB-50-47-940-TE-120-2.0	940nm	120W	115A/1.65V	CW bar
STD-UMB-50-47-976-TE-200-4.0	976nm	200W	195A/1.55V	CW bar
STD-UMB-75-37-808-TE-300-1.5	808nm	300W	250A/2.00V	QCW bar

2. Pump Modules & Stacks

AuSn hard solder packaging construction
High duty cycle, high energy density
Filtered water, alternative cooling fluids
Small pitch, compact size
Optional seal band optical waveguide assemble
Optional fast collimation
Used for laser pumping, hair removal etc.

2.1 Pump Modules

Part number	Structure	Laser power	Laser wavelength
STD-HS12	Macro channel stack	600W-16500W	760nm-1100nm
STD-GS20	Conduction cooling stack	4000W-1000W	760nm-1100nm
STD-L5	Macro channel horizontal stack	300W-3000W	760nm-1100nm
STD-E27	Macro channel stack	4000W-10000W	760nm-1100nm
STD-MA	Micro channel stack	2500W-15000W	760nm-1100nm
STD-HM7	Whole micro channel stack	700W-3500W	760nm-1100nm

(1) Macro channel stack STD-HS12

AuSn hard solder packaging construction
High duty cycle, high energy density
Filtered water, alternative cooling fluids
Small pitch, compact size
Optional seal band optical waveguide assemble
Optional fast collimation
Used for laser pumping, hair removal etc.

Wavelength	760-1100nm
Peak power, W	600	1200	7200	10000	16500
Operation mode	QCW
Operation current, A	50	95	550	450	450
Duty cycle up to, %	25	15	5	1	0.4
Number of bars	12	12	12	20	Up to 33
Bar to bar pitch, mm	1.2	1.2	1.2	0.93	0.4
Electric/optic conversion efficiency, %	58	Up to 60	56	56	56
Fast axis divergence FWHM, deg	35, optional FAC<4				35
Slow axis divergence FWHM. deg	10
Dimension, mm	28.6x24x11.5mm

Typical pulse energy:

Pulse width	Frequency (Hz)										Iop
Pulse width	1	2	3	4	5	6	7	8	9	10	Iop
10 ms	13	13	12.7	12.75	13	12.7	13	13	12.9	12.9	95A
20 ms	21	21	21.7	21.5	21.4	21.7	21	21.4	20	20.9	85A
30 ms	31	31.5	32	32	-	-	-	-	-	-	60A
40 ms	43	41	42	-	-	-	-	-	-	-	60A
50 ms	53	51	-	-	-	-	-	-	-	-	-
60 ms	61	59.5	-	-	-	-	-	-	-	-	-
70 ms	70	-	-	-	-	-	-	-	-	-	-
80 ms	50	-	-	-	-	-	-	-	-	-	-
90 ms	54	-	-	-	-	-	-	-	-	-	-
100ms	60	-	-	-	-	-	-	-	-	-	-

Remark: cooling water: T 25deg, flow rate 4.5-5.0L/min

(2) Conduction cooling stack STD-GS20

AuSn hard solder packaging construction
High power density
Optional fast-axis collimation
Small pitch, compact size
Optional seal protection
Multi-wavelength in a single array
Used for laser pumping, hair removal etc.

Wavelength	760-1100nm
Peak power, W	4000	6000	10000
Operation mode	QCW	QCW	QCW
Operation current, A	200	280	450
Duty cycle up to, %	1.2	1	0.4
Pulse width, us	Up to 1000	600	200
Number of bars	20
Bar to bar pitch, mm	0.73
Electric/optic conversion efficiency, %	52	56	58
Fast axis divergence FWHM, deg	35, optional FAC < 4
Slow axis divergence FWHM. deg	10
Dimension, mm	37.5x10x9

(3) Macro channel horizontal stack STD-L5

AuSn hard solder packaging construction
High power density
Contact size
Used for pumping

Wavelength	760-1100nm
Peak power, W	300	1500	3000
Operation mode	CW	QCW	QCW
Operation current, A	55	280	550
Number of bars	5
Bar to bar pitch, mm	0.73
Electric/optic conversion efficiency, %	56	56	58
Fast axis divergence FWHM, deg	35
Slow axis divergence FWHM. deg	10
Dimension, mm	70x14x10

(4) Macro channel stack STD-E27

AuSn hard solder packaging construction
High power density
Optional fast axis collimation
Small pitch, compact size
Optional seal protection
Multi-wavelength in a single array
Used for laser pumping

Wavelength	760-1100nm
Peak power, W	4000	6000	10000
Operation mode	QCW	QCW	QCW
Operation current, A	200	280	450
Duty cycle up to, %	8	5	0.4
Pulse width, us	Up to 1000	600	200
Number of bars	20
Bar to bar pitch, mm	2.21
Electric/optic conversion efficiency, %	52	56	58
Fast axis divergence FWHM, deg	35, optional FAC < 4
Slow axis divergence FWHM. deg	10
Dimension, mm	37.5x12x13.4

(5) Whole micro channel stack STD-HM7

AuSn hard solder packaging construction
High power density
Narrow spectrum
Filtered water, alternative cooling fluids
Used for laser pumping & hair removal

Wavelength	760-1100nm
Peak power, W	700	2100	3500
Operation mode	QCW	QCW	QCW
Operation current, A	100	280	450
Duty cycle up to, %	40	8	4
Pulse width, us	Up to 1000	600	200
Number of bars	7
Bar to bar pitch, mm	2.0
Electric/optic conversion efficiency, %	60	56	58
Fast axis divergence FWHM, deg	35
Slow axis divergence FWHM. deg	10
Dimension, mm	30x13x4.95

2.2 Stacks for Hair Removal

Part number	Structure	Laser power	Laser wavelength
STD-HH05	Macro channel stack	300W/500W	760nm-1100nm
STD-HL07	Macro channel stack	300W-700W	760nm-1100nm
STD-HS12	Macro channel stack	600W-1200W	760nm-1100nm

(1) Macro channel stack STD-HH05

AuSn hard solder packaging construction
Suitable for long pulse width operation
Filtered water, alternative cooling fluids
Seal protection
High duty cycle
Used for hair removal & laser pumping

Typical Specifications

Wavelength	760-1100nm
Peak power, W	300	500
Operation mode	QCW	QCW
Operation current, A	95	95
Duty cycle up to, %	20	10
Pulse width, us	200	100
Number of bars	3	5
Bar to bar pitch, mm	5	2.9
Electric/optic conversion efficiency, %	58	58
Fast axis divergence FWHM, deg	35
Slow axis divergence FWHM. deg	10
Dimension, mm	42x25.27x20

Operation Conditions

	STD-HH05-808		STD-HH03-300-808
Peak power per bar, W	100	80	60	100
Operation current, A	95	80	65	95
Pulse width, ms	Max. frequency, Hz
10	30	40	40	40
20	10	15	20	20
30	10	12	13	13
40	10	10	10	10
50	5	6	8	8
60	4	5	6	6
80	3	4	5	4
100	2	3	4	2
200	-	1	2	1
400	-	-	1	-

(2) Macro channel stack STD-HL07

AuSn hard solder packaging construction
Suitable for long pulse width operation
Filtered water, alternative cooling fluids
Seal protection
High duty cycle
Used for hair removal & laser pumping

Typical Specifications

Wavelength	760-1100nm
Peak power, W	300	500	600	700
Operation mode	QCW	QCW	QCW	QCW
Operation current, A	50	50	95	95
Duty cycle up to, %	40	40	10	10
Pulse width, us	Up to 400	Up to 400	100	100
Number of bars	60	10	6	7
Bar to bar pitch, mm	2.2	2.2	3.4	2.9
Electric/optic conversion efficiency, %	58	58	58	58
Fast axis divergence FWHM, deg	35
Slow axis divergence FWHM. deg	10
Dimension, mm	39x40x36

Operation Conditions

	STD-HL06-600-808 STD-HL07-700-808			STD-HL06-300-808 STD-HL10-500-808
Peak power per bar, W	100	80	60	50
Operation current, A	95	80	65	50
Pulse width, ms	Max. frequency, Hz
10	30	40	40	440
20	10	15	20	20
30	10	12	13	13
40	10	10	10	10
50	5	6	8	8
60	4	5	6	6
80	3	4	5	5
100	2	3	4	4
200	-	1	2	2
400	-	-	1	1

(3) Macro channel stack STD-HS12

AuSn hard solder packaging construction
High duty cycle, high energy density
Filtered water, alternative cooling fluids
Small pitch, compact size
Optional seal band optical waveguide assembly
Optional fast-axis collimation
Used for hair removal & laser pumping

Wavelength	760-1100nm
Peak power, W	600	1200	7200	10000	16500
Operation mode	QCW
Operation current, A	50	95	550	450	450
Duty cycle up to, %	25	15	5	1	0.4
Pulse width, us	25	10	0.6	0.4	0.2
Number of bars	12	12	12	20	Up to 33
Bar to bar pitch, mm	1.2	1.2	1.2	0.73	0.4
Electric/optic conversion efficiency, %	58	Up to 60	56	56	56
Fast axis divergence FWHM, deg	35, optional FAC<4				35
Slow axis divergence FWHM. deg	10
Dimension, mm	28.6x24x11.5mm

STD-HS12-1200-808 typical pulse energy (J/cm2):

Pulse width	Frequency (Hz)										Iop
Pulse width	1	2	3	4	5	6	7	8	9	10	Iop
10 ms	13	13	12.7	12.75	13	12.7	13	13	12.9	12.9	95A
20 ms	21	21	21.7	21.5	21.4	21.7	21	21.4	20	20.9	85A
30 ms	31	31.5	32	32	-	-	-	-	-	-	60A
40 ms	43	41	42	-	-	-	-	-	-	-	60A
50 ms	53	51	-	-	-	-	-	-	-	-	-
60 ms	61	59.5	-	-	-	-	-	-	-	-	-
70 ms	70	-	-	-	-	-	-	-	-	-	-
80 ms	50	-	-	-	-	-	-	-	-	-	-
90 ms	54	-	-	-	-	-	-	-	-	-	-
100ms	60	-	-	-	-	-	-	-	-	-	-
