638nm to 1550nm Single Emitter Diode Chips and Bare Bars

638nm to 1550nm Single Emitter Diode Chips and Bare Bars
638nm to 1550nm Single Emitter Diode Chips and Bare Bars 638nm to 1550nm Single Emitter Diode Chips and Bare Bars 638nm to 1550nm Single Emitter Diode Chips and Bare Bars 638nm to 1550nm Single Emitter Diode Chips and Bare Bars 638nm to 1550nm Single Emitter Diode Chips and Bare Bars

Large Image :  638nm to 1550nm Single Emitter Diode Chips and Bare Bars

Product Details:
Place of Origin: China
Brand Name: Sintec Optronics
Model Number: STR Series
Payment & Shipping Terms:
Delivery Time: 5-7days
Payment Terms: T/T via bank
Contact Now

638nm to 1550nm Single Emitter Diode Chips and Bare Bars

Description
Highlight:

Diode Chips and Bare Bars

,

Single Emitter Diode Chips and Bare Bars

,

Diode Chips

638nm to 1550nm Single Emitter Diode Chips and Bare Bars

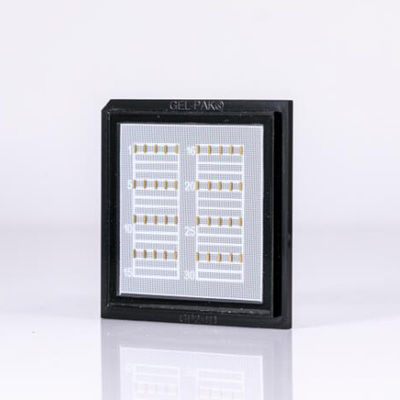

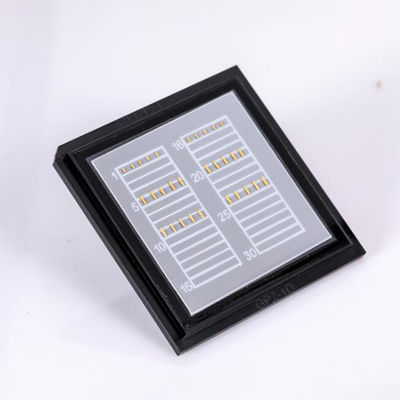

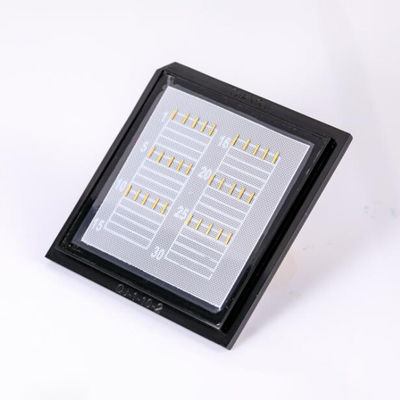

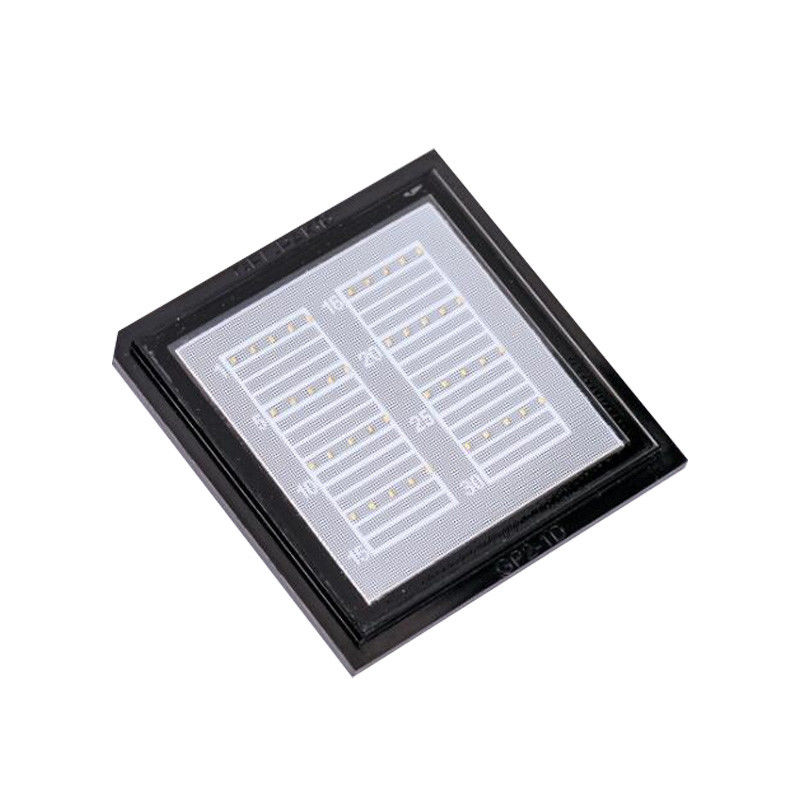

1. Single Emitter

Single-emitter laser diode (SE) chips are the basic built block for high-power and high-brightness semiconductor laser modules. We manufacture single chips with a variety of output powers and wavelengths.

Part number Wavelength, nm Output power Current/voltage Emitting width, um Divergence, deg Size, um
STR-638A-110-1-1.5-SE 638 1W 1.4A/2.1V 110 8/35 1500x400x150
STR-755A-350-8-2.5-SE 755 8W 8A/1.9V 350 9/38 2500x500x150
STR-808A-150-3-1-SE 808 3W 3A/1.9V 150 8/24 1000x500x150
STR-808A-190-10-4-SE 808 10W 10A/1.8V 190 10/38 4000x500x150
STR-808A-350-10-2.5-SE 808 10.5W 10A/1.8V 350 8/36 2500x500x150
STR-880A-190-10-4-SE 880 10W 12A/1.8V 190 8/32 2500x500x150
STR-880A-350-10-2.5-SE 880 9.8W 10A/1.8V 350 8/34 2500x500x150
STR-905A-74-25-0.75-SE 905 25W 7A/7.2V 74 13/30 750x400x150
STR-905A-150-50-0.75-SE 905 50W 14A/7.6V 150 12/31 750X400X150
STR-905A-200-75-0.75-SE 905 75W 20A/8.4V 200 12/30 750X400X150
STR-905B-200-25-0.75-SE 905 25W 20A/3.8V 200 14 750X600X150
STR-905-38-15-0.75-SE 905 15W 5A/9.2V 38 35/30 750X400X150
STR-905C-70-25-0.75-SE 905 25W 8A/8.2V 70 17/30 750X400X150
STR-905C-300-75-0.75-SE 905 75W 22A/9.5V 300 12/30 750x400x150
STR-905D-300-100-0.75-SE 905 100W 22A/11V 300 13/30 750x400x150
STR-915A-96-12-4.8-SE 915 12W 12A/1.6V 96 10/26 4800x500x150
STR-915A-190-20-4-SE 915 20W 20A/1.7V 190 10/26 4000x500x150
STR-940A-96-12-4.8-SE 940 12W 12A/1.6V 96 10/26 4800x500x150
STR-940A-190-20-4-SE 940 20W 20A/1.7V 190 10/26 4000x500x150
STR-976A-96-10-4.8-SE 976 10W 10A/1.8V 96 9/27 4800x500x150
STR-976A-96-12-4.8-SE 976 12W 12A/1.6V 96 10/26 4800x500x150
STR-976A-96-13-4-SE 976 13W 12.5A/1.5V 96 8/28 4000x500x150
STR-976A-190-15-4-SE 976 15.5W 15A/1.6V 190 10/29 4000x500x150
STR-976A-190-20-4-SE 976 20W 20A/1.7V 190 10/26 4000x500x150
STR-1064A-190-10-4-SE 1064 10W 14A/0.9V 190 10/30 4000x500x150
STR-1064A-350-10-2.5-SE 1064 10W 13A/1.6V 350 10/29 2500x500x150
STR-1470A-96-1.5-1-SE 1470 1.5W 4A/1.4V 96 11/31 1000x500x150
STR-1470A-96-3-2-SE 1470 3W 9A/1.5V 96 11/28 2000x500x150
STR-1550A-96-1.5-1-SE 1550 1.5W 4A/1.4V 96 11/31 1000x500x150
STR-15500A-96-3-2-SE 1550 3W 9A/1.5V 96 11/28 2000x500x150

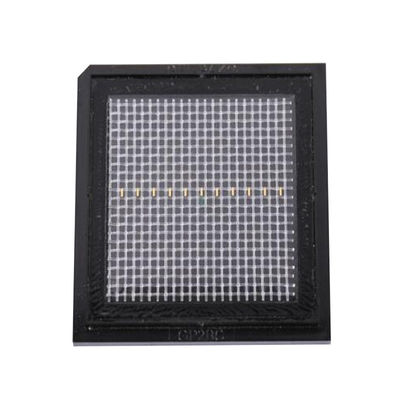

2. Bare Bars

Bare bar is an array of individual semiconductor laser chips, with combined output power from dozens of Watts to a few hundred Watts. Our proprietary facet passivation process ensures the reliability required by the most stringent applications.

In the following table, WL means wavelength, I/V means operation current/voltage, N means the numbers of emitters, P/width means period (um)/emitter width (um), L/W/T means length/width/thickness of the bar.

Part number WL nm Mode Power I/V N P/Width um Filling L/W/T um
STR-755A-48-80-23-1.5-BAR 755 QCW 80W 86A/1.9V 23 499/190 48% 1500x10000x150
STR-808A-30-50-19-1-BAR 808 CW 50W 45A/1.7V 19 500/150 30% 1000x98000x150
STR-808A-48-100-23-1.5-BAR 808 CW 100W 88A/1.75V 23 400/190 48% 1500x9800x150
STR-808A-72-300-34-1.5-BAR 808 QCW 300W 190A/1.85V 34 290/210 72% 1500x10000x150
STR-940A-30-100-19-2-BAR 940 CW 100W 95A/1.65V 19 500/150 30% 2000x10000x150
STR-940A-50-200-24-3-BAR 940 CW 200W 195A/1.63V 24 400/200 50% 3000x10200x150
STR-940A-76-600-40-2-BAR 940 QCW 600W 600A/1.8V 40 250/190 76% 2000x10400x150
STR-976A-10-35-5-4-BAR 976 CW 35W 35A/1.7V 5 1000/100 10% 4000x5000x150
STR-1470A-18-8-6-2-BAR 1470 CW 8W 24A/1.4V 6 400/96 18% 2000x3000x150

Tag:

Fiber Lasers,

Diode Pumped Lasers,

Lasers
