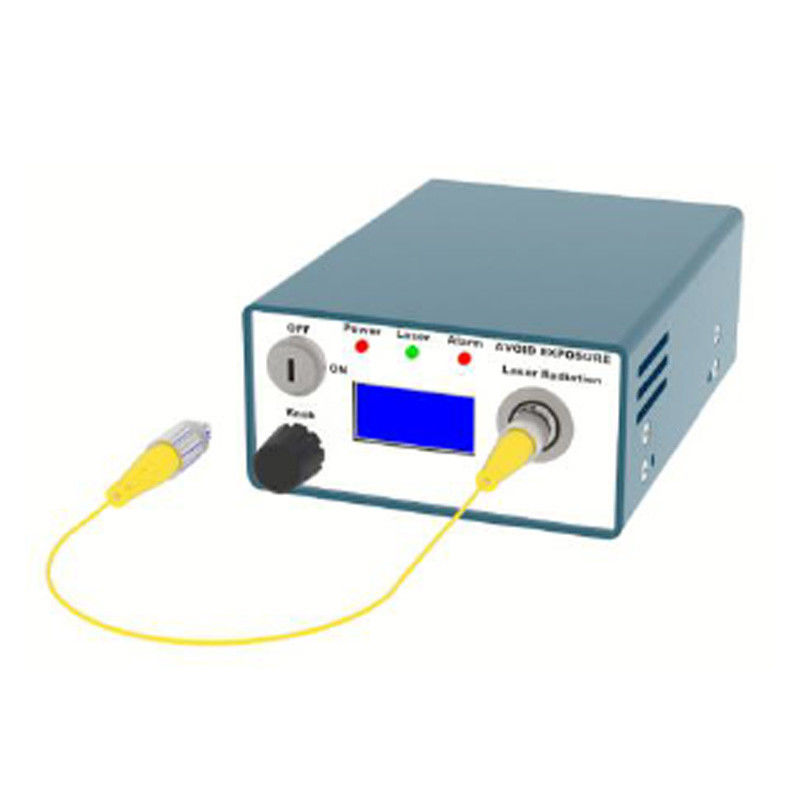

375nm To 980nm Raman Spectroscopy Lasers / Narrow Linewidth Diode Laser

Large Image : 375nm To 980nm Raman Spectroscopy Lasers / Narrow Linewidth Diode Laser

Product Details:

Brand Name:	Sintec Optronics
Model Number:	STC-FC-D Series

Payment & Shipping Terms:

Delivery Time:	Stock
Payment Terms:	T/T via bank

Contact Now

375nm To 980nm Raman Spectroscopy Lasers / Narrow Linewidth Diode Laser

Description

Highlight:

Raman Spectroscopy Lasers

Diode Laser

Narrow Linewidth Diode Laser

375nm to 980 nm Lasers for Raman Spectroscopy / Narrow Linewidth Diode Lasers

STC-FC-D series fiber coupled laser is specially designed for Raman spectroscopy, wavelength available from 375nm to 980 nm. The spectral linewidth is optional from 0.1 nm and 0.06 nm according to customers' actual requirements. Housed in ultra compact package, it is the perfect choice for Raman spectrometer, chemical and biological research, environmental science, jewelry appraisal, forensic appraisal, food/drug safety inspection, geological exploration, systems design and integration.

narrow linewidth lasers

Wavelength (nm)	Output power (mW)	Wavelength (nm)	Output power (mW)
375	1~10	690	1~450
405	1~100	730	1~450
445	1~200	785	1~450
488	1~50	808	1~450
514.5	1~30	830	1~100
633	1~50	852	1~450
639	1~200	975	1~450
660	1~200	980	1~450

Note: The model of laser is STC-FC-D-X-Y, X stands for wavelength in nm and Y stands for laser power in mW. When placing the order, please indicate spectral line width (0.1 0r 0.06nm) and power stability (1%, 2% or 3%).

narrow linewidth laser narrow linewidth lasers

Detailed Specifications

Model	STC-FC-D-375	STC-FC-D-405
Central wavelength (nm)	375±0.5	405±0.5
Spectral line width (nm)	0.1 (0.06, optional)	0.1 (0.06, optional)
Operating mode	CW	CW
Fiber core diameter	100μm, 0.22 NA	100μm, 0.22 NA
Fiber connector	SMA905	SMA905
Output power after fiber (mW)	>1, 2, …, 10	>1, 10, …, 100
Power stability (rms, over 4 hours)	<1%, <2%, <3%	<1%, <2%, <3%

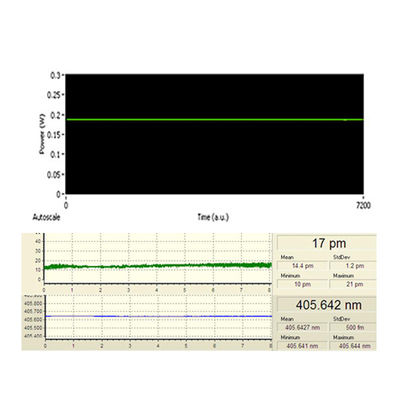

Central wavelength stability (rms, over 2 hours) (pm)	<10	<10
Noise of amplitude (rms, 1~20MHz)	<1%	<1%
Warm-up time (minutes)	<5	<5
Operating temperature (℃)	20~30	20~30
Power supply	Adaptor or 5VDC@5A	Adaptor or 5VDC@5A
Expected lifetime (hours)	10000	10000
Warranty	1 year	1 year
Dimension and weight	169×115×52mm, 1.0kg	169×115×52mm, 1.0kg

Model	STC-FC-D-514.5	STC-FC-D-633
Central wavelength (nm)	514.5±0.5	633±0.5
Spectral line width (nm)	0.1 (0.06, optional)	0.1 (0.06, optional)
Operating mode	CW	CW
Fiber core diameter	100μm, 0.22 NA	100μm, 0.22 NA
Fiber connector	SMA905	SMA905
Output power after fiber (mW)	>1, 2, …, 30	>1, 10, …, 50
Power stability (rms, over 4 hours)	<1%, <2%, <3%	<1%, <2%, <3%
Central wavelength stability (rms, over 2 hours) (pm)	<10	<10
Noise of amplitude (rms, 1~20MHz)	<1%	<1%
Warm-up time (minutes)	<5	<5
Operating temperature (℃)	20~30	20~30
Power supply	Adaptor or 5VDC@5A	Adaptor or 5VDC@5A
Expected lifetime (hours)	10000	10000
Warranty	1 year	1 year
Dimension and weight	169×115×52mm, 1.0kg	169×115×52mm, 1.0kg

Model	STC-FC-D-808	STC-FC-D-852
Central wavelength (nm)	808±0.5	852±0.5
Spectral line width (nm)	0.1 (0.06, optional)	0.1 (0.06, optional)
Operating mode	CW	CW
Fiber core diameter	100μm, 0.22 NA	100μm, 0.22 NA
Fiber connector	SMA905	SMA905
Output power after fiber (mW)	>1, 100, …, 450	>1, 100, …, 450
Power stability (rms, over 4 hours)	<1%, <2%, <3%	<1%, <2%, <3%
Central wavelength stability (rms, over 2 hours) (pm)	<10	<10
Noise of amplitude (rms, 1~20MHz)	<1%	<1%
Warm-up time (minutes)	<5	<5
Operating temperature (℃)	20~30	20~30
Power supply	Adaptor or 5VDC@5A	Adaptor or 5VDC@5A
Expected lifetime (hours)	10000	10000
Warranty	1 year	1 year
Dimension and weight	169×115×52mm, 1.0kg	169×115×52mm, 1.0kg
