532nm to 1064nm Narrow Linewidth Diode Lasers

532nm to 1064nm Narrow Linewidth Diode Lasers
532nm to 1064nm Narrow Linewidth Diode Lasers 532nm to 1064nm Narrow Linewidth Diode Lasers 532nm to 1064nm Narrow Linewidth Diode Lasers 532nm to 1064nm Narrow Linewidth Diode Lasers 532nm to 1064nm Narrow Linewidth Diode Lasers

Large Image :  532nm to 1064nm Narrow Linewidth Diode Lasers

Product Details:
Brand Name: Sintec Optronics
Model Number: STXL Series
Payment & Shipping Terms:
Delivery Time: Stock
Payment Terms: T/T via bank
Contact Now

532nm to 1064nm Narrow Linewidth Diode Lasers

Description
Highlight:

Narrow Linewidth Diode Lasers

,

Diode Lasers

,

Lasers

532nm to 1064nm Narrow Linewidth Diode Lasers





The STXL series narrow linewidth diode lasers are wavelength-stabilized lasers, utilizing wavelength-locking technique with volume Bragging gratings (VBG) which forces the central wavelength tolerance to be ±0.5nm and the optical bandwidth to be less than 0.1nm. In addition to provide narrow spectral bandwidth, these lasers also deliver high output power and excellent stability at 532nm, 638nm, 784nm, 785nm, 808nm, 830nm, 976nm or 1064nm output wavelengths, with power ranging from 100mW to 800mW. Dual-wavelength laser with compact design is also the featured laser product of STXL series. User-friendly solutions like 14-pin butterfly package with fiber pigtail, 14-pin butterfly package with collimated open beam, integrated OEM module or turn-key system are available for these spectrum stabilized lasers. The NL series lasers are ideal light sources for a large variety of applications, including Raman spectroscopy, biomedicine, laser-induced fluorescence (LIF) and pumping.



1. 08LTR Free Space Diode Lasers

Part number Wavelength (nm) Output Power (mW) Package
STXL-638±0.5-350mWW-08LTR-TG 638 350 08LTR
STXL-785±0.5-350mWW-08LTR-TG 785 350 08LTR
STXL-785±0.5-500mWW-08LTR-TG 785 500 8LTR
STXL-808±0.5-600mWW-08LTR-TG 808 600 8LTR
STXL-830±0.5-600mWW-08LTR-TG 830 600 8LTR
STXL-976±0.5-800mWW-08LTR-TG 976 800 8LTR
STXL-1064±0.5-800mWW-08LTR-TG 1064 800 8LTR



2.14SBTF Single Mode Free Space Diode Lasers

Part number Wavelength (nm) Output Power (mW) Package
STXL-532±0.5-100mWF-14SBTF-TG 32 100 14SBTF
STXL-638±0.5-600mWF-14SBTF-TG 638 600 14SBTF
STXL-785±0.5-500mWF-14SBTF-TG 785 500 14SBTF
STXL-808±0.5-600mWF-14SBTF-TG 808 600 14SBTF
STXL-830±0.5-600mWF-14SBTF-TG 830 600 14SBTF
STXL-976±0.5-800mWF-14SBTF-TG 976 800 14SBTF
STXL-1064±0.5-800mWF-14SBTF-TG 1064 800 14SBTF

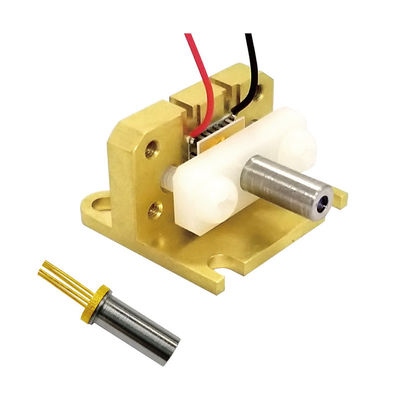

3. 04BCK Diode Lasers



Part number Wavelength (nm) Output Power (mW) Package
STXL-785±0.5-100mWW-04BCK-S-G 785 100 04BCK
STXL-1064±0.5-150mWW-04BCK-S-G 1064 150 04BCK
STXL-785±0.5-100mWW-04BCK-S-TG 785 100 04BCK-TEC
STXL-1064±0.5-150mWW-04BCK-S-TG 1064 150 04BCK-TEC

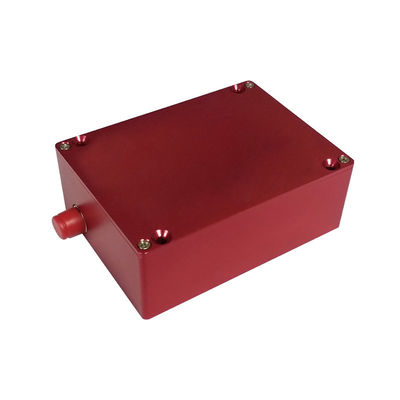

4. R2T Diode Lasers

Part number Wavelength (nm) Output Power (mW) Package
STXL-532/785±0.5-100/500mWF-R2T-TG 532/785 100/500 R2T
STXL-532/830±0.5-100/600mWF-R2T-TG 532/830 100/600 R2T
STXL-784/785±0.5-500/500mWF-R2T-TG 784/785 500/500 R2T
STXL-785/1064±0.5-500/800mWF-R2T-TG 785/1064 500/800 R2T
STXL-808/976±0.5-600/800mWF-R2T-TG 808/976 600/800 R2T
STXL-830/1064±0.5-600/800mWF-R2T-TG 830/1064 600/800 R2T

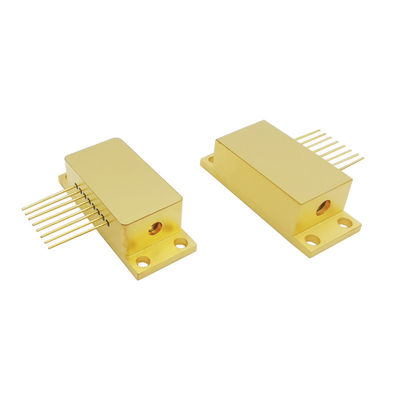

5. 14SBTF Free Space Diode Lasers

Part number Wavelength (nm) Output Power (mW) Package
STXL-532±0.5-100mWW-14SBTF-TG 532 100 14SBTF
STXL-638±0.5-350mWW-14SBTF-TG 638 350 14SBTF
STXL-785±0.5-350mWW-14SBTF-TG 785 350 14SBTF
STXL-785±0.5-500mWW-14SBTF-TG 785 500 14SBTF
STXL-808±0.5-600mWW-14SBTF-TG 808 600 14SBTF
STXL-830±0.5-600mWW-14SBTF-TG 830 600 14SBTF
STXL-976±0.5-800mWW-14SBTF-TG 976 800 14SBTF
STXL-1064±0.5-800mWW-14SBTF-TG 1064 800 14SBTF

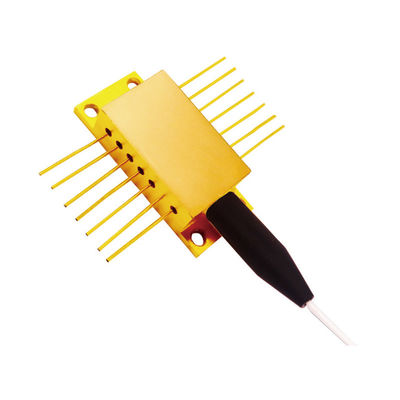

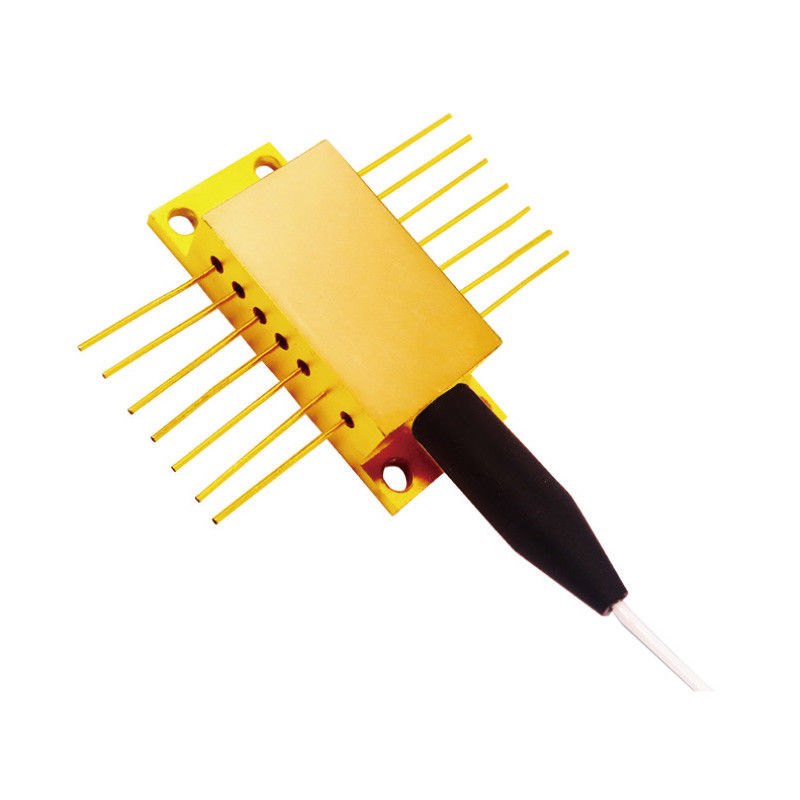

6. 14SBTF Fiber Pigtailed Diode Lasers



7.NLM Series Multi-mode Narrow Linewidth Fiber-coupled Lasers

Key Features

  • Linewidth < 0.1nm
  • Excellent wavelength stability ±5pm@4h
  • SMSR is better than 40dB (60dB optional)
  • Built-in TEC, power stability ±2%
  • Contains PC control, emergency stop button, short circuit protection functions
  • Raman analysis software available

Applications

  • Raman spectroscopy
  • Laser-induced fluorescence
  • Pumping source
Part Number Wavelength (nm) Output Power (mW) Connector
STXL-NLM-532-IF(F)-100 532 100 FC/PC
STXL-NLM-532-IF(S)-100 532 100 SMA905
STXL-NLM-638-IF(F)-600 638 600 FC/PC
STXL-NLM-638-IF(S)-600 638 600 SMA905
STXL-NLM-785-IF(F)-500 785 500 FC/PC
STXL-NLM-785-IF(S)-500 785 500 SMA905
STXL-NLM-808-IF(F)-600 808 600 FC/PC
STXL-NLM-808-IF(S)-600 808 600 SMA905
STXL-NLM-830-IF(F)-600 830 600 FC/PC
STXL-NLM-830-IF(S)-600 830 600 SMA905
STXL-NLM-976-IF(F)-800 976 800 FC/PC
STXL-NLM-976-IF(S)-800 976 800 SMA905
STXL-NLM-1064-IF(F)-800 1064 800 FC/PC
STXL-NLM-1064-IF(S)-800 1064 800 SMA905



8. NLM Series Dual-wavelength Narrow Linewidth Lasers

Key Features

  • Linewidth < 0.1nm for each wavelength
  • Excellent wavelength stability ±5pm@4h
  • Constant frequency interval, support difference algorithm
  • Built-in TEC, power stability ±2%
  • Contains PC control, emergency stop button, short circuit protection functions

Applications

  • Raman spectroscopy
  • Bio-instrumentation
Part Number Wavelength (nm) Output Power (mW) Connector
STXL-NLM-532/785-IF(S)-100/500 532/785 100/500 SMA905
STXL-NLM-532/785-IF(F)-100/500 532/785 100/500 FC/PC
STXL-NLM-532/830-IF(S)-100/600 532/830 100/600 SMA905
STXL-NLM-532/830-IF(F)-100/600 532/830 100/600 FC/PC
STXL-NLM-784/785-IF(S)-500/500 784/785 500/500 SMA905
STXL-NLM-784/785-IF(F)-500/500 784/785 500/500 FC/PC
STXL-NLM-785/1064-IF(S)-500/800 785/1064 500/800 SMA905
STXL-NLM-785/1064-IF(F)-500/800 785/1064 500/800 FC/PC
STXL-NLM-808/976-IF(S)-600/800 808/976 600/800 SMA905
STXL-NLM-808/976-IF(F)-600/800 808/976 600/800 FC/PC
STXL-NLM-830/1064-IF(S)-600/800 830/1064 600/800 SMA905
STXL-NLM-830/1064-IF(F)-600/800 830/1064 600/800 FC/PC



9.NLMO Series Dual-wavelength Narrow Linewidth Lasers

Key Features

  • Switch output between two wavelengths
  • Excellent wavelength stability ±7pm@4h
  • Built-in TEC, typical power consumption < 5W
  • Compact design
  • USB and I/O interface are available
Part Number Wavelength (nm) Output Power (mW) Connector
STXL_NLM-532/785-IF(S)-100/500 532/785 100/500 SMA905
STXL_NLM-532/785-IF(F)-100/500 532/785 100/500 FC/PC
STXL_NLM-532/830-IF(S)-100/600 532/830 100/600 SMA905
STXL_NLM-532/830-IF(F)-100/600 532/830 100/600 FC/PC
STXL_NLM-784/785-IF(S)-500/500 784/785 500/500 SMA905
STXL_NLM-784/785-IF(F)-500/500 784/785 500/500 FC/PC
STXL_NLM-785/1064-IF(S)-500/800 785/1064 500/800 SMA905
STXL_NLM-785/1064-IF(F)-500/800 785/1064 500/800 FC/PC
STXL_NLM-808/976-IF(S)-600/800 808/976 600/800 SMA905
STXL_NLM-808/976-IF(F)-600/800 808/976 600/800 FC/PC
STXL_NLM-830/1064-IF(S)-600/800 830/1064 600/800 SMA905
STXL_NLM-830/1064-IF(F)-600/800 830/1064 600/800 FC/PC



10. NLMO Series Multi-mode Narrow Linewidth Lasers

Key Features

  • Excellent wavelength stability ±7pm@4h
  • Power stability < ±2%
  • Low power consumption, typical < 5W
  • Compact design, easily integrated
Part Number Wavelength (nm) Output Power (mW) Connector
STXL_NLMO-532-IF(F)-100 532 100 FC/PC
STXL_NLMO-532-IF(S)-100 532 100 SMA905
STXL_NLMO-638-IF(F)-600 638 600 FC/PC
STXL_NLMO-638-IF(S)-600 638 600 SMA905
STXL_NLMO-785-IF(F)-500 785 500 FC/PC
STXL_NLMO-785-IF(S)-500 785 500 SMA905
STXL_NLMO-808-IF(F)-600 808 600 FC/PC
STXL_NLMO-808-IF(S)-600 808 600 SMA905
STXL_NLMO-830-IF(F)-600 830 600 FC/PC
STXL_NLMO-830-IF(S)-600 830 600 SMA905
STXL_NLMO-976-IF(F)-800 976 800 FC/PC
STXL_NLMO-976-IF(S)-800 976 800 SMA905
STXL_NLMO-1064-IF(F)-800 1064 800 FC/PC
STXL_NLMO-1064-IF(S)-800 1064 800 SMA905
