405-1550 nm Free Space and Fiber coupling Laser Diodes

405-1550 nm Free Space and Fiber coupling Laser Diodes
405-1550 nm Free Space and Fiber coupling Laser Diodes 405-1550 nm Free Space and Fiber coupling Laser Diodes 405-1550 nm Free Space and Fiber coupling Laser Diodes

Large Image :  405-1550 nm Free Space and Fiber coupling Laser Diodes

Product Details:
Brand Name: Sintec Optronics
Model Number: STC Series
Payment & Shipping Terms:
Delivery Time: Stock
Payment Terms: T/T via bank
Contact Now

405-1550 nm Free Space and Fiber coupling Laser Diodes

Description
Highlight:

Free Space and Fiber Coupling laser Diodes

,

Laser Diodes

,

Fiber Coupling Laser Diodes

405-1550 nm Free Space and Fiber coupling Laser Diodes



We provide laser diodes with free space and fiber coupling option from 405-1550 nm wavelength range. The free space laser diode can be divided in to single mode and multimode. The fiber coupled laser diode can be divided into SM, PM, MM pigtailed and high power laser diode module. The small emitting aperture, combined with low beam divergence, make these devices the highest-brightness family of CW laser diodes available in the industry.

  • Single Mode/ Multimode Laser Diode

  • Wavelength range 405-1550 nm

  • Output power range 5mW-10W

  • Fabry Perot (FP) laser cavity

  • Low capacitance

Wavelength (nm) Tolerance (nm) Power (mW) Laser Type
405 nm 5 20 Single Mode
405 nm 5 150 Single Mode
450 nm 5 1400 Multimode
488 nm 5 60 Single Mode
637 nm 5 120-170 Single Mode
640 nm 5 150 Single Mode
658 nm 8 200 Single Mode
730 nm 10 50 Single Mode
785 nm 5 150 Single Mode
808 nm 3/5/10 200-10000 Multimode
830 nm 5 1000 Multimode
850 nm 5 50 Single Mode
940 nm 5 1500 Multimode
980 nm 5/10 50-3000 Multimode
1064 nm 5 300 Single mode
1310 nm 5 20 Single mode
1550 nm 5 20 Single mode

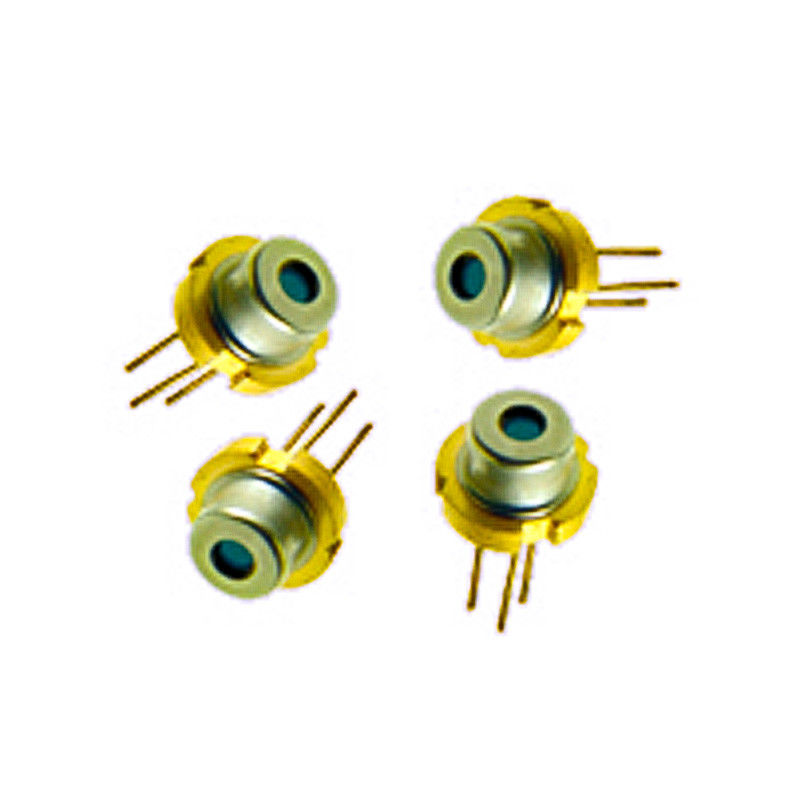

Detailed Specifications of Free-space Laser Diodes

Part Number STC-SLD-405-20 STC-SLD-405-150 STC-SLD-785-150
Power (mW) 20 150 150
Package TO-18 TO-38 TO-5
Peak Wavelength (nm) 405±5 405±5 785±5
Threshold Current (Typ.) 32mA 40mA 35mA
Operating Current (Typ.) 43mA 140mA 170mA
LD Reverse Voltage 2V 2V 2.0V
Operating Voltage 5.2V 5.2V 1.9V
Slope Efficiency 1.8W/A 1.5W/A 1.1W/A
Horizontal Beam Divergence 9deg 8.5deg 8deg
Vertical Beam Divergence 20deg 19deg 25deg
Polarization TE TE TE
Operating Temperature +10-+40°C 0-+90°C -20-+50°C
Storage Temperature -20-+60°C -40-+90°C -40-+80°C
Part Number STC-MLD-808-200 STC-MLD-808-300 STC-MLD-808-500 STC-MLD-808-500 STC-MLD-808-1000
Power (mW) 200 300 500 500 1000
Package TO-18 TO-18 TO-3/C-Mount TO-5 TO-3/C-Mount
Peak Wavelength (nm) 808±3 808±3 808±5 808±3 808±5
Threshold Current (Typ.) 40mA 60mA 130mA 120mA 240mA
Operating Current (Typ.) 250mA 350mA 600mA 650mA 1240mA
LD Reverse Voltage 3.0V 3.0V 2.0V 2.0V 2.0V
Operating Voltage 2.2V 2.2V 2.0V 2.0V 2.0V
Slope Efficiency 1.2W/A 1.2W/A 1.0W/A 1.0W/A 1.0W/A
Horizontal Beam Divergence 10deg 10deg 10deg 12deg 10deg
Vertical Beam Divergence 40deg 40deg 38deg 40deg 38deg
Polarization TE TE TE TE TE
Operating Temperature +10-+30℃ +10-+30℃ 0-+35°C -10-+30°C 0-+35°C
Storage Temperature -40-+80℃ -40-+80℃ -10-+60°C -10-+85°C -10-+60°C
Part Number STC-MLD-808-2000 STC-MLD-808-3000 STC-MLD-808-3000 STC-MLD-808-5000 STC-MLD-808-10000
Power (mW) 2000 3000 3000 5000 10000
Package C-Mount C-Mount TO-3 TO-3/C-Mount CN-Mount
Peak Wavelength (nm) 808±3 808±3 808±10 808±3 808±3
Threshold Current (Typ.) 700mA 800mA 1000mA 1000mA 1900mA
Operating Current (Typ.) 2600mA 3500mA 3500mA 6000mA 10500mA
LD Reverse Voltage 2.0V 2.0V 2.0V 2.0V 2.0V
Operating Voltage 2.0V 2.0V 2.2V 2.0V 2.0V
Slope Efficiency 1.1W/A 1.1W/A 1.0W/A 1.05W/A 1.15W/A
Horizontal Beam Divergence 8deg 8deg 12deg 8deg 10deg
Vertical Beam Divergence 35deg 35deg 40deg 35deg 38deg
Polarization TE TE TE TE TE
Operating Temperature 0-+55°C 0-+55°C +10-+50℃ +15-+30℃ +15-+35°C
Storage Temperature +15-+30°C +15-+35°C -40-+85℃ 0-+55℃ -20-+80°C
Part Number STC-MLD-980-50 STC-MLD-980-500 STC-MLD-980-3000
Power (mW) 50 500 3000
Package TO-18 TO-5 C-Mount
Peak Wavelength (nm) 980±10 980±10 980±5
Threshold Current (Typ.) 25mA 150mA 700mA
Operating Current (Typ.) 120mA 850mA 3300mA
LD Reverse Voltage 2.0V 2.0V 2.0V
Operating Voltage 2.0V 2.0V 2.0V
Slope Efficiency 0.45W/A 0.9W/A 1W/A
Horizontal Beam Divergence 25deg 10deg 8deg
Vertical Beam Divergence 35deg 48deg 35deg
Polarization TE TE TE
Operating Temperature +10-+40℃ +10-+40℃ +15-+30℃
Storage Temperature -40-+85℃ -40-+85℃ 0-+55℃
