Q Switched UV DPSS Lasers And Laser Diodes Miniwantt Nanosecond 355nm

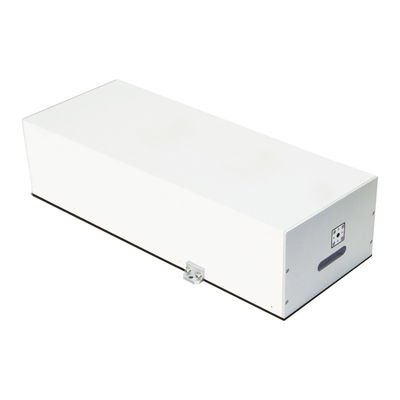

Large Image : Q Switched UV DPSS Lasers And Laser Diodes Miniwantt Nanosecond 355nm

Product Details:

Brand Name:	Sintec Optronics
Model Number:	STL series

Payment & Shipping Terms:

Delivery Time:	Stock
Payment Terms:	T/T via bank

Contact Now

Q Switched UV DPSS Lasers And Laser Diodes Miniwantt Nanosecond 355nm

Description

Highlight:

UV DPSS Lasers

Miniwantt DPSS Lasers And Laser Diodes

Q Switched DPSS Laser

355nm Q-switched Miniwantt Nanosecond UV DPSS Lasers

Laser head and power supply are individual and the laser head is compact
The laser is controlled via built-in panel and RS232
Widely used in 3C electronic applications and laser marking of metals and non-metals, 3D printing, surface film removing etc.

Q Switched UV DPSS Lasers And Laser Diodes Miniwantt Nanosecond 355nm 0

Part number	STL-355-3	STL-355-5
Wavelength	355nm	355nm
Output laser power	>3W@40kHz	>5W@40kHz
Beam divergence	<2mrad	<2mrad
Pulse repetition rate	20kHz-200kHz	20kHz-200kHz
Pulse duration	<15ns@30kHz	<15ns@30kHz
Pulse to pulse stability	<3%	<3%
Average power stability	<3%	<3%
Beam spatial mode	TEM00 (M2<1.2)	TEM00 (M2<1.2)
Polarization ratio	>100:1 horizontal	>100:1 horizontal
Beam diameter	<1mm	<1mm
Beam circularity	>90%	>90%
Cooling	Water cooling	Water cooling
Warm-up time	<15min	<15min
Operation temperature	18-35oC	18-35oC
Dimension (laser head)	292.1x139.7x112.8mm	292.1x139.7x112.8mm
Dimension (power supply)	305x250x110mm	305x250x110mm
