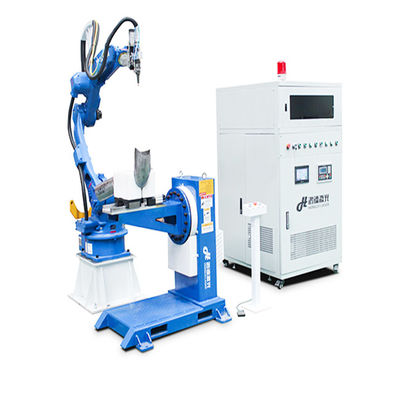

3D Laser Cutting Machine for Pipes, Arc Cutting and Hole Cutting of Special-Shaped Metal Pipes

I'm Online Chat Now

3D Laser Cutting Machine for Pipes, Arc Cutting and Hole Cutting of Special-Shaped Metal Pipes

3D Laser Cutting Machine for Pipes, Arc Cutting and Hole Cutting of Special-Shaped Metal Pipes
3D Laser Cutting Machine for Pipes, Arc Cutting and Hole Cutting of Special-Shaped Metal Pipes
3D Laser Cutting Machine for Pipes, Arc Cutting and Hole Cutting of Special-Shaped Metal Pipes 3D Laser Cutting Machine for Pipes, Arc Cutting and Hole Cutting of Special-Shaped Metal Pipes 3D Laser Cutting Machine for Pipes, Arc Cutting and Hole Cutting of Special-Shaped Metal Pipes 3D Laser Cutting Machine for Pipes, Arc Cutting and Hole Cutting of Special-Shaped Metal Pipes 3D Laser Cutting Machine for Pipes, Arc Cutting and Hole Cutting of Special-Shaped Metal Pipes 3D Laser Cutting Machine for Pipes, Arc Cutting and Hole Cutting of Special-Shaped Metal Pipes

Large Image :  3D Laser Cutting Machine for Pipes, Arc Cutting and Hole Cutting of Special-Shaped Metal Pipes

Product Details:
Place of Origin: China
Brand Name: Sintec Optronics
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: depends on parameter configuration
Delivery Time: around 15 days after your payment
Payment Terms: T/T, Western Union
Supply Ability: 500 sets per year

3D Laser Cutting Machine for Pipes, Arc Cutting and Hole Cutting of Special-Shaped Metal Pipes

Description
Laser Cutting Light Source: High Performance Anti High Reflection Fiber Laser Laser Power: 1500W/3000W/6000W
Repetitive Positioning Accuracy: ± 0.03mm Cutting Wall Thickness: 0.5-10mm (depending On Material)
Cutting Speed: ≤ 12m/min Cutting Aperture: ≥ 3mm
Robot Model: FANUC-M20iA/B/D&YASKAWA-GP25 Airspeed: ≤ 30m/min
Path Accuracy: ± 0.12mm Scope Of Work: 2200 * 1800 * 200mm (cutting Width Is Related To The Shape And Height Of The Workpiece)
Effective Radius Of Robot: 1853mm Worktable Load: ≤ 25kg (at The Center Of The Flange)
Source: Three Phase Five Wire System AC380V 50HZ Protection Level Of Main Power Supply: IP54
Highlight:

Laser Cutting Machine

,

3D Laser Cutting Machine For Shaped Pipe Fittings

,

3D Robot Laser Cutting Machine



3D Laser Cutting Machine for Pipes, Arc Cutting and Hole Cutting of Special-Shaped Metal Pipes 0

3D Laser Cutting Machine for Pipes, Arc cutting and Hole Cutting of Special-Shaped Metal Pipes

Widely used for cutting edges and holes in various sheet metal stretching parts and covering parts; 3D arc cutting and hole position cutting of various hardware shaped pipe fittings. It is an aluminum alloy frame, baby bike frame, new energy electric vehicle, electric tricycle, beach bike, motorcycle industry, fitness equipment flat tube and other irregular three-dimensional metal parts, composite materials such as glass fiber, carbon fiber, Kevlar, and some plastic cutting holes, edges, and arc cutting tool.


3D Laser Cutting Machine for Pipes, Arc Cutting and Hole Cutting of Special-Shaped Metal Pipes 1





Main features:

  • Strong adaptability to materials, able to adapt to cutting and processing of various irregular workpieces;
  • High production efficiency, which can replace traditional manufacturing processes such as trimming and punching molds;
  • High economic efficiency, significantly reducing the research and development cycle of new products, and seizing market opportunities;
  • High cutting accuracy, smooth and burr free cutting surface, meeting the manufacturing accuracy requirements of the locomotive industry;
  • The operation is simple and fast, with a rich process database embedded, which can be called or modified with one click;
  • Stable and reliable performance, efficient and energy-saving, low maintenance costs, and long service life;
  • Strong scalability, can increase external axes for linkage or collaborative processing, and shorten cutting time;
  • Green and environmentally friendly processing, no production of cattle pollutants, no consumables, and high yield rate;

3D Laser Cutting Machine for Pipes, Arc Cutting and Hole Cutting of Special-Shaped Metal Pipes 2



3D Laser Cutting Machine for Pipes, Arc Cutting and Hole Cutting of Special-Shaped Metal Pipes 3

Ordering Guide: Model STC-XXXX-YY-Z-AA


STC

XXXX

Laser power (W)

YY

Robot model

Z

Assembly method

AA

fixture

laser cutting

one thousand and five hundred

MA: M-20iA/20M

U formal attire

L2: L-type biaxial displacement

two thousand

MB: M-20iB/25

D Inversion

L1: L-type single axis displacement

three thousand

MD: M-20iD/25



H1: Horizontal single axis displacement

six thousand

MG: MOTOMAN-GP25



VT: Vertical rotation displacement



U1: U-shaped box displacement



W1: one-dimensional displacement workpiece movement



R1: one-dimensional displacement robot movement



WS: Workstation

      ***others

3D Laser Cutting Machine for Pipes, Arc Cutting and Hole Cutting of Special-Shaped Metal Pipes 4

3D Laser Cutting Machine for Pipes, Arc Cutting and Hole Cutting of Special-Shaped Metal Pipes 5

3D Laser Cutting Machine for Pipes, Arc Cutting and Hole Cutting of Special-Shaped Metal Pipes 6

3D Laser Cutting Machine for Pipes, Arc Cutting and Hole Cutting of Special-Shaped Metal Pipes 7

Optional:


1. High precision six axis industrial robot: Robots can be selected based on process requirements such as workpiece size and cutting accuracy requirements. The following robots can be perfectly matched with PLC systems, offline mapping software, displacement machines, and protective rooms.

3D Laser Cutting Machine for Pipes, Arc Cutting and Hole Cutting of Special-Shaped Metal Pipes 8

2. Robot installation method: A. Robot inversion: paired with a gantry frame to expand processing space, very suitable for flexible processing of large and ultra long workpieces; B. Robot formal attire: can be paired with a multi-station workbench, with a small footprint and flexible posture, suitable for cutting small workpieces.

3D Laser Cutting Machine for Pipes, Arc Cutting and Hole Cutting of Special-Shaped Metal Pipes 9

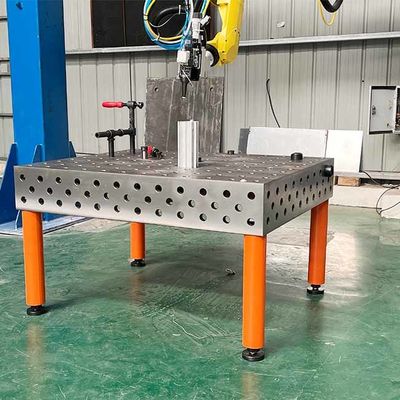

3. Customized fixture: Different types of linkage or collaborative displacement machines, sky rails or ground rails, and supporting fixtures can be developed based on the processed workpiece to achieve precise and efficient cutting of irregular workpieces of different materials, shapes, and sizes.

3D Laser Cutting Machine for Pipes, Arc Cutting and Hole Cutting of Special-Shaped Metal Pipes 10

4. Offline programming map: Equipped with a manual teaching device as standard, it can directly generate, edit, and transfer processing programs without programming; Alternatively, a 3D offline simulation system can be installed for direct digital and analog import, generating cutting paths with one click, shortening the preparation time before processing, and easily adjusting to the optimal cutting state.

3D Laser Cutting Machine for Pipes, Arc Cutting and Hole Cutting of Special-Shaped Metal Pipes 11


3D Laser Cutting Machine for Pipes, Arc Cutting and Hole Cutting of Special-Shaped Metal Pipes 12


3D Laser Cutting Machine for Pipes, Arc Cutting and Hole Cutting of Special-Shaped Metal Pipes 13

3D Laser Cutting Machine for Pipes, Arc Cutting and Hole Cutting of Special-Shaped Metal Pipes 14

3D Laser Cutting Machine for Pipes, Arc Cutting and Hole Cutting of Special-Shaped Metal Pipes 15

FAQ:


Q: How can I install and debug the machine?

A:We will provide instructions and installation videos with the machine, and provide online guidance from English engineers to ensure that the machine can operate normally, and at the same time, let customers learn how to operate and maintain the machine.

Q:Can I customize the machine according to my requirement? Or OEM?
A:We will provide suitable machines according to the specific needs of customers, and provide OEM services.

Q:Can you arrange transportation for me?
A:Of course, for foreign trade business, we provide EXW, FOB and CIF services. Customers with urgent needs can also choose air freight.

Q:What is the warranty period of the machine?
A:According to different types of machines, we provide a two-year or three-year warranty period. During the warranty period, free repairs or replacement of broken parts are provided. Free maintenance services and machine upgrade services are provided for life outside the warranty period.

Q:What's the consumables of the machine? How much?
A:The machine is very easy to maintenance, only lens and laser tube, power supply are consumables. And laser tube lifetime about 10000 hours, as to lens and power supply, they will not damage if no accident.
