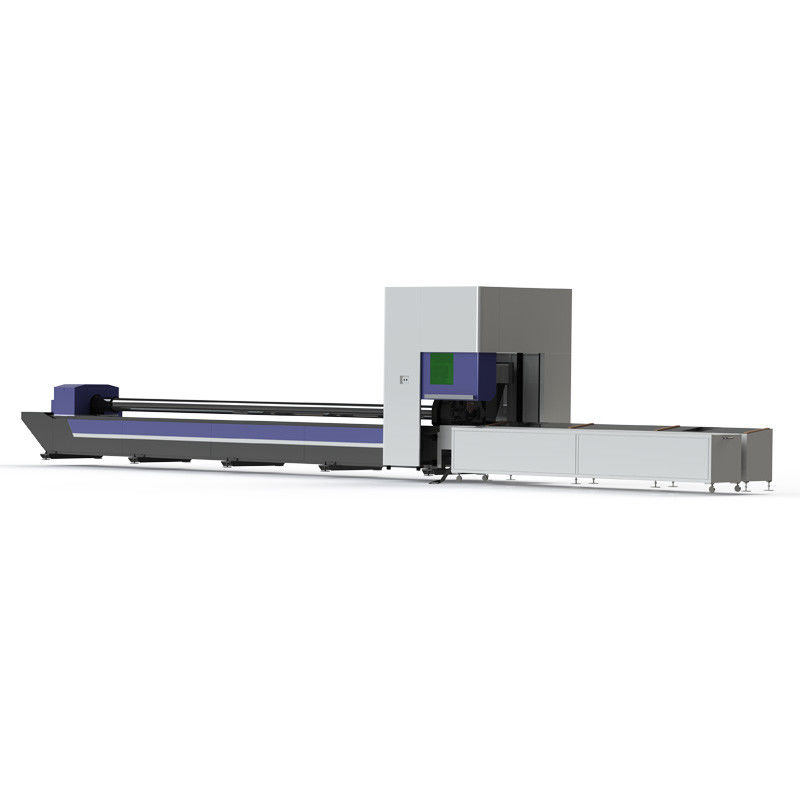

CNC Tube Fiber Laser Cutter Machine

CNC Tube Fiber Laser Cutter Machine
CNC Tube Fiber Laser Cutter Machine

Large Image :  CNC Tube Fiber Laser Cutter Machine

Product Details:
Brand Name: Sintec Optronics
Model Number: STC004
Payment & Shipping Terms:
Delivery Time: Stock
Payment Terms: T/T via bank

CNC Tube Fiber Laser Cutter Machine

Description
Working Area: 6000mm*200mm Laser Type: Fiber Laser
Laser Power: 1000W-3000W Maximum Speed: 80m/min According To Material
Maximum Accelerated Speed: 1.0G Max Cutting Diameter: 200mm
Max Cutting Length: 6000mm Working Environment: Temp:0-40℃,humidity: ≤80%, No Condensation
Min Cutting Diameter: 16mm Min Cutting Length: 200mm
Product Name: Laser Cutting Machine Application: Cutting For Metal Pipe
Highlight:

CNC Tube Fiber Laser Cutter Machine

,

Fiber Laser Cutter Machine

,

Metal Laser Cutter Machine

China factory professional 1000W 2000W 3000W 6m metal pipe cnc tube fiber laser cutting machine for sale



Machine Feature

1. High rigidity heavy chassis, reducing the vibration generated during the high-speed cutting process.
2. Processing circular tube, square tube, rectangular tube.
3. The laser cutting head does not come into contact with the surface of the material and does not scratch the workpiece.
4. The slit is the narrowest, the heat affected zone is the smallest, the local deformation of the workpiece is very small, and there is no mechanical deformation.
5. It has good processing flexibility, can process any pattern, and can cut pipes and other profiles.
6. Non-deformable cutting can be performed on materials of any hardness such as steel plates, stainless steel, aluminum alloy plates, and hard alloys.



Machine Parameters



Model ST004
Working area 6000mm*200mm Reposition accuracy ±0.2-0.3mm/1000mm
Laser type Fiber laser generator Graphic format supported IGS;SAT;JHB
Laser power 1000W-3000w Working environment

Temp:0-40℃,humidity:

≤80%, No condensation

Transmission system Import diver and motor Total power (Around) 20KW
Lubrication system Full-automatic Package dimension

9300*2100*2500mm

+3500*2100*1500mm

Maximum speed 80m/min Gross weight 3500KG
Maximum accelerated speed 1.0G Position accuracy ±0.2-0.3mm/1000mm
Max cutting diameter 200mm Min cutting diameter 16mm
Max cutting length 6000mm Min cutting length

200mm



Cutting Material

Cutting a wide variety of metal plates, tubes, mainly applicable to stainless steel, carbon steel, manganese steel, galvanized sheet, a variety of alloy plates, rare metal and other materials cutting.

Application

Industry of kitchen ware, lamps and lanterns, panel beating, metal cabinets, auto parts, refrigerators, air condition, elevators, hotel metal supplies processing, etc
