Pipe Tube Laser Cutting Machine 1070nm Wavelength 1KW - 3KW Fiber Laser Cutter

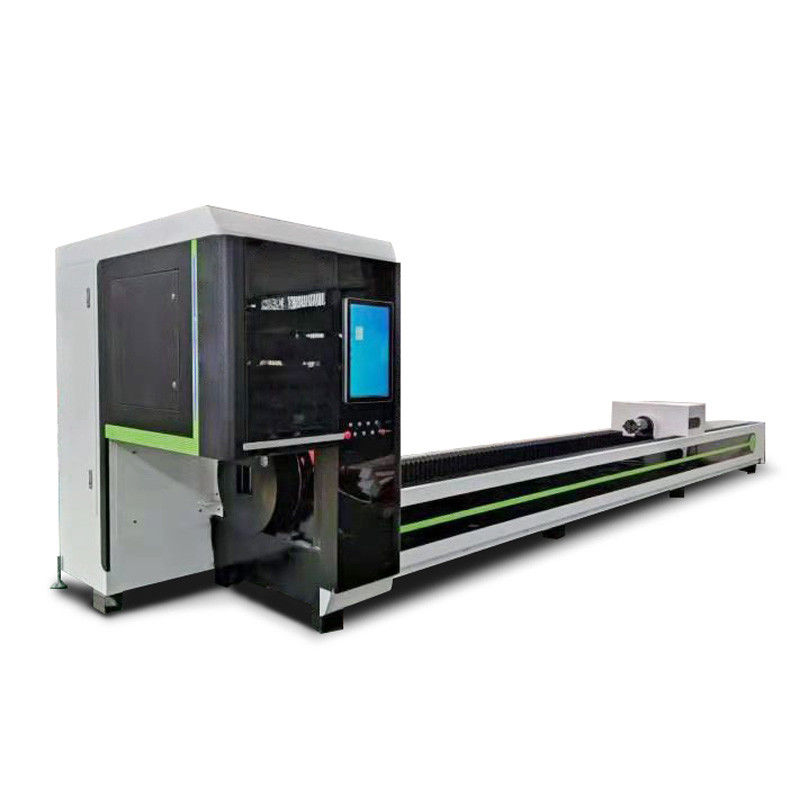

Large Image : Pipe Tube Laser Cutting Machine 1070nm Wavelength 1KW - 3KW Fiber Laser Cutter

Product Details:

Brand Name:	Sintec Optronics
Model Number:	STC024

Payment & Shipping Terms:

Delivery Time:	Stock
Payment Terms:	T/T via bank

Contact Now

Pipe Tube Laser Cutting Machine 1070nm Wavelength 1KW - 3KW Fiber Laser Cutter

Description

Cooling System:	Water Cooling	Repeatability:	0.02mm/m
Cutting Area:	6000x160mm	Cutting Thickness:	0.5-20mm
Drive System:	Servo Motor	Laser Power:	1000W-3000W
Laser Type:	Fiber Laser	Working Voltage:	380V/50HZ
Application:	Cutting For Metal Sheet, Stainless Steel
Highlight:	Laser Cutting Machine For Pipe Tube , Laser Cutting Machine , 3KW Fiber Laser Cutter

Pipe Tube Fiber Laser Cutting Machine with 1-3KW CW Lazer Source

Pipe Cutter Function: 1) Can cut lines and holes with different diameters from different directions on the Tube, and meet centrifugal and non-centrifugal vertical intersection condition for branch and main Tube axis. 2) Can cut column Crossed Lines at the end of branch Tube, and meet centrifugal and non-centrifugal vertical intersection condition for branch and main Tube axis. 3) Can cut inclined section at the end section of the Tube. 4) Can cut branch Tube intersected with the main circular Tube. 5) Can cut variable angle bevel surface 6) Can cut square hole, waist-shaped holes and circular hole on the Tube. 7) Can truncate the Tube. 8) Can cut all kinds of graphics on the surface of the square Tube.

SPECIFICATION
Model	STC024-1000P	STC024-1500P
Laser wavelength	1070nm	1070nm
Laser Type	Fiber Laser	Fiber Laser
Laser Brand	Raycus	Raycus
Laser output power	1000W	1500W
Beam quality	<0.373mrad	<0.373mrad
Cutting area	6000x160mm	6000x160mm
Z axis movement	250mm	250mm
Repeatability	0.02mm/m	0.02mm/m
Positioning accuracy	0.02mm/m	0.02mm/m
Marking cutting thickness	0-3mm(according to the material)	0-4 mm(according to the material)
TubeDiameter	160mm	160mm
Max cutting length	6000mm	6000mm
Cooling	Watercooled	Watercooled
Rotation	Can be rotated automatically	Can be rotated automatically
Power supply	3phase 380V AC 50/60Hz	3phase 380V AC 50/60Hz
Protection Gas	O2 N2	O2 N2

Pipe Tube Laser Cutting Machine 1070nm Wavelength 1KW - 3KW Fiber Laser Cutter 0
