Mini Fiber Laser Cutting Machine 1000W Laser Cutter For Copper Steel

I'm Online Chat Now

Mini Fiber Laser Cutting Machine 1000W Laser Cutter For Copper Steel

Mini Fiber Laser Cutting Machine 1000W Laser Cutter For Copper Steel
Mini Fiber Laser Cutting Machine 1000W Laser Cutter For Copper Steel

Large Image :  Mini Fiber Laser Cutting Machine 1000W Laser Cutter For Copper Steel

Product Details:
Brand Name: Sintec Optronics
Model Number: STC021
Payment & Shipping Terms:
Delivery Time: Stock
Payment Terms: T/T via bank

Mini Fiber Laser Cutting Machine 1000W Laser Cutter For Copper Steel

Description
Cooling System: Water Cooling Laser Output Power: 1000W
Max Cutting Speed: 18m/min Power Source: Electricity
Drive Mode: Servo Motor Max Cutting Thickness: 3-6mm According To Material
Application: Cutting For Copper Steel And Metal
Highlight:

Mini Fiber Laser Cutting Machine

,

Fiber Laser Cutting Machine

,

Fiber Laser Cutter

Small 600*400mm 1000W Mini Fiber Laser Cutting Machine For Copper Steel Cutting



Overview

STC021 Precise fiber laser cutting machine Adopt a 1000W fiber laser source and a mini cabinet to save shipping costs.

The control system is CNC. The laser cutter has equipped with a sealed working table to protect the workers when operating the machine. The laser cutter machine can reach European safety standards. Best choice for high safety request customers.



Laser fiber laser cutting machine is widely used in hardware, precise machinery, automobile components,

glasses clocks and watches, precise cutting, medical equipment, instrument, and other metal-related industry.

The fiber laser cutting machine is suitable for stainless steel, carbon steel, Copper, and Aluminum,  to cut and punch,

the cutting speed and incision are both high levels, CN program can process any graphics and text.



Parameter data

Laser output power 1000W
Laser wavelength 1080 nm
Laser medium Glass fiber with the rare-earth element
Repeat accuracy ±0.01mm
Max cutting speed 18m/min
Max cutting thickness 3-6mm according to material
Output energy regulating 10%~100%
Input electric power for laser ≤2KW
Type of cooling Water cooling
Drive mode Imported servo motor
Transmission mode Imported high precision Rack and Pinion
X Y axis movement 600mm×600 mm (Optional: 200x200mm,300x300mm,400x400mm,500x500mm)
Z axis movement 100mm
Power supply Single phase 220V/50HZ
Contour dimension 1900mm×1550 mm×1800 mm
Weight 800kg



Samples

Mini Fiber Laser Cutting Machine 1000W Laser Cutter For Copper Steel 0

Mini Fiber Laser Cutting Machine 1000W Laser Cutter For Copper Steel 1

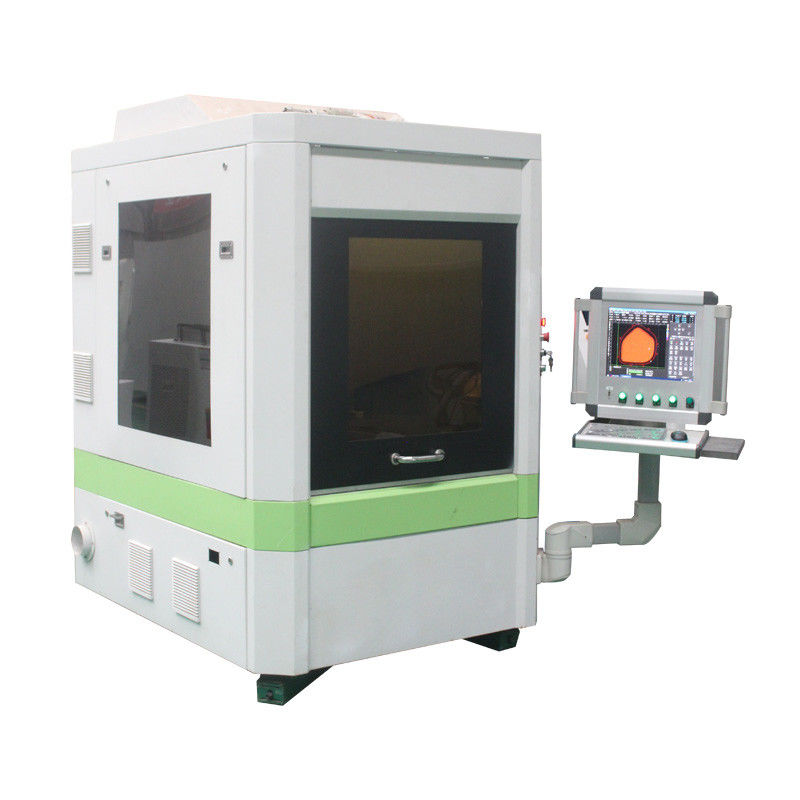

Machine outlook

Mini Fiber Laser Cutting Machine 1000W Laser Cutter For Copper Steel 2
