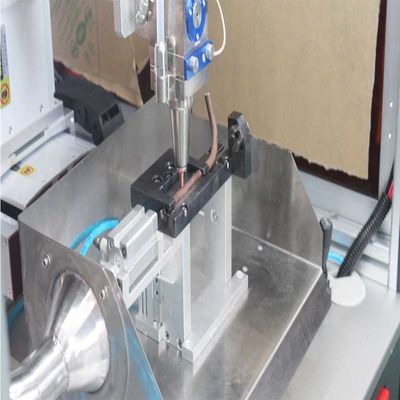

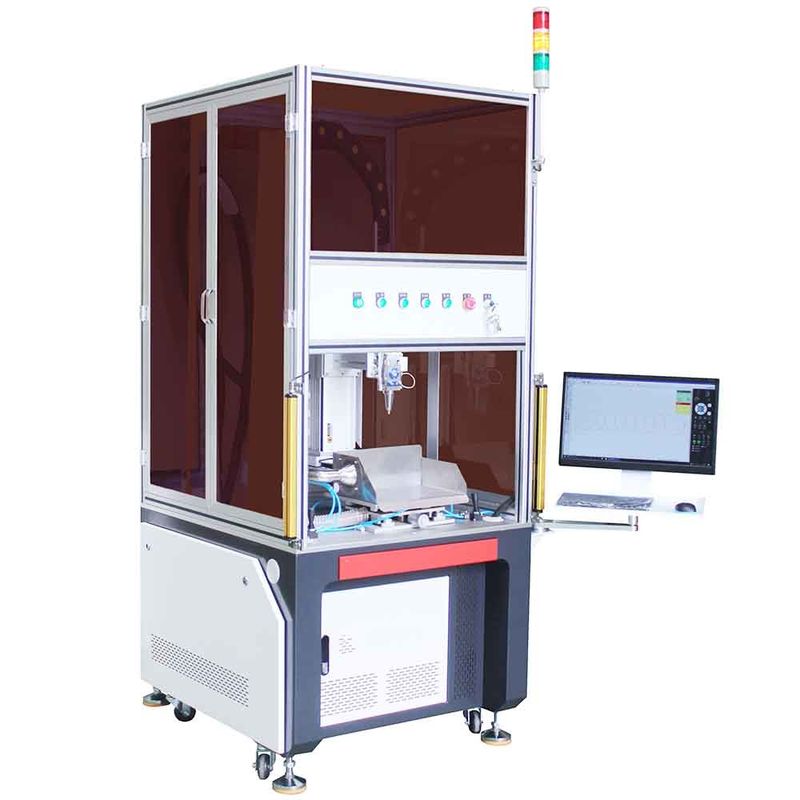

Servo motor high precision and high performance hardware pipe laser cutting machine

The precision laser cutting machine for metal fittings is specially designed for mass rapid cutting of small metal fittings. It is a specialized non-standard laser processing equipment for precision fiber laser cutting and micro hole cutting of thin-walled metal circular fittings. It is carefully developed based on the precision processing needs of metal small fittings, precision circular fittings, and other precision processing needs. The entire machine adopts a first-class brand fiber laser and a dedicated intelligent collision prevention cutting head The precision servo translation workbench and high-performance fiber laser cutting control system are equipped with a complete set of precise control, simple operation, intuitive convenience, and various detection functions and cutting processes. The fusion of independently developed laser mode and power control has unique advantages for thick wall, small hole cutting, and groove cutting. The excellent spot quality and strong dynamic performance effectively ensure the high-precision requirements during cutting and the stability of long-term work, Easily achieve hole cutting, arc cutting, grooving or hollowing out of various irregular small pipes within 1.5 meters. The cutting section is smooth and does not damage the work-piece, generally without the need for secondary processing or a small amount of polishing processing, saving mold development, greatly reducing the process flow, production costs, and greatly improving the speed and processing efficiency of new product development.

Features:

• Strong adaptability to materials, able to adapt to the cutting and processing of various irregular small hardware parts;
• High production efficiency, which can replace traditional manufacturing processes such as CNC punching, shearing, and manual work;
• Fast cutting speed, no edge collapse phenomenon, no damage to the workpiece, with a high yield rate;
• High cutting accuracy, smooth cut surface without burrs, good verticality, and no need for subsequent secondary processing;
• The operation is simple and fast, with a rich process database embedded, which can be called or modified with one click;
• Stable and reliable performance, efficient and energy-saving, low maintenance costs, and long service life;
• Various non-standard models and fully automatic feeding devices can be customized to shorten the feeding time;
• Green and environmentally friendly processing, no pollutants, no consumables, and high yield rate;

Parameters:

Remark:

l This equipment is not suitable for cutting metal waste, solid cylindrical workpieces, and non-metallic materials;

l Although the processed workpiece belongs to the same specification variety, there may be differences in processing performance and quality due to differences in actual processing parts, surface conditions, material composition, or processing shapes;

l Non standard customization can be made according to customer requirements, and the configuration and parameters of each model are subject to the technical solution provided by our company.

Application :

• Mainly suitable for high-precision hole cutting, slotting, hollowing out, and arc cutting of various irregular small hardware parts and circular pipes, square pipes, bent pipes, variable pipes, U-shaped pipes, curved pipes,
• curved hardware within 1.5 meters. It has fast cutting speed, smooth cuts, good verticality, one-time forming, and no need for subsequent polishing and processing. Widely used in hardware lighting, kitchenware, automotive oil pipes, instrument panel pipe racks, electric tools, exhaust pipes, stainless steel furnace cores, automotive hardware fittings, etc.

Cutting Samples:

FAQ:

Q: How can I install and debug the machine?

A:We will provide instructions and installation videos with the machine, and provide online guidance from English engineers to ensure that the machine can operate normally, and at the same time, let customers learn how to operate and maintain the machine.

Q:Can I customize the machine according to my requirement? Or OEM?
A:We will provide suitable machines according to the specific needs of customers, and provide OEM services.

Q:Can you arrange transportation for me?
A:Of course, for foreign trade business, we provide EXW, FOB and CIF services. Customers with urgent needs can also choose air freight.

Q:What is the warranty period of the machine?
A:According to different types of machines, we provide a two-year or three-year warranty period. During the warranty period, free repairs or replacement of broken parts are provided. Free maintenance services and machine upgrade services are provided for life outside the warranty period.

Q:What's the consumables of the machine? How much?
A:The machine is very easy to maintenance, only lens and laser tube, power supply are consumables. And laser tube lifetime about 10000 hours, as to lens and power supply, they will not damage if no accident.
