20W 30W Flying Fiber Laser Printer / Small Integrated Laser Marker Machine

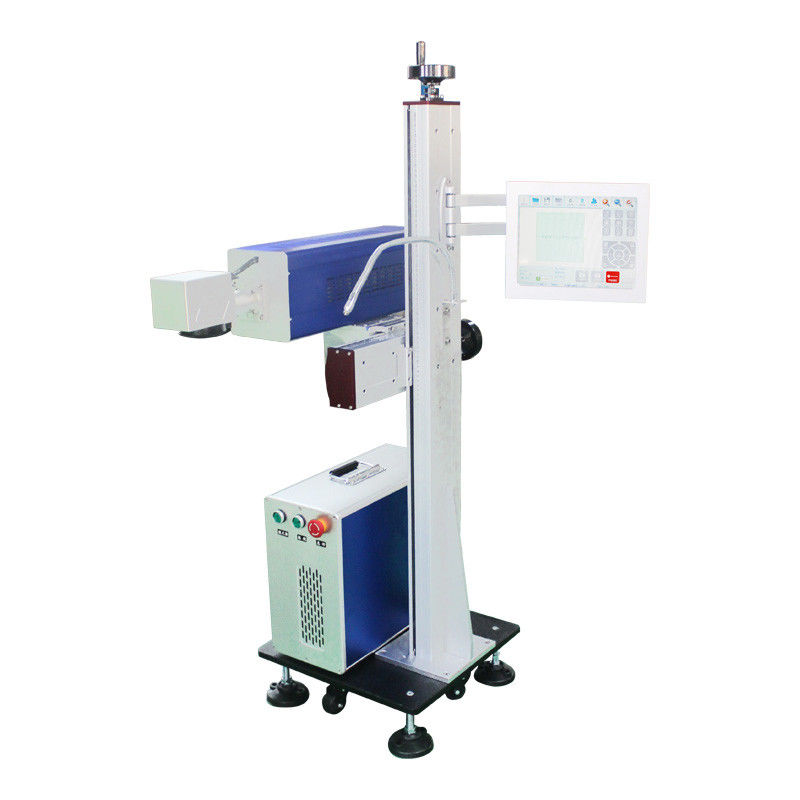

Large Image : 20W 30W Flying Fiber Laser Printer / Small Integrated Laser Marker Machine

Product Details:

Brand Name:	Sintec Optronics
Model Number:	STM001

Payment & Shipping Terms:

Delivery Time:	Stock
Payment Terms:	T/T via bank

Contact Now

20W 30W Flying Fiber Laser Printer / Small Integrated Laser Marker Machine

Description

Laser Power:	20W/30W	Laser Source:	Fiber Laser
Marking Area:	110mm×110mm	Laser Wavelength:	1064nm
Marking Speed:	≤12000mm/s	Power Supply:	220V/50HZ
Warranty:	1 Year	Weight:	28kg
Highlight:	Fiber Laser Printer , 30W Fiber Laser Printer , Integrated Laser Marker Machines

20W 30W Production line Flying Fiber Laser Printer/Small Integrated Laser Marker Machines

Introduction

STM001 Flying Laser Marking Machine is a flying type laser marker for automation production lines,

like water bottles producting conveyor, we can mark the date and series numbers on the cover or body of the bottles.

It is fiber laser source, so can etching and write on all kinds of materials for different products.

This flying type laser printer machine can support all kinds of file formats. Vector file like DXF,PLT, AI etc.

The laser marker can work 24-hour without stopping, that make it suitable for automation industrialized production lines, increase the producing efficiency.

Main technical parameters of Fiber series:

project	Parametertable		STM001
characteristic	Machine material	All aluminum sandblasting oxidation
	Laser	The service life is more than 100000 hours
	Laser wavelength	1064nm
	output power	≥18W	≥26W
	Marking speed	≤12000mm/s
	controller	10.2 inch touch controller
	Cooling system	Air cooling
parameter	Focus lens	165mm
	Minimum linewidth	0.012mm
	Repetitionaccuracy	0.003mm
	Marking range	110mm×110mm(optinal)
	Positioning mode	Blue light indication
	Number of rows	Any line within the marking range
	Production line speed	0~130m/min (depending on the material)
Software	Multilingual	English, Spanish, German, Chinese, Russian, Arabic, etc
	jurisdiction	Multi user management authority
	operating system	Linuxsystem
	Inkjet mode	Static, analog, encoder
	Reserved signal	Start, print status, finish, fault
	data protection	With power failure data protection energy
	monitor	Provide overspeed alarm function
	De crossing	Automatic removal of intersections
	Coding software	Single and double machine code sending
Support type	typeface	Chinese and English, numbers, traditional, etc
	file format	BMP/DXF/HPGL/JPEG/PLT
	bar code	CODE39,CODE128,CODE126,QR
Servicing parameters	Power Supply	220V/50HZ
	Power consumption	400W
	Net weight of machine	28kg
	Overall dimension	530mmX140mmX165mm
environment	requirement	External temperature0℃-45℃;humidity≤95%

Quality standards implemented

Serial number	name
GB 7247-87	Radiation safety of laser products
GB10320-88	Electrical safety of laser equipment and facilities
ISO9000-3	International software standards
GB/T12123-89	Sales packaging procedure
IEC 536	Protection equipment against electric shock

Main configuration list:

number	Subsystemname	brand	model	quantity	Place of Origin
1.	Laser	Shenzhen Changxin	1064-20/30M	1	China - Shenzhen
2.	Galvanometer	Shenzhen-ZBTK	ZB2D10C1064	1	China - Shenzhen
3.	Field mirror	crystal lattice	JGZL1-1064-160-110	1	China - Shenzhen
4.	Power Supply	Taiwan Mingwei	S350-24W	1	Taiwan
5.	software system	Shenyang baichuang	10.2 External	1	China Shenyang
6.	photoelectricity	Xinshe electric	FZ2-22N	1	China Zhejiang
7.	Synchronizer	Changchun side	38S6-2500	1	China Changchun
8.	focusing	Shenzhen-ZBTK	ZB2D10C1064	1	China - Shenzhen
9.	wave filter	YUNSANDA	CW2B-10A	1	Taiwan
10.	Bracket	self-control	SY02415-1500	1	China

Attached accessories and relevant data:

number	Subsystemname	quantity	remarks
1	Laser machine equipment	One	Random accessories
2	Control system	One	Random accessories
3	Photoelectric inspection switch	One	Random accessories
4	Synchronizer	One	Random accessories
5	Flight support	One	Random accessories
6	Windows Debugging Tools	One	Random accessories
7	Mechanical and circuit diagram	One each	Random accessories
8	instructions	One each	Random accessories

Overall dimension:

product-Factory Supplier Small Integrated Laser Marker Machine 20W 30W Production line Flying Fiber

Applications

Specially marking for automation conveyor production lines, like water bottles

It can print many kinds of metal materials and non-metallic materials, such as plastic,electroplates,

metal-coated materials, rubbers, ceramics,mobile button,plastic transparent button.

For industry, almost every industry will use such laser machines.
