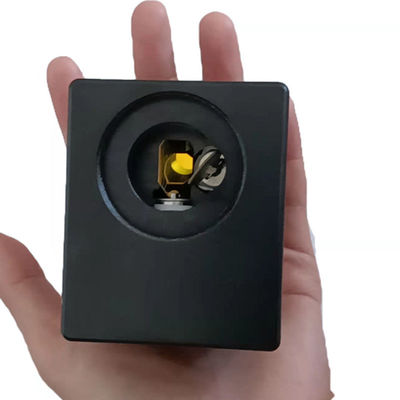

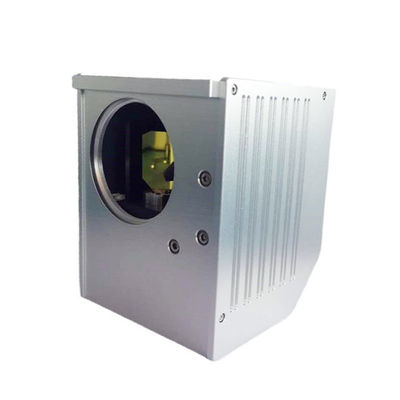

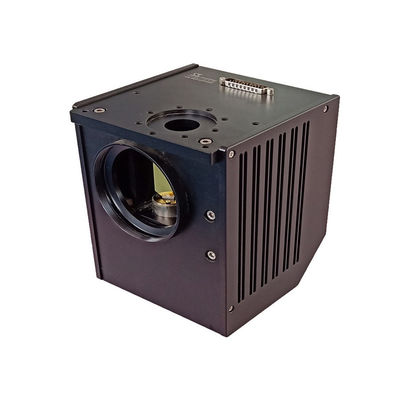

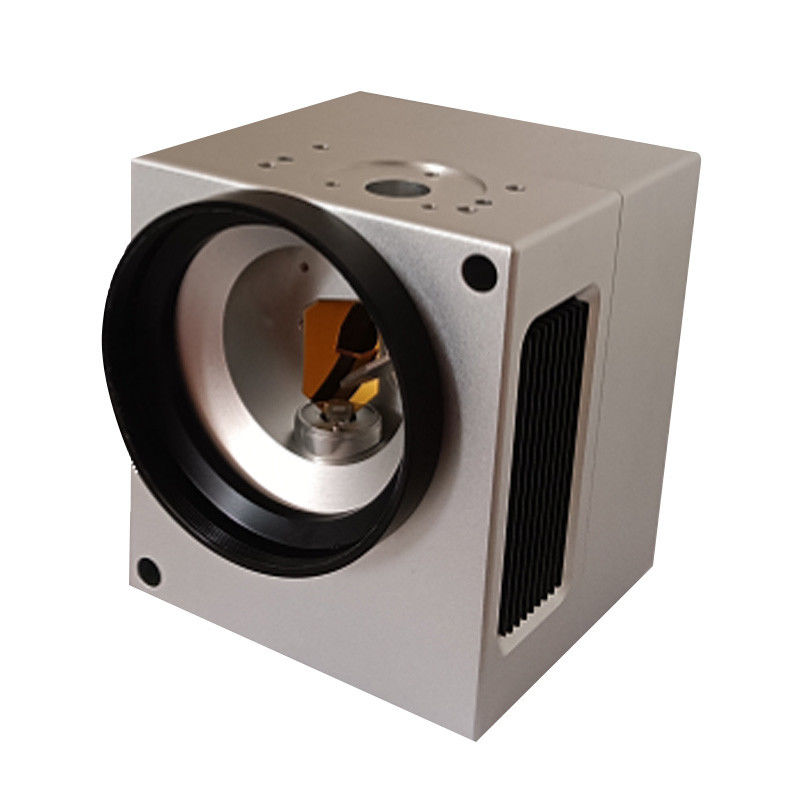

Customized Laser Parts Fast Speed High Accuracy Laser Marking Head

Customized Laser Parts Fast Speed High Accuracy Laser Marking Head
Customized Laser Parts Fast Speed High Accuracy Laser Marking Head Customized Laser Parts Fast Speed High Accuracy Laser Marking Head Customized Laser Parts Fast Speed High Accuracy Laser Marking Head Customized Laser Parts Fast Speed High Accuracy Laser Marking Head Customized Laser Parts Fast Speed High Accuracy Laser Marking Head

Large Image :  Customized Laser Parts Fast Speed High Accuracy Laser Marking Head

Product Details:
Brand Name: Sintec Optronics
Model Number: LSST Series
Payment & Shipping Terms:
Delivery Time: Stock
Payment Terms: T/T via bank
Contact Now

Customized Laser Parts Fast Speed High Accuracy Laser Marking Head

Description
Highlight:

Laser Marking Head

,

High Speed Laser Marking Head

,

Laser Scanner

Fast speed, High accuracy Laser Marking Heads



Fast speed, High accuracy & Low pricing!

Description of Part Number: LSST-xxxx-yy-zzz-AAAA

  • LSST:LSST series laser scanners.

  • xxxx: laser wavelength such as 10.6um, 1064nm, 532nm, 355nm etc.

  • yy: maximum input laser beam diameter.

  • AAAA: galvo model number

Part number Max input beam dia. mm DC power supply ±V Control Dimension LxWxH mm Weight kg Galvo
LSST-xxxx-5-8166 5 15 XY-100 70x55x50 0.6 8166
LSST-xxxx-10-8161 10 15 XY-100 116x96x96 1.6 8161
LSST- xxxx -12-8063 12 15 XY-100 120x106x100 2.3 8063
LSST- xxxx -20-8061 20 24 XY-100 180x146x148 3.2 8061
LSST- xxxx -25-3808 25 24 XY-100 210x161x172 5.1 3808
LSST- xxxx -32-3808 32 24 XY-100 210x161x172 5.2 3808
Part number LSST-xxxx-5-8166 LSST-xxxx-10-8161
Optical apertures supported, two-axis Ø5mm Ø10mm
Positioning speed 10m/sec 10m/sec
Good quality (1mm height) 1000cps 600cps
High quality (1mm height) 600cps 450cps
Response time 0.3ms at 5mm beam 0.45ms at 10mm beam
Max mechanical rotation angle ±20° ±20°
Linearity 99.9% over ±20° 99.9%, over ±20°
Operation temp 0-40 oC 0-40 oC
DC power input ±15V, 60W ±15V, 60W
Weight 0.6kg 1.6Kg
Dimension 70x55x50mm 116x96x96mm
Part number LSST-xxxx-12-8063 LSST-xxxx-20-8061 LSST-xxxx-25-3808
Optical apertures supported, two-axis Ø12mm Ø20mm Ø25mm
Positioning speed 10m/sec 10m/sec 10m/sec
Good quality (1mm height) 800cps 600cps 500cps
High quality (1mm height) 450cps 350cps 450cps
Response time 0.6ms at 12mm beam 0.7ms at 20mm beam 1ms at 25mm beam
Max mechanical rotation angle ±20° ±20° ±20°
Linearity 99.9%, over ±20° 99.9% over ±20° 99.9% over ±20°
Operation temp 0-40 oC 0-40 oC 0-40 oC
DC power input ±15V, 60W ±24V, 200W ±24V, 200W
Weight 2.3kg 3.2kg 5.1kg
Dimension 120x106x100mm 180x146x148mm 210x161x172mm
Part number LSST-xxxx-30-3808 LSST-xxxx-32-3808
Optical apertures supported, two-axis Ø30mm Ø32mm
Positioning speed 7m/sec 7m/sec
Good quality (1mm height) 400cps 400cps
High quality (1mm height) 350cps 350cps
Response time 1ms at 30mm beam 1ms at 32mm beam
Max mechanical rotation angle ±20° ±20°
Linearity 99.9% over ±20° 99.9% over ±20°
Operation temp 0-40 oC 0-40 oC
DC power input ±24V, 200W ±24V, 200W
Weight 5.2kg 5.2g
Dimension 210x161x172mm 210x161x172mm

Remark:

  • Positioning and marking speeds are with f-theta lens f=160mm and for single-stroke character of 1mm height

  • Default control is digital XY-100 and the analog control is available upon request.

  • The DC power supply is provided with match of the marking head needed.

  • The f-theta and beam expander are available upon request.
