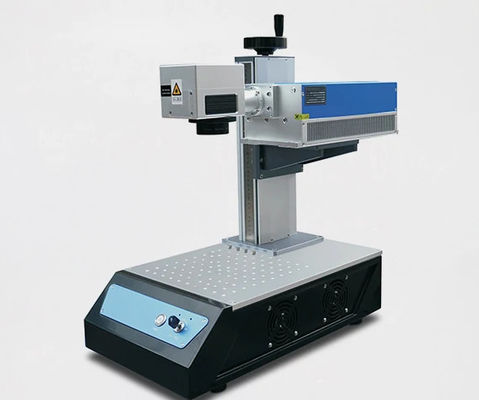

10W UV 3D-Laser Marking Machine
ST-UV-3D-200 type vibrating mirror has the characteristics of small size, high positioning accuracy, fast marking speed, strong anti-interference ability, etc. In the dynamic marking process, high line accuracy, no deformation, uniform power, no distortion of the pattern.
type vibrating mirror has the characteristics of small size, high positioning accuracy, fast marking speed, strong anti-interference ability, etc. In the dynamic marking process, high line accuracy, no deformation, uniform power, no distortion of the pattern, the specific characteristics are as follows:
Features:
lAdopting MM3D software system, it supports a variety of file formats and vector graphics, 3D models, bitmap and text barcode import, which is simple, easy to understand, easy to operate and easy to use.
lMarking format 200 × 200mm, marking height drop to 80mm.
l3D vibrating mirror adopts the photoelectric type sensing technology and PDM control method imported from the U.S.A., combining with the R&D technology of the Ministry of Aerospace and the military-grade production process, and owns independent intellectual property rights.
lThe whole system adopts electromagnetic compatibility optimization design, high signal-to-noise ratio and strong anti-interference ability.
lLoad design for the third axis (focusing axis) optics, motor assembly precision, reasonable structure, static friction coefficient and zero offset is small, to ensure that the focusing system good dynamic characteristics.
Technical Specifications:
| lasers |
355nm UV laser |
| Format size |
200×200mm |
| monitoring range |
215mm |
| Focusing Spot |
0.023mm |
| Incident Spot Requirements |
0.7mm |
| X&Y Axis Lens Spot |
10mm |
| temp |
| Marking speed |
6000mm/s |
| positioning speed |
12000mm/s |
| Write speed |
600cps |
| Step response time (1% of full stroke) |
210us |
| Step response time (10% of full stroke) |
710us |
| tracking error |
≤138us |
| Precision and Error |
| linearity |
99.9% |
| Repeat Positioning Accuracy |
<8μRad. |
| gain error |
<5mRad. |
| Zero offset (batch origin error) |
<5mRad. |
| Long time drift (8 hours of continuous operation) |
<0.5mRad. |
| proportional drift |
<40PPM/°C |
| zero-point drift |
<15μRad./℃ |
| Power & Signal |
| Input Voltage |
±24VDC |
| rated current |
4A |
| interface protocol |
XY2-100 |
| Mechanical scanning angle |
±12.5° |
| Operating temperature, dimensions |
| operating temperature |
0℃~45℃ |
| Storage temperature |
-10℃~60℃ |
| Size of galvanometer (L×W×H) |
250X110X116mm |
| Lens weight |
≈4.23Kg |
Application industry:
l GLASS
l PAPER
l Rubber mold
l High-end machine tool
l Tire mold
l Track environmental industry
l Other
l Printing Shops,
l Manufacturing Plant,
l Food & Beverage Factory,
l Farms
l Hotels,
l Home Use,
l Garment Shops,
l Construction works ,
l Machinery Repair Shops,
l Advertising Company,
l Energy & Mining,
l Building Material Shops
--------------------------------
