Product Details:
|
Laser Power: | 500W/1000W | Installation (unit) Weight: | Approx. 180kg |
---|---|---|---|
Cleaning Head Weight: | 4.5kg (single Mode) 2kg (multi-mode) | Optical Fiber Length: | 10m |
Boundary Dimension: | 913mm*573mm*881mm | Type Of Cooling: | Water-cooling |
Optical Maser Wavelength: | 1064nm | ||
Highlight: | Pulse Laser Cleaning Machine,Handheld Pulse Laser Cleaning Machine,Laser Cleaning Machine |

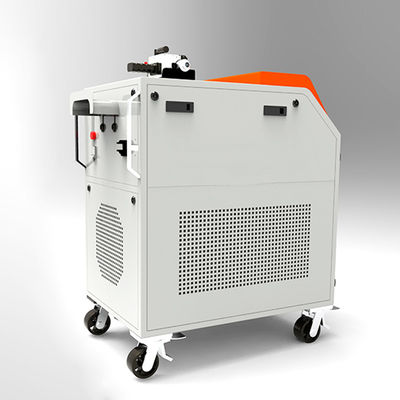

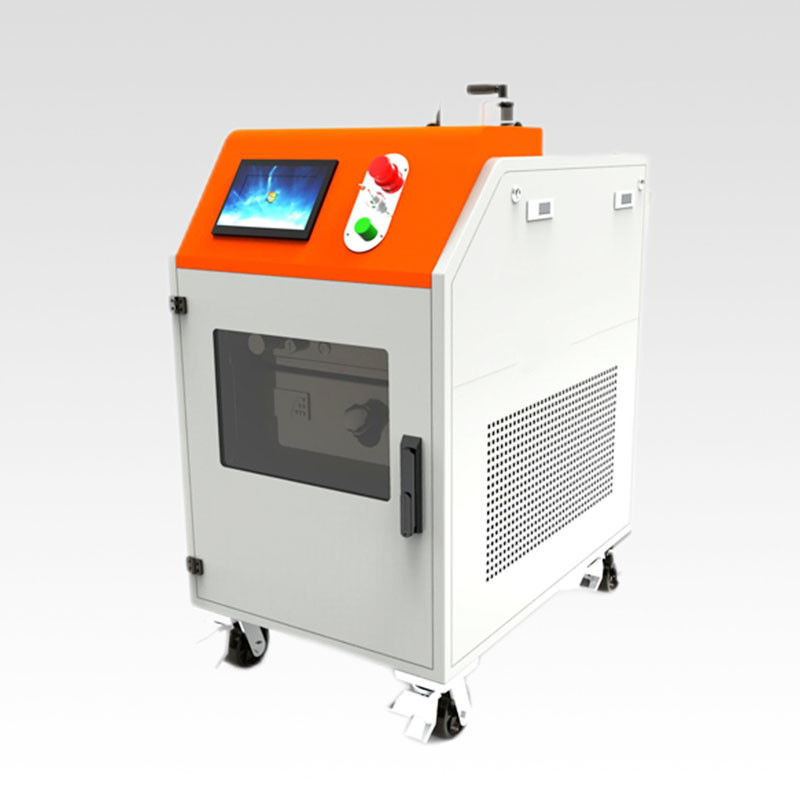

Hand-Held 500W/1000W Pulse Laser Cleaning Machine Used For Ceramic, Glass, Composite And Other Non-Metallic Substrate
Features:

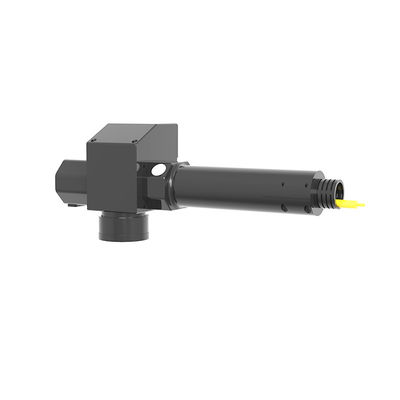

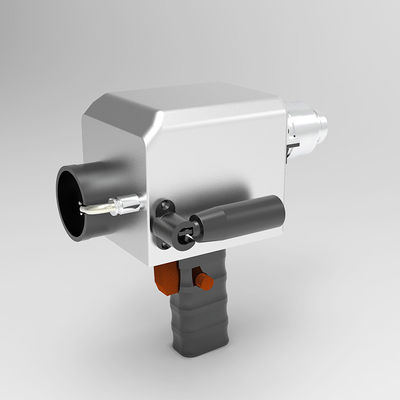

l Ultra-light cleaning head for flexible operation;
l Different shape parts can be cleaned;
l Infrared indicates focus;
l The sealed chassis is dustproof and high temperature resistant;
l The universal wheel moves flexibly;
l 100-1000W power full coverage
Technical Specifications:
optical maser wavelength |
1064nm |
run-length |
5-150mm adjustable |
scanning pattern |
一~⚪▲∞Etc. 10 kinds of scanning graphics are available |
power consumption @25℃ |
<4000W / <6000W |
gas-pressure feed system |
0.4MPa Remove water remove oil clean compressed air |
Application industry:
This series of products is mainly used for local corrosion of various metal surface, paint, coating, oil, oxide film and other pollutants cleaning, can also be used for ceramic, glass, composite and other non-metallic substrate surface cleaning. Typical application scenarios include the cleaning of natural oxide film before aluminum alloy welding, the cleaning of black ash oxide after battery tray welding, the cleaning of train bogie welds before flaw detection, the cleaning of automobile sheet metal parts before renovation, and the cleaning of steel components such as hole grooves and other inaccessible parts of steel brush.
