CO2 Laser Marking Machine CCD Visual Recognition Flying Laser Marker For Metal

I'm Online Chat Now

CO2 Laser Marking Machine CCD Visual Recognition Flying Laser Marker For Metal

CO2 Laser Marking Machine CCD Visual Recognition Flying Laser Marker For Metal
CO2 Laser Marking Machine CCD Visual Recognition Flying Laser Marker For Metal

Large Image :  CO2 Laser Marking Machine CCD Visual Recognition Flying Laser Marker For Metal

Product Details:
Brand Name: Sintec Optronics
Model Number: STM005
Payment & Shipping Terms:
Delivery Time: Stock
Payment Terms: T/T via bank

CO2 Laser Marking Machine CCD Visual Recognition Flying Laser Marker For Metal

Description
Interface: USB/RS232 Laser Power: 10W/30W/50W/100W
Laser Source: CO2 Laser Marking Area: 70mm*70mm(Standard)
Marking Depth: ≤2mm/≤3mm/≤5mm/≤8mm Marking Method: Laser Engraving
Marking Speed: ≤7000mm/s Repeatability: ±0.002mm
Voltage: 220V/50HZ
Highlight:

CO2 Laser Marking Machine

,

Flying Laser Marking Machine

,

Flying Laser Marker For Non Metal

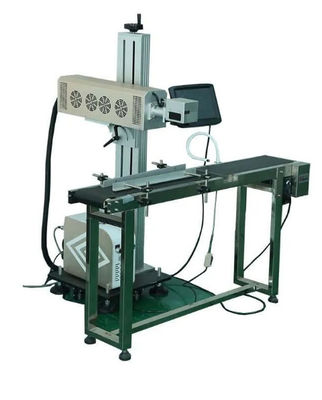

B3 Stable CCD Visual Recognition Flying CO2 Laser Marking Machine with Conveyor

Sintec Optronics online flying CO2 laser marking machine is mainly used to mark on product package surfaces in the production line. It is different from traditional marking, which only can mark on the surface of still objects.

With our flying laser marker, products are flowing on the production line. It significantly increases production efficiency and adapts to industrial production demand. It almost covers all the functions of injekt printer. Including the production date and batch number marking, it also has the features of anti-fake and anti-channel conflict because of its visual and tactile effect.

Advantages

1. Large laser power.
2. Power is controlled by software, continuously adjustable.
3. Processing cost is low, any consumable is not needed.
4. Marking scope is large.
5. Mark is clear, difficult to wear, high efficient in cutting.
6. Free to control the depth of the engraving.

Applications Flying CO2 Laser Engraver

Used in the laser marking of electronic components, craft gifts, leather, enclosure shall and name plates, rubber, clothing accessories, fabric, food package, beverage packages, medicine packages, printing, etc.

Technical Parameters

Model STM005 Series
Max. Laser Power 10W/30W/50W/100W
Laser Wavelength 10. 64um
Marking Area 70mm*70mm(Standard)
Adjustable Marking Area 100mm*100mm/140mm*140mm
Marking Depth ≤2mm/≤3mm/≤5mm/≤8mm
Marking Linear Speed ≤7000mm/s
Min Linear Width 0. 1mm
Min Character 0. 4mm
Repetition Accuracy ±0. 01mm
Rated Power Consumption 300W/1. 2KW/2KW/4. 4KW
Supply Voltage 220V/50HZ
