Hand-held Thermal Camera / Multifunction Cooled and Multifunction Uncooled

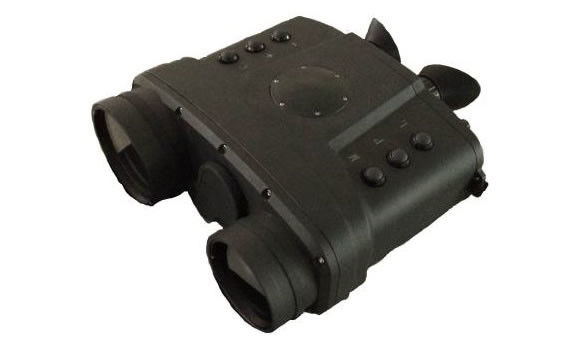

STJ-IRC-26 Hand-held Multifunction Cooled Thermal Camera

STJ-IRC-26 hand-held multifunction cooled thermal camera is a high-performance, multi-functional refrigeration infrared reconnaissance equipment, which integrates reconnaissance, ranging, positioning, orientation and other functions. It can be used to go out and approach the battlefield around, find out the enemy’s situation, terrain, observe the observation target and shooting effect.

• Infrared imaging, visible light through fog/color imaging, human eye safety laser ranging.

• Compass orientation, GPS/Beidou positioning, target positioning.
• Double eye OLED display, eyepiece diopter Adjustment, friendly human-computer interface.
• Photographing, video recording, playback and video output.

Technical Specifications

(1) Thermal Channel

• Sensor Type: Cooled detector.
• Resolution: 640 x 512.
• Spectral Range: 3 ~ 5 µm.
• FOV: WFoV: 7°x5.2° ~ NFoV: 2.3°x1.7°, continuous zoom.
• Cooldown time: ≤ 6 min.

(2) TV Channel

• Sensor Type: High Definition Color CMOS.
• Pixel Format: 2 Megapixels.
• FOV: WFoV: 7°x5.2° ~ NFoV: 1.8°x1.3°, continuous zoom.
• Fog penetration: yes, when visibility≤4km, the fog penetration ratio is 1.5.

(3) Range

• Thermal Channel
• (A) Human
• i.Detection ≥ 5000m.
• ii.Recognition ≥ 3500m.
• (B) Vehicle
• i.Detection ≥ 12000m.
• ii.Recognition ≥ 8000m.
• (b) TV channel
• (A) Human
• i.Detection ≥ 5000m.
• ii.Recognition ≥ 3500m.
• (B) Vehicle
• i.Detection ≥ 12000m.
• ii.Recognition ≥ 8000m.
• (4)Laser Range Finder
• Big target: ≥ 10000m.
• Vehicle: ≥ 8000m.
• (5) Display: High Definition OLED with 1280x1024.
• (6) Eyepiece Diopter Adjustment: -4°~ +4°.
• (7) Global Positioning System
• Built in GPS/Beidou positioning module.
• Positioning Accuracy: horizontal: 0.53M (CEP), elevation: 0.42m (PE).
• (8) Target Positioning: Support the function of target positioning. When the observation distance is 3km, the target positioning accuracy is 3.0m (CEP).
• (9) Magnetic azimuth angle measurement: Support the function of Magnetic azimuth angle measurement. Accuracy: 0.12°.
• (10) Image And Video Storage: Not less than 1000pcs JPEG format picture or four (4) hours video storage.
• (11) Power
• (a) Battery powered: continuous working time ≥ 6hours.
• (b) External power supply Mode: yes.
• (12) Dimensions & Weight
• Dimensions ≤ 290*200*90mm
• Weight ≤ 3.3kg (including battery and eye mask).
• (13) Protection level: IP68.
• (14) Environmental adaptability
• Operating temperature: -40℃ ~ +55℃
• Storage temperature: -55℃ ~ +70℃

Item list

STJ-IRC-36 hand-held Multifunction Uncooled Thermal Camera

STJ-IRC-36 hand-held multifunction uncooled thermal camera is a high-performance, multi-functional refrigeration infrared reconnaissance equipment, which integrates reconnaissance, ranging, positioning, orientation and other functions. It can be used to go out and approach the battlefield around, find out the enemy’s situation, terrain, observe the observation target and shooting effect, etc.

• Infrared imaging, visible light through fog/color imaging, human eye safety laser ranging.
• Compass orientation, GPS/Beidou positioning, target positioning.
• Double eye OLED display, eyepiece diopter Adjustment, friendly human-computer interface.
• Photographing, video recording, playback and video output.

Technical Specifications

• (1) Thermal Channel
• (a) Sensor Type: Uncooled detector.
• (b) Resolution: 640x512.
• (c) Spectral Range: 7 ~ 14µm.
• (d) FOV: 6°×4.5°
• (2) TV Channel
• (a) Sensor Type: High Definition Color CMOS.
• (b) Pixel Format: 2 Megapixels.
• (c) FOV: 3°×2.2°.
• (d) Fog penetration: yes, when visibility≤3.5km, the fog penetration ratio is 1.5.
• (3) Range
• (a) Thermal Channel
• (A) Human
• i.Detection ≥ 2800m.
• ii.Recognition ≥1200m.
• (B)Vehicle
• i.Detection ≥6000m.
• ii.Recognition ≥2400m.
• (b)TV channel
• (A)Human
• i.Detection ≥5000m.
• ii.Recognition ≥3000m.
• (B)Vehicle
• i.Detection ≥8000m.
• ii.Recognition ≥5000m.
• (4)Laser Range Finder
• Big target: ≥8000m.
• Vehicle: ≥6000m.
• (5)Display: High Definition OLED with 1280x1024.
• (6)Eyepiece Diopter Adjustment: -4°~ +4°.
• (7)Global Positioning System
• Built in GPS/Beidou positioning module.
• Positioning Accuracy: horizontal: 0.6M (CEP), elevation: 0.7m (PE).
• (8)Target Positioning: Support the function of target positioning. When the observation distance is 3km, the target positioning accuracy is 3.0m (CEP).
• (9)Magnetic azimuth angle measurement: Support the function of Magnetic azimuth angle measurement. Accuracy: 0.28°.
• (10)Image And Video Storage: Not less than 1000pcs JPEG format picture or four hours video storage.
• (11)Power
• (a)Battery powered: continuous working time ≥ 8hours.
• (b)External power supply mode: yes.
• (12)Dimensions & Weight
• Dimensions ≤ 260*170*90mm
• Weight ≤ 1.65kg (including battery and eye mask).
• (13)Protection level: IP68.
• (14)Environmental adaptability
• Operating temperature: -40℃ ~ +55℃
• Storage temperature: -55℃ ~ +70℃

Item list

STJ-JIR-6311E Sniper Detector

The sniper detector is a kind of laser active detection system. It uses the "cat-eye" effect to locate the sniper through the reconnaissance and discovery sight. It can find the location of the sniper before the sniper fires. It has the ability of detection and discovery in advance. It is a good weapon for peacekeeping, anti-terrorism and security operations. The product can also be used as laser night vision equipment.

• Pre-detection
• Laser active illumination imaging
• Hand held or erected control

Technical Specifications

• Detection distance: Under the typical meteorological conditions of visibility of 10km, ambient temperature of 25 ℃ and relative humidity of 80%, the detection distance of φ 24mm sight is not less than 1500m.
• Night vision distance: Under clear weather conditions, the recognition distance of vehicles shall not be less than 300m.
• Continuous working time: Not less than 1.5 hours.
• Size: Main host: 217mm×165mm×90mm; Monitoring box: 220mm×132mm×33mm.
• Weight: The main host is about 2.1kg, and the monitoring box is about 0.82kg.
• Operating temperature: -20℃～+50℃.
