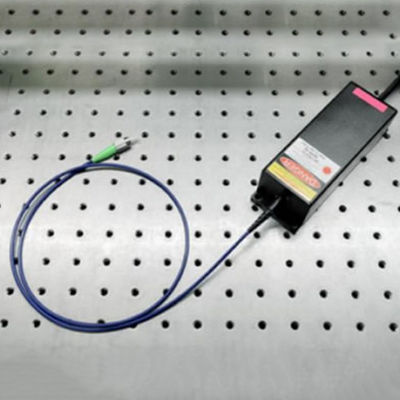

Fiber Coupled UV IR Laser Diode Modules Multi Mode And Single Mode Fiber Output

Large Image : Fiber Coupled UV IR Laser Diode Modules Multi Mode And Single Mode Fiber Output

Product Details:

Place of Origin:	China
Brand Name:	Sintec Optronics
Model Number:	STX Series

Payment & Shipping Terms:

Delivery Time:	Stock
Payment Terms:	T/T via bank

Contact Now

Fiber Coupled UV IR Laser Diode Modules Multi Mode And Single Mode Fiber Output

Description

Highlight:

UV IR Laser Diode Modules

Fiber Coupled Laser Diode Modules

Laser Diode Modules

UV-IR Laser Diode Modules, Multi-mode and Single Mode Fiber Output

1. Multi-mode Fiber Output

Good power stability with temperature control
Various fiber connectors for your selection
Good consistency for fiber connection in/out
Custom-design available

Wavelength(nm)	Laser power	Power stability (peak-peak)	Core diameter	Fiber connector
375+/-5nm	0-160 mW	<3%	100um,200um,400um,……	FC/PC,SMA905,……
405+/-5nm	0-1W	<3%	100um,200um,400um,……	FC/PC,SMA905,……
445+/-5nm	0-10W	<3%	100um,200um,400um,……	FC/PC,SMA905,……
450+/-5nm	0-10W	<3%	100um,200um,400um,……	FC/PC,SMA905,……
462+/-5nm	0-1000mW	<3%	100um,200um,400um,……	FC/PC,SMA905,……
488+/-5nm	0-160mW	<3%	100um,200um,400um,……	FC/PC,SMA905,……
515+/-5nm	0-30 mW	<3%	100um,200um,400um,……	FC/PC,SMA905,……
520+/-5nm	0-800mW	<3%	100um,200um,400um,……	FC/PC,SMA905,……
532+/-1nm	0-300mW	<3%	100um,200um,400um,……	FC/PC,SMA905,……
635+/-5nm	0-3W	<3%	100um,200um,400um,……	FC/PC,SMA905,……
638+/-5nm	0-3W	<3%	100um,200um,400um,……	FC/PC,SMA905,……
658+/-5nm	0-3 W	<3%	100um,200um,400um,……	FC/PC,SMA905,……
680+/-5nm	0-600mW	<3%	100um,200um,400um,……	FC/PC,SMA905,……
690+/-5nm	0-600mW	<3%	100um,200um,400um,……	FC/PC,SMA905,……
730+/-5nm	0-1300 mW	<3%	100um,200um,400um,……	FC/PC,SMA905,……
750+/-5nm	0-1300 mW	<3%	100um,200um,400um,……	FC/PC,SMA905,……
760+/-5nm	0-1300 mW	<3%	100um,200um,400um,……	FC/PC,SMA905,……
780+/-5nm	0-3W	<3%	100um,200um,400um,……	FC/PC,SMA905,……
790+/-5nm	0-1500mW	<3%	100um,200um,400um,……	FC/PC,SMA905,……
808+/-5nm	0-20W	<3%	100um,200um,400um,……	FC/PC,SMA905,……
830+/-5nm	0-1500mW	<3%	100um,200um,400um,……	FC/PC,SMA905,……
850+/-5nm	0-1500mW	<3%	100um,200um,400um,……	FC/PC,SMA905,……
880+/-5nm	0-2W	<3%	100um,200um,400um,……	FC/PC,SMA905,……
905+/-5nm	0-100 mW	<3%	100um,200um,400um,……	FC/PC,SMA905,……
915+/-5nm	0-10W	<3%	100um,200um,400um,……	FC/PC,SMA905,……
940+/-5nm	0-20W	<3%	100um,200um,400um,……	FC/PC,SMA905,……
980+/-5nm	0-20W	<3%	100um,200um,400um,……	FC/PC,SMA905,……
1064+/-5nm	0-10W	<3%	100um,200um,400um,……	FC/PC,SMA905,……
1310+/-20nm	0-600 mW	<3%	100um,200um,400um,……	FC/PC,SMA905,……
1470+/-20nm	0-2000 mW	<3%	100um,200um,400um,……	FC/PC,SMA905,……
1550+/-20nm	0-1300 mW	<3%	100um,200um,400um,……	FC/PC,SMA905,……
1870+/-20nm	0-500mW	<3%	100um,200um,400um,……	FC/PC,SMA905,……
1940+/-20nm	0-500mW	<3%	100um,200um,400um,……	FC/PC,SMA905,……
2200+/-20nm	0-300mW	<3%	100um,200um,400um,……	FC/PC,SMA905,……

Ordering Information

STX-XXX-YYY-PPP-MM-DDD-CCC-LLL

STX means STX series fiber-coupled laser diode modules
XXX means laser wavelength in nm.
PPP means the output laser power from the fiber
MM means fiber type, that is single mode (SM) or multi mode (MM)

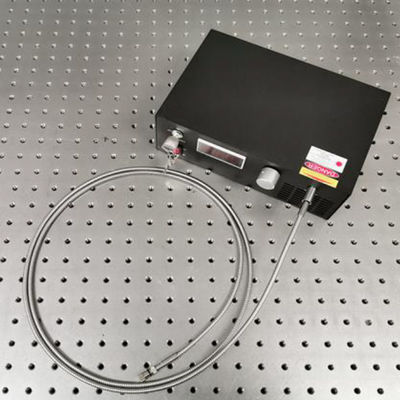

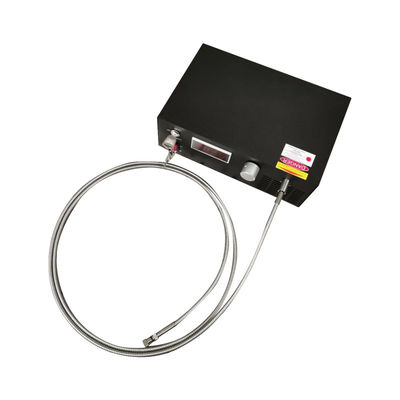

DDD means package type, that is 50FC, 75FC, 80FC or T7. (1) 50FC: 35x35x102mm, inpidual driver with temp control. (2) 75FC: 49x42x140mm, inpidual driver with temp. control. (3) 80FC: 49x52x140mm, inpidual driver with temp. control. (4) T7: 49x42x140mm, laser head and driver assembled together with temp. control, 5VDC input required.
CCC means core diameter, such as 50, 100, 200, 400um…..
LLL means fiber length in meter.

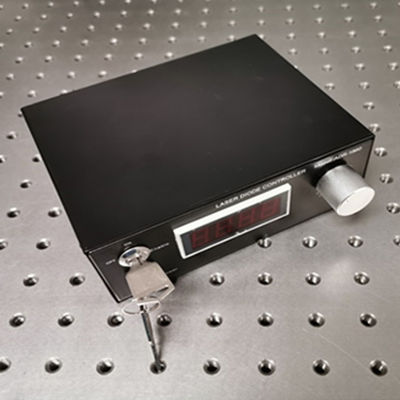

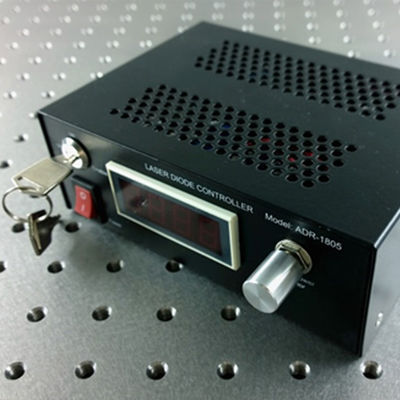

All the lasers can be made with any one of 4 packages. In general, the laser with <3W is matched with driver 1805 and others is matched with driver 1860.

2. Single Mode Fiber Output

Wavelength(nm)	Laser power	(peak-peak)	Fiber connector	Extinction ratio
375+/-5nm	0-20 mW	<3%,<5%	FC/PC,FC/APC,SMA…	>17dB
405+/-5nm	0-80 mW	<3%,<5%	FC/PC,FC/APC,SMA…	>17dB
445+/-5nm	0-50 mW	<3%,<5%	FC/PC,FC/APC,SMA…	>17dB
455+/-5nm	0-50 mW	<3%,<5%	FC/PC,FC/APC,SMA…	>17dB
473+/-5nm	0-50 mW	<3%,<5%	FC/PC,FC/APC,SMA…	>17dB
488+/-5nm	0-30 mW	<3%,<5%	FC/PC,FC/APC,SMA…	>17dB
510+/-5nm	0-15 mW	<3%,<5%	FC/PC,FC/APC,SMA…	>17dB
520+/-5nm	0-40 mW	<3%,<5%	FC/PC,FC/APC,SMA…	>17dB
532+/-1nm	0-50 mW	<+/-5%	FC/PC,FC/APC,SMA…	>17dB
633+/-5nm	0-50 mW	<3%,<5%	FC/PC,FC/APC,SMA…	>17dB
638+/-5nm	0-80 mW	<3%,<5%	FC/PC,FC/APC,SMA…	>17dB
648+/-5nm	0-70 mW	<3%,<5%	FC/PC,FC/APC,SMA…	>17dB
658+/-5nm	0-70 mW	<3%,<5%	FC/PC,FC/APC,SMA…	>17dB
685+/-5nm	0-25mW	<3%,<5%	FC/PC,FC/APC,SMA…	>17dB
690+/-5nm	0-15 mW	<3%,<5%	FC/PC,FC/APC,SMA…	>17dB
705+/-5nm	0-20 mW	<3%,<5%	FC/PC,FC/APC,SMA…	>17dB
730+/-10nm	0-20 mW	<3%,<5%	FC/PC,FC/APC,SMA…	>17dB
780+/-5nm	0-80 mW	<3%,<5%	FC/PC,FC/APC,SMA…	>17dB
785+/-5nm	0-80 mW	<3%,<5%	FC/PC,FC/APC,SMA…	>17dB
808+/-3nm	0-150 mW	<3%,<5%	FC/PC,FC/APC,SMA…	>17dB
830+/-5nm	0-80 mW	<3%,<5%	FC/PC,FC/APC,SMA…	>17dB
850+/-5nm	0-20 mW	<3%,<5%	FC/PC,FC/APC,SMA…	>17dB
915+/-5nm	0-50 mW	<3%,<5%	FC/PC,FC/APC,SMA…	>17dB
940+/-5nm	0-80 mW	<3%,<5%	FC/PC,FC/APC,SMA…	>17dB
973+/-3nm	0-350 mW	<3%,<5%	FC/PC,FC/APC,SMA…	>17dB
976+/-3nm	0-500 mW	<3%,<5%	FC/PC,FC/APC,SMA…	>17dB
1064+/-10nm	0-100 mW	<3%,<5%	FC/PC,FC/APC,SMA…	>17dB
1310+/-20nm	0-150 mW	<3%,<5%	FC/PC,FC/APC,SMA…	>17dB
1550+/-20nm	0-150 mW	<3%,<5%	FC/PC,FC/APC,SMA…	>17dB

Ordering Information

STX-XXX-YYY-PPP-MM-DDD-CCC-LLL

STX means STX series fiber-coupled laser diode modules
XXX means laser wavelength in nm.
PPP means the output laser power from the fiber
MM means fiber type, that is single mode (SM) or multi mode (MM)
DDD means package type, that is T, T2 or T7. (1) T: 35x35x102mm, inpidual driver with temp control. (2) T2: 49x42x140mm, inpidual driver with temp. control. (3) T7: 49x42x140mm, laser head and driver assembled together with temp. control, 5VDC input required.
CCC means core diameter, such as 50, 100, 200, 400um…..
LLL means fiber length in meter.

All the lasers can be made with any one of 3 packages and only one driver 1805 is used.

3. Single Mode Polarization-maintenance Fiber-coupled Laser Diodes

M2 ≤1.2
Polarization ratio >70:1
Custom-design and -made available

Part number	Max. laser power mW	Fiber type	Outlook size mm	Operation voltage VAC
STX-FC-375-030-PM	30	PM fiber	49x42x140	220
STX-FC-395-080-PM	80	PM fiber	49x42x140	220
STX-FC-405-050-PM	50	PM fiber	49x42x140	220
STX--FC-405-100-PM	100	PM fiber	49x42x140	220
STX--FC-405-200-PM	200	PM fiber	49x42x140	220
STX-FC-450-050-PM	50	PM fiber	49x42x140	220
STX-FC-488-030-PM	30	PM fiber	49x42x140	220
STX-FC-520-050-PM	50	PM fiber	49x42x140	220
STX-FC-633-050-PM	50	PM fiber	49x42x140	220
STX-FC-635-020-PM	20	PM fiber	49x42x140	220
STX-FC-635-050-PM	50	PM fiber	49x42x140	220
STX-FC-635-080-PM	80	PM fiber	49x42x140	220
STX-FC-635-100-PM	100	PM fiber	49x42x140	220
STX-FC-660-020-PM	20	PM fiber	49x42x140	220
STX-FC-660-050-PM	50	PM fiber	49x42x140	220
STX-FC-660-080-PM	80	PM fiber	49x42x140	220
STX-FC-660-100-PM	100	PM fiber	49x42x140	220
STX-FC-690-015-PM	15	PM fiber	49x42x140	220
STX-FC-705-015-PM	15	PM fiber	49x42x140	220
STX-FC-730-030-PM	30	PM fiber	49x42x140	220
STX-FC-780-080-PM	80	PM fiber	49x42x140	220
STX-FC-785-080-PM	80	PM fiber	49x42x140	220
STX-FC-808-050-PM	50	PM fiber	49x42x140	220
STX-FC-808-200-PM	200	PM fiber	49x42x140	220
STX-FC-830-080-PM	80	PM fiber	49x42x140	220
STX-FC-850-080-PM	80	PM fiber	49x42x140	220
STX-FC-976-500-PM	500	PM fiber	49x42x140	220
STX-FC-1064-100-PM	100	PM fiber	49x42x140	220
STX-FC-1310-005-PM	5	PM fiber	49x42x140	220
STX-FC-1310-100-PM	100	PM fiber	49x42x140	220
STX-FC-1550-005-PM	5	PM fiber	49x42x140	220
STX-FC-1550-100-PM	100	PM fiber	49x42x140	220
