Multi-line Laser/ Multi-wavelength Laser
We offer multi-line laser/ multi-wavelength laser combiner systems in free space and fiber output, it can combine multiple wavelengths into one box, with optional USB or RS232 control. The wavelengths are available for UV-Visible-IR range. This multi-line lasers can be widely used for medical, biomedical, and industrial application, etc.

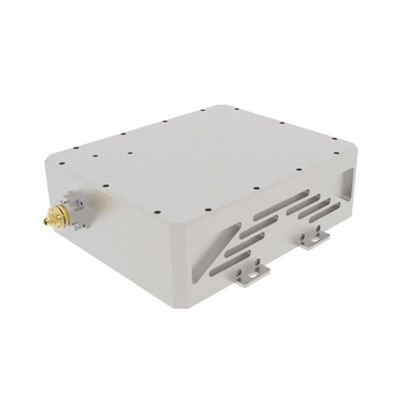

2.1 Free Space Output
-
Separate laser head and driver for easy integration
-
320-1064nm wide range of wavelengths available
-
2-4 wavelengths can be combined into one system (more wavelengths on request)
-
Customized wavelength and output power combinations
-
Free space or MM fiber output optional
Specifications: (X stands for the number of wavelength, X= II, III, IV)
| Model |
STC-MSX-M |
STC-MSX-S |
STC-MSX-N |
STC-MSX-W |
STC-MSX-Z |
| Power supply |
STC-PSU-M-LED |
STC-RGB-31/ RGB-41 |
| Number of combined wavelengths |
2~4 (Or more on request) |
| Output mode |
Free coaxially output (fiber output optional) |
| Available Wavelength (nm) |
320~1064 |
| Output power (mW) |
Available for customized on request |
| Power stability (rms, over 4 hours) |
<1%, <2%, <3%, <5% |
| Operating mode |
CW, TTL or analog on request |
| Operating temperature (℃) |
10~35℃ |
| Power input |
100~240VAC |
| Cooling method |
Air cooled |
| Expected lifetime (hours) |
10000 |
| Options: |
-
TTL or analog modulation up to 30kHz
-
AOM (modulation up to 1MHz)
-
MM fiber coupling (100um, ..., 600um), SMA905/ FC connector optional
-
USB or RS232 control
|
Standard model:
◆405nm/561nm◆473nm/ 593.5nm ◆405nm/ 473nm/ 532nm◆640nm/ 532nm/ 405nm ◆405nm/ 589nm ◆635nm/ 532nm ◆635nm/ 532nm/ 473nm ◆655nm/ 532nm/ 473nm ◆405nm/ 593.5nm ◆655nm/ 532nm ◆637nm/ 532nm/ 447nm ◆671nm/ 532nm/ 473nm ◆473nm/ 589nm

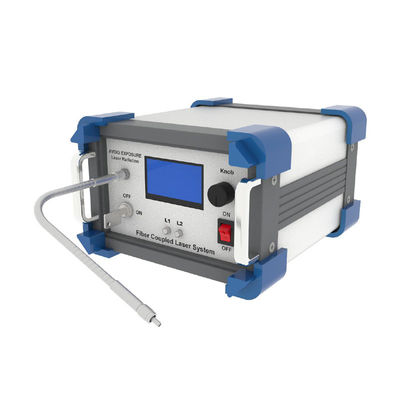

2.2 Fiber Coupling Version
-
Single mode fiber coupling with stable output
-
Separate laser head and driver for easy integration
-
320-1064nm wide range of wavelengths available
-
2-4 wavelengths can be combined into one system (more wavelengths on request)
-
Customized wavelength and output power combinations
-
Customized size available
Standard model:
◆637nm/ 532nm ◆637nm/ 532nm/ 473nm ◆640nm/ 561nm/ 488nm/ 405nm ◆671nm/ 532nm/ 457nm ◆640nm/ 593.5nm/ 532nm/ 488nm ◆642nm/589nm/532nm/473nm

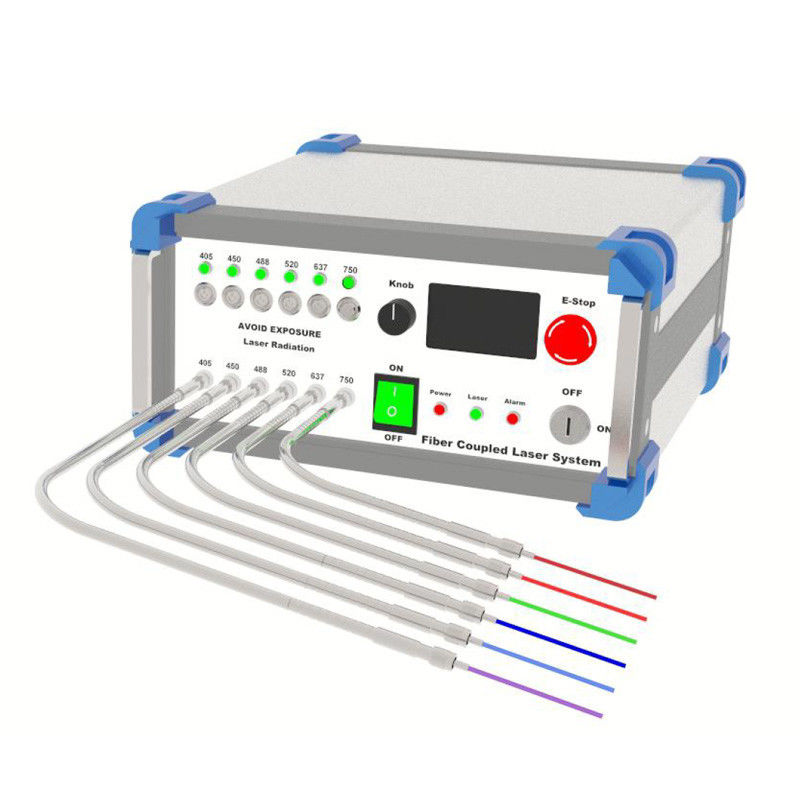

2.3 Integrated Electronics:
-
Built-in driver for easy operation
-
375-1550nm wide range of wavelengths available
-
2-20 wavelengths can be combined into one system
-
Customized wavelength and output power combinations
-
Customized size available
| Channel type |
Single Channel |
Multi-Channel |
| Model |
STC-FC-MS |
STC-FC-ML |
Customized model |
STC-FC-MS-CH |
| Available wavelength (nm) |
375~1064 |
375~1550 |
| Number of combined wavelengths |
2~3 |
4~6 |
7~20 |
2~4 |
| Fiber type |
SM, MM |
SM |
| Fiber core diameter (μm) |
Customized on request |
4~9 |
| Fiber connector |
SMA905/ FC |
FC/PC |
| Output power |
Customized on request |
| Power stability (rms, over 4 hours) |
<3%, <5% |
| Operating mode |
CW, TTL or analog on request |
| Operating temperature(℃) |
10~35 |
| Power input |
100~240VAC |
| Cooling method |
Air cooled |
| Expected lifetime (hours) |
10000 |
| Warranty |
1 year |
Standard model:
◆405nm/ 447nm/ 532nm/ 637nm ◆405nm/ 488nm/ 532nm/ 637nm

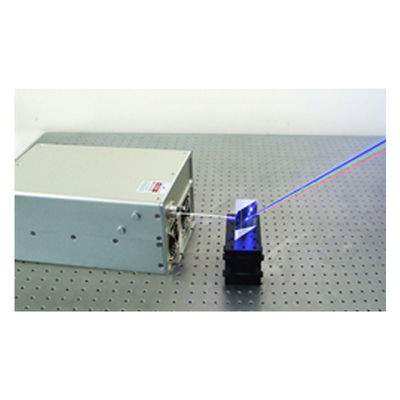

3. Wavelength Tunable Laser
We offer wavelength tunable laser, the output wavelengths can be changed continuously within a certain range. Tunable lasers come with good beam quality, high stability and long life time, they are widely used in spectroscopy, photochemistry, medicine, biology, integrated optics, laser processing, etc.
Features:
-
Good beam quality;
-
Compact design;
-
High stability;
-
Long life time;
-
Easy operation
Applications:
◆Tunable Diode Laser
| Tunable Wavelength Band |
Model |
Output Power |
Spectral Linewidth |
| 403~407 nm |
STC-TUN-403~407 |
1~30 mW |
<0.1 nm |
| 408~412 nm |
STC-TUN-408~412 |
1~30 mW |
<0.1 nm |
| 448~452 nm |
STC-TUN-448~452 |
1~10 mW |
<0.1 nm |
| 518~522 nm |
STC-TUN-518~522 |
1~10 mW |
<0.1 nm |
| 634~643 nm |
STC-TUN-634~643 |
1~10 mW |
<0.1 nm |
| 652~658 nm |
STC-TUN-652~658 |
1~10 mW |
<0.1 nm |
◆Tunable Ti:Sapphire Laser
| Tunable Wavelength Band |
Model |
Output Power |
Spectral Linewidth |
| 770~840 nm |
STC-TUN-TiN-770~840 |
1~400 mW |
<40 pm |
| 770~840 nm |
STC-TUN-Ti-770~840 |
1~1000 mW |
<2 nm |
| 770~840 nm |
STC-TUN-TiA-770~840 |
1~1300 mW |
<2 nm |
◆Tunable Infrared Laser
| Tunable Wavelength Band |
Model |
Output Power |
Spectral Linewidth |
| 1400~1800 nm |
STC-TUN-W-1400~1800 |
1~2000 mW |
<2 nm |
| 2600~4450 nm |
STC-TUN-W-2600~4450 |
1~1000 mW |
<2 nm |
4. Mode-locked & Picosecond Laser Series
Superior beam quality, best reliability, mode-locked & picosecond pulsed laser, pulsed duration could be less than 20ps. Housed in compact packages, are the perfect choice for design in and integration into OEM instrumentation and systems and also for end user applications in research and development.
Applications:
-
Raman spectroscopy;
-
Marking, Carving;
-
Material processing;
-
Astronomy;
-
Scientific research;
-
Optical instrument
Mode-locked Type:
| |
Wavelength
(nm) |
Output power
(mW) |
Pulse duration
(ps) |
Rep. rate
(MHz) |
Operating mode |
Transverse mode |
| STC-PS-R-266 |
266 |
1-50 |
<20 |
48±1 |
Mode-locked |
TEM00 |
| STC-PS-R-355 |
355 |
1-2000 |
<20 |
48±1 |
Mode-locked |
TEM00 |
| STC-PS-R-532 |
532 |
1-3000 |
<20 |
48±1 |
Mode-locked |
TEM00 |
| STC-PS-HR-532 |
532 |
1-2 W |
~15@500kHz&2 W |
100-1000kHz |
Mode-locked |
TEM00 |
| STC-PS-RL-1064 |
1064 |
1-1000 |
~15 @10 kHz&1 W |
1-10kHz |
Mode-locked |
TEM00 |
| STC-PS-HR-1064 |
1064 |
1-10 W |
~15@500kHz & 10W |
100-1000kHz |
Mode-locked |
TEM00 |
| STC-PS-R-1064 |
1064 |
1-10 W |
<20 |
48±1 |
Mode-locked |
TEM00 |
| STC-PS-Seed-1064 |
1064 |
1-300 |
<20 |
80±1 |
Mode-locked |
TEM00 |
| STC-Macro/ Micro-1064-P |
1064 |
10 W |
Macro 160 μs |
Micro~100MHz |
Mode-locked |
TEM00 |
| STC-Macro/ Micro-1319-P |
1319 |
7 W |
Macro 160 μs |
Micro~100MHz |
Mode-locked |
TEM00 |
Fiber Laser Type:
| |
Wavelength
(nm) |
Output power
(mW) |
Pulse duration
(ps) |
Rep. rate
(MHz) |
Operating mode |
Transverse mode |
| STC-FL-266-PS |
266 |
1-10 |
<10 |
20-80 (Fixed) |
Mode-locked |
TEM00 |
| STC-FL-355-PS |
355 |
1-50 |
<10 |
20-80 (Fixed) |
Mode-locked |
TEM00 |
| STC-FL-532-PS |
532 |
1-150 |
<10 |
20-80 (Fixed) |
Mode-locked |
TEM00 |
| STC-FL-1064-PS |
1064 |
1-2000 |
<10 |
20-80 (Fixed) |
Mode-locked |
TEM00 |
| STC-FL-266-Pico |
266 |
1-50 |
100-900 |
0.1-20 (variable) |
Pulsed |
TEM00 |
| STC-FL-343-Pico |
343 |
1-50 |
100-900 |
0.1-20 (variable) |
Pulsed |
TEM00 |
| STC-FL-355-Pico |
355 |
1-50 |
100-900 |
0.1-20 (variable) |
Pulsed |
TEM00 |
| STC-FL-515-Pico |
515 |
1-1000 |
100-900 |
0.1-20 (variable) |
Pulsed |
TEM00 |
| STC-FL-532-Pico |
532 |
1-1000 |
100-900 |
0.1-80 (variable) |
Pulsed |
TEM00 |
| STC-FL-535-Pico |
535 |
1-1000 |
100-900 |
0.1-20 (variable) |
Pulsed |
TEM00 |
| STC-FL-1030-Pico |
1030 |
10-5000 |
100-900 |
0.1-20 (variable) |
Pulsed |
TEM00 |
| STC-FL-1064-Pico |
1064 |
10-5000 |
100-900 |
0.1-20 (variable) |
Pulsed |
TEM00 |
| STC-FL-1070-Pico |
1070 |
10-5000 |
100-900 |
0.1-20 (variable) |
Pulsed |
TEM00 |
Diode Pumped Laser Type:
| |
Wavelength
(nm) |
Output power
(mW) |
Pulse duration
(ps) |
Rep. rate
(MHz) |
Operating mode |
Transverse mode |
| STC-DPS-213-Pico |
213 |
1-30 |
<50 ps |
5 |
Pulsed |
TEM00 |
| STC-DPS-266-Pico |
266 |
100-500 |
<50 ps |
5 |
Pulsed |
TEM00 |
| STC-DPS-355-Pico |
355 |
100-700 |
<50 ps |
5 |
Pulsed |
TEM00 |
| STC-DPS-532-Pico |
532 |
2-10 W |
<50 ps |
0.1-10 MHz |
Pulsed |
TEM00 |
| STC-DPS-1064-Pico |
1064 |
5-30 W |
<50 ps |
0.1-10 MHz |
Pulsed |
TEM00 |
Picosecond Pulsed Diode Laser
Picosecond pulsed diode laser features with integrated electronics, narrow pulse duration, high repetition frequency and easy operation. It is widely used in fluorescence excitation, time resolve spectrum, high sensitive absorption spectroscopy, etc.
| Model |
Output power |
Rep. rate (MHz) |
Pulse duration (ps) |
| STC-MDL-PS-405 |
10 μW~0.5 mW |
0.1~80 |
100-1000 |
| STC-MDL-PS-450 |
10 μW~0.5 mW |
0.1~80 |
100-1000 |
| STC-MDL-PS-640 |
50 μW~3.5 mW |
0.1~80 |
100-1000 |
| STC-MDL-PS-655 |
20 μW~1.5 mW |
0.1~20 |
100-1000 |
| STC-MDL-PS-785 |
70 μW~4.2 mW |
0.1~80 |
100-1000 |
| STC-MDL-PS-808 |
90 μW~6.0 mW |
0.1~80 |
100-1000 |
| STC-MDL-PS-852 |
10 μW~1.0 mW |
0.1~80 |
100-1000 |
| STC-MDL-PS-940 |
20 μW~1.5 mW |
0.1~80 |
100-1000 |
| STC-MDL-PS-980 |
20 μW~1.5 mW |
0.1~80 |
100-1000 |
