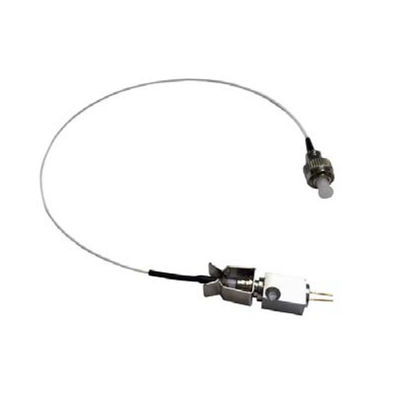

Single Mode Fiber-coupled Laser Diodes,Multi-mode Fiber Detachable Laser Module

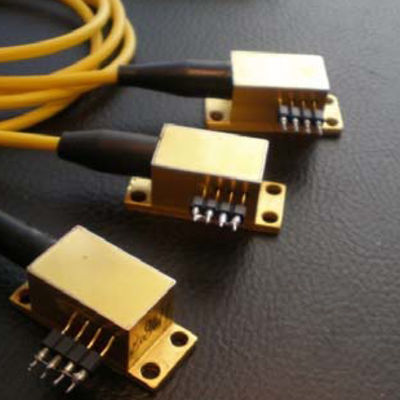

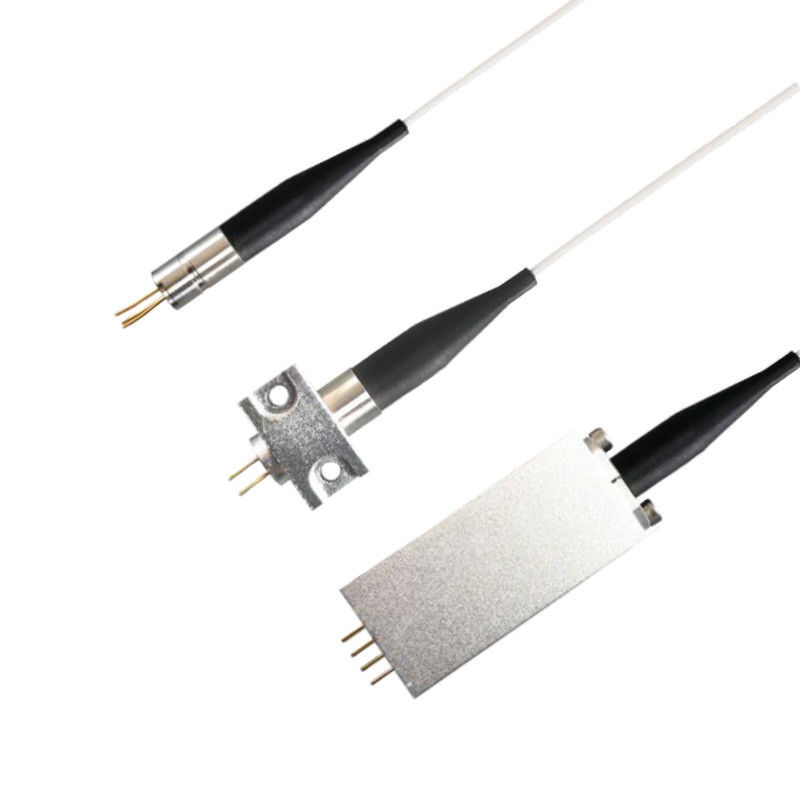

1. Single Mode Fiber Coupled Laser Diodes

Features:

• 405nm~1650nm
• SM and PM Fiber
• 1mW~100mW Output Power
• PER upto 20dB
• Built-in TE Cooler Optional
• Built-in Photodiode Optional
• Long Lifetime
• High Stability
• Customized Wavelength
• Customized Output Power

We offer High Coupling Efficient Solution for 405nm~1650nm Pigtailed Laser Module with Single Mode Fiber and Polarization Maintaining Fiber and the output power can be up to 100mW. We adopt unique technique to get high Polarization Extinction Ratio (PER), which is up to 20dB with Low Noise Laser Output.

With SM and PM Fiber, it can get the Gauss Beam which is the Single Transverse Mode Beam, the M2 value is less 1.3. Meanwhile, and the TE Cooler and Photodiode is optional for customers. We can integrate them into the Laser Module according to customer's requirement. We also offer the Customized Solution for Pigtailed Laser Modules, such as Customized Wavelength and Customized Power to meet the special needs of customers.

We use laser welding technology to guarantee the long-term reliability of the laser structure. To ensure the long-term reliability, each laser diode will undergo rigorous testing and aging in factory. Meanwhile the high-low storage temperature circulation is also necessary for each laser diode. We set the storage temperature range from -40 degree C to +85 degree C, and it lasts 10 cycles. In this way, it ensures the long-term reliability of the coupling structure.
