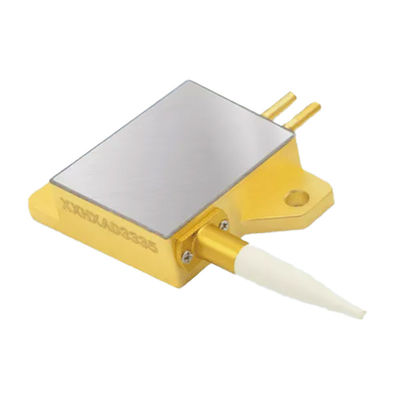

915nm to 976nm Fiber-coupled Laser Diodes

915nm to 976nm Fiber-coupled Laser Diodes
915nm to 976nm Fiber-coupled Laser Diodes 915nm to 976nm Fiber-coupled Laser Diodes 915nm to 976nm Fiber-coupled Laser Diodes 915nm to 976nm Fiber-coupled Laser Diodes 915nm to 976nm Fiber-coupled Laser Diodes

Large Image :  915nm to 976nm Fiber-coupled Laser Diodes

Product Details:
Brand Name: Sintec Optronics
Model Number: SXH Series
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: Stock
Payment Terms: T/T via bank
Contact Now

915nm to 976nm Fiber-coupled Laser Diodes

Description
Highlight:

Fiber-coupled Laser Diodes

,

Laser Diodes

,

Lasers

915nm to 976nm Fiber-coupled Laser Diodes



915nm to 976nm Fiber-coupled Laser Diodes 0

915nm to 976nm Fiber-coupled Laser Diodes 1

915nm to 976nm Fiber-coupled Laser Diodes 2

P/N Ctr. Wavelength
nm		 Laser Power
W		 Wavelength Tolerance
+/-nm		 Spectral Width FWHM nm Fiber core
um		 Fiber NA
SXH-915-15-105 915 15 15   105 0.22
SXH-915-30-105 915 30 15   105 0.22
SXH-915-45-105 915 45 15   105 0.22
SXH-915-80-105 915 80 15   105 0.22
SXH-915-110-105 915 110 15   105 0.22
SXH-915-140-105 915 140 15   105 0.22
SXH-915-150-135 915 150 15   135 0.22
SXH-915-200-105 915 200 15   105 0.22
SXH-915-280-135 915 280 15   135 0.22
SXH-915-340-135 915 340 15   135 0.22
SXH-915-430-200 915 430 15   200 0.22
SXH-915-500-220 915 500   6 220 0.22
SXH-915-540-200 915 540 8   200 0.22
SXH-915-660-200 915 660 15   200 0.22
SXH-915-660-220 915 660   6 220 0.22
SXH-915-800-220 915 800 15 6 220 0.22
SXH-915-1000-220 915 1000   8 220 0.22
SXH-975-330-220 975 330 3 6 220 0.22
SXH-975-500-220 975 500   6 220 0.22
SXH-975-660-220 975 660   6 220 0.22
SXH-975-800-220 975 800   6 220 0.22
SXH-976-200-105 976 200 3   105 0.22
SXH-976-260-135 976 260 3   135 0.22
SXH-976-340-135 976 340 3   135 0.22
SXH-976-420-135 976 420 3   135 0.22
SXH-976-430-200 976 430 3   200 0.22
SXH-976-540-200 976 540 3   200 0.22
SXH-976-660-200 976 660 3   200 0.22
SXH-976-1000-220 976 1000   6 220 0.22
SXH-976-2000-250 976 2000   6 250 0.22
SXH-976-2000-400 976 2000   6 400 0.46
SXH-976-3000-400 976 3000   6 400 0.46
SXH-977-330-220 977 330 3 6 220 0.22
SXH-977-500-220 977 500   6 220 0.22
SXH-977-660-220 977 660   6 220 0

SZK Series Wide Band Superluminescent LEDs

1.SZK-1550-xx-yy-zz14-HB SLEDs



Features:

  • Typical ex-fiber output power of 10mW
  • Typical 3dB bandwidth of 85nm
  • Spectrum covers 1510-1590nm bandwidth -25dBm/0.1nm resolution
  • Spectral modulation of <1dB
  • 14-pin BTF package
  • Single-mode/PM fiber pigtail ＞1m

Applications:

  • Fiber Optic Gyroscope
  • Optical Test Instrument
  • Fiber Optic Sensors
  • Fiber Optic Communications
  • Optical Coherence Tomography
  • Biomedical Imaging Device
  • Clinical Healing Equipment

Absolute Maximum Ratings

Parameter Symbol Condition Min Max Unit
Reverse voltage VR - - 2 V
Forward current IF - - 650 mA
Forward voltage VF Iop - 3.0 V
Operating Case Temperature Tc Iop -20 60 ℃
Thermoelectric cooler voltage VTEC - - 3.60 V
Thermoelectric cooler current ITEC - - 2.6 A
Storage temperature Tstg Unbiased -40 85 ℃
Storage humidity - - 5 85 %RH
Electro static discharge (ESD) VESD   - 500 V
Lead soldering temperature Stemp (max 60s) - 260 ℃
Lead soldering time Stime - - 10 sec

Specification (TSLED = 25oC)

Parameter Symbol Condition Min Typ Max Unit
Operating current Iop - - - 600 mA
Forward voltage VF Iop - - 2.5 V
Optical Output Power Po Iop 8 10 - mW
Central wavelength λ Iop 1520 1550 1570 nm
Bandwidth BFWHM Iop 85 - - nm
Spectrum modulation R Iop - - 1 dB
Thermistor resistance Rtherm T = 25 ℃ 9.5 10 10.5 kΩ
Polarization Extinction Ratio (Optional PMF) PER Iop 15     dB
Thermoelectric cooler voltage VTEC Iop - - 2.8 V
Thermoelectric cooler current ITEC Iop - - 1.4 A

Dimensions and Pin Description



Dimensions are in mm. All dimensions are ±0.1mm unless otherwise specified. Type: 00

Order information

SZK-1550-xx-yy-zz-14-HB

SZK Wavelength nm Output power mW Encapsulation ＆ fiber selection Connector PIN Customized
SLED …
1550
…..		 …
2
5
10		 BS=BTF SM fiber
BP=BTF PM fiber
….		 00=NO
FA=FC/APC
FU=FC/UPC		 14 HB=Bandwidth＞ 85nm

Note: the laser module are ESD-sensitive devices. Please insure that proper ESD handling procedures are used.

2.SLED Butterfly Device SKZ-1XX0-XX-XX--FA-14



Features:

  • High power output
  • Metal-coupled and hermetic package
  • TEC inside
  • Polarization-maintaining or single-mode optical fiber
  • 14pin butterfly package

Applications:

  • Fiber-optic gyroscope
  • Optic test
  • Optical fiber transmission system
  • Fiber-optic sensor
  • OCT

Absolute Maximum Ratings

Parameter Symbol Min Max Unit
Reverse voltage VR - 3 V
Forward current IF - 300 mA
Operating Case Temperature Tc -20 70 ℃
Thermoelectric cooler voltage VTEC - 3.0 V
Thermoelectric cooler current ITEC - 1.5 A
Storage temperature Tstg -55 85 ℃
Lead soldering temperature Stemp - 260 ℃
Lead soldering time Stime - 10 sec

Optical/Electrical Characteristics (T=25℃, unless otherwise stated)

Parameter Symbol Min Typ Max Unit Test Conditions
Optical Output Power Po 1 -- 10.0 mW CW,T=25℃
Forward Voltage VF -- -- 2.5 V CW,T=25℃
Center Wavelength λc 1290
1535		 -- 1330
1565		 nm CW,T=25℃
Bandwidth FWHM Bw 30 40 - nm CW,T=25℃
Spectral Ripple -- -- -- 1 dB CW,T=25℃
Polarization Extinction Ratio PER --
15		 -- 1.5
--		 dB Low Polarization Rate
High Polarization Rate @PM Fiber
Thermistor Resistance RT 9.5 10.0 10.5 KΩ T=25 °C
Thermistor B-Value --   3950 -- K 25℃/85℃

Order information

SZK-1XX0-YY-ZZ-FA-14

SZK wavelength Output Power Encapsulation ＆ fiber selection Connector PIN
SLED …nm …mW BS=BTF SM Fiber 00=NO 14
… 1310 1 BP=BTF PM Fiber FA=FC/APC
  1550 2 … FU=FC/UPC
  … 5   SA=SC/APC
    10   …

Dimensions and Pin Description:

Dimensions are in mm. All dimensions are ±0.1mm unless otherwise specified. Type: 00



Note: the laser module are ESD-sensitive devices. Please insure that proper ESD handling procedures are used.
