405-1064nm Fiber Coupled Laser Diode SM / PM / MM Pigtailed Laser Diodes

405-1064nm Fiber Coupled Laser Diode SM / PM / MM Pigtailed Laser Diodes
405-1064nm Fiber Coupled Laser Diode SM / PM / MM Pigtailed Laser Diodes 405-1064nm Fiber Coupled Laser Diode SM / PM / MM Pigtailed Laser Diodes 405-1064nm Fiber Coupled Laser Diode SM / PM / MM Pigtailed Laser Diodes 405-1064nm Fiber Coupled Laser Diode SM / PM / MM Pigtailed Laser Diodes 405-1064nm Fiber Coupled Laser Diode SM / PM / MM Pigtailed Laser Diodes

Large Image :  405-1064nm Fiber Coupled Laser Diode SM / PM / MM Pigtailed Laser Diodes

Product Details:
Brand Name: Sintec Optronics
Model Number: STC Series
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: Stock
Payment Terms: T/T via bank
Contact Now

405-1064nm Fiber Coupled Laser Diode SM / PM / MM Pigtailed Laser Diodes

Description
Highlight:

Fiber Coupled Laser Diode

,

Fiber Coupled Diode Laser

,

Laser Diodes

405-1064nm Fiber-coupled Laser Diode /SM/PM/MM Pigtailed Laser Diodes

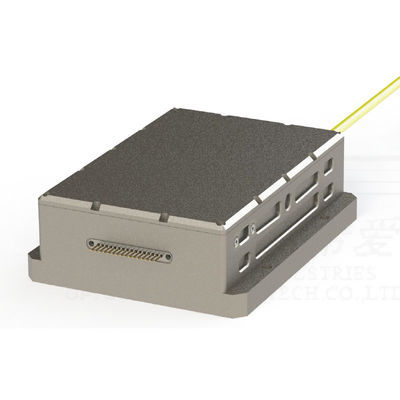

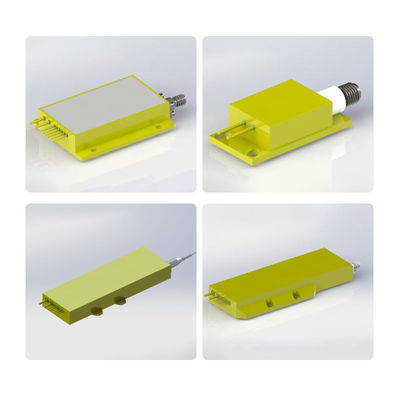

1. Fiber Coupled Laser Diode Module

  • Wavelength range 405-1064 nm

  • High output power up to 4000W@ 915/980 nm

  • Are designed for fiber laser, solid state laser pumping, direct diode material processing, surgical lasers and medical therapeutics

Part Number Wavelength (nm) Power (W) Fiber Type (MM fiber)
STC-LDM-405-10 405 nm 10 800 µm
STC-LDM-405-35 405 nm 35 800 µm
STC-LDM-444-10 444 nm 10 100, 200, 400µm
STC-LDM-444-25 444 nm 25 100, 200, 400µm
STC-LDM-450-6 450 nm 6 105 µm
STC-LDM-450-9 450 nm 9 200 µm
STC-LDM-450-12 450 nm 12 200 µm
STC-LDM-450-50 450 nm 50 400 µm
STC-LDM-450-120 450 nm 120 800 µm
STC-LDM-520-30 520 nm 30 400 µm
STC-LDM-520-70 520 nm 70 800 µm
STC-LDM-638-15 638 nm 15 400 µm
STC-LDM-638-35 638 nm 35 800 µm
STC-LDM-793-8 793 nm 8 105 µm
STC-LDM-793-16 793 nm 16 105 µm
STC-LDM-793-30 793 nm 30 105 µm
STC-LDM-808-7 808 nm 7 105 µm
STC-LDM-808-15 808 nm 15 400 µm
STC-LDM-808-20 808 nm 20 400 µm
STC-LDM-808-30 808 nm 30 400 µm
STC-LDM-808-40 808 nm 40 200 µm
STC-LDM-808-50 808 nm 50 400 µm
STC-LDM-808-60 808 nm 60 200 µm
STC-LDM-808-100 808 nm 100 400 µm
STC-LDM-808-150 808 nm 150 400 µm
STC-LDM-878.6-25 878.6 nm 25 200 µm
STC-LDM-878.6-30 878.6 nm 30 400 µm
STC-LDM-878.6-60 878.6 nm 60 400 µm
STC-LDM-878.6-72 878.6 nm 72 400 µm
STC-LDM-878.6-75 878.6 nm 75 400 µm
STC-LDM-878.6-120 878.6 nm 120 400 µm
STC-LDM-915-10 915 nm 10 105 µm
STC-LDM-915-20 915 nm 20 105 µm
STC-LDM-915-30 915 nm 30 105 µm
STC-LDM-915-50 915 nm 50 200 µm
STC-LDM-915-80 915 nm 80 105 µm
STC-LDM-915-150 915 nm 150 105 µm
STC-LDM-915-260 915 nm 260 200 µm
STC-LDM-925-200 925 nm 200 135 µm
STC-LDM-976-10 976 nm 10 105 µm
STC-LDM-976-20 976 nm 20 105 µm
STC-LDM-976-27 976 nm 27 105 µm
STC-LDM-976-60 976 nm 60 105 µm
STC-LDM-976-100 976 nm 100 105 µm
STC-LDM-976-130 976 nm 130 105 µm
STC-LDM-976-140 976 nm 140 105 µm
STC-LDM-980-15 980 nm 15 200 µm
STC-LDM-980-35 980 nm 35 300 µm
STC-LDM-1064-10 1064 nm 10 200 µm
STC-LDM-1470-15 1470 nm 15 200 µm

Detailed Specifications of STC-LDM-808-150-C2

  Parameter Symbol Typical Unit
Optical CW Out Power Pop 150 W
  Center Wavelength 808±10 nm
  Spectral Width (90% of Power) △ <10.0 nm
  Wavelength Shift with Temperature △/△T 0.35 nm / ℃
Electrical Threshold Current Ith 1.9 A
  Operating current Iop 12 A
  Operating Voltage Vop 30 V
  Slope Efficiency η 14.9 W/A
  Power Conversion Efficiency ηep 42 %
Fiber Core Diameter dcore 400 μm
  Cladding Diameter dclad 440 μm
  Buffer Diameter dbuffer 700 μm
  Numerical Aperture NA 0.22 -
  Fiber Length L 1.0 m
  Connector - SMA905,FC -
Accessories Aiming Laser(650nm) - None -
  Monitor Photodiode - None -
  Dimension   142x72x29.5 mm

Detailed Specifications of STC-LDM-980-15

Optical Unit Typical Value
CW Output Power W 15
Center Wavelength nm 980±10
Spectral Width (90% of Power) nm 4
Wavelength Shift with Temperature nm / ℃ 0.3
Electrical
Threshold Current A 0.7
Operating Current A 9.0
Operating Voltage V 3.6
Slope Efficiency W / A 1.8
Power Conversion Efficiency % 46
Aiming Laser*
CW Output Power mW 1
Center Wavelength nm 650±10
Operating Current mA <30
Operating Voltage V ~2.2
Fiber**
Fiber Core Diameter m 200
Fiber Cladding Diameter m 220
Fiber Buffer Diameter m 500
Numerical Aperture - 0.22
Fiber Length m 1.0
Fiber Connector - SMA905
Dimension mm 52x35x17.2

  • *Optional built-in constant power circuit, 5V power supply needed. Optional constant voltage green aiming beam.

  • **Customized fiber and connector available.

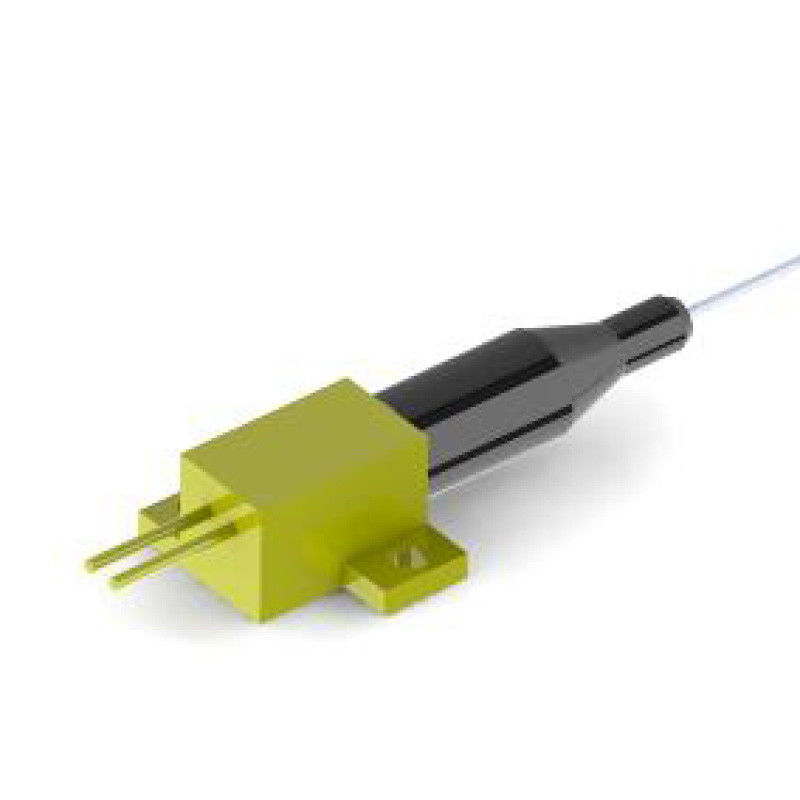

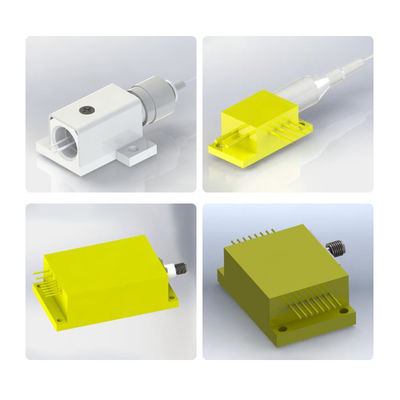

2. SM/ PM/ MM Pigtailed Laser Diodes

  • Wavelength range 405-1550 nm

  • Output power range 1-5000mW

  • Fiber coupled Fabry Perot (FP) laser diodes

  • Optional FC/PC or FC/ APC connector

  • Distributed feedback (DFB)

Wavelength (nm) Power (mW) Laser Type Package
405 nm 1-50 SM / PM fiber Coaxial
405 nm 5-200 MM fiber Coaxial
635 nm 1-100 SM / PM fiber Coaxial
635 nm 5-350 MM fiber Coaxial
650 nm 5-100 SM / PM fiber Coaxial
785 nm 20-50 SM / PM fiber Coaxial
785 nm 50-80 MM fiber Coaxial
808 nm 30 SM / PM fiber Coaxial
808 nm 100-150 MM fiber Coaxial
880 nm 1-2 SM / PM fiber Coaxial
880 nm 5 MM fiber Coaxial
905 nm 1-30 SM / PM fiber Coaxial
940 nm 30 SM / PM fiber Coaxial
980 nm 5-15 SM fiber Coaxial
980 nm 20-100 MM fiber Coaxial
1064 nm 5-50 SM / PM fiber Coaxial
1064 nm 20 MM fiber Coaxial
1310 nm 2-10 SM / PM fiber Coaxial / Pigtailed
1310 nm 10 MM fiber Coaxial / Pigtailed
1550 nm 2-10 SM / PM fiber Coaxial / Pigtailed
1550 nm 10 MM fiber Coaxial / Pigtailed

Detailed Specifications of Partial SM/ PM/ MM Pigtailed Laser Diodes

(1) SM/PM Pigtailed Laser Diode at 650nm

  • with SM Fiber

  • with PM Fiber

  • Offer Customized Products

  • Offer OEM Coupling Service

Part Number STC-SLDP-650-5-SM STC-SLDP-650-10-SM STC-SLDP-650-20-SM STC-SLDP-650-20-SM-9 STC-SLDP-650-30-SM
Center Wavelength@25°C (nm) 650nm 650nm 650nm 650nm 650nm
Power (mW) 5 10 20 20 30
Package Coaxial Coaxial Coaxial Coaxial Coaxial
Tolerance (nm) 5 5 5 5 5
Fiber Type (80cm length) 4µm SM fiber 4µm SM fiber 4µm SM fiber 9µm SM fiber 4µm SM fiber
Fiber Connector FC/SC/SMA905 FC/SC/SMA905 FC/SC/SMA905 FC/SC/SMA905 FC/SC/SMA905
Threshold Current (Typ.) 40mA 45mA 40mA 45mA 50mA
Operating Current (Typ.) 90mA 100mA 170mA 150mA 220mA
Operating Voltage 2.7V 2.7V 2.4V 2.4V 2.5V
Reverse Voltage 2.0V 2.0V 2.0V 2.0V 2.0V
Operating Temperature -10-+70°C -10-+60°C -10-+60°C -10-+60°C -10-+60°C
Storage Temperature -40-+85°C -40-+85°C -40-+85°C -40-+85°C -40-+85°C
Lead Soldering Temperature 260°C 260°C 260°C 260°C 260°C
Part Number STC-SLDP-650-50-SM STC-SLDP-650-50-SM-9 STC-SLDP-650-50-PM STC-SLDP-650-100-SM STC-SLDP-650-100-SM-9 STC-SLDP-650-100-PM
Center Wavelength@25°C (nm) 650nm 650nm 650nm 650nm 650nm 650nm
Power (mW) 50 50 50 100 100 100
Package Coaxial Coaxial Coaxial Coaxial Coaxial Coaxial
Tolerance (nm) 5 5 5 5 5 5
Fiber Type (80cm length) 4µm SM fiber 9µm SM fiber PM UV fiber 4µm SM fiber 9µm SM fiber PM UV fiber
Fiber Connector FC/SC/SMA905 FC/SC/SMA905 FC/SC/SMA905 FC/SC/SMA905 FC/SC/SMA905 FC/SC/SMA905
Threshold Current (Typ.) 50mA 50mA 55mA 55mA 55mA 55mA
Operating Current (Typ.) 220mA 200mA 200mA 260mA 260mA 260mA
Operating Voltage 2.6V 2.5V 2.5V 2.7V 2.7V 2.7V
Reverse Voltage 2.0V 2.0V 2.0V 2.0V 2.0V 2.0V
Operating Temperature -10-+50°C -10-+60°C -10-+50°C -10-+50°C -10-+50°C -10-+50°C
Storage Temperature -40-+85°C -40-+85°C -40-+85°C -40-+85°C -40-+85°C -40-+85°C
Lead Soldering Temperature 260°C 260°C 260°C 260°C 260°C 260°C

(2) SM/PM Pigtailed Laser Diode at 980nm

980nm Coaxial Package Diode Laser

  • with SM Fiber

  • with PM Fiber

  • Built-in PD

  • Offer Customized Products

  • Offer OEM Coupling Service

Part Number STC-SLDP-980-5-SM STC-SLDP-980-10-SM STC-SLDP-980-10-SM-9 STC-SLDP-980-15-SM
Center Wavelength@25°C (nm) 980nm
Power (mW) 5 10 10 15
Package Coaxial
Tolerance (nm) 5
Fiber Type (80cm length) 6µm SM fiber 6µm SM fiber 6µm SM fiber 9µm SM fiber
Fiber Connector FC/SC/SMA905
Threshold Current (Typ.) 10mA 15mA 10mA 15mA
Operating Current (Typ.) 75mA 80mA 75mA 80mA
Operating Voltage 1.5V 1.6V 1.5V 1.6V
PD Built-in
Monitor Current 0.5mA 0.5mA 0.5mA 0.5mA
PD Reverse Voltage 30V 30V 30V 30V
Reverse Voltage 2.0V 2.0V 2.0V 2.0V
Operating Temperature -10-+40°C -10-+40°C -10-+40°C -10-+40°C
Storage Temperature -15-+85°C -15-+85°C -15-+85°C -15-+85°C
Lead Soldering Temperature (10 sec.) 250°C

(3) MM Pigtailed Laser Diode at 980nm (980nm Coaxial Package Diode Laser)

  • with MM Fiber

  • Offer Customized Products

  • Offer OEM Coupling Service

Part Number STC-MLDP-980-20-MM STC-MLDP-980-100-MM
Center Wavelength@25°C (nm) 980nm 980nm
Spectral Width (FWHM) 2.0nm 2.0nm
Power (mW) 20 100
Package Coaxial Coaxial
Tolerance (nm) 10 10
Fiber Type (80cm length) MM fiber MM fiber
Fiber Connector FC/SC/SMA905 FC/SC/SMA905
Threshold Current (Typ.) 10mA 55mA
Operating Current (Typ.) 75mA 350mA
Operating Voltage 1.5V 1.6V
Reverse Voltage 2.0V 2.0V
Operating Temperature -10-+40°C -10-+40°C
Storage Temperature -15-+85°C -15-+85°C
Lead Soldering Temperature 260°C(10 sec.) 260°C(10 sec.)
