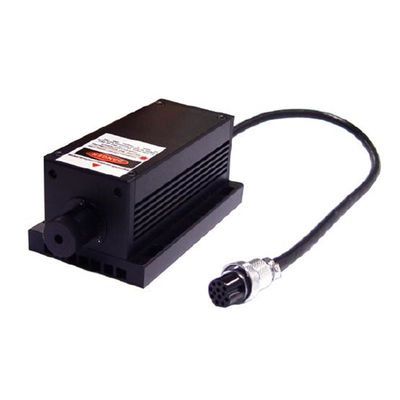

STC Series 1064 nm Infrared Solid State Lasers
We offer the diverse of laser sources for a broad range of industrial, medical and scientific applications. For CW operating mode lasers, the output power is up to 500W available. Q-switched high power laser series is 300W maximum. The high energy laser series is up to 20J available.
| (1) High Stability Laser |
Perfect beam quality; Long-term stability<1% |
| (2) Low Noise Laser |
RMS noise<1.0% ( <0.5% optional); Line width <0.2nm |
| (3) Single Frequency Lasers (Single Longitudinal Mode) |
Ultra low noise<0.5%; Linewidth <0.00001nm |
| (4) Q-switched Laser |
Ns laser (pulse width 1-100ns) |
| (5) Mode-locked & ps Laser |
Mode-locked laser (pulse width down to 10ps) |
| (6) Fiber Laser |
Modulation up to 80MHz; Pulse width down to 10ps |
| (7) OEM Laser Module |
Ultra compact; Industrial integration |
| (8) Fiber Pigtailed Laser |
MM, SM, PM fiber optional; SMA, FC connector optional |
1. 1064 nm Infrared Laser Series
High stability 1064 nm laser, housed in compact packages, are the perfect choice for design in and integration into OEM instrumentation and systems and also for end user applications in research and development.
Applications:
-
Confocal microscopy
-
Laser printing
-
Chip inspection
-
Particle measurements
-
Spectrum analysis
-
DNA sequencing
| Model |
Operating mode |
Output power |
Min. power stability |
M² factor |
| STC-MXL-SM-1064 |
CW |
1~500 mW |
<2% |
/ |
| STC-MIL-III-1064 |
CW |
1~1500 mW |
<1% |
<1.5 ( <1.2 optional) |
| STC-MIL-S-1064 |
CW |
1~1500 mW |
<1% |
<1.2 |
| STC-MIL-H-1064 |
CW |
2~3 W |
<1% |
<2.0 |
| STC-MIL-N-1064 |
CW |
4~5 W |
<1% |
<3.0 |
| STC-MIL-W-1064 |
CW |
6~20 W |
<1% |
<2.0 |
| STC-MIL-V-1064 |
CW |
6~20 W |
<1% |
<2.0 |
| STC-HPL-1064-Q |
QCW |
50~100 W |
<3% |
/ |
| STC-HPL-1064-QM |
QCW |
100~300 W |
<3% |
/ |
| STC-HPL-1064-CW |
CW |
50~100 W |
<3% |
/ |
| STC-HPL-1064-CW |
CW |
100~500 W |
<3% |
/ |
2. 1064nm Low Noise Laser Series
High performance CW, ultra low noise 1064 nm lasers, noise less than 1% and power up to 20W. Housed in compact packages, are the perfect choice for design in and integration into OEM instrumentation and systems and also for end user applications in research and development.
Applications:
| Model |
Output power (mW) |
Noise of amplitude
(rms,20Hz-20MHz) |
M² factor |
Spectral line width (nm) |
| STC-MLL-III-1064 |
1~1500 |
<1% |
<1.5 ( <1.2 optional) |
<0.2 |
| STC-MLL-S-1064 |
1~1500 |
<1% |
<1.2 |
<0.2 |
| STC-MLL-H-1064 |
2000~3000 |
<1% |
<2.0 |
<0.2 |
| STC-MLL-N-1064 |
4000~5000 |
<1% |
<2.0 |
<0.2 |
| STC-MLL-V-1064 |
6000~20000 |
<1% |
<2.0 |
<0.2 |
| STC-MLL-W-1064 |
6000~20000 |
<1% |
<3.0 ( typically) |
<0.2 |
3. 1064nm Single Longitudinal Mode Laser Series
High performance CW, single longitudinal mode, ultra low noise 1064 nm Lasers, narrow spectrum linewidth<0.00001 nm. Housed in compact packages, are the perfect choice for design in and integration into OEM instrumentation and systems and also for end user applications in research and development.
Applications:
-
Confocal microscopy
-
RAMAN spectroscopy
-
Holography
-
Particle measurements
-
DNA sequency, flow cytometry
-
Digital imaging, Analytical chemistry
| Model |
Operating mode |
Output power (mW) |
Fiber coupling options |
AOM options |
| STC-MSL-S-1064 |
CW |
1~200 |
SM/ PM/ MM |
yes |
| STC-MSL-S-1064-S |
CW |
1~200 |
SM/ PM/ MM |
yes |
| STC-MSL-III-1064 |
CW |
1~1000 |
SM/ PM/ MM |
yes |
| STC-MSL-III-1064-S |
CW |
1~1000 |
SM/ PM/ MM |
yes |
| STC-MSL-R-1064 |
CW |
1000 ~10000 |
MM |
/ |
| STC-MSL-AO-1064 |
Q- switched |
1~200uJ@1Hz~1kHz, 25ns |
MM |
/ |
4. 1064nm Q-switched Laser Series
We offer diverse of Q switched 1064 nm lasers in passively and actively modes. With pulse width from 1.3ns to 150ns, and single pulse energy from 1uJ to 20J. These lasers are the perfect choice for the end user applications in research, medical and industry. Nanosecond lasers perform precision processing with excellent material removal rates for microelectronics, materials processing, solar and medical device manufacturing.
Applications:
-
Life Science & Medical
-
Materials Processing
-
Microelectronics
-
OEM Integration
| Model |
Single pulse energy/ Power |
Repetition rate |
Pulse width (ns) |
Operating mode (Q-switched) |
| STC-MPL-III-1064 |
10-20 μJ |
1-20 kHz |
~3-25 (1.3 optional) |
Passively |
| STC-OEM-P-1064 |
1-20 μJ |
1-20 kHz |
~1-5 |
Passively |
| STC-MPL-T-1064 |
1-35 μJ |
0.1-20 kHz |
~0.5 |
Passively |
| STC-MPL-H-1064 |
20-100 μJ |
1-30 kHz |
~10 (1.5 optional) |
Passively |
| STC-MPL-SU-1064 |
20-200 μJ |
1-15 kHz |
~1.5/ ~1.8/ ~5 |
Passively |
| STC-MPL-FL-1064-A |
15-130 μJ |
1-70 kHz |
~5 (1.3 optional) |
Passively |
| STC-MPL-N-1064 |
150-200 μJ |
1-15 kHz |
~3-5 (<2 optional) |
Passively |
| STC-MPL-FL-1064-B |
150-300 μJ |
1 kHz |
~2 (1.0 optional) |
Passively |
| STC-AO-S-1064 |
1-350 μJ |
0.1-100 kHz |
7-11 @<10 kHz |
Acousto-optic |
| STC-AO-I-1064 |
500 μJ |
1-100 kHz |
~10 @20 kHz |
Acousto-optic |
| STC-AO-N-1064 |
1-600 μJ |
1-100 kHz |
~7 @10 kHz |
Acousto-optic |
| STC-AO-W-1064 |
1-600 μJ |
1-100 kHz |
~10 @<10 kHz |
Acousto-optic |
| STC-AO-V-1064 |
1-600 μJ |
1-200 kHz |
~25 @30 kHz |
Acousto-optic |
| STC-AO-L-1064 |
1-1500 μJ |
0.001-200 kHz |
~10 @10 kHz |
Acousto-optic |
| STC-AO-M-1064 |
1-1000 μJ |
1-20 kHz |
~13 @20 kHz |
Acousto-optic |
| STC-AO-H-1064 |
1-1000 μJ |
10-100 kHz |
~20 @30 kHz |
Acousto-optic |
| STC-AO-X-1064 |
1-670 μJ |
10-100 kHz |
~20 @30 kHz |
Acousto-optic |
| STC-EO-XS-1064 |
1~180 μJ |
1-100 kHz |
~4 @50 kHz |
Electro-optic |
| STC-EO-HS-1064 |
1-320 μJ |
1-100 kHz |
~4 @50 kHz |
Electro-optic |
| STC-EO-S-1064 |
1-300 μJ |
1-1000 Hz |
~8 |
Electro-optic |
| STC-EO-1064-G |
0.5-1 mJ |
1Hz-25 kHz |
~8 @5 kHz |
Electro-optic |
| STC-EO-1064-H |
1-2 mJ |
1-10 kHz |
~7 @5 kHz |
Electro-optic |
| STC-EO-1064-N |
1-3.5 mJ |
1Hz-25 kHz |
~7 @<7 kHz |
Electro-optic |
| STC-DPS-1064-Pico |
5-30 W |
0.1-10 MHz |
<50ps, 50-1000 (adjustable) |
Elecro-optic |
| STC-DPS-1064-H |
1~30 mJ |
1~1000 Hz |
<5 |
Elecro-optic |
| STC-DPS-1064-D |
0.5-2 mJ |
1-100 Hz |
<10 |
Electro-optic |
| STC-DPS-1064-E |
3-8 mJ |
1-50 Hz |
<4 |
Electro-optic |
| STC-DPS-1064-P-Min |
6 mJ |
10/ 20
EXT (adjustable) |
3±1 |
Passively |
| STC-DPS-1064-A |
1-10 mJ |
1-10 Hz |
~10 |
Electro-optic / Passively |
| STC-DPS-1064-B |
10-30 mJ |
1-10 Hz |
<10 |
Electro-optic |
| STC-DPS-1064-BS-D |
30-100 mJ |
1-20 Hz |
<10 |
Electro-optic |
| STC-DPS-1064-Q |
5-40mJ@1-1000Hz |
1-1000 Hz |
~10 |
Electro-optic |
| STC-DPS-1064-J |
1-40mJ |
1-20 Hz |
~10 |
Electro-optic |
| STC-HPL-1064-Q |
5-10 mJ@10kHz |
10-20 kHz |
~100 @10 kHz |
Acousto-optic |
| STC-HPL-1064-QM |
10-30mJ@10kHz |
10-20 kHz |
~150 @10 kHz |
Acousto-optic |
| STC-HPL-1064-QS |
1-15 mJ @10kHz |
10 kHz |
~7 |
Acousto-optic |
| STC-HPL-1064-QT |
1-20 W |
5-10 kHz |
~70 @5 kHz |
Acousto-optic |
| STC-LPS-1064-A |
50-200 mJ |
1-10 Hz |
~10 |
Electro-optic |
| STC-LPS-1064-S |
50-300 mJ |
1-10 Hz |
~10 |
Electro-optic |
| STC-LPS-1064-L |
350-1000 mJ |
1-10 Hz |
~10 |
Electro-optic |
| STC-LPS-1064-M |
1-10 J |
1-20 Hz |
~0.1-20 ms |
Pulsed |
5. 1064nm Mode-locked & Picosecond Laser Series
Superior beam quality, best reliability, mode-locked & picosecond pulsed laser, pulsed duration could be less than 20ps. Housed in compact packages, are the perfect choice for design in and integration into OEM instrumentation and systems and also for end user applications in research and development.
Applications:
Raman spectroscopy; Marking, Carving; Material processing; Astronomy; Scientific research; Optical instrument
Mode-locked Type:
| |
Wavelength
(nm) |
Output power
(mW) |
Pulse duration
(ps) |
Rep. rate
(MHz) |
Operating mode |
Transverse mode |
| STC-PS-RL-1064 |
1064 |
1-1000 |
~15 @10 kHz&1 W |
1-10kHz |
Mode-locked |
TEM00 |
| STC-PS-HR-1064 |
1064 |
1-10 W |
~15@500kHz&10W |
100-1000kHz |
Mode-locked |
TEM00 |
| STC-PS-R-1064 |
1064 |
1-10 W |
<20 |
48±1 |
Mode-locked |
TEM00 |
| STC-PS-Seed-1064 |
1064 |
1-300 |
<20 |
80±1 |
Mode-locked |
TEM00 |
| STC-Macro/ Micro-1064-P |
1064 |
10 W |
Macro 160 μs |
Micro~100MHz |
Mode-locked |
TEM00 |
Fiber Laser Type:
| |
Wavelength
(nm) |
Output power
(mW) |
Pulse duration
(ps) |
Rep. rate
(MHz) |
Operating mode |
Transverse mode |
| STC-FL-1064-PS |
1064 |
1-2000 |
<10 |
20-80 (Fixed) |
Mode-locked |
TEM00 |
| STC-FL-1064-Pico |
1064 |
10-5000 |
100-900 |
0.1-20 (variable) |
Pulsed |
TEM00 |
Diode Pumped Laser Type:
| |
Wavelength
(nm) |
Output power
(mW) |
Pulse duration
(ps) |
Rep. rate
(MHz) |
Operating mode |
Transverse mode |
| STC-DPS-1064-Pico |
1064 |
5-30 W |
<50 ps |
0.1-10 MHz |
Pulsed |
TEM00 |
6. 1064nm OEM Laser Module
Infrared laser modules at 1064 nm are made features of ultra compact, low cost and easy operating, which are the perfect choice for design in and integration into OEM instrumentation and systems, and also for end user applications in scientific research, medical treatment and industrial development.
| High Power OEM Laser |
|
|
| Compact Laser Module |
|
-
STC-PGL-I-R-1064/ 1~300mW
-
STC-PGL-VI-1064/ 1~300mW
-
STC-PGL-D12-1064/ 1~300mW
-
STC-PGL-FS-1064/ 1~500mW
-
STC-PGL-H1-1064/ 1~1000mW Beam divergence < 1.5 mrad
|
|
STC-PGL-V-H-1064/ 1~1000mW |
