1064nm 532nm CW DPSS UV Laser / CW DPSS BLUE Laser / CW DPSS GREEN Laser

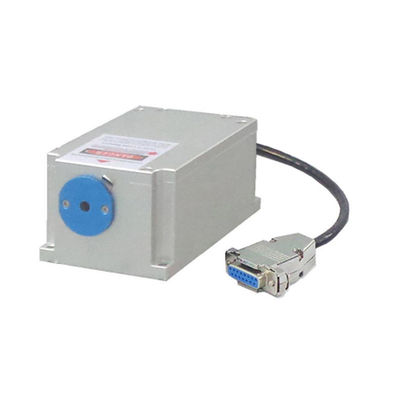

Large Image : 1064nm 532nm CW DPSS UV Laser / CW DPSS BLUE Laser / CW DPSS GREEN Laser

Product Details:

Brand Name:	Sintec Optronics

Payment & Shipping Terms:

Delivery Time:	Stock
Payment Terms:	T/T via bank

Contact Now

1064nm 532nm CW DPSS UV Laser / CW DPSS BLUE Laser / CW DPSS GREEN Laser

Description

Highlight:

DPSS UV Laser

BLUE Laser

GREEN Laser

1064nm, 532nm CW DPSS UV Laser, CW DPSS BLUE Laser, CW DPSS GREEN Laser

CW DPSS SERIES:

Wavelength (nm) & Output power (mW)

Wavelength	261	303	320	335	349	355	360	425	430	457	473	480	484
SLM(single frequency)							50			2W	100
Low noise							50			10W	500
Basic version	5	5	20	20	30	10	200	10	100	10W	5W	30	20

Wavelength (nm)	491	501	515	522	523.5	526.5	532	540	543	550	552	555
SLM(single frequency)			20		100	100	10W		100
Low noise			100	100	400	400	30W			100
Basic version	400	200	500	100	800	1W	200W	500	1500	200	200	100

Wavelength (nm)	556	561	577	588	589	593.5	604	607	612	639	656.5	660	666
SLM(single frequency)	100	80	300	200	200			100		300	50	20
Low noise	200	200	300	200	500	30				1W		400
Basic version	2.5W	2W	3.5W	4.5W	4.5W	800	100	400	100	1W	1.2W	2W	200

Wavelength (nm)	671	689	698	721	914	946	1030	1040	1047	1053	1064	1105
SLM(single frequency)	2.5W		200	100	100	50	20		800	200	10W
Low noise	5W		1W	100	800	800	600	100	1W	1.5W	20W
Basic version	5W	200	1W	500	800	5W	600	100	8W	8W	500W	500

Wavelength (nm)	1122	1177	1313	1319	1342	1400-1800	1413	1444	1645	1910	1940	1990
SLM(single frequency)	80		500	50	5W
Low noise	300		1W	1.5W	6W			400
Basic version	1W	400	1W	150W	6W	2W	300	400	1W	13W	11W	11W

Wavelength (nm)	2096	2124	2600-4450	2796	2600	2800	3000	3200	3400	3600	4000	4200	4400
Basic version	20W	2.5W	1W	300	1W	1W	1W	1W	1W	1W	800	800	800

Notes: power can be any value between 0- maximum powers.
SLM: single longitudinal mode laser, spectral line width<0.00001 nm.
Low noise: Noise of amplitude (rms, 20Hz~20MHz)<1%. Multi-mode: multiple longitudinal mode.

CW DPSS UV Laser

Wavelength(nm)	261, 303, 320, 335, 349, 355, 360
Laser version	SLM	Low noise	Basic version
261,303nm output power(mW)	/	/	5
320nm output power(mW)	/	/	20
335nm output power(mW)	/	/	10
349nm output power(mW)	/	/	30
355nm output power(mW)	/	/	10
360nm output power(mW)	50	50	200
Power stability, rms (8 h)	<3%, <5%	<1%, <2%, <3%	<1%, <2%, <3%, 10%
Output noise, rms (8 h)	<0.5%, <1%,	<0.5%, <1%	>10%
Transverse mode (Optional)	TEM00, M2<1.5	TEM00, M2<2	TEM00, M2<2
Linewidth	<10-5nm	<0.2nm	<0.2nm
Coherent length	>50m	~10cm	~10cm
Polarization	>50:1, >100:1, optional Horizontal±5 degree (Vertical Optional)	>50:1, >100:1, optional Horizontal ±5 degree (Vertical Optional)	>50:1 Horizontal±5 degree (Vertical Optional)
Pointing stability	<0.05mrad	<0.05mrad	<0.1mrd
Beam diameter(1/e2)	<1.5mm	~1.5mm	~1.0mm
Beam divergence	<1.2mrad	<1.0mrad	<1.0mrad

CW DPSS BLUE Laser

Wavelength(nm)	457, 473
Laser version	SLM	Low noise	Basic version
457nm output power (mW)	5,10,50,100,…,2000	5, 10, 50, 100, … ,10000	5,10,50,100,…,10000
473nm output power (mW)	5, 10, 20, … , 100	5, 10, 50, … , 500	5, 10, 50, … , 5000
Transverse mode(Optional)	TEM00 or Near TEM00, M2<1.2
Power stability, rms (8 h)	Up to 1%
Output noise, rms (8 h)	<0.5% (1Hz-20 MHz)	<1% (20Hz-20MHz)	<3% (1Hz-20MHz)
Longitudinal mode	Single	Multi	Multi
Linewidth	<10-5nm	<0.2nm ( <0.003nm for less than 400mW)	<0.3nm
Coherent length	>50 m	~10cm	~10cm
Polarization	Linear; Ratio >100:1; Horizontal optional for SLM laser
Pointing stability	<0.05mrad for 473nm less than 500mW, and 457nm less than 1000mW
Beam diameter(1/e2, mm)	0.7, 2.0, 3.0, 4.0 optional
Beam divergence (mrad)	1.2, 1.5, 2.0 depends on beam diameter

CW DPSS BLUE Laser

Wavelength(nm)	425	430	480	484	491
Output power (mW)	10	100	30	20	2	400
Transverse mode	Near TEM00
Beam diameter(1/e2)mm	~4	~5	~3	~4	~3	~4
Beam divergence (mrad)	< 3	< 2	< 1.5	< 3	< 1.5	< 3
Power stability, rms (8 h)	< 10%,<5%, ( <3% available for individual wavelengths)
Polarization	Linear; Ratio >100:1

CW DPSS GREEN Laser

<0.5%(20Hz-20MHz) for low noise version

Wavelength(nm)	532
Laser version	SLM	Low noise		Basic version
Output power(mW)	30,200,400,700,2W,10W	300,400,1W,2.5W,5W, 20W, 30W		300, 1.5W, 2.5W, 5W, 1W, 20W, 30W, 80W
Transverse mode (Optional)	TEM00 or Near TEM00, M2<1.1
Power stability, rms (8 h)	<1%
Output noise, rms (8 h)
Longitudinal mode					Single	Multi	Multi
Linewidth	<10-5nm		0.2nm
Coherent length	>50m		~10cm
Polarization	Linear; Ratio>50:1, >100:1Horizontal±5 degree (Vertical Optional)
Pointing stability	<0.05mrad for less than 400mW
Beam diameter(1/e2)mm	0.7, 1.2, 1.5, 2 optional
Beam divergence(mrad)	1.2, 1.5, 2 depends on beam diameter

CW DPSS GREEN Laser

Wavelength (nm)	501	515	522	523.5	526.5	540	543	550	552	555
SLM version (mW)				100	100		100
Low noise Version (mW)		100	100	400	400			100
Basic version (mW)	200	500	100	800	1W	500	1.5W	200	200	100
Transverse mode (Optional)	TEM00 or Near TEM00, M2<1.2
Power stability, rms (8 h)	Up to 1%
Output noise, rms (8 h)	<0.5%(1Hz-20MHz) for low noise version
Linewidth	<10-5nm for SLM version, <0.2nm for basic version
Coherent length	>50m for SLM version, >10cm for low noise version
Polarization	Linear; Ratio>100:1Horizontal±5 degree (Vertical Optional)
Pointing stability	<0.05mrad for less than 400mW
Beam diameter(1/e2) (mm)	0.7, 1.2, 1.5, 3 optional
Beam divergence (mrad)	1, 1.5, 2 depends on beam diameter

CW DPSS Yellow Orange Laser

0.7; 1.0; 1.5; 2.5 optional

Wavelength

556nm

561nm

577nm

588nm

589nm

593.5nm

SLM version(mW)

100

300

200

Low Noise version (mW)

200

300

200

500

Basic version(mW)

2.5W

3.5W

4.5W

800

Transverse mode (Optional)

TEM00 or Near TEM00, M2<1.2

Power stability, rms (8 h)

Up to 1%

Output noise, rms (8 h)

<0.5%(1Hz-20MHz) for low noise version

Linewidth

<10-5nm for SLM version, <0.2nm for basic version

Coherent length

>50m for SLM version, >10cm for low noise version

Polarization

Linear; >100:1, Vertical±5 degree (Horizontal Optional)

Pointing stability

<0.05mrad for less than 400mW

Beam diameter(1/e2)mm

Beam divergence(mrad)

1.2; 1.5; 2 depends on beam diameter

CW DPSS RED Laser

Wavelength(nm)	604, 607, 612, 639, 656.5, 660, 666, 671, 689, 698, 721
Laser version	SLM	Low noise	Basic version
604nm output power(mW)			100
607nm output power(mW)	100	/	400
612nm output power(mW)			100
639nm output power(mW)	300	1W	1W
656.5nm output power(mW)	50	/	1.2W
660nm output power(mW)	20	400	2W
666nm output power(mW)	/	/	200
671nm output power(mW)	2.5W	5W	5W
689nm output power(mW)	/	/	200
698nm output power(mW)	200	1W	1W
721nm output power(mW)	100	100	500
Power stability, rms(8h)	<3%, <5%, <10%(721nm)	<3%, <5%, <10%(721nm)	<3%, <5%, <10%
Output noise, rms(8h)	<1%, <0.5%	<1%	< 1%
Longitudinal mode	Single	Multi	Multi
Linewidth	<0.00001nm, <0.0003nm(639nm)	<0.004nm	<0.2nm
Coherent length	>50m for SLM version, >10cm for low noise version
Polarization	>50:1,>100:1,optional Horizontal±5degree(Vertical Optional )	>50:1,>100:1,optionalHorizontal±5degree(Vertical Optional )	> 50:1, > 100:1 optional Horizontal±5 degree (Vertical optional )
Pointing stability	<0.05mrad	<0.05mrad	<0.1mrad
Beam diameter(1/e2)(mm)	1.0; 1.5; 2.0 optional
Beam divergence(mrad)	1.0, 1.2; 1.5; 2 depends on beam diameter

CW DPSS IR Laser

Wavelength(nm)	914	946	1030	1040	1047	1053	1064	1085	1105	1112	1122	1177
SLM Version(mW)	100	50	20		800	200	10W			20	80
Low noise Version(mW)	800	800	600	100	1W	1500	20W	1W		100	300
Basic Version (mW)	800	5W	600	100	8W	8W	500W	1W	500	500	1W	400
Transverse mode (Optional)	TEM00 or Near TEM00, M2<1.2
Power stability, rms (8 h)	Up to 1%
Output noise, rms (8 h)	<0.5%(20Hz-20MHz) for low noise version
Linewidth	<10-5nm for SLM version, <0.2nm for basic version
Coherence length	>50m for SLM version, ~10cm or >1m for low noise version
Polarization	Linear; 100:1
Pointing stability	<0.05mrad for less than 100mW
Beam diameter(1/e2, mm)	0.7, 1.2, 1.5, 2 optional
Beam divergence(mrad)	1.2, 1.5, 2 depends on beam diameter

CW DPSS IR Laser

Wavelength(nm)

1313

1319

1342

1413

1444

1645

1910

1940

1990

2096

2124

2796

SLM Version(mW)

500

Low noise Version(mW)

1.5W

400

Basic Version (mW)

150W

300

400

13W

11W

20W

2.5W

300

Transverse mode (Optional)

TEM00 or Near TEM00, M2<1.2

Power stability, rms (8 h)

Up to 1%

Output noise, rms (8 h)

<0.5%(20Hz-20MHz) for low noise version

Linewidth

<10-5nm for SLM version, <0.2nm for basic version

Coherence length

>50m for SLM version, ~10cm or >1m for low noise version

Polarization

Linear; 100:1

Pointing stability

<0.05mrad for less than 100mW

Beam diameter(1/e2, mm)

0.7,1.2,1.5,2 optional

Beam divergence(mrad)

1.2, 1.5, 2 depends on beam diameter

CW DPSS OPO IR Laser

Wavelength (nm)	1400-1800	2600-4400	1400-1800	2600-4450
Laser version	Single wavelength output in this range		Wavelength tunable, range up to 350 nm
Output power (mW)	Up to 2W	Up to 1W	Up to 2W	Up to 1W
Transverse mode	Near TEM00
Power stability, rms (8 h)	< 5%
Linewidth	< 2nm
Beam diameter (1/e2, mm)	<10
Beam divergence (mrad)	<8 or <10
