1550nm SLED Laser Diodes,Superluminescent Diodes Broadband Light Source

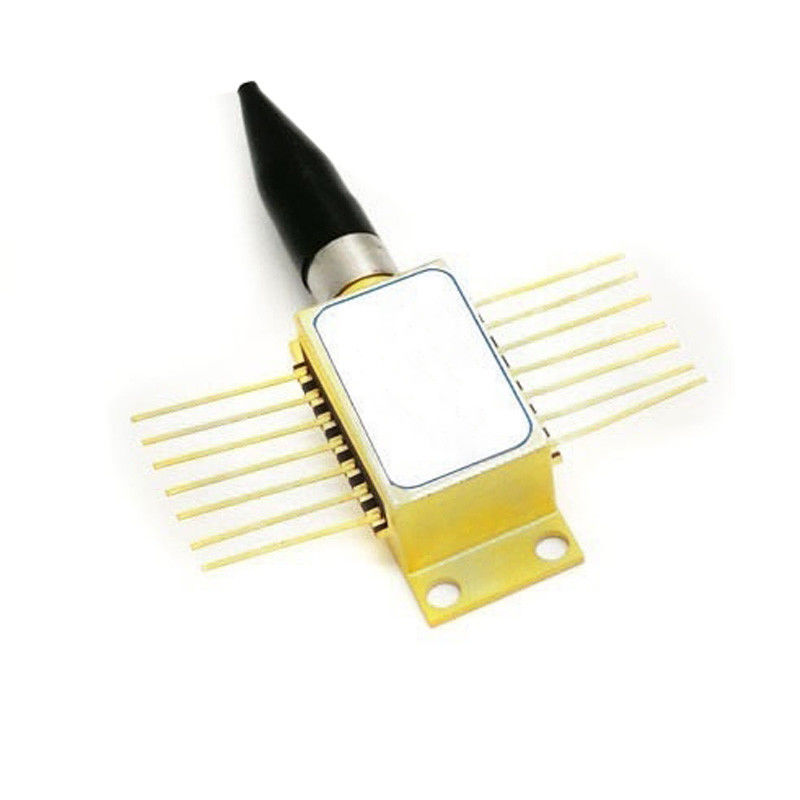

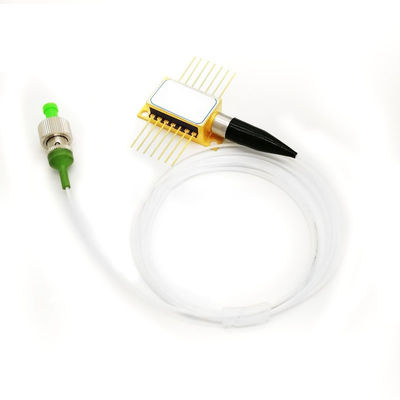

1.SBK Series ELED Diodes

Features

• Use high output power;
• 3dB bandwidth of ＞35nm;
• Industry-standard, 14-pins butterfly package;
• Operating Temperature -45~+70℃;
• SM fiber or PM fiber pigtail.
• Reliability: Telcordia GR-468.

Applications

• Fiber optic communications system;
• Fiber optic Gyroscopes;
• Fiber optic sensors;
• Optical test instruments;
• Optical coherence tomography;
• Biomedical imaging systems.

Part Numbering

e.g.: SBK-1550-02SM-FA: 1550nm SLED laser with 2mW output power and SM fiber with FC/APC connector).

Example: Details of SBK-1550-02SM-FA:

Absolute Maximum Ratings;

Fiber Pigtail Specifications:

Package Drawing & PIN-OUT Definition (Unit: mm):

Dimensions are in mm. All dimensions are ±0.2mm unless otherwise specified. (Unit: mm)

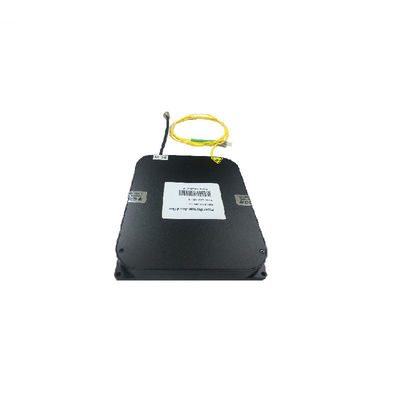

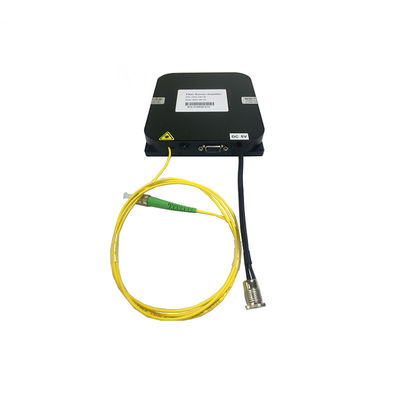

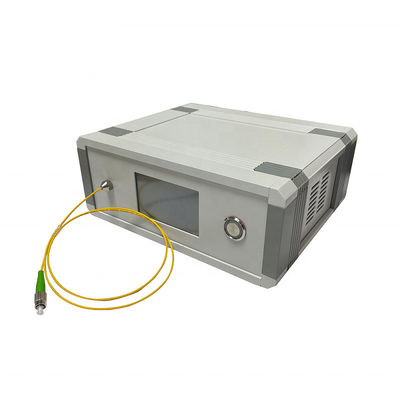

2. SBK Series Broadband Light Source

The SBK series broadband light source adopts semiconductor super radiation diode technology to output broadband spectrum and has high output power. The operating wavelength can be selected from O, S, C, l and other bands, which is suitable for optical fiber sensing and other applications. Communication interface and host computer software can be provided to facilitate the monitoring of light source status.

Features

• Ultrawide spectrum
• Low Spectral ripple
• Flat spectrum
• Customizable size

Application

• Optical fiber sensing
• Medical imaging
• Optical fiber device test

Part Numbering

Typ. characteristic curve:
