450nm, 445nm, Laser Power from 0.8W to 200W Fiber-coupled Blue Lasers

The STK series fiber-coupled blue lasers are manufactured by adopting specialized fiber-coupling techniques, resulting in high efficiency, stability and superior beam quality. The asymmetric radiation from the laser diode chips are coupled into an output fiber with small core diameter by using special micro optics. Their prices are reasonable and cheaper in the market.

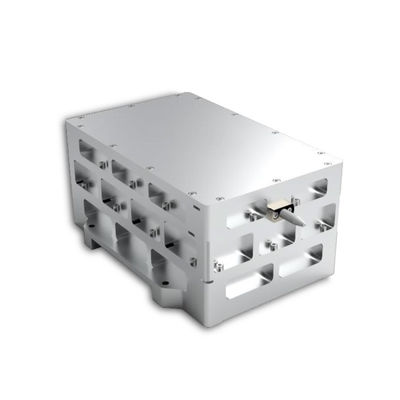

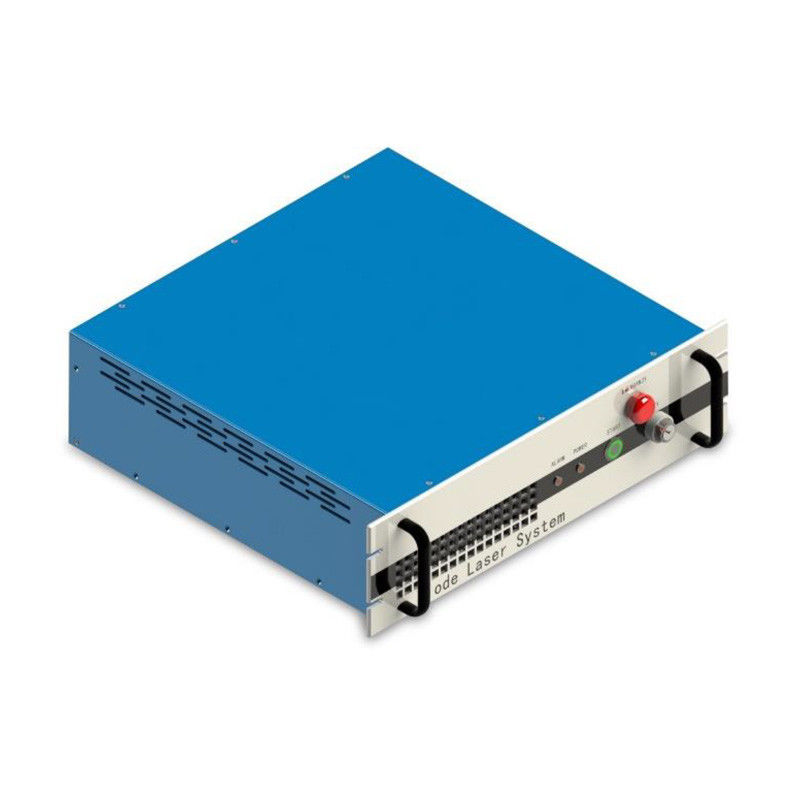

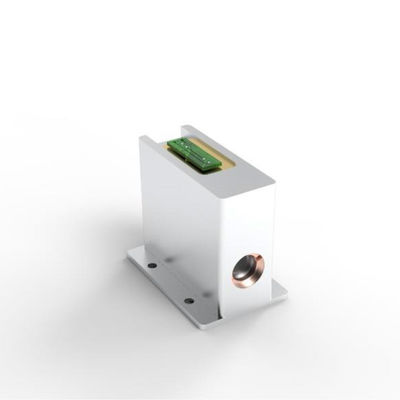

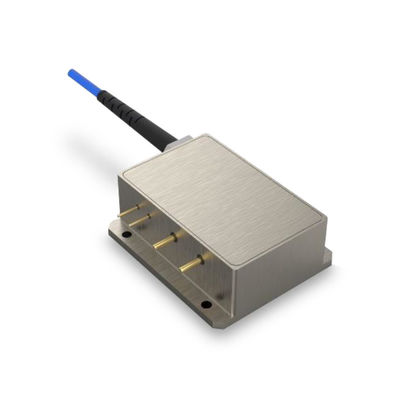

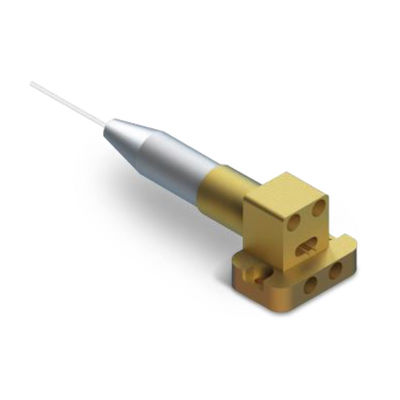

STK Series High-power Blue Diode Lasers

FEATURES

• Good beam quality
• High electro-optical conversion efficiency
• Excellent power stability
• Two operation modes: CW and modulation
• Excellent system reliability
• Max modulation frequency up to 5kHz
• Easy-to-use control interface
• Cost effective and maintenance free

APPLICATION

• Welding
• Additive manufacturing
• Surface treatment
• Lithium ion battery manufacturing

Compared with traditional laser products, our blue diode laser has a higher absorption rate for materials such as copper and aluminum, and can process non-ferrous metals with lower power. Our blue laser ismore compact and easier to use. With flexible laser output mode, it can be conveniently integrated into the processing system.

Our blue lasers can be used in wide applications like welding, cladding, surface treatment, lithium-ion battery manufacturing, etc. Our professional laser application team, with good knowledge and experience, provides the best laser system solution for our customers all around the world.

Note: (1) 2kW available and please contact us for more information. (2) The back reflection will affect the performance and life of the direct diode laser. It is necessary to use the output laser when it is 8-10° away from the vertical direction of the surface.
