Lamp-pumped EO Q-switched Nd:YAG Lasers and Air-cooled DPSS Lasers

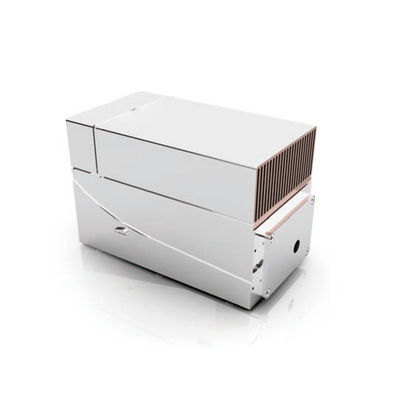

1.STLB-LA Series Air-cooled EO Q-switched DPSS Lasers

• Diode pumped with 1 billion shots lifetime
• Air cooling without maintenance
• EOQ switched with accurate timing
• 1064 nm with over 80 mJ energy output
• Higher harmonics available
• Portable design with compact size
• Easy for system integration

STLA series DPSS lasers are with uniform pumping and conduction cooling technologies to realize real portable nanosecond laser source. This series provide the new solution to various scientific, industrial and military applications.

Diode pumping has the features such as low energy consumption, high efficiency and long lifetime. TEC conduction cooling technology is used to avoid any water usage while keeping the operation stability. Electro-optical Q-switched technology is used to provide accurate timing, which is key to analysis instrument.

Based on all these features, our lasers are the perfect choice for applications like LIDAR, mass spectroscopy, laser ultrasonic and LIBS.

1. All the specifications unless otherwise stated are for Q-switched 1064nm operation. The xxxx in the part numbers is laser wavelength.
2. Dev to average (shot to shot for 99% of pulses)
3. Full width half max. (FWHM)
4. Full angle at 1/e2 of the peak
5. With respect to external trigger
6. Measured at the laser output
7. All the dimensions are the lasers with 4th harmonic generation (266nm).

2.STLB-DA Series Lamp-pumped EO Q-switched Nd:YAG Lasers

• Fundamental wavelength covers 10-300 mJ output
• Higher harmonics available
• Module design and easy to use
• Industrial design to ensure long term operation
• Humanization design and easy for integration
• Customization version available

STLB-DA series lasers are designed for an industrial level laser that greatly fits OEM system integration. The energy level is relatively low, from 10-300 mJ. The SHG, THG and FHG are available.

The lasers provides both multimode and variable reflectivity mirror (VRM) mode beam with good beam quality. The scientific and industrial design ensures the good beam quality. Features as optical shutter, flow sensor, power supply interlock make sure the safety use as the top priority. The lasers passed CE certification in 2014.

The lasers are suitable for many applications, including LIBS, LIDAR, LIF, PIV, laser ultrasonic, laser spark plug, laser cleaning, LCD repair etc.

1. All the specifications unless otherwise stated are for Q-switched 1064nm operation. The xxxx in the part numbers is laser wavelength.
2. Dev to average (shot to shot for 99% of pulses)
3. Full width half max. (FWHM)
4. Full angle at 1/e2 of the peak
5. With respect to external trigger
6. Measured at the laser output
7. All the dimensions are the lasers with 3th harmonic generation (355nm).

3.STLB-NI Series Lamp-pumped EO Q-switched Nd:YAG Lasers

• Compact size
• High uniformity of beam profile
• Industrial design to ensure long term operation
• High SHG and UV efficiency
• Built to withstand various environment
• Easy for system integration

STNI series lasers are middle energy level Q-switched nanosecond Nd:YAG laser. The fundamental wavelength covers energy level from 400 mJ to 2000 mJ. These lasers possess the features of compact size, good pointing stability, high energy stability, high reliability, etc. The SHG, THG and FHG are available.

These lasers provide two types of laser mode, multimode and VRM mode. The scientific and industrial design ensures the good beam quality. Features as optical shutter, flow sensor, power supply interlock make sure the safety use as the top priority.

Up to now, around 4000 units have been delivered all over the world. They are the perfect choice for various kinds of scientific and industrial applications such as pump dye laser, pump OPO, pump Ti:Sapphire laser, laser shock peening, LCD repair, laser ablation, laser sintering, LIDAR.

1. All the specifications unless otherwise stated are for Q-switched 1064nm operation. The xxxx in the part numbers is laser wavelength. For example, STNI-400-532 is 532nm laser and it includes 1064nm and 532nm modules.
2. Dev to average (shot to shot for 99% of pulses)
3. Full width half max. (FWHM)
4. Full angle at 1/e2 of the peak
5. With respect to external trigger
6. Measured at the laser output
7. All the dimensions are the lasers with 4th harmonic generation (266nm).

4.STLB-SGR Series Q-Switched Nd:YAG Laser

STLB-SGR Series Super-Gaussian Resonator series Q-Switched Nd:YAG lasers combine VRM (variable reflectivity mirror) with unstable resonator design creating a cavity with large TEM00 mode volume for excitation and energy extraction. A “flat-top-hat” can be specified with uniform energy distribution or “VRM Gaussian” profiles.

STLB-GR Series close-coupled diffuse pump chamber delivers uniform pumping of the laser rod for optimum lasing excitation efficiency and allows for higher stored energy by eliminating parasitic oscillations within the pump chamber. The pump chamber uses chemically inert materials to withstand high pumping energy and absorb unwanted UV and IR radiation emitted by the flash lamps. One or more amplifiers can be added to the oscillator for higher energy output. With scientific or industrial grade models available, the STGR series will fit right in with your scientific research, medical or OEM industrial application.

Features:

• Fundamental wavelength covers 2-6 J output
• Higher harmonics available
• Repetition rate up to 50 Hz
• Injection seeded for narrow linewidth
• RS232 and TTL interface for remote or external control
• Invar structure inside

Applications:

• Photo chemistry
• Molecular chemistry
• Non-linear optics
• Laser illumination
• LIDAR
• Laser cleaning
• Laser ablation
• Optical remote sensing
• LIF (Laser Induces Florescence)
• PLD (Pulsed Laser Deposition)
• Plasma diagnostics

Technical Specifications

1. All specifications unless otherwise stated are for 1064nm operation.
2. Dev. To average (shot to shot for 99% of pulses).
3. Average for 8 hours with room temp. variation less than +/-3 deg.
4. Full width half max (FWHM)
5. Near field profiles measured at the focal plane, least square fit to Gaussian profile.
6. Measured at the laser output.
7. Full angle at 1/e2 of the peak.
8. With respect to external trigger.

Other Specifications

5.STLB-SGRE Series High-energy EO Q-switched Lasers

STLB-SGRE series lasers have been developed since 2007 as high energy nanosecond laser systems which are suitable for laser peening, pump source, plasma physics, etc. STLB-SGRE series lasers provide the customization service. Specifications such as wavelength, repetition rate, energy, pulse width, beam profile, SLM are all available for customization. We also developed and gained much experience on burst mode technique and vehicular applications during this process. As a result, we can provide the ideal laser source solution for the customer in various applications.

Main Features:

• High output energy up to 50J@1064 nm
• 8-26ns pulse width, high peak power
• Unique cavity design to ensure uniform beam profile
• Good stability for long term operation
• Local and remote control interface with compatibility
• Customization version available

Applications:

• Laser peening
• Pump Ti:Sapphire laser
• Plasma diagnostics
• Nonlinear optics
• LIDAR
• Laser cleaning

• 1. All specifications unless otherwise stated are for 1064nm operation.
• 2. SHG, THG, FGH are available upon request.
• 3. Full width half max (FWHM). The rising time can be cut down to <5-10ns by slice as option.
• 4. Full angle at 1/e2 of the peak.
• 5. Dev. To average (shot to shot for 99% of pulses).
• 6. With respect to external trigger.
• 7. Time to full energy.

Mechanical & Utilities
