1064nm/532nm EO Q-switched Nd:YAG Lasers and PIV Lasers

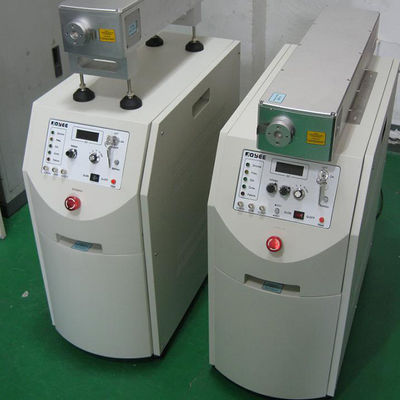

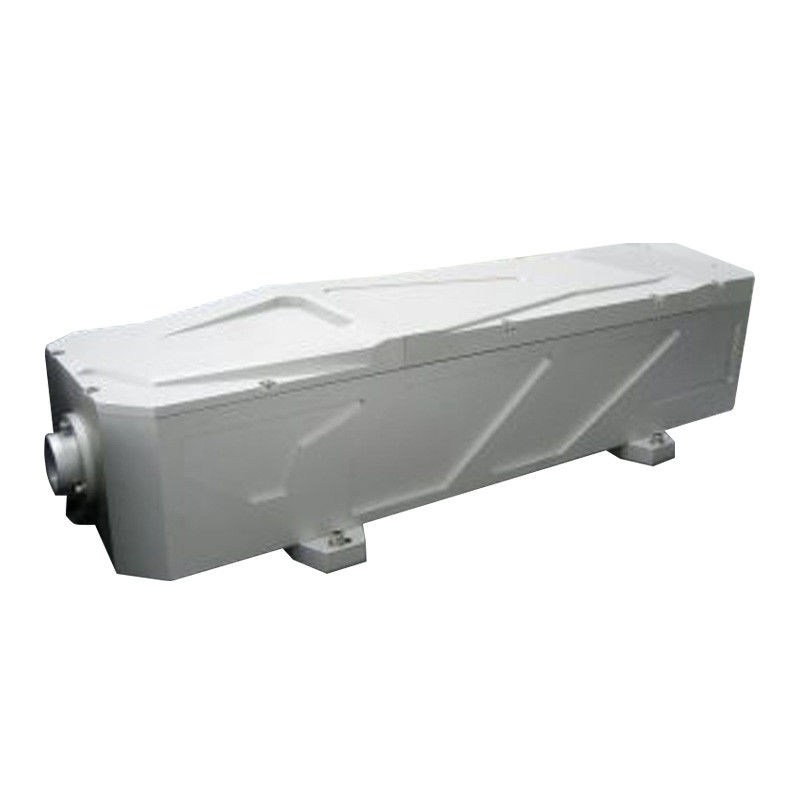

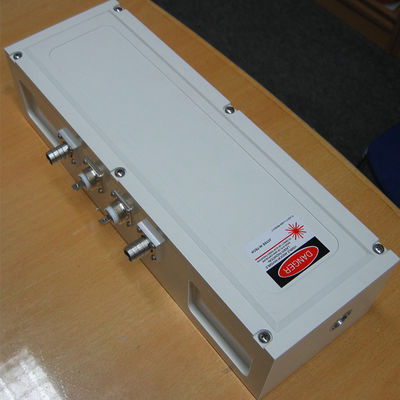

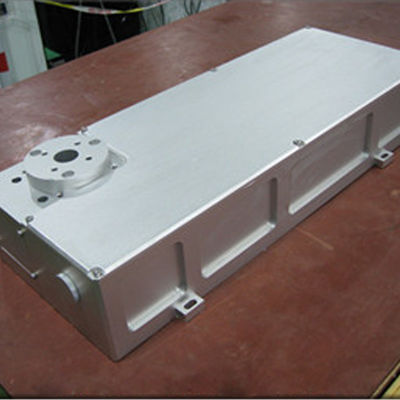

1.STLT Series High Energy EO Q-switched Nd: YAG Lasers

This series product is compact with a special EO Q-switch. They can provide high efficiency and stable signal pulse energy at 1064nm and the pulse width can be adjusted from 0.5μs to2.0μs.

Features:

• Very compact and stable design;

• Easy flash lamps replacement;

• Energy can be adjusted from 15mJ to 400 mJ

• Highly flexible design with repetition rate from 1Hz, 5Hz, 10Hz & 20Hz;

• Can provide multiple triggering capabilities, such as internal trigger, external TTL trigger. Control lamps and Q-switch for precise laser pulse timing control.

• Convenient operation. Controlled by single power supply and equipped with closed- loop water cooling system;

• Thermally compensated resonator assures stable operation.

Typical Applications:

• Burning blaze detected;

• Laser Medical

Remarks: We also supply the customized lasers, such as four laser beams or more beams products.

Ordering Information: STLT-xxxx-yyy-zzz, where xxxx means wavelength in nm, yyy means pulse energy in nJ and zzz means pulse repetition rate in Hz.

2.STLT Series PIV Lasers

These lasers have dual or multiple laser-heads with compact size. They can provide high efficiency and stable green light source for Particle Image Velocimetry (PIV) applications. It is suitable for most liquid experiments and many air-based 2D/3D PIV ones.

Features:

• Very compact and stable design;

• Easy flash lamps replacement;

• Energy can be adjusted from 15mJ to 400 mJ

• Highly flexible design with repetition rate from 1Hz to 15Hz or 1Hz to 30Hz;

• Can provide multiple triggering capabilities, such as internal trigger, external TTL trigger. Control lamps and Q-switch for precise laser pulse timing control.

• Convenient operation, Control by single power supply and equipped with closed- loop cooling system;

• Thermally compensated resonator assures stable operation;

Typical Applications:

• Suitable for liquid experiments;

• Air-based 2D/3D PIV;

• Wind tunnel research;

• Water tunnel research;

• Micro-fluidic measurement;

• Spray or flame research

• Thermally compensated resonator assures stable operation;

Specifications:

Remarks: We also supply the customized lasers, such as four laser beams or more beams products
