2000nm ASE Broadband Light Source

Large Image : 2000nm ASE Broadband Light Source

Product Details:

Brand Name:	Sintec Optronics

Payment & Shipping Terms:

Delivery Time:	Stock
Payment Terms:	T/T via bank

Contact Now

2000nm ASE Broadband Light Source

Description

Service:	Online Service	Beam Quality:	M2<1.2
Cooling Method:	Air Cooled	Humidity:	5%-95%
Lifetime:	>10000h	Mode:	Single Mode
Operating Temperature:	-10℃~+40℃	Output Power:	1-100W
Polarization:	Linear	Power Stability:	<3%
Power Supply:	AC220V/50Hz	Pulse Repetition Rate:	100kHz-10MHz
Pulse Width:	20-200ps	Pump Source:	Diode Pumped
Storage Temperature:	-20℃~+60℃	Wavelength:	1030-1070nm
Highlight:	ASE Broadband Light Source , 2000nm Broadband Light Source , Broadband Light Source

C-band/L-band/1064nm/2000nm ASE Broadband Light Source

1.C-band ASE Broadband Light Source

The wavelength of light source covers c-band, and the flatness of spectrum is better than 2dB.

Optical Parameters	Unit	Typical Value	Remarks
Wavelength Range	nm	1528~1563@2dB
Total Output Power	mW	10/20/50/100/200/400
Power Turning Range	-	10%~100%	Optional
Spectral Flatness	dB	1.5 (Type), 2(Max)	3dB@400mW PN
Output Isolation	dB	>35
Power Instability(15min.)	dB	≤ ±0.02	≤±0.5%
Power Instability(8 hr)	dB	≤ ±0.05	≤±1.2%
Degree of Polarization	dB	≤ 0.2
Optical Fiber	-	SMF-28/PM1550
Fiber connector	-	FC/APC

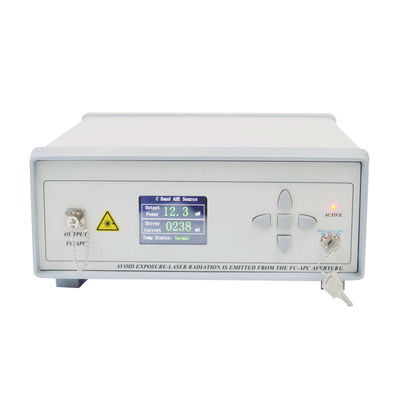

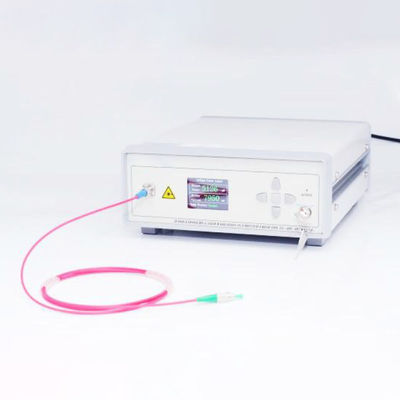

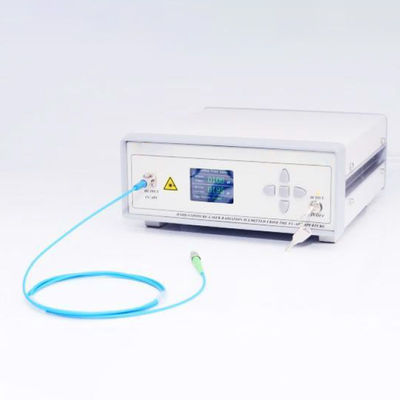

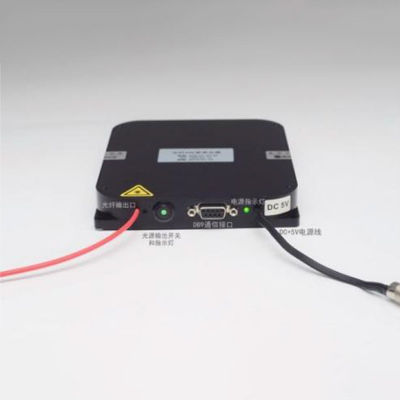

General Parameters	Bench-top	Module
Control Function	Key lock switch, Push button	RS232 serial Communication
Remote control Port	Optional	DB9 Female
Power Supply	AC100~240V, <30W	DC5V, <15W
Dimensions	260(W)×280(D)×120(H)mm	125(W)×150(D)×20(H)mm
Operation Temperature	-5~+35°C
Operation Humidity	0~70%

Ordering Information/ Product Code
SMR-ASE	Wavelength	Output Power(mW)	Power Tunable	Fiber	Packaging
	C=C band	10/20/50/100/200/400	T (optional)	SM=SMF-28 PM=PM1550	M=Module B=Benchtop

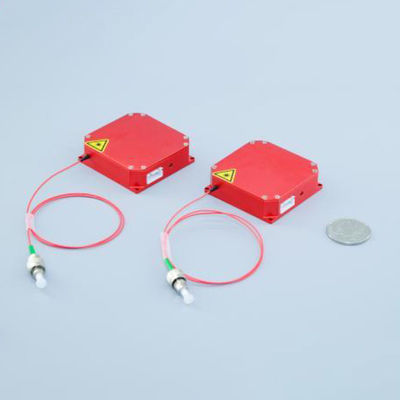

2.C-band ASE Broadband Light Source in Micro Format

Optical Parameters	Unit	Typical Value	Remarks
Wavelength Range	nm	1528~1563	C band
Total Output Power	mW	10/20/50	Not Tunable
Spectral Flatness	dB	≤ 2
Output Isolation	dB	> 35
Power Instability(15min.)	dB	≤ ±0.02	≤±0.5%
Power Instability(8hr)	dB	≤ ±0.05	≤±1.2%
Degree of Polarization	dB	≤ 0.2
Optical Fiber	-	SMF-28
Fiber connector	-	FC/APC

General Parameters	Module
Control Function	TTL
Remote control Port	XH2.54-4PIN
Power Supply	DC5V, <10W
Dimensions	50(W)×50(D)×15(H)mm
Operation Temperature	-5~+35°C
Operation Humidity	0~70%

Ordering Information/ Product Code
SMR-ASE	Wavelength	Output Power(mW)	Packaging
	C=C band	10/20/50	Mic=Micro Module

3. L-band ASE Broadband Light Source

Features	Applications
n Flattened Optical Spectrum	n Fiber Sensing
n Easy Operation	n Medical Imaging
n Excellent Stability of Power	n Test and Measurement

Optical Parameters	Unit	Typical Value	Remarks
Wavelength Range	nm	1567~1603@2dB	1565~1610nm@10dB
Total Output Power	mW	10/20/50/100
Power Turning Range	-	10%~100%	*Optional
Spectral Flatness	dB	2 (Type), 3(Max)
Output Isolation	dB	>35
Power Instability(15min.)	dB	≤ ±0.02	≤±0.5%
Power Instability(8hr)	dB	≤ ±0.05	≤±1.2%
Degree of Polarization	dB	≤ 0.2
Optical Fiber	-	SMF-28/PM1550
Fiber connector	-	FC/APC

General Parameters	Bench-top	Module
Control Function	Key lock switch, Push button	RS232 serial Communication
Remote control Port	Optional	DB9 Female
Power Supply	AC100~240V, <30W	DC5V, <15W
Dimensions	260(W)×280(D)×120(H)mm	125(W)×150(D)×20(H)mm
Operation Temperature	-5~+35°C
Operation Humidity	0~70%

Ordering Information/ Product Code

SMR-ASE

Wavelength

Output Power(mW)

*Power Tunable

Fiber

Packaging

L=L band

10/20/50/100

*T (optional)

SM=SMF-28

PM=PM1550

M=Module

B=Benchtop

4. C+L band ASE Broadband Light Source

Features	Applications
n Flattened Optical Spectrum	n Fiber Sensing
n Easy Operation	n Medical Imaging
n Excellent Stability of Power	n Test and Measurement

Optical Parameters	Unit	Typical Value	Remarks
Wavelength Range	nm	1528~1603	≥75nm@3dB, C+L band
Total Output Power	mW	10/20/50/100
Power Turning Range	-	10%~100%	*Optional
Spectral Flatness	dB	≤3	*
Output Isolation	dB	>35
Power Instability(15min.)	dB	≤ ±0.02	≤±0.5%
Power Instability(8hr)	dB	≤ ±0.05	≤±1.2%
Degree of Polarization	dB	≤ 0.2
Optical Fiber	-	SMF-28/PM1550
Fiber connector	-	FC/APC

*Flatness≤2dB@10/20mW and Flatness≤6dB@200mW is also available upon request.

General Parameters	Bench-top	Module
Control Function	Key lock switch, Push button	RS232 serial Communication
Remote control Port	Optional	DB9 Female
Power Supply	AC100~240V, <30W	DC5V, <15W
Dimensions	260(W)×280(D)×120(H)mm	125(W)×150(D)×20(H)mm
Operation Temperature	-5~+35°C
Operation Humidity	0~70%

Ordering Information/ Product Code
SMR-ASE	Wavelength	Output Power(mW)	Power Tunable	Fiber	Packaging
	CL=C+L band	10/20/50/100/200	T (optional)	SM=SMF-28 PM=PM1550	M=Module B=Benchtop

5. 1060nm ASE Broadband Light Source

Features	Applications
n Wide Spectral Range	n Fiber Sensing
n Easy Operation	n Medical Imaging
n Excellent Stability of Power	n Test and Measurement

Optical Parameters	Unit	Typical Value	Remarks
Wavelength Range	nm	1010,1030~1080,1015	50nm@10dB
Total Output Power	mW	10/20/30
Power Turning Range	-	10%~100%	*Optional
Spectral Flatness	dB	10(Type)
Output Isolation	dB	>35
Power Instability(15min.)	dB	≤ ±0.02	≤±0.5%
Power Instability(8hr)	dB	≤ ±0.05	≤±1.2%
Degree of Polarization	dB	≤ 0.2
Optical Fiber	-	Hi 1060 /PM980
Fiber connector	-	FC/APC

General Parameters	Bench-top	Module
Control Function	Key lock switch, Push button	RS232 serial Communication
Remote control Port	Optional	DB9 Female
Power Supply	AC100~240V, <30W	DC5V, <15W
Dimensions	260(W)×280(D)×120(H)mm	125(W)×150(D)×20(H)mm
Operation Temperature	-5~+35°C
Operation Humidity	0~70%

Ordering Information/ Product Code
SMR-ASE	Wavelength	Output Power (mW)	Power Tunable	Fiber	Packaging
	1010/1060 /1150	10/20/30/50	T (optional)	SM=Hi060 PM=PM1550	M=Module B=Benchtop

6. 2000nm-band ASE Broadband Light Source

Features	Applications
n Wide Spectral Range	n Fiber Sensing
n Easy Operation	n Medical Imaging
n Excellent Stability of Power	n Test and Measurement

Optical Parameters	Unit	Typical Value	Remarks
Wavelength Range	nm	1850~2000
Total Output Power	mW	10/20	Non-tunable
Output Isolation	dB	>35
Power Instability(15min.)	dB	≤ ±0.02	≤±0.5%
Power Instability(8hr)	dB	≤ ±0.05	≤±1.2%
Degree of Polarization	dB	≤ 0.2
Optical Fiber	-	SMF-28/SM1950
Fiber connector	-	FC/APC

General Parameters	Bench-top
Control Function	Key lock switch, Push button
Remote control Port	Optional
Power Supply	AC100~240V, <30W
Dimensions	260(W)×320(D)×120(H)mm
Operation Temperature	-5~+35°C
Operation Humidity	0~70%
