Multi Module Continuous Q Switched Pulsed Fiber Lasers 10W - 100W High Power

Multi Module Continuous Q Switched Pulsed Fiber Lasers 10W - 100W High Power
Multi Module Continuous Q Switched Pulsed Fiber Lasers 10W - 100W High Power Multi Module Continuous Q Switched Pulsed Fiber Lasers 10W - 100W High Power Multi Module Continuous Q Switched Pulsed Fiber Lasers 10W - 100W High Power Multi Module Continuous Q Switched Pulsed Fiber Lasers 10W - 100W High Power Multi Module Continuous Q Switched Pulsed Fiber Lasers 10W - 100W High Power

Large Image :  Multi Module Continuous Q Switched Pulsed Fiber Lasers 10W - 100W High Power

Product Details:
Brand Name: Sintec Optronics
Model Number: STR Series
Payment & Shipping Terms:
Delivery Time: Stock
Payment Terms: T/T via bank
Contact Now

Multi Module Continuous Q Switched Pulsed Fiber Lasers 10W - 100W High Power

Description
Highlight:

Fiber Lasers

,

Q Switched Fiber Lasers

,

Pulsed Fiber Lasers

10-100W High-Power Multi-module Continuous Q-switched Pulsed Fiber Lasers

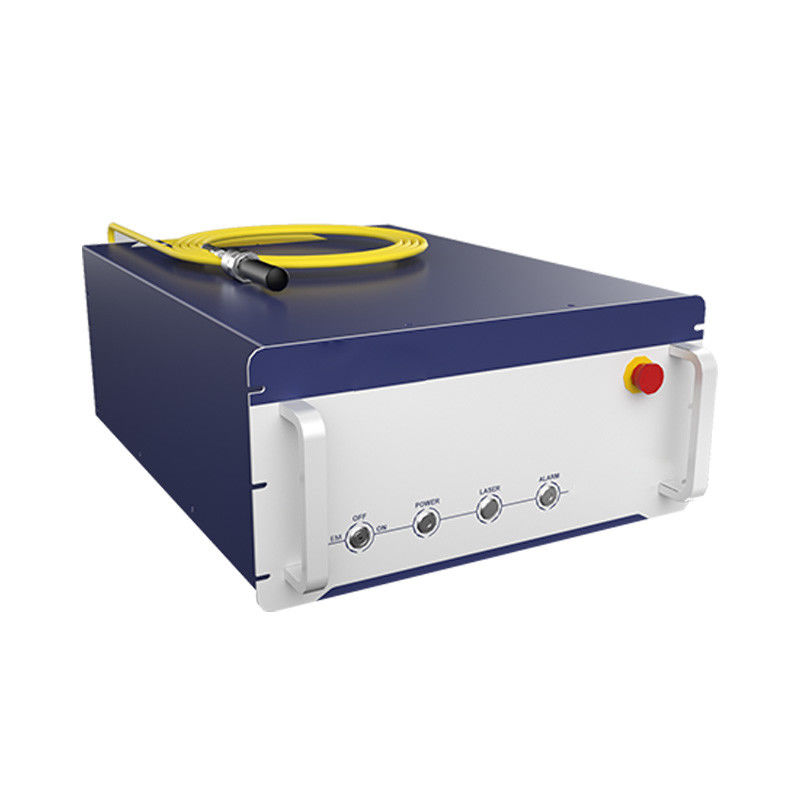

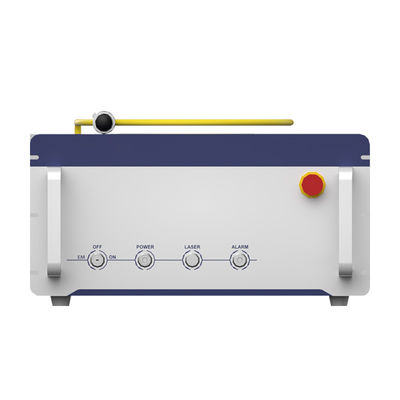

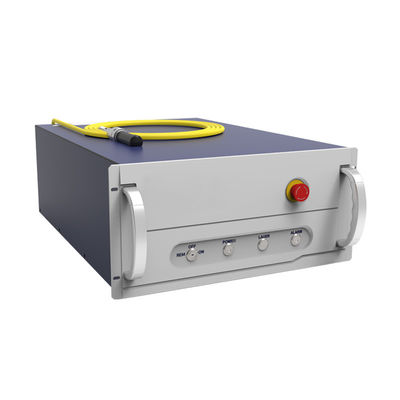

1. STR Series 10-100W Q-Switched Pulse Fiber Laser

The STR Series 10-100W Q-Switched Pulse Fiber Laser is the industrial marking and micromachining laser. This series pulse laser has high peak power, high single-pulse energy and optional spot diameter and can be widely applied in the fields, such as marking, precision processing, graphic engraving of non-metal, gold, silver, copper and aluminum with altitude stress resistance, stainless materials without altitude stress resistance. Its marking process features lower cost and more stable performance compared with traditional laser. All components of the 10-100W Q-switched pulse fiber laser are developed by us independently, with high product reliability. And its good compatibility has well recognized by the market and its quality has reached the international advanced level.

Features:

  • Highly stable laser output
  • High single-pulse energy
  • High marking efficiency
  • Short pulse setup time
  • High reliability
  • Maintenance-free operation

Technical specifications:

Model STR-P10QE STR-P20QE STR-P30Q STR-P50Q STR-P50QB STR-P100Q
Average output power (W) 10 20 30 50 50 100
Central wavelength 1064
Pulse repetition rate (kHz) 20-60 30-60 50-100 20-200
Output power stability <3% <5%
Output beam diameter (mm) 7±1 6.5±1
Polarization Random
Pulse width (ns) 80-100 90-130 90-150 50-130
Maximum pulse energy (mJ) 0.5 1
Delivery cable length (m) 2
Power supply (VDC) 24
Power range (%) 10-100
Power consumption (W) 120 170 240 340 340 450
Size (mm) 391x260x120 396x360x123 391x260x120 396x360x123
Cooling Air
Operation temperature (°C) 0-40
Pulsed fiber laser STR-P20QB STR-P30QB
Wavelength(nm) 1060~1085 1060~1085
Polarization Random Random
Optical isolator Yes Yes
Nominal average output power (W) ≥20 ≥30
Single pulse energy (mJ) 1@20kHz 1@30kHz
Beam quality(M2) <1.5 <1.5
Beam Diameter(mm) 7±1 7±1
Pulse duration(ns) <120@20kHz <120@30kHz
Pulse repetition rate(kHz) 20 - 60 30 - 60
Output Power Tunability(%) 10-100 10-100
Output Fiber Cable length(m) 2.0 2.0
Working voltage(VDC) 24±1 24±1
Power consumption(W) 200@20℃ 300@20℃
Cooling Forced Air Cooled Forced Air Cooled
Dimension W×D×H(mm) 215×286×95 215×286×95
Operating temperature(℃) 0～40
Store temperature(℃) -20～60
Operating Humidity(%) ≤80%
Model STR-P20QS STR-P30QS
Average output power (W) ≥20 ≥30
Central wavelength 1064 1064
Pulse repetition rate (kHz) 30 - 60 40 - 60
Output power stability <3% <3%
Output beam diameter (mm) 6-8 6-8
Polarization Random Random
Pulse width (ns) 110-140 @30kHz 130-150 @40kHz
Maximum pulse energy (mJ) 0.67 0.75
Beam quality (M2) <1.5 <1.6
Power supply (VDC) 24±1 24±1
Power range (%) 10-100 10-100
Power consumption (W) 200@20℃ 300@20℃
Size (mm) 290*215*95 290*215*95
Cooling Air Air
Operation temperature (°C) 0～40 0～40

Remarks: STR-PQE, -P20QS and –P30QS are economic versions. Others are high-quality versions.

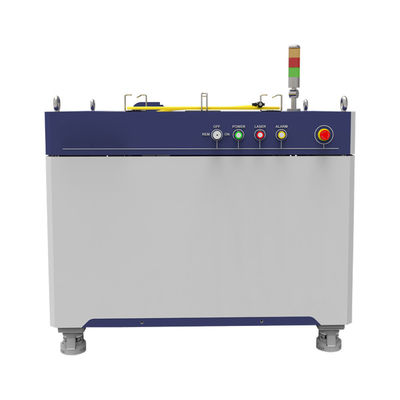

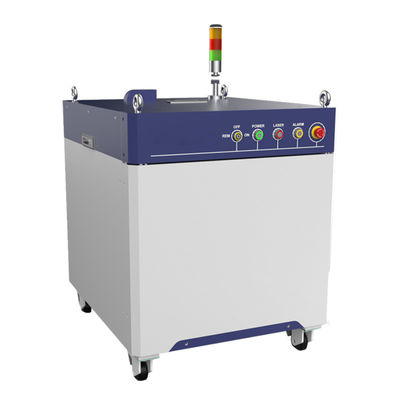

2. STR Series Short-pulse High-power Fiber Lasers

The brand-new short pulse fiber laser Series has a variety of pulse width options, including high average power (10-2000W), high-peak power (≤15kW) and 2-350ns, adjustable repetition frequencies of 10-1000kHz, short pulse setup time (≤100µs), online modifiable pulse width and other characteristics. It is ideal for industrial applications in the field of solar photovoltaic, thin film cutting, sheet material cutting, welding, surface cleaning of materials, fine marking and material deepening, etc.

Features:

  • Common control interface
  • Extremely wide operating frequency range
  • A variety of pulse width options
  • Online modifiablepulse width
  • Short pulse setup time
  • High light beam quality
  • Aircoolingdesign

Technical specifications:

Model STR-P200 STR-P300 STR-P500
Central Emission wavelength (nm) 1064 1064 1064
Nominal average output power (W) 200@20-50kHz 300@30-50kHz 500@20-50kHz
Nominal average output power (W) 100@10kHz 250@20kHz 200@10kHz
Pulse repetition rate (kHz) 10-50 20-50 10-50
Laser power stability (8hrs) <5% <5% <5%
Polarisation Random Random Random
Pulse width (ns) 90-130 120-140 80-160
Maximum Pulse energy (mJ) 10@20kHz 12.5@20kHz 25@20kHz
Fiber core dia. (um) 100 100 200
Fiber length (m) 5.0 5.0 10.0
Output power tunability (%) 10-100 10-100 10-100
Operating voltage 220VAC 220VAC 220VAC
Cooling Air Water Water
Operating temperature (oC) 0-40 0-40 0-40
Dimension WxDxH (mm) 485x237x764 485x237x764 502x254x755
