High Power Femtosecond Pulse Fiber Laser 1560nm High Repetition Frequency

High Power Femtosecond Pulse Fiber Laser 1560nm High Repetition Frequency
High Power Femtosecond Pulse Fiber Laser 1560nm High Repetition Frequency High Power Femtosecond Pulse Fiber Laser 1560nm High Repetition Frequency High Power Femtosecond Pulse Fiber Laser 1560nm High Repetition Frequency High Power Femtosecond Pulse Fiber Laser 1560nm High Repetition Frequency High Power Femtosecond Pulse Fiber Laser 1560nm High Repetition Frequency

Large Image :  High Power Femtosecond Pulse Fiber Laser 1560nm High Repetition Frequency

Product Details:
Brand Name: Sintec Optronics
Model Number: SMR Series
Payment & Shipping Terms:
Delivery Time: Stock
Payment Terms: T/T via bank
Contact Now

High Power Femtosecond Pulse Fiber Laser 1560nm High Repetition Frequency

Description
Highlight:

Femtosecond Fiber Laser

,

Fiber Laser

,

Pulse Fiber Laser

1560nm High Repetition Frequency High Power Femto-second Pulse Fiber Laser

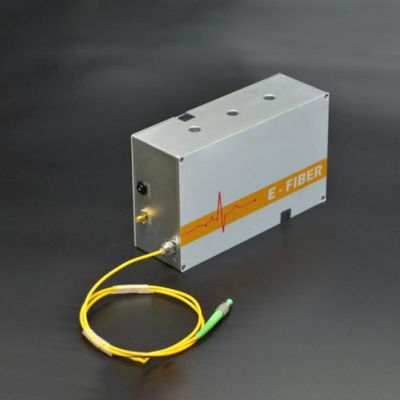

1. 1560nm Femtosecond Pulse Fiber Laser

E-fiber series ultrafast lasers integrate the latest femtosecond laser technology. The stable output of 1560 nm femtosecond pulse laser is realized by using high-performance erbium-doped fiber as working medium and high-precision dispersion compensation technology. The output laser pulse has the characteristics of extremely narrow duration and high pulse peak power. The laser is a turnkey product with long-term stable operation and maintenance free. It can be widely used in the research fields of optical frequency comb, supercontinuum, terahertz and so on. Specific combination of pulse duration, repetition rate and average power is customizable.

Features

  • Pulse duration<50fs
  • 1560 nm wavelength
  • Turn-Key Product
  • All PM fiber Laser cavity

Applications

  • Optical Frequency Comb
  • Supercontinuum
  • THz
  • Ultra Fast Laser Research
Parameters Unit Typical Value Remarks
Center Wavelength nm 1560±10
Spectrum Width nm 20 60
Pulse Duration fs 50/100/200/500 Customizable
Average Power mW 1~120 Customizable
Power Instability - < ±1%
Repetition Rate MHz 80
Repetition Rate Instability Hz < 100
Pulse Energy nJ >1
Polarization - Linear Aligned to Slow Axis
Fiber Type - PM Fiber 0.5m PM Fiber 2m
Fiber connector - FC/APC
Worm Up time min < 1
General Parameters Benchtop Module
Control function Push Button in Front Panel RS232 Serial Port
Synchronous electrical signal port SMA SMA
Power Supply AC100~240V, <30W DC5V, <20W
Dimensions(mm) 260(W)×280(D)×120(H) 200(W)×121(D)×65(H)
Operation Temperature 5 ~ 35°C
Operation Humidity 0~70%

High Power Femtosecond Pulse Fiber Laser 1560nm High Repetition Frequency 0

Ordering Information/Product Code
SMR-FSPL WL(nm) Pulse Duration(fs) Power(mW) Freq (MHz) Fiber Packaging
  1560 50/100/200/
500		 10/50/100 80/100 SM
PM		 B=Benchtop
M=Module

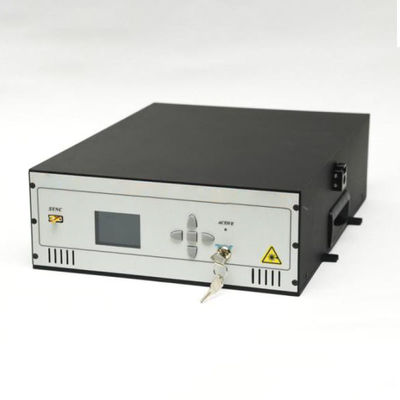

2. 1560nm High-Power Femtosecond Pulse Fiber Laser

E-fiber series ultrafast lasers integrate the latest femtosecond laser technology. The stable output of 1560 nm femtosecond pulse laser is realized by using high-performance erbium-doped fiber as working medium and high-precision dispersion compensation technology. The average power can be 1 Watt. The laser is a turnkey product with long-term stable operation and maintenance free. It can be widely used in the research fields of optical frequency comb, supercontinuum, terahertz and so on. Specific combination of pulse duration, repetition rate and average power is customizable.

Features

  • Pulse duration < 120fs
  • Average Power 1W
  • Turn-Key Product
  • ALL PM fiber Laser cavity

Applications

  • Optical Frequency Comb
  • Supercontinuum Light
  • THz Generation
  • Ultra Fast Laser Research
Parameters Unit Typical Value Remarks
Center Wavelength nm 1560±10
Pulse Duration fs ≤120 Customizable
Average Power W 1 Customizable
Power Instability - < ±1% 24h@25°C
Repetition Rate MHz 80~100 Customizable
Pulse Energy nJ >10
Polarization - Line Vertical
DOP dB >20dB
Output - Free Space
M2 - <1.2 TEM00
Beam Diameter mm ≤1.6 * 1/e2 Waist Diameter
Divergence Angle mrad <1.5
Worm Up time min < 1
General Parameters Unit Value Remarks
Synchronous signal Port - SMA
Operation temperature °C 5 ～ 45
Power Supply - AC 110~240VAC Power <40W
Dimension mm 330(W)×398(D)×112(H) Benchtop
Weight kg ≤5

High Power Femtosecond Pulse Fiber Laser 1560nm High Repetition Frequency 1

Ordering Information/Product Code
SMR-FSPL WL(nm) Pulse Duration(fs) Power(mW) Freq (MHz) Fiber Packaging
  1560 120 1000 80/100 FS=Free Space B=Benchtop

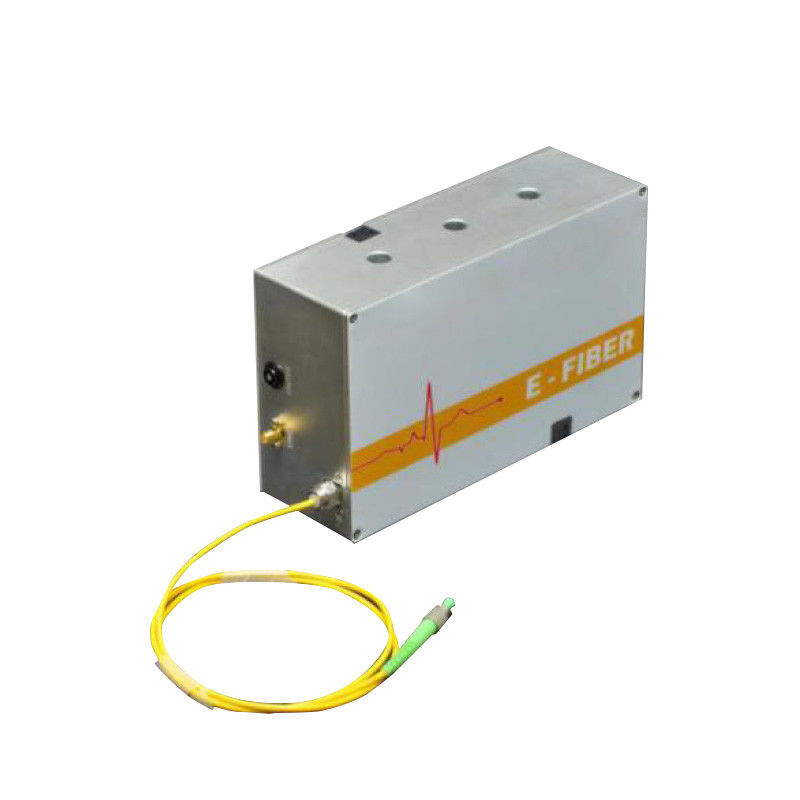

3. 1560nm High Frequency Femtosecond Pulse Fiber Laser

E-fiber series ultrafast lasers integrate the latest femtosecond laser technology. The stable output of 1560 nm femtosecond pulse laser is realized by using high-performance erbium-doped fiber as working medium and high-precision dispersion compensation technology. The laser has high repetition rate. The laser is a turnkey product with long-term stable operation and maintenance free. It can be widely used in the research fields of optical frequency comb, supercontinuum, terahertz and so on. Specific combination of pulse duration, repetition rate and average power is customizable.

Features

  • Pulse duration 50~500 fs
  • Repetition Rate 200MHz~1GHz Customizable
  • Turn-Key Product
  • ALL PM fiber Laser cavity

Applications

  • Optical Frequency Comb
  • Supercontinuum Light
  • THz Generation
  • Ultra fast Laser Research
Parameters Unit Typical Value Remarks
Center Wavelength nm 1560±10
Spectrum Width nm 20
Pulse Duration fs 50 ~ 500 Customizable
Average Power mW 1 ~ 200 Customizable
Power Instability - < ±1%
Repetition Rate MHz ≥ 200 200MHz~1GHz
Repetition Rate Instability Hz < 200
Pulse Energy nJ > 1
Polarization - Linear Aligned to Slow Axis
Fiber Type - PM fiber, 1m
Fiber connector - FC/APC
Worm Up time min < 1
General Parameters Benchtop Module
Control function Push Button in Front Panel RS232 Serial Port
Synchronous electrical signal port SMA SMA
Power Supply AC100~240V, <30W DC5V, <20W
Dimensions(mm) 260(W)×280(D)×120(H) 200(W)×121(D)×65(H)
Operation Temperature 5 ~ 35°C
Operation Humidity 0~70%

High Power Femtosecond Pulse Fiber Laser 1560nm High Repetition Frequency 2

Ordering Information/Product Code
SMR-FSPL WL(nm) Pulse Duration(fs) Power(mW) Freq (MHz) Fiber Packaging
  1560 50/100/200/500 10/50/100 200/600/1000 SM
PM		 B=Benchtop
M=Module

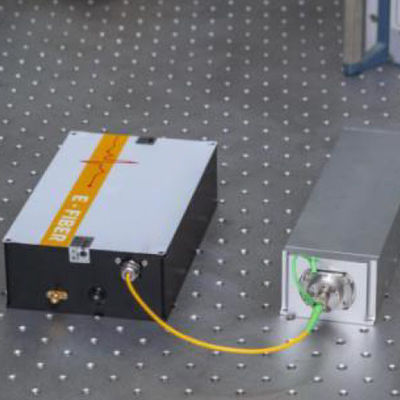

4.1560nm Picosecond Pulse Fiber Laser

Specific combination of pulse duration, repetition rate and average power is customizable.

Features

  • Pulse Duration 1~100ps
  • Center Wavelength 1530~1560 nm
  • Turn-Key Product
  • ALL PM fiber Laser cavity

Applications

  • Optical Frequency Comb
  • Supercontinuum Light
  • THz Generation
  • Ultra fast Laser Research
Parameters Unit Typical Value Remarks
Center Wavelength nm 1530~1560 Customizable
Spectrum Width nm 0.5~50
Pulse Duration ps 1/10/50/100 Customizable
Average Power mW 1~120 Customizable
Power Instability - < ±1%
Repetition Rate MHz 80 Customizable
Repetition Rate Instability Hz < 100
Pulse Energy nJ >1
Polarization - Linear Aligned to Slow Axis
Fiber Type - PM Fiber
Fiber connector - FC/APC
Worm Up time min < 1
General Parameters Benchtop Module
Control function Push Button in Front Panel Push Button in Front Panel
Synchronous electrical signal port SMA SMA
Power Supply AC100~240V, <30W DC5V, <20W
Dimensions(mm) 260(W)×280(D)×120(H) 200(W)×121(D)×65(H)mm
Operation Temperature 5 ~ 35°C
Operation Humidity 0~70%

High Power Femtosecond Pulse Fiber Laser 1560nm High Repetition Frequency 3High Power Femtosecond Pulse Fiber Laser 1560nm High Repetition Frequency 4

Ordering Information/Product Code
SMR-PSPL WL(nm) Pulse Duration(fs) Power(mW) Freq (MHz) Fiber Packaging
  1560 50/100/200/



500

 10/50/100 80/100 SM



PM

 B= benchtop



M=Module

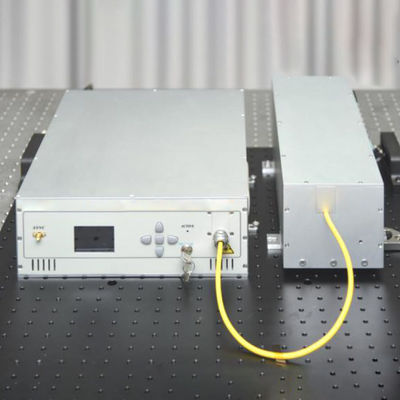

5.780nm Femtosecond Pulse Fiber Laser

The 780nm is generated by second-harmonic of 1560nm. The laser is a turnkey product with long-term stable operation and maintenance free. It can be widely used in the research fields of optical frequency comb, supercontinuum, terahertz and so on. Specific combination of pulse duration, repetition rate and average power is customizable.

Features

  • 100fs
  • Turn-Key Product
  • All PM fiber Laser cavity

Applications

  • multiphoton
  • two-photonabsorption
  • UltrafastOptics
Parameters Unit Typical Value Remarks
Center Wavelength nm 780±10
Spectrum Width nm 20
Pulse Duration fs <100 Customizable
Average Power mW >30 Customizable
Power Instability - < ±1%
Repetition Rate MHz 80 Customizable
Repetition Rate Instability Hz < 100
Pulse Energy nJ > 0.4
Polarization - Linear
Fiber Type - Free Space
Fiber connector min < 1
General Parameters Benchtop Module
Control function Push Button in Front Panel Push Button in Front Panel
Synchronous electrical signal port SMA SMA
Power Supply AC100~240V, <30W DC5V, <20W
Dimensions(mm) 260(W)×280(D)×120(H)mm 200(W)×121(D)×65(H)mm
Operation Temperature 5 ~ 35°C
Operation Humidity 0~70%
Ordering Information/Product Code
SMR-FSPL WL (nm) Pulse Duration(fs) Power (mW) Freq (MHz) Fiber Packaging
  780 50/100/200/500 1/10/50/
100		 80/100 FS=Free Space B= benchtop
M=Module
